Amplifier, Sound System




Component Connector End Views

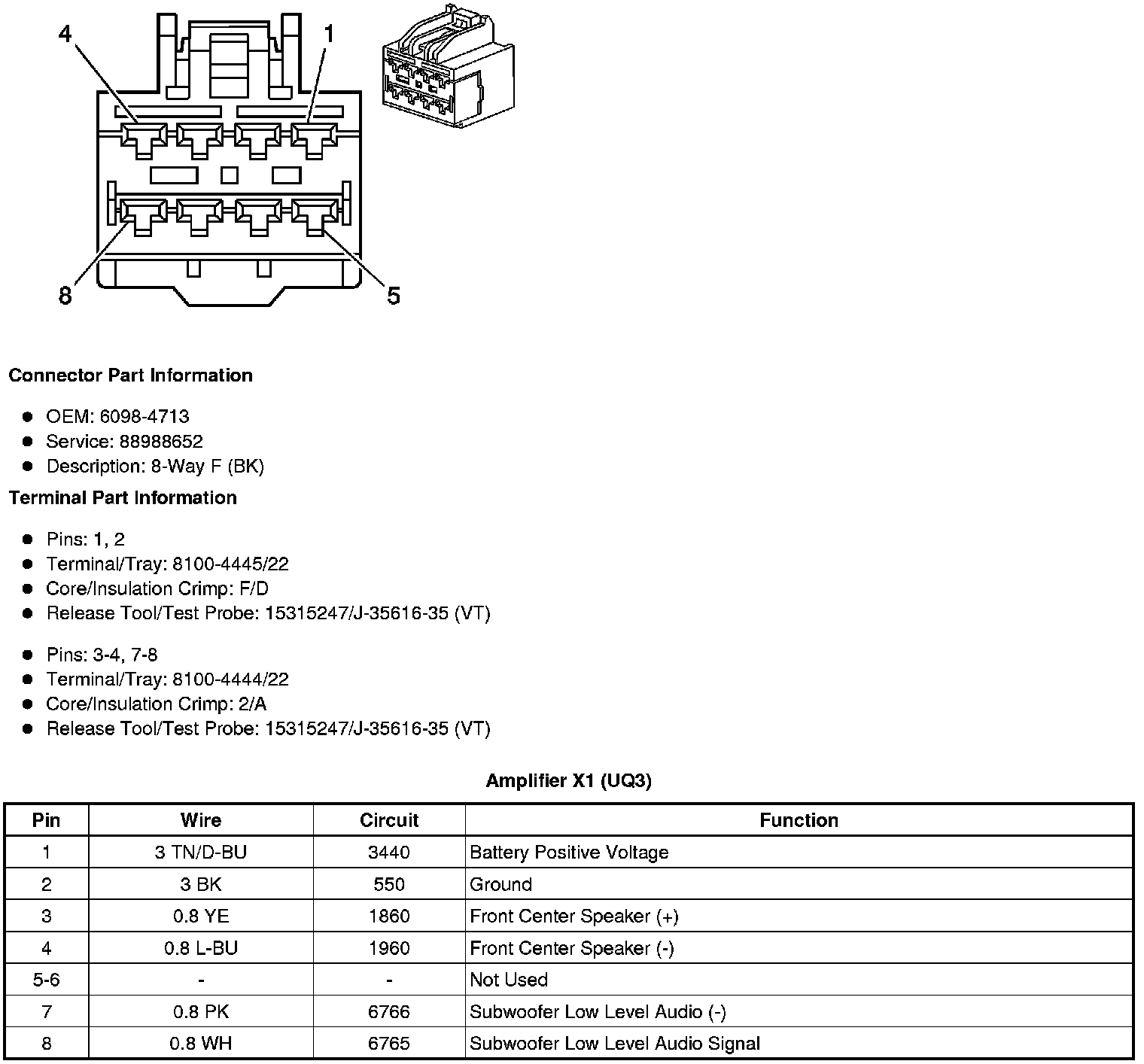

Amplifier X1 (UQ3)

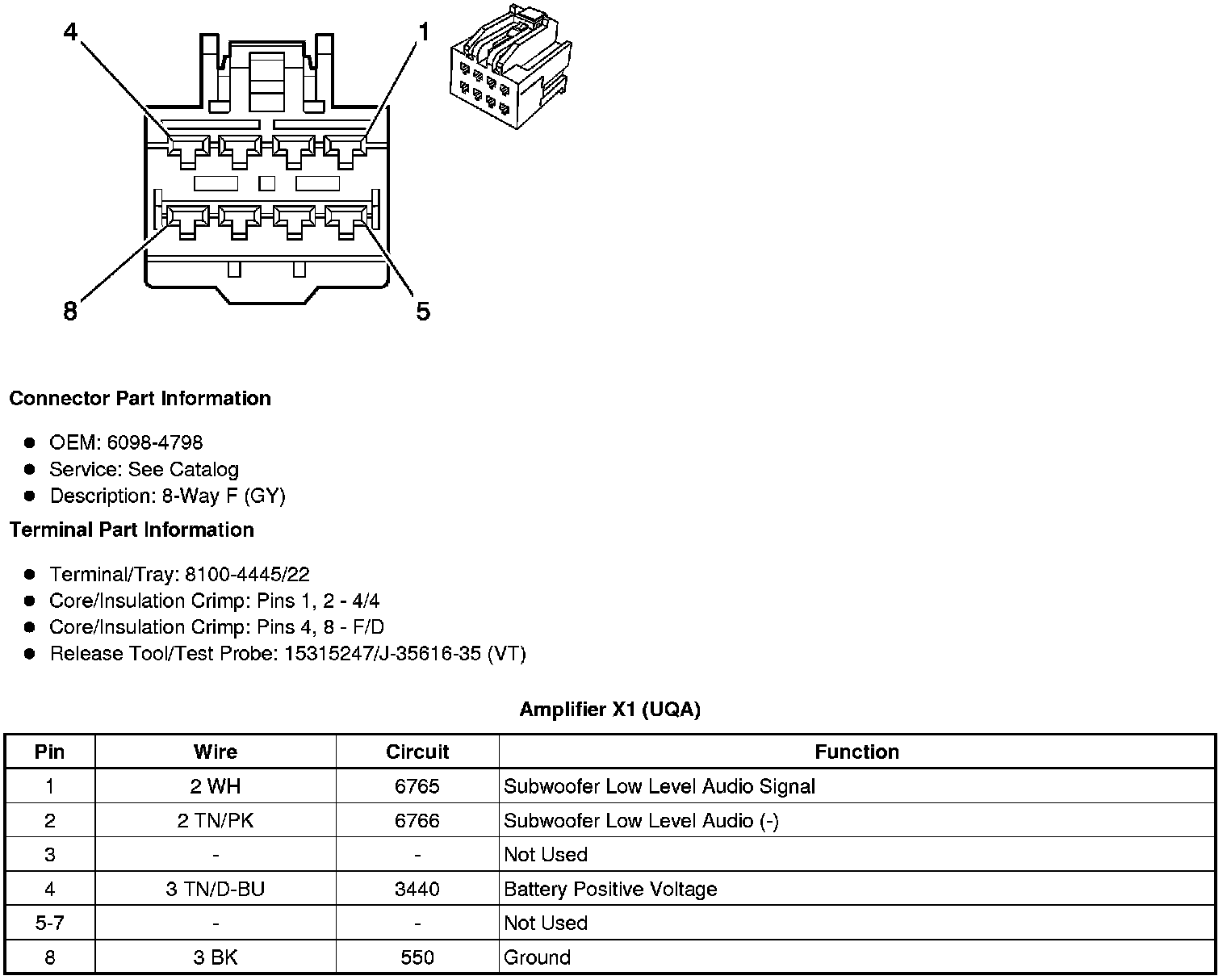

Amplifier X1 (UQA)

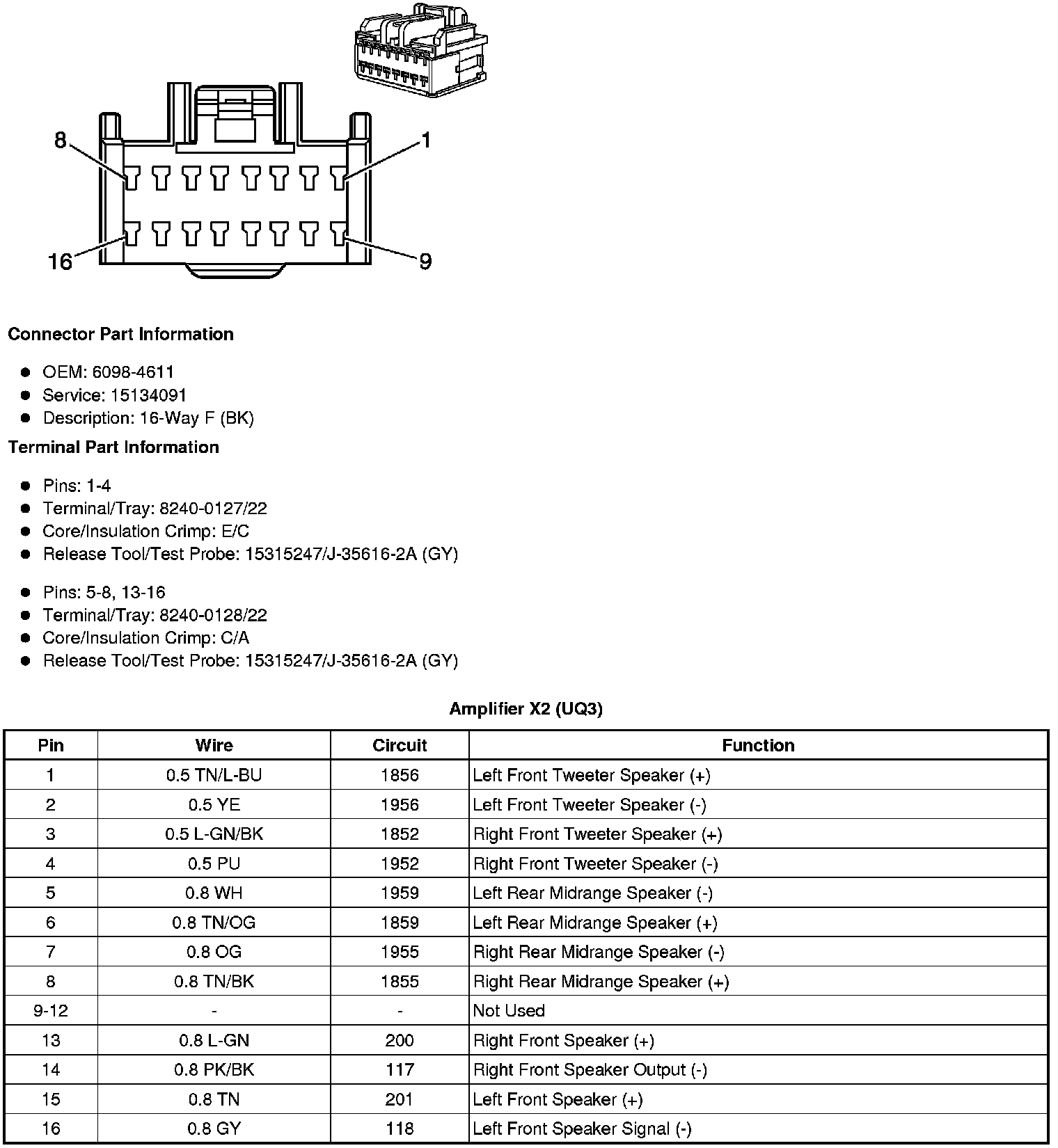

Amplifier X2 (UQ3)

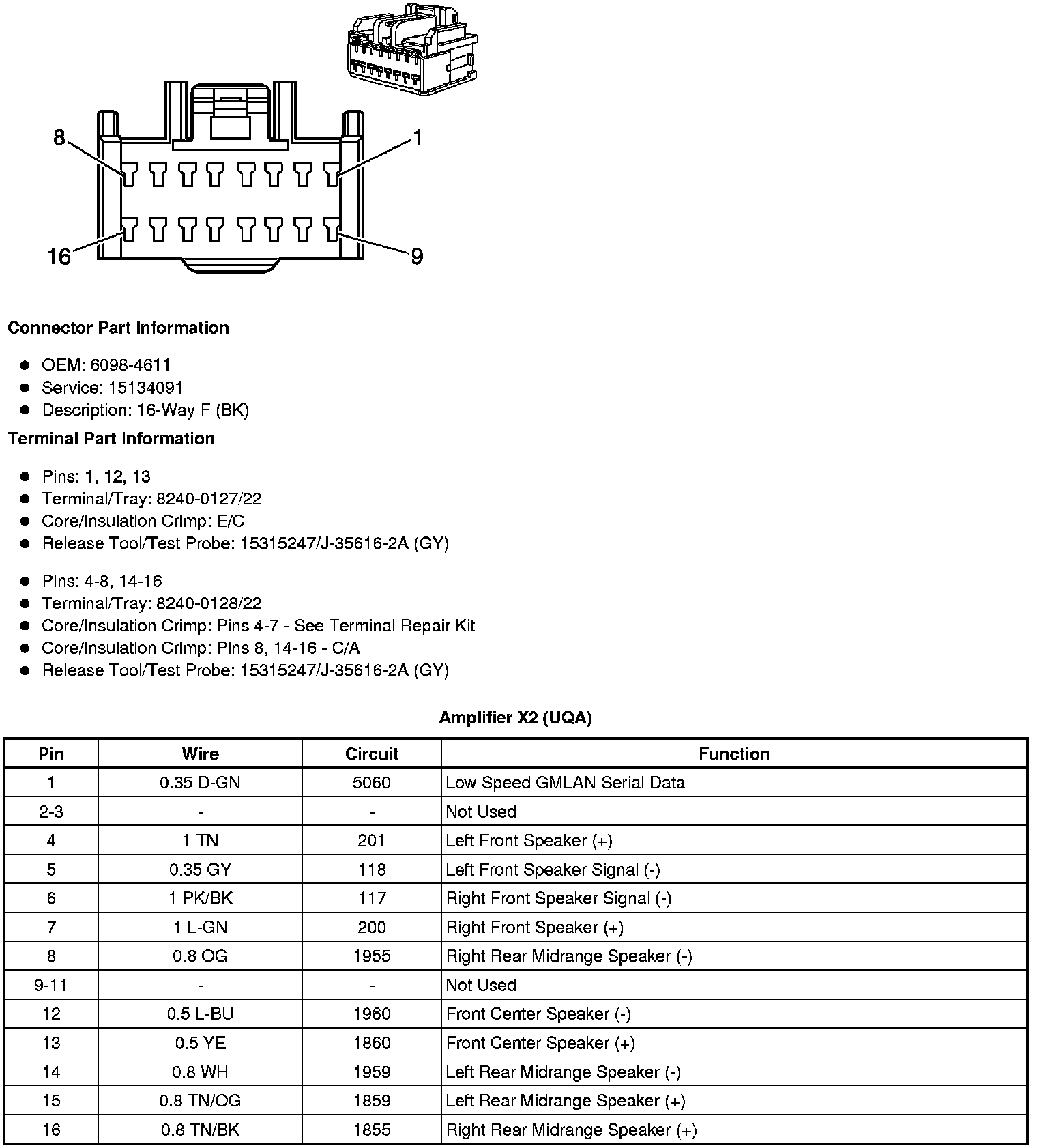

Amplifier X2 (UQA)

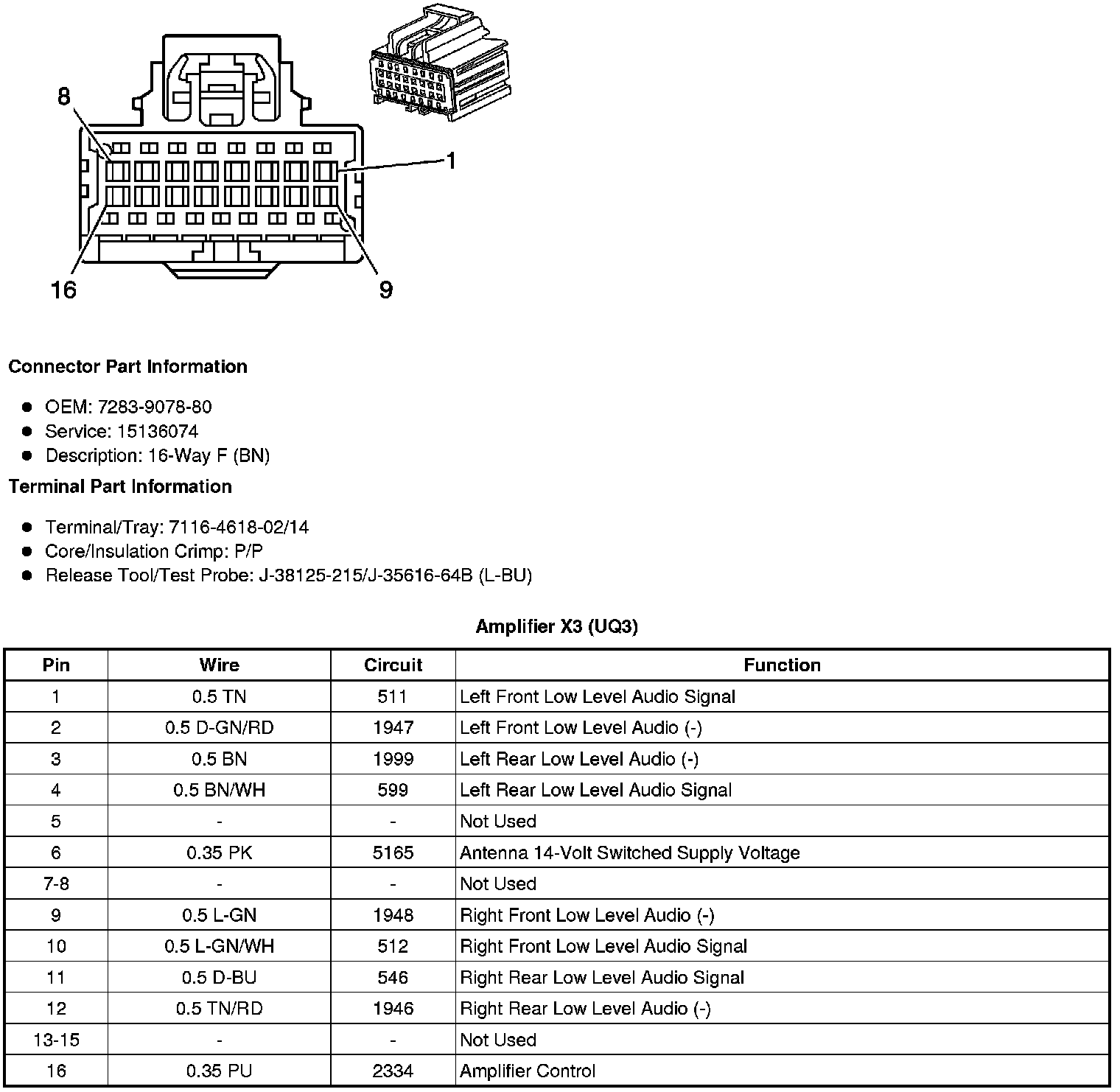

Amplifier X3 (UQ3)

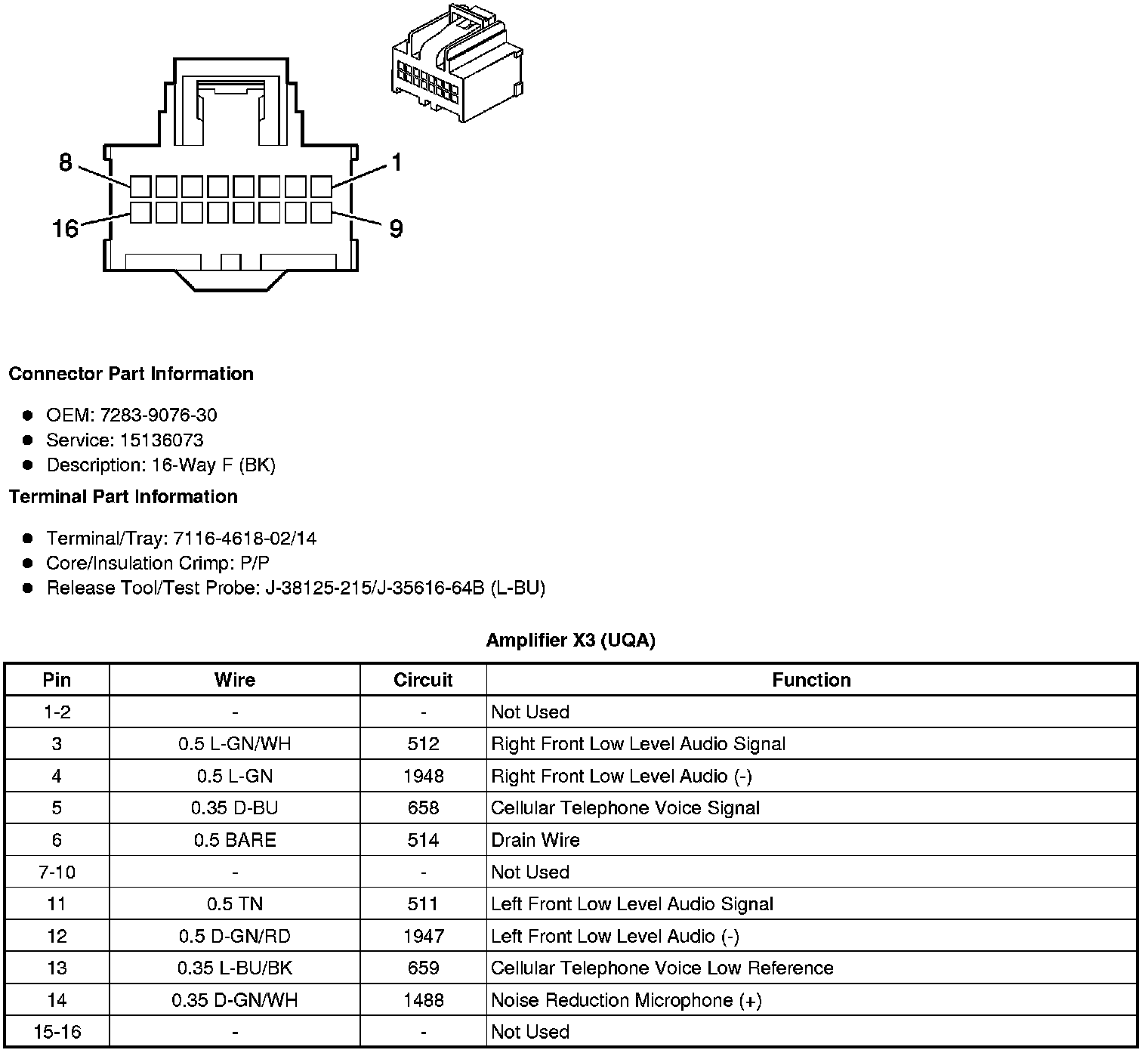

Amplifier X3 (UQA)
