Oil Pan, Engine

Oil Pan

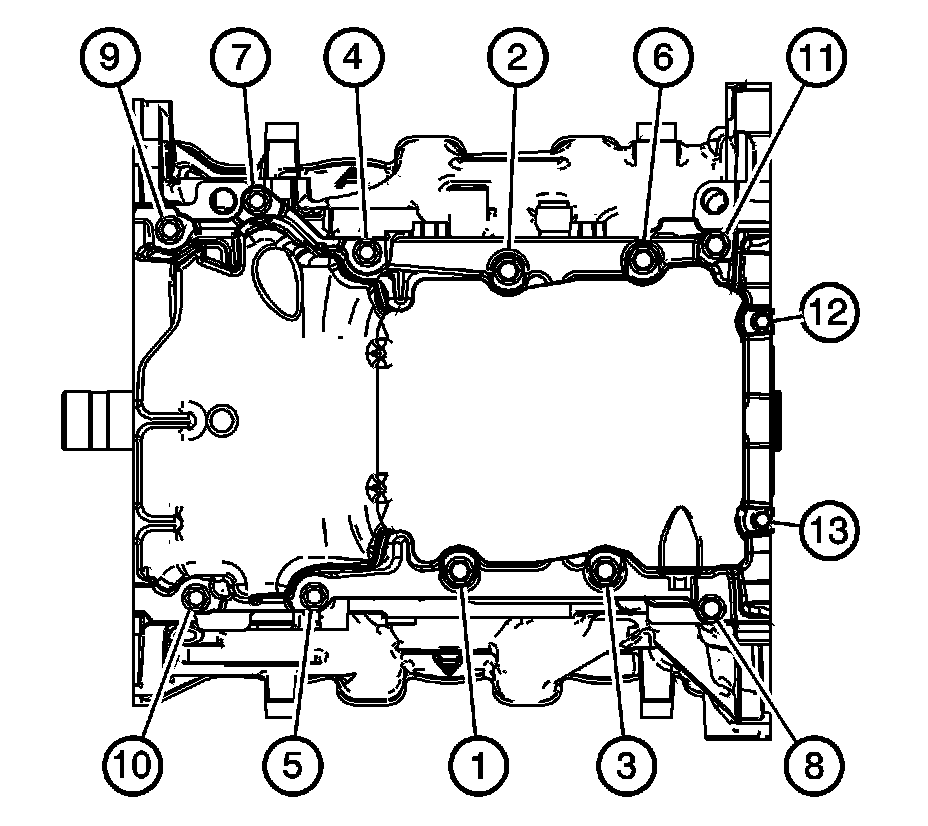

RWD:

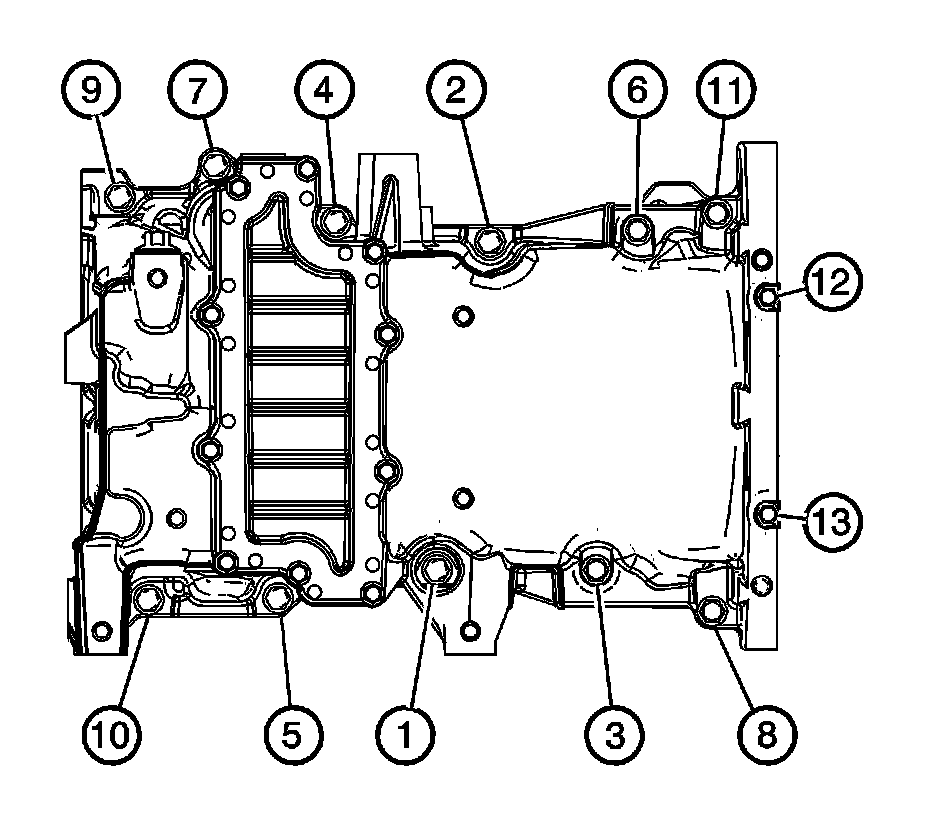

AWD:




Bolt - Block M8 23 Nm (17 lb ft)
Bolt - Crankshaft Rear Oil Seal Housing M6 10 Nm (89 lb in)
