Power Window Switch



Component Connector End Views

Window Switch - Front Passenger

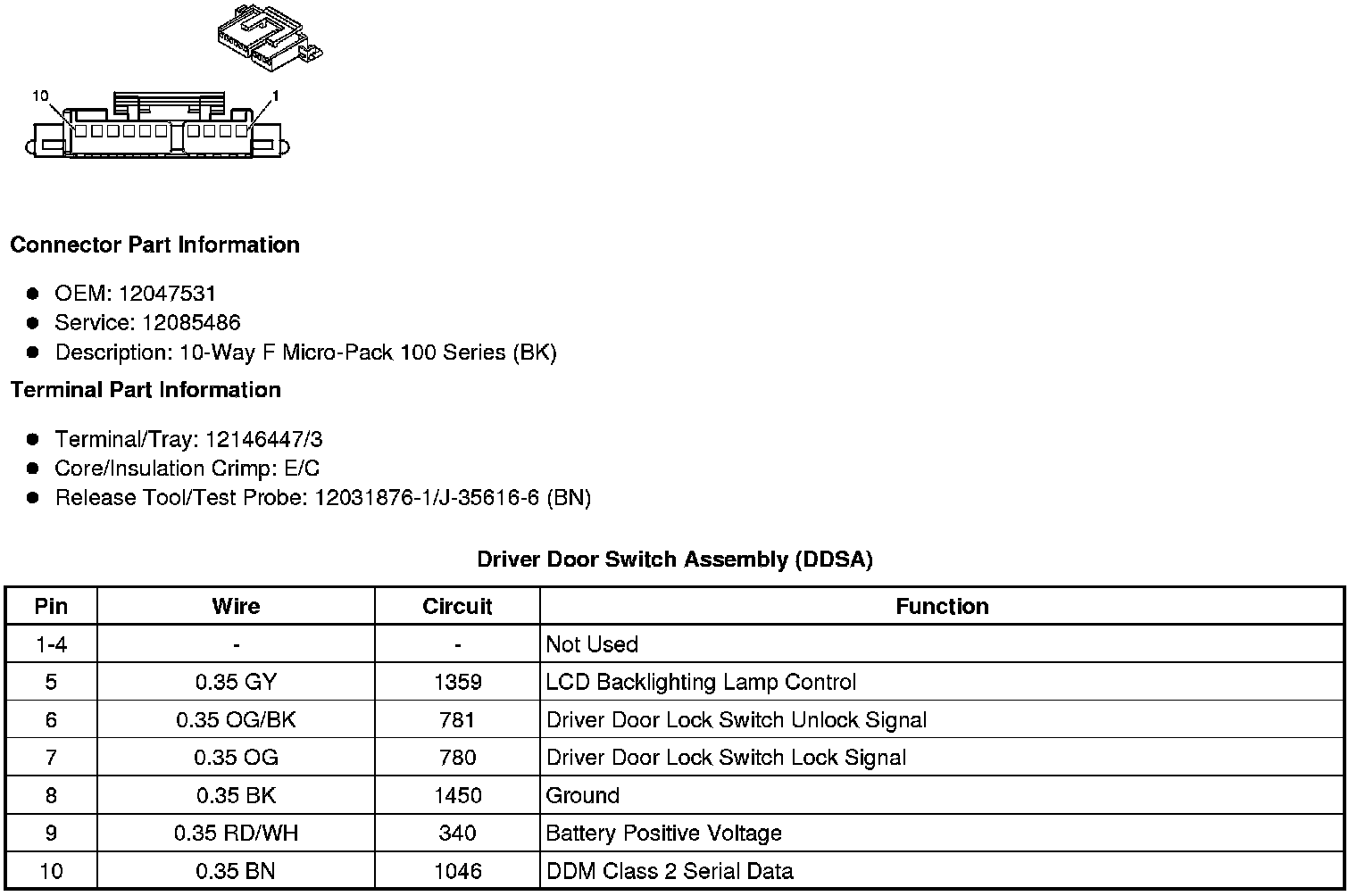

Driver Door Switch Assembly (DDSA)
