Power Distribution Schematics

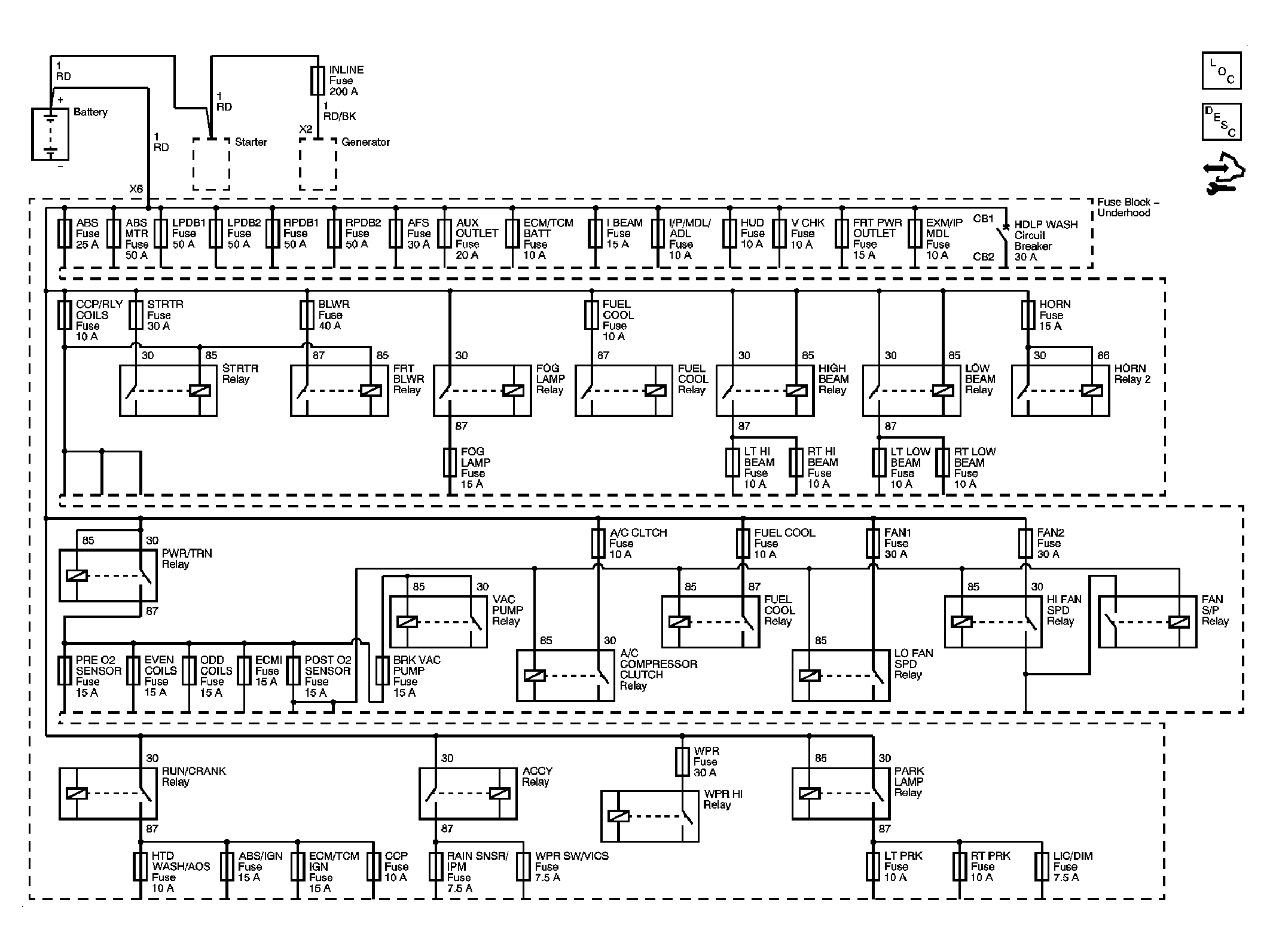

Fig 1: Fuse Block - Underhood Bussing Schematic

GM1905070

Courtesy of GENERAL MOTORS CORP.

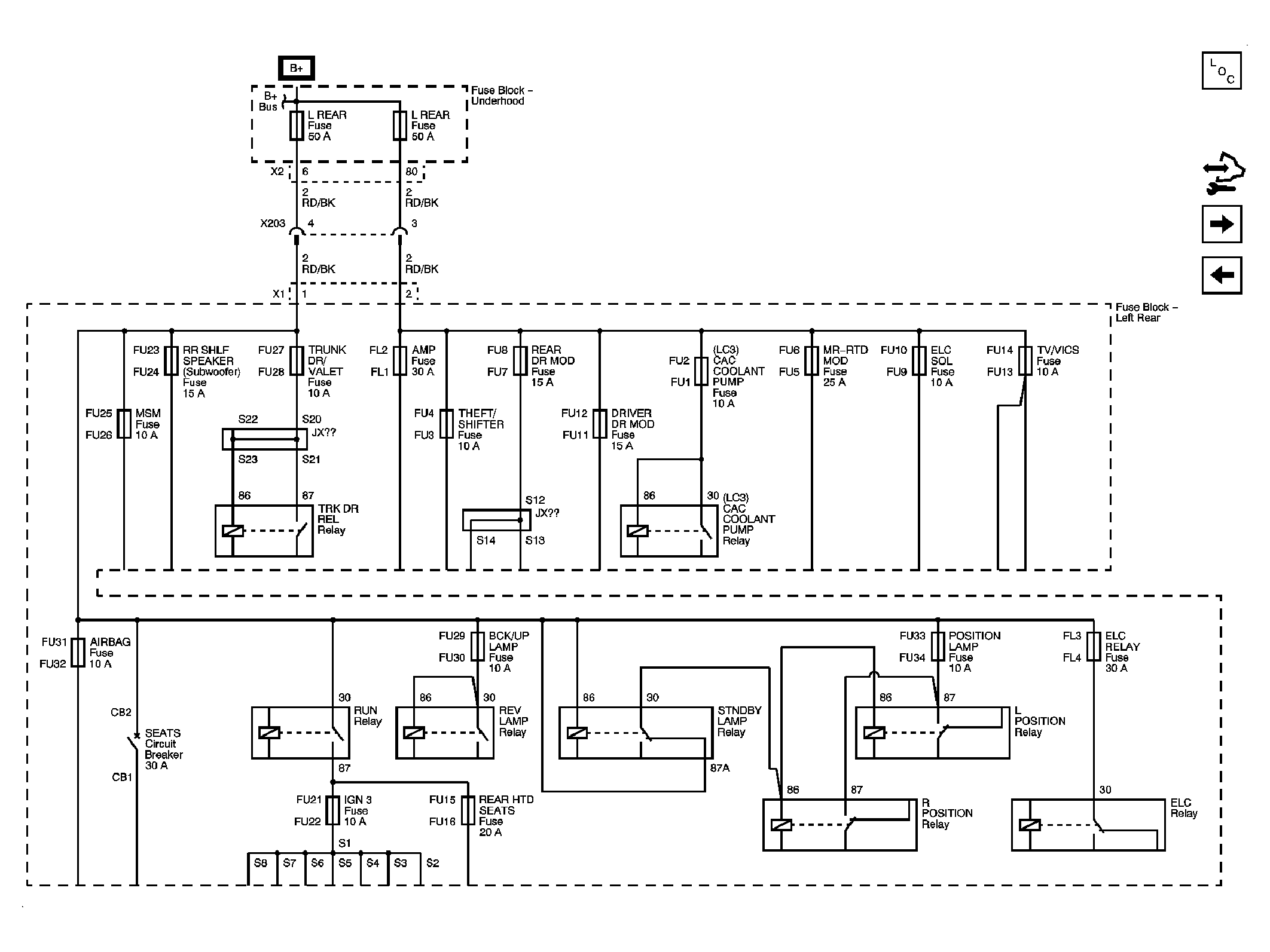

Fig 2: Fuse Block - Left Rear Bussing Schematic

GM1905072

Courtesy of GENERAL MOTORS CORP.

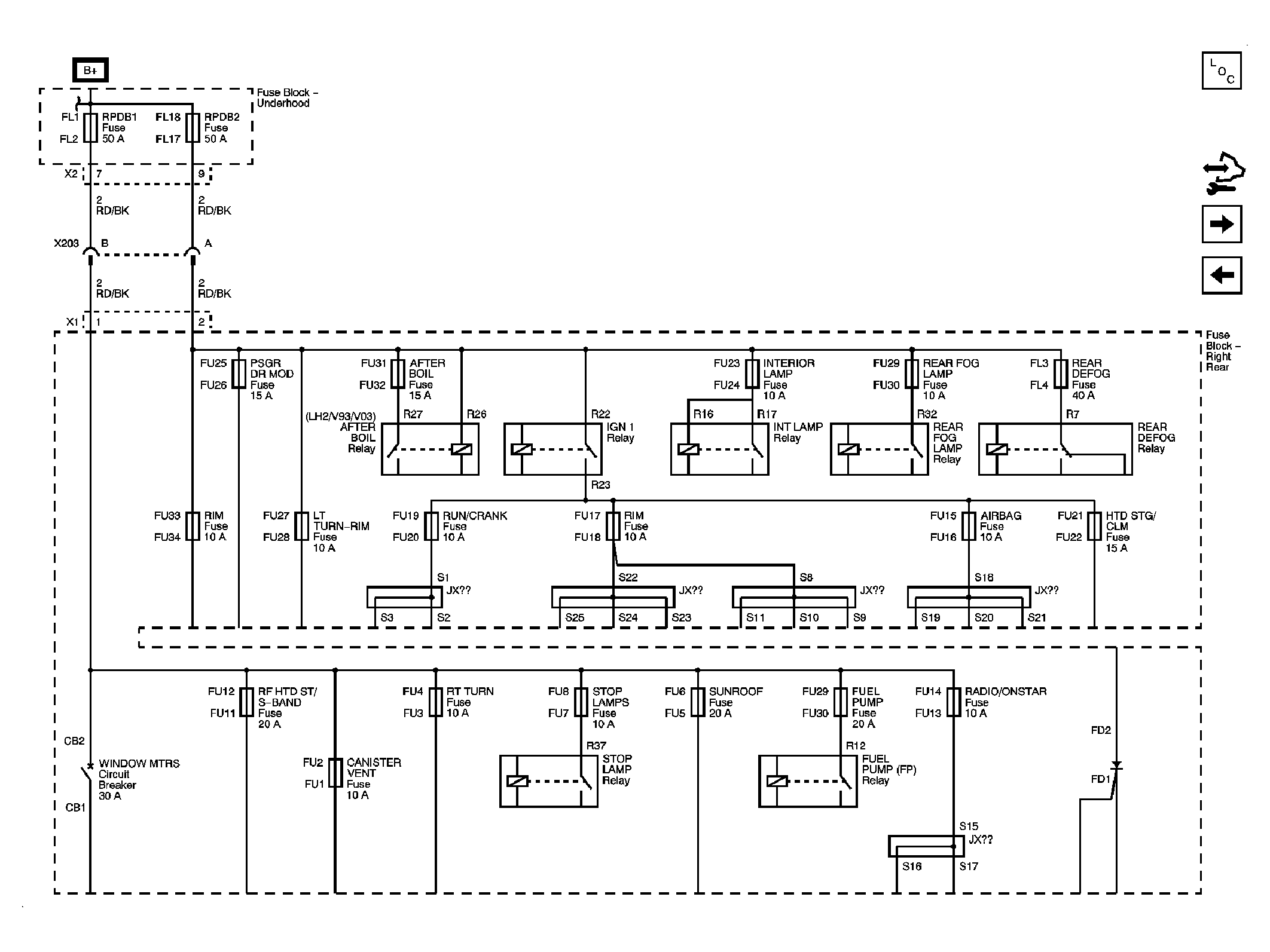

Fig 3: Fuse Block - Right Rear Bussing Schematic

GM1905074

Courtesy of GENERAL MOTORS CORP.

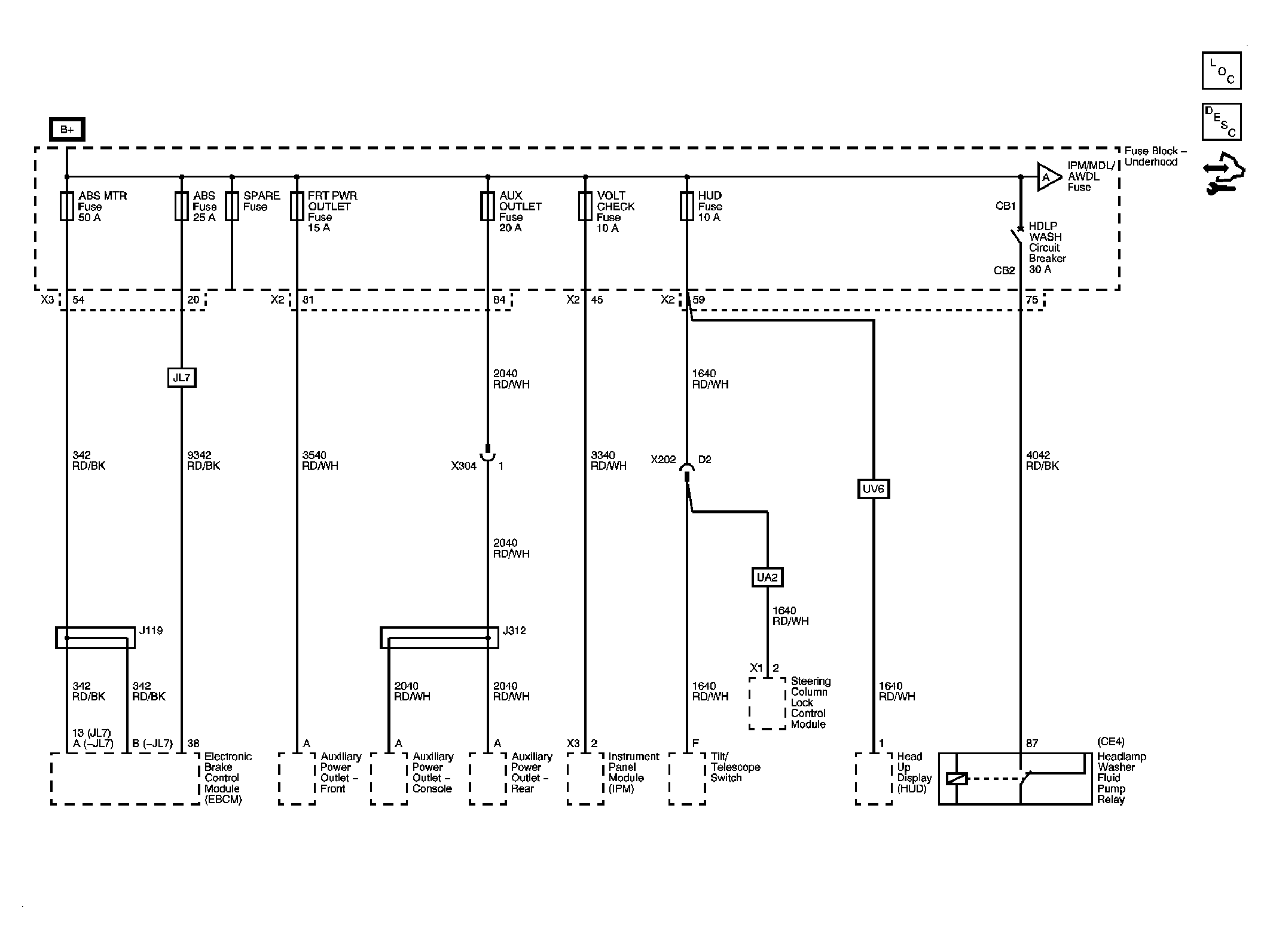

Fig 4: ABS, ABS MTR, AUX OUTLET, FRT PWR OUTLET, HUD, VOLT CHECK Fuses and HDLP WASH C/B OPT Circuit Breaker Schematic

GM1905076

Courtesy of GENERAL MOTORS CORP.

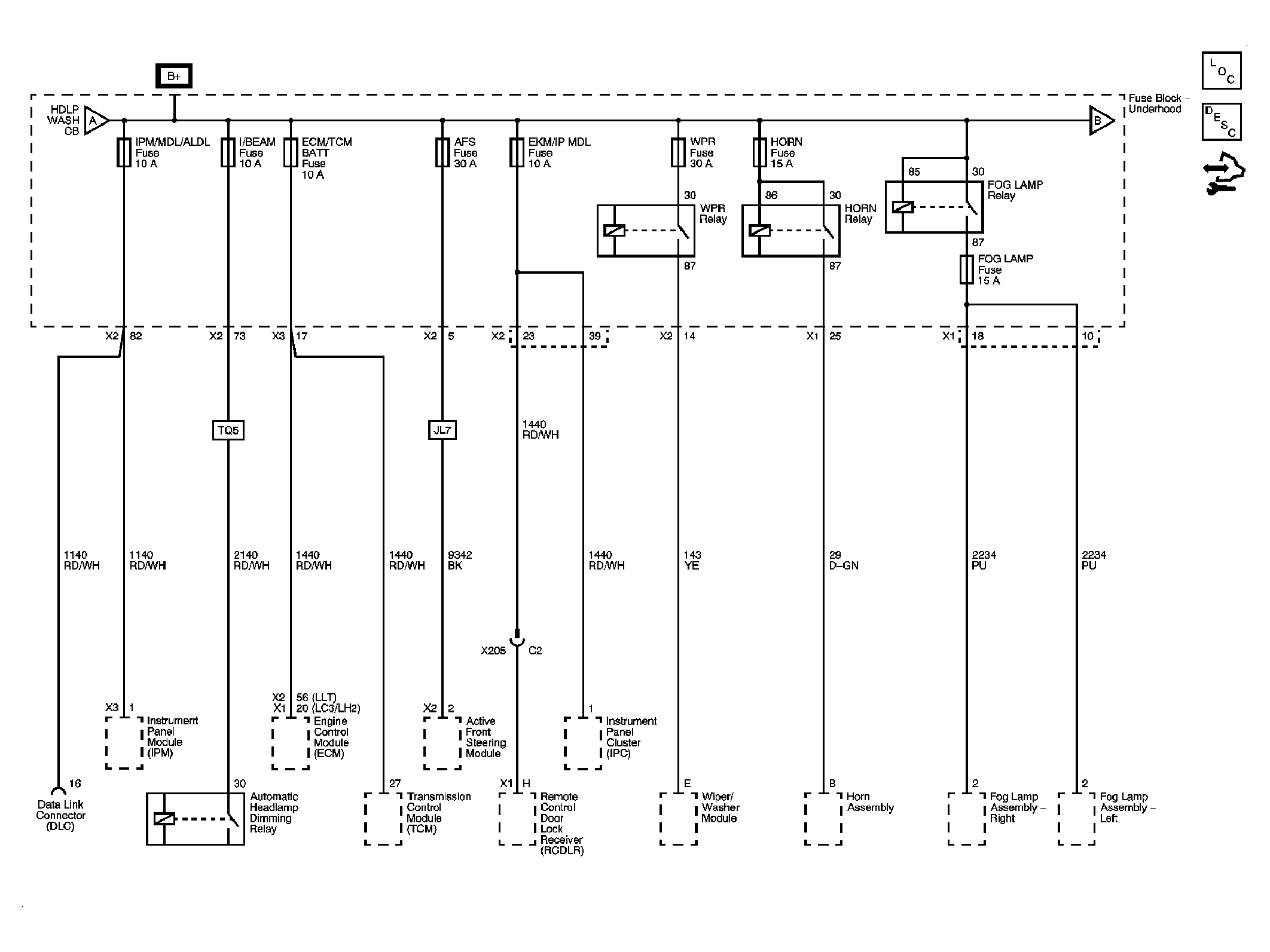

Fig 5: AFS, ECM/TCM/BATT, EKM/IP MDL, FOG LP, HORN, I/BEAM, IPM/MDL/ALDLand WIPER Fuses Schematic

GM1905078

Courtesy of GENERAL MOTORS CORP.

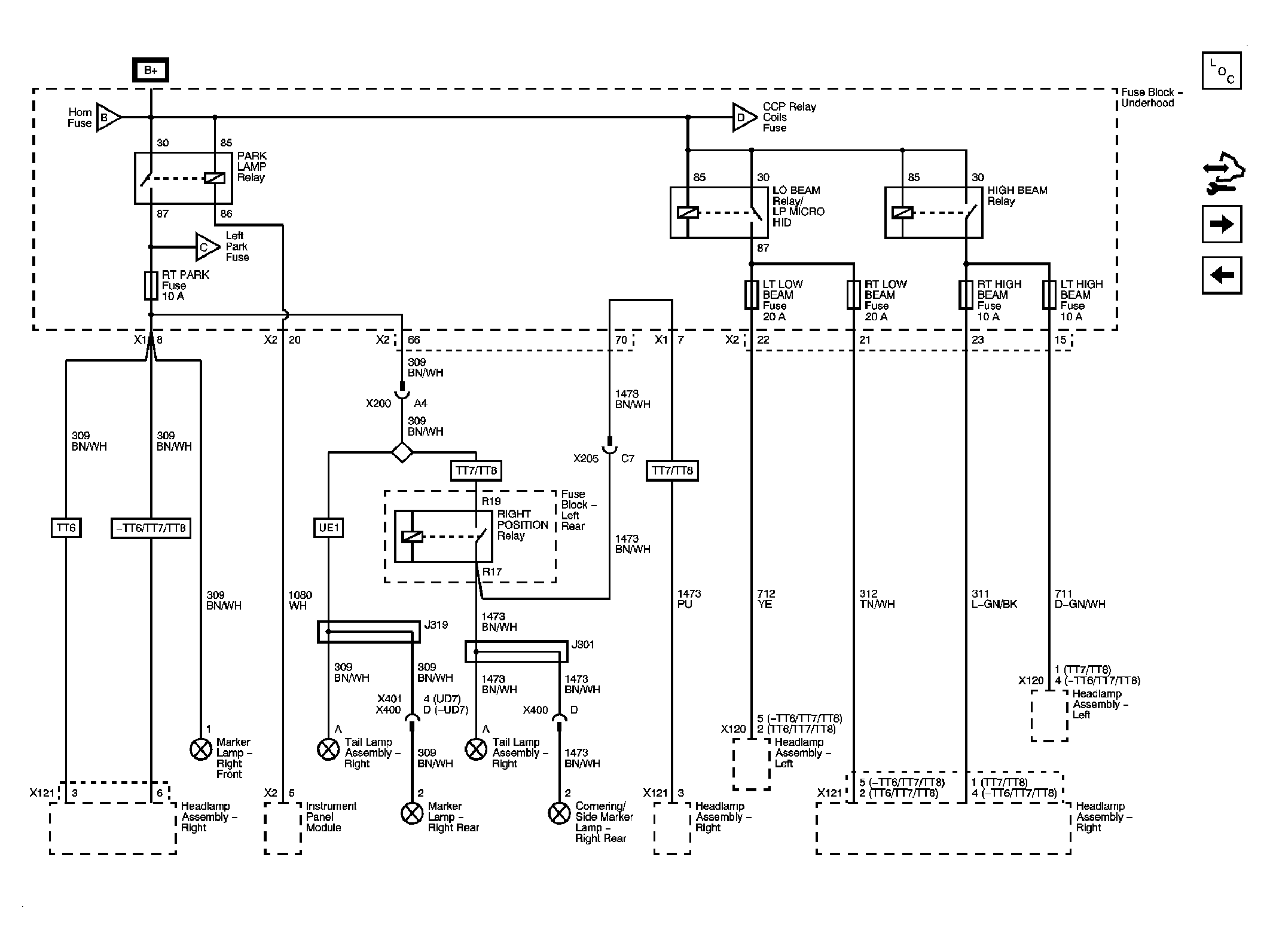

Fig 6: LT HIGH BEAM, LT LOW BEAM, RT HIGH BEAM, RT LOW BEAM and RT PARK Fuses Schematic

GM1905081

Courtesy of GENERAL MOTORS CORP.

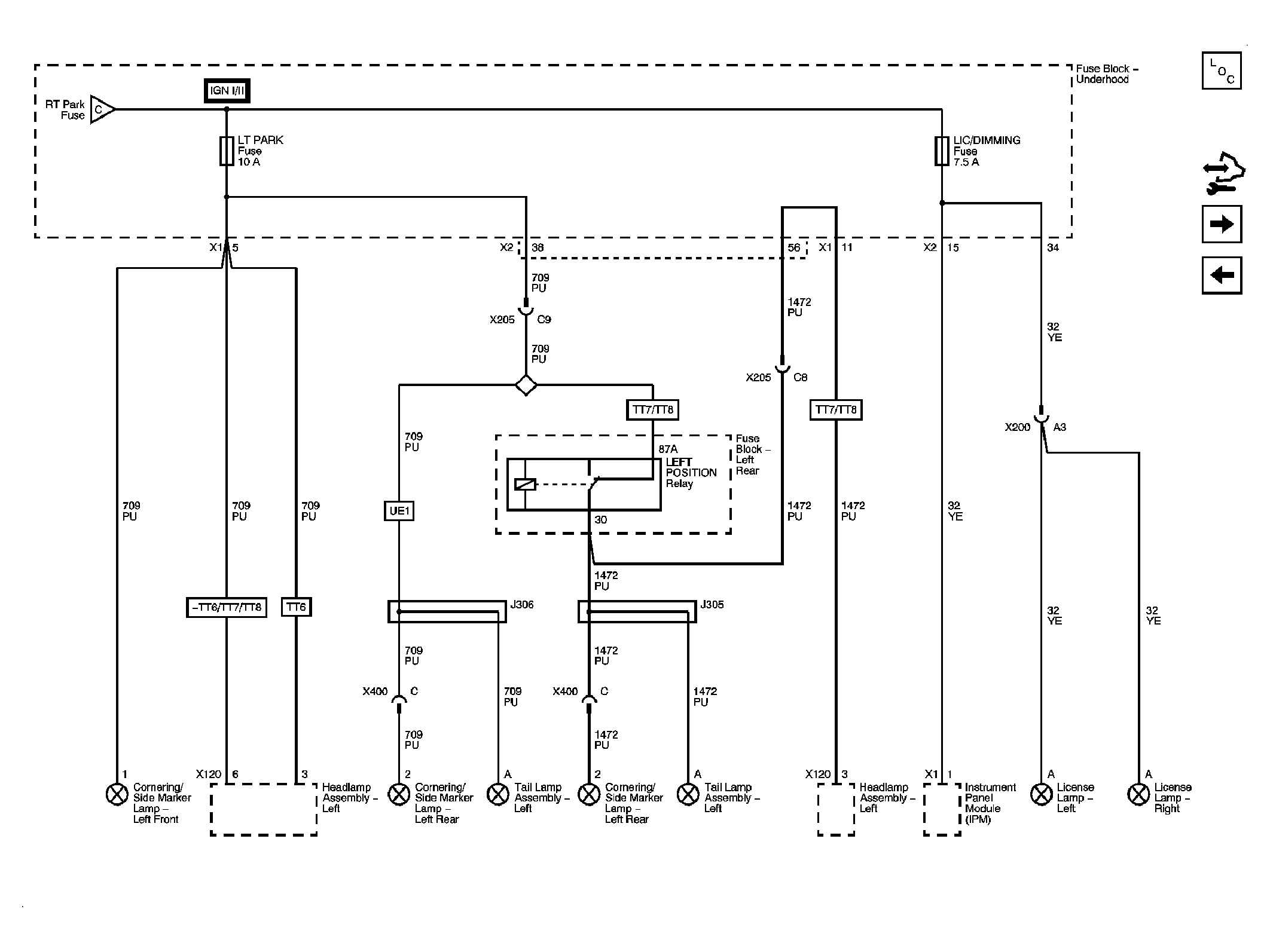

Fig 7: LT PARK and LIC/DIMMING FUSES Schematic

GM1905086

Courtesy of GENERAL MOTORS CORP.

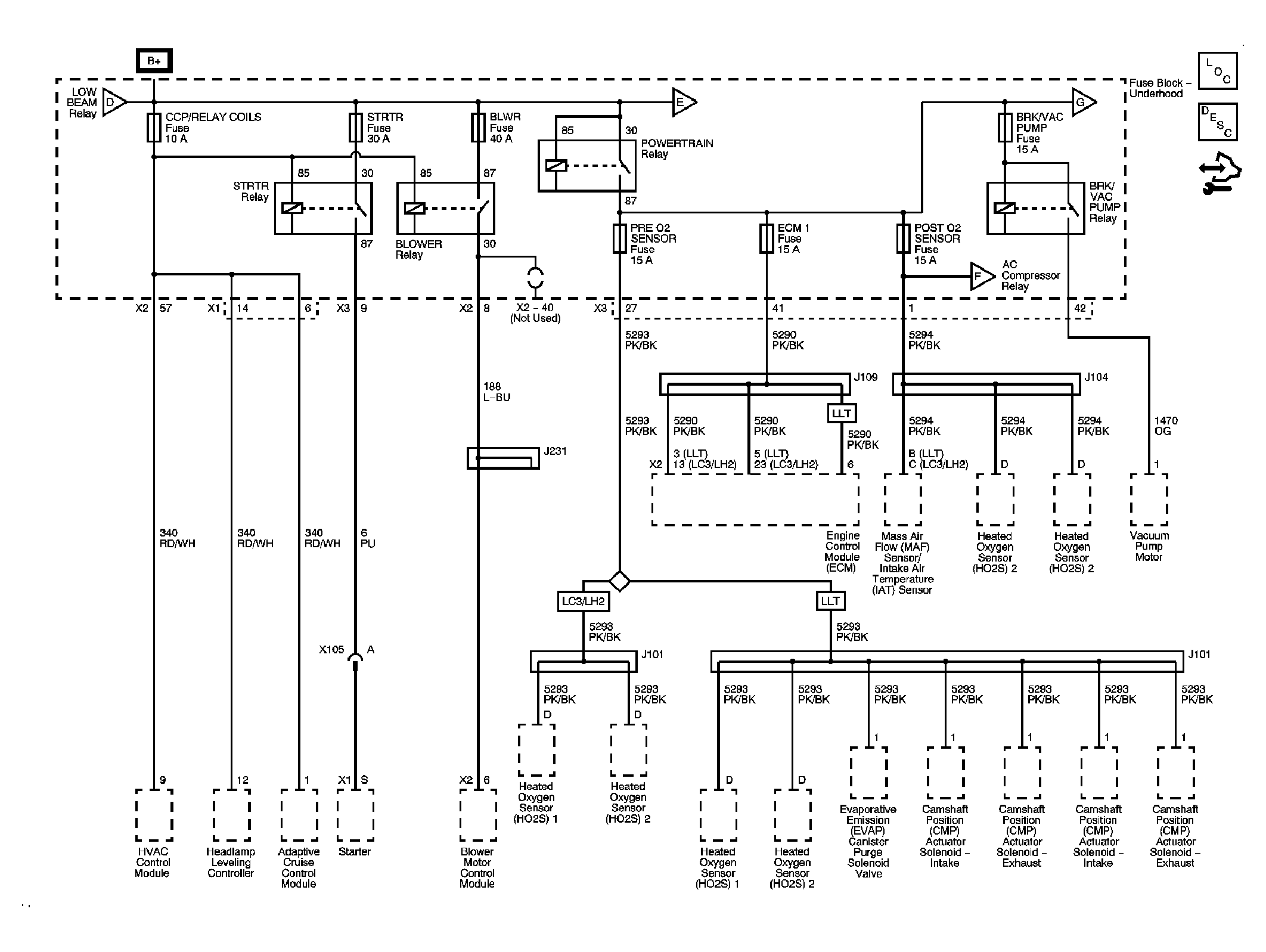

Fig 8: BLWR, BRK VAC PUMP, CCP/RELAY COILS, ECM1, POST O2 SENSOR, PRE O2 SENSOR and STRTR Fuses Schematic

GM1905088

Courtesy of GENERAL MOTORS CORP.

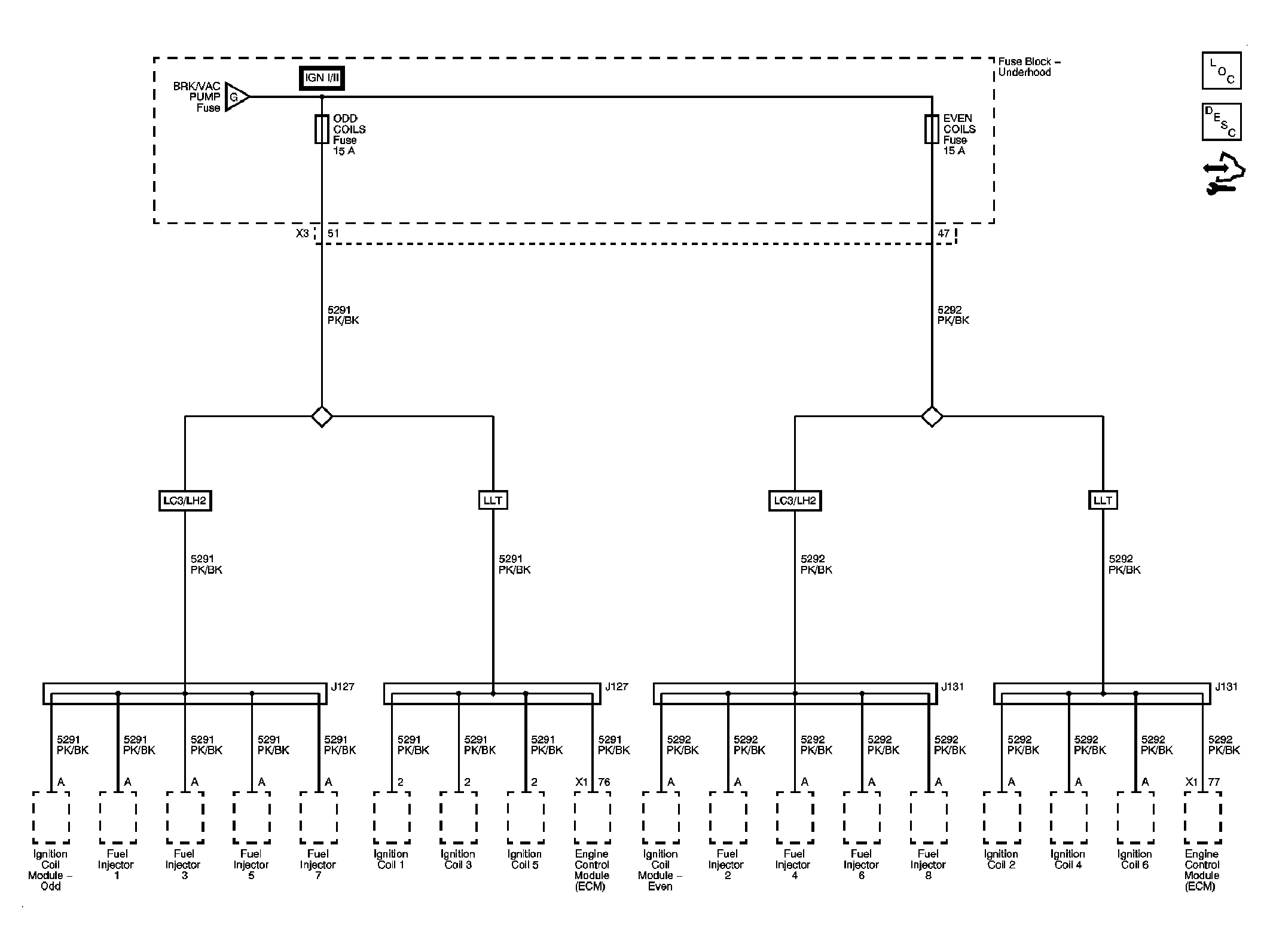

Fig 9: EVEN COILS and ODD COILS Fuses Schematic

GM1905090

Courtesy of GENERAL MOTORS CORP.

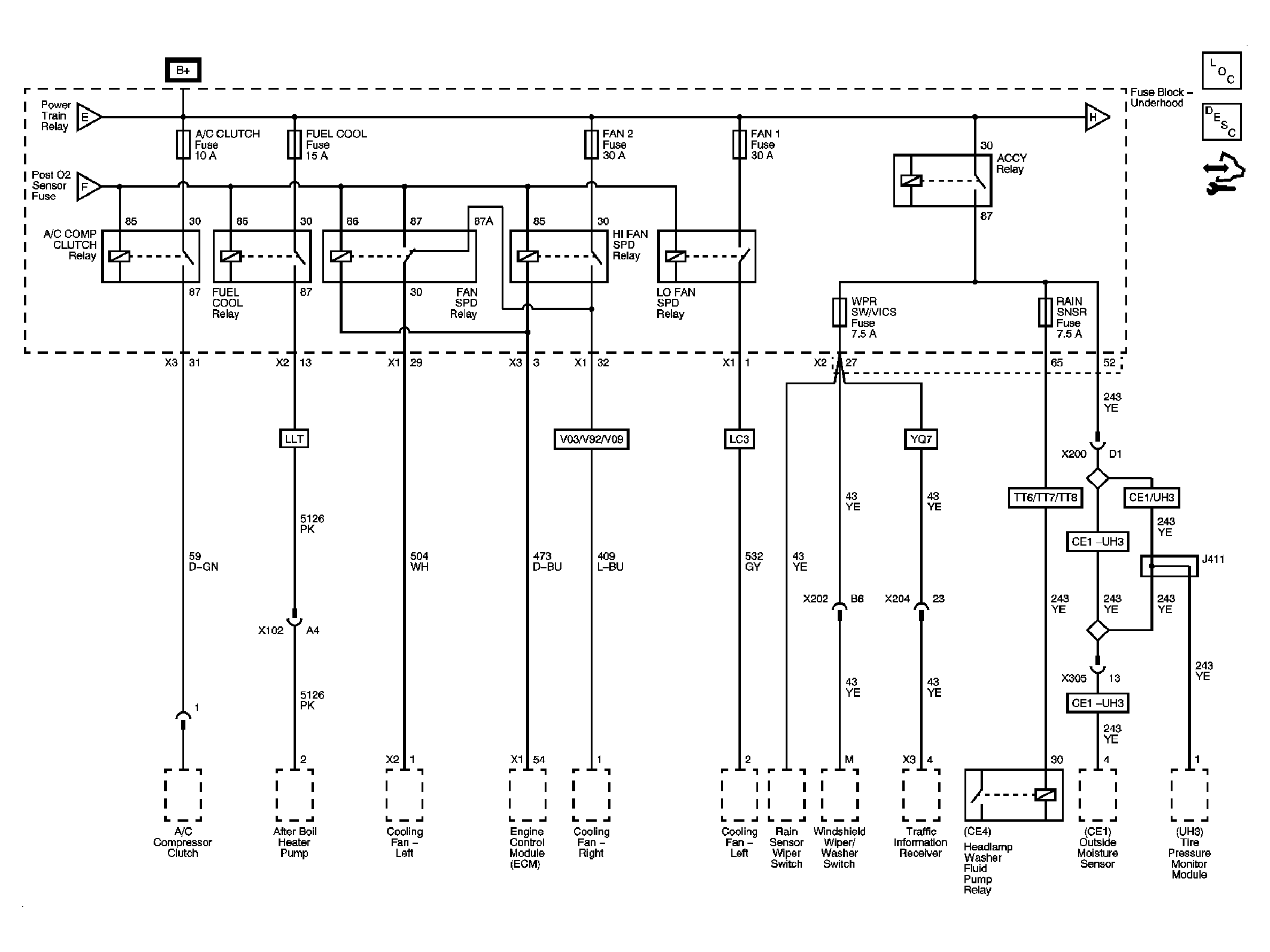

Fig 10: A/C, FAN1, FAN2, FUEL COOL, RAIN SNSR and WPR SW/VICS Fuses Schematic

GM1905092

Courtesy of GENERAL MOTORS CORP.

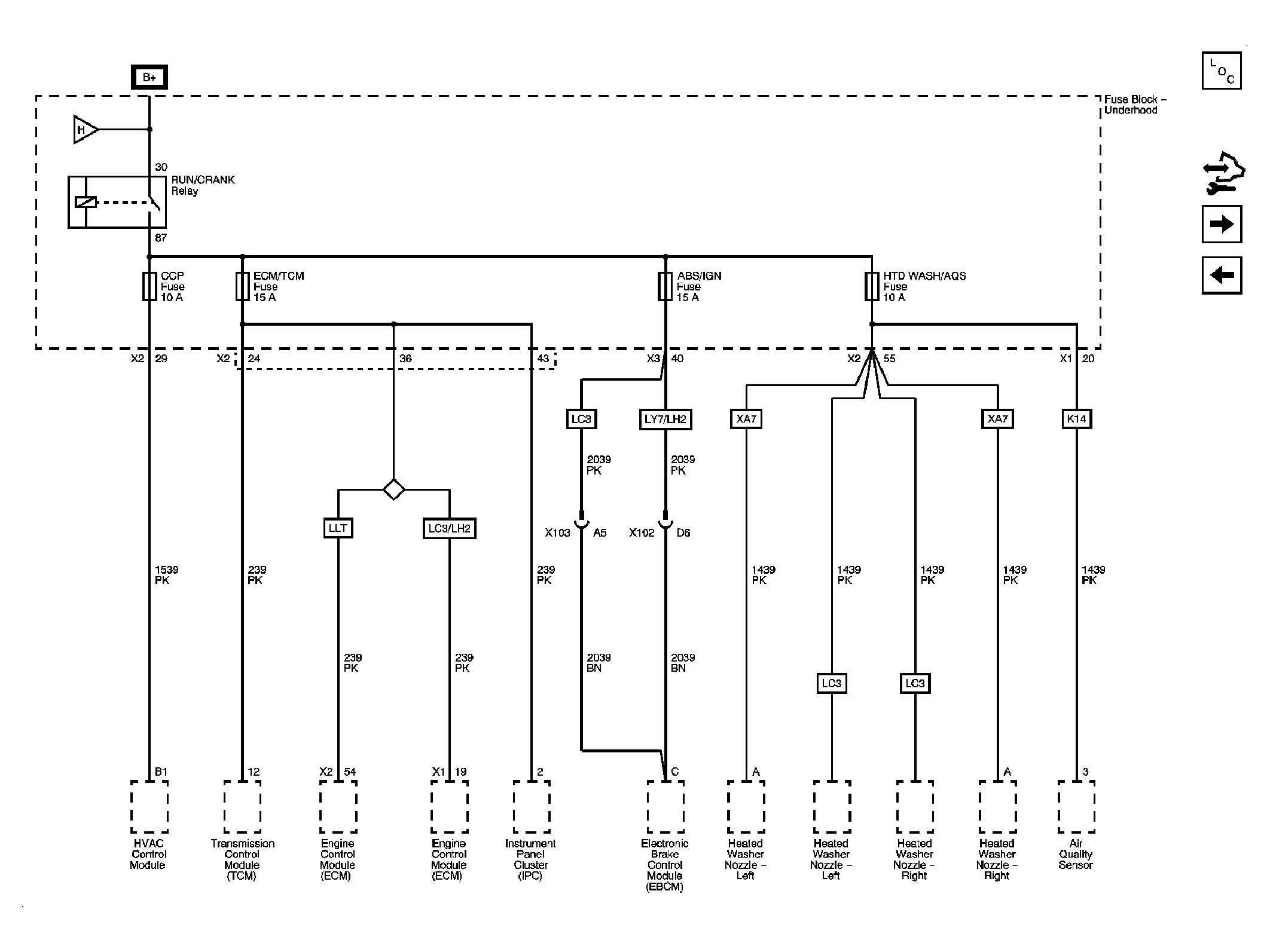

Fig 11: ABS/IGN CCP, ECM/TCM and HTD WASH/AQS FUSES Schematic

GM1905094

Courtesy of GENERAL MOTORS CORP.

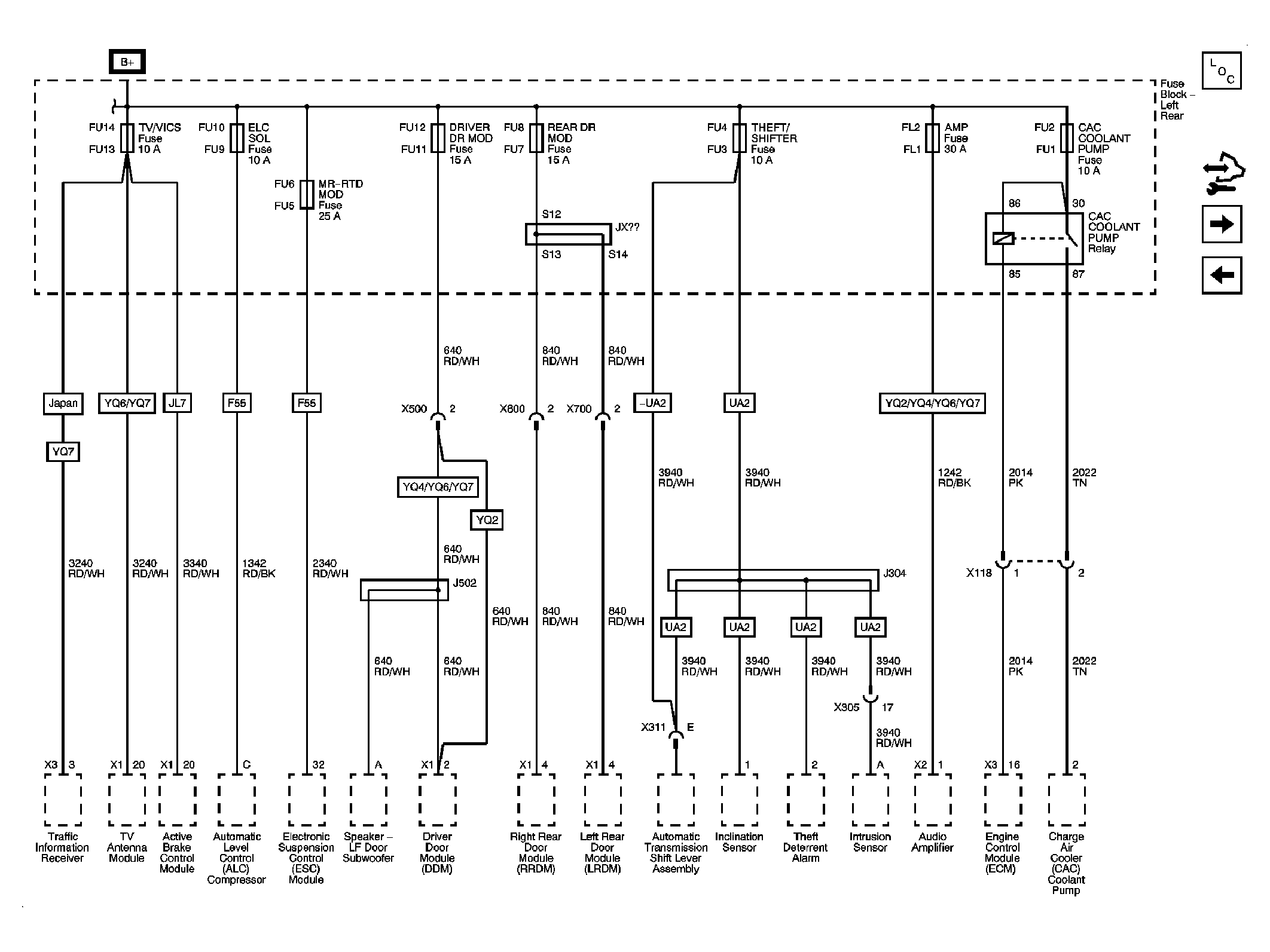

Fig 12: AMP, CAC COOLANT PUMP, DRIVER DR MOD, ELC SOL, MR-RTD MOD, REAR DR MOD, THEFT/SHIFTER and TV/VICS Fuses Schematic

GM1905097

Courtesy of GENERAL MOTORS CORP.

Fig 13: SEATS C/B Circuit Breaker Schematic

GM1905099

Courtesy of GENERAL MOTORS CORP.

Fig 14: AIRBAG, DPM and RR SHELF SPEAKER FUSES Schematic

GM1905102

Courtesy of GENERAL MOTORS CORP.

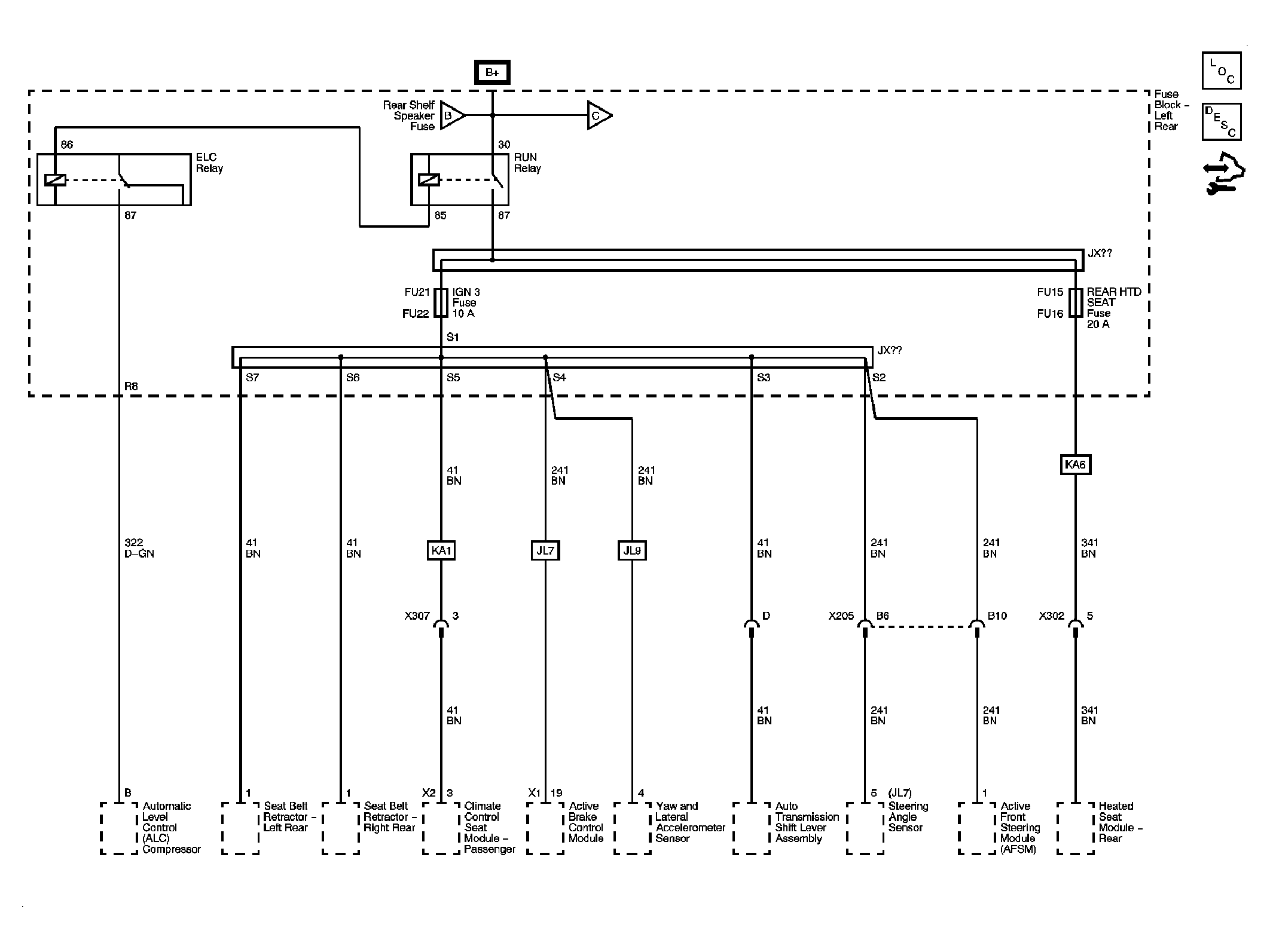

Fig 15: IGN 3 and REAR HTD SEAT Fuse Schematic

GM1914917

Courtesy of GENERAL MOTORS CORP.

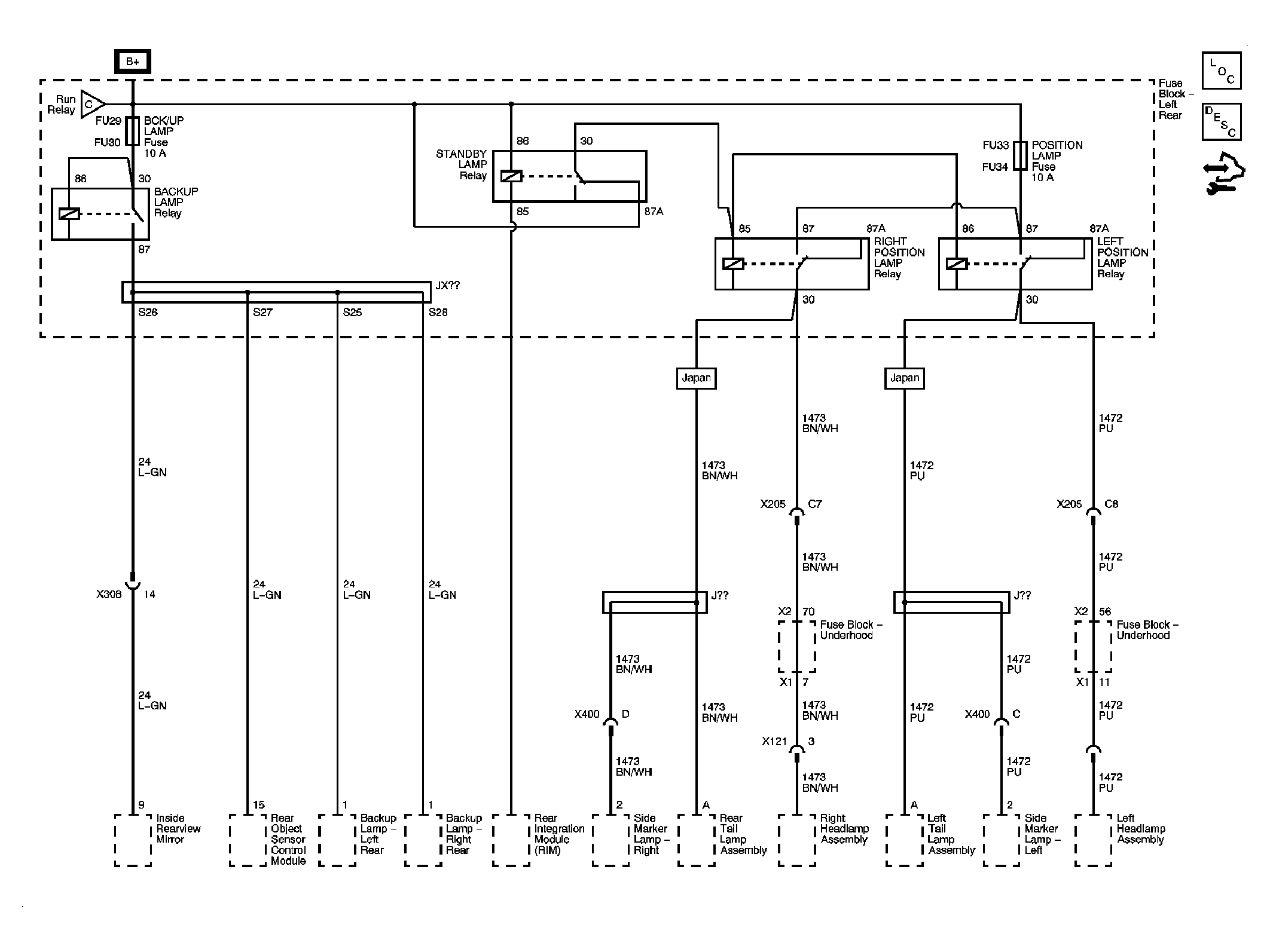

Fig 16: BCK/UP LAMP and POSITION LAMP Fuse

GM1914924

Courtesy of GENERAL MOTORS CORP.

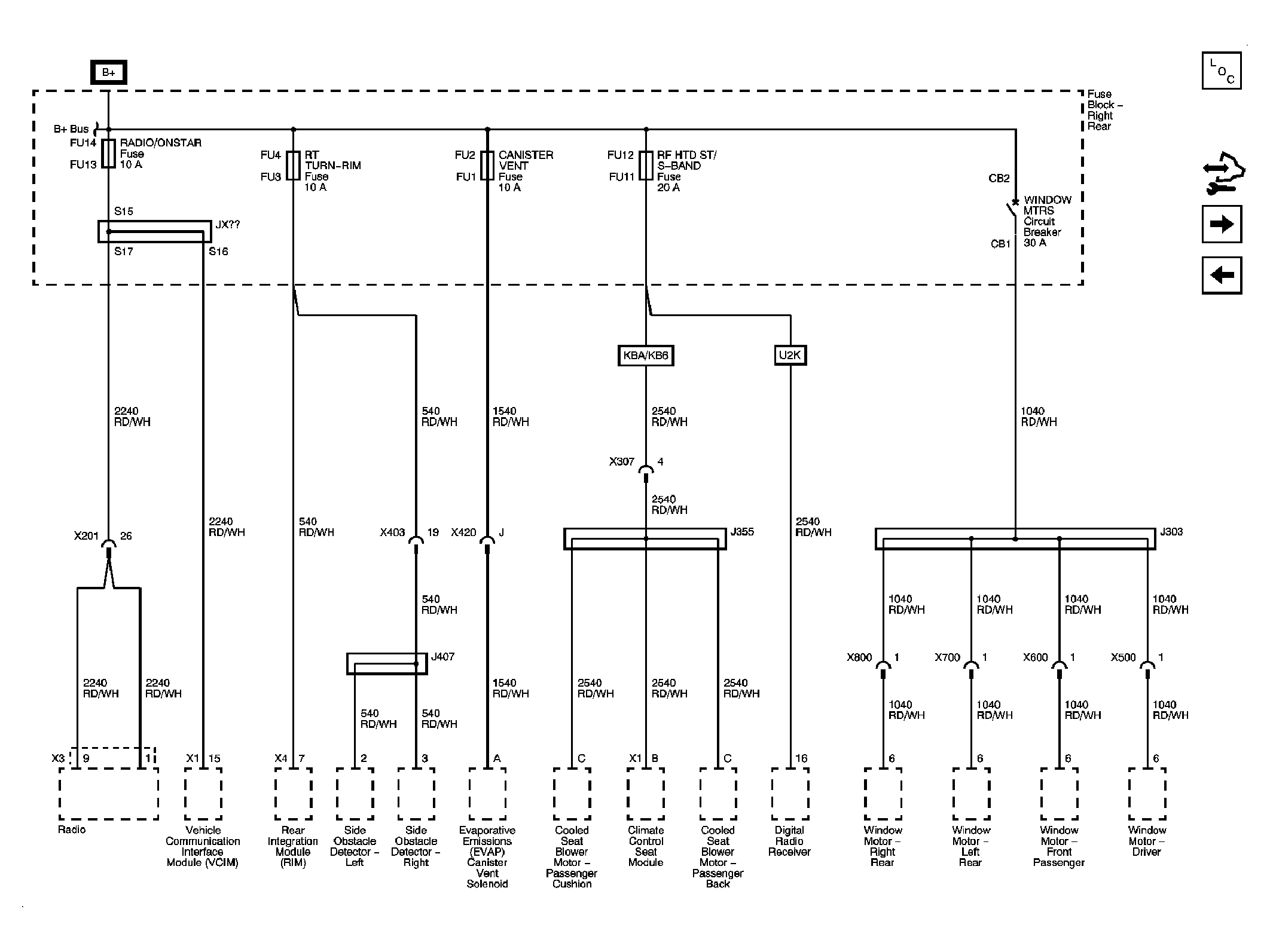

Fig 17: CANISTER VENT, RADIO ONSTAR, RF HTD ST/S-BAND, RT TURN RIM Fuses and WINDOW MTRS C/B Circuit Breaker Schematic

GM1905119

Courtesy of GENERAL MOTORS CORP.

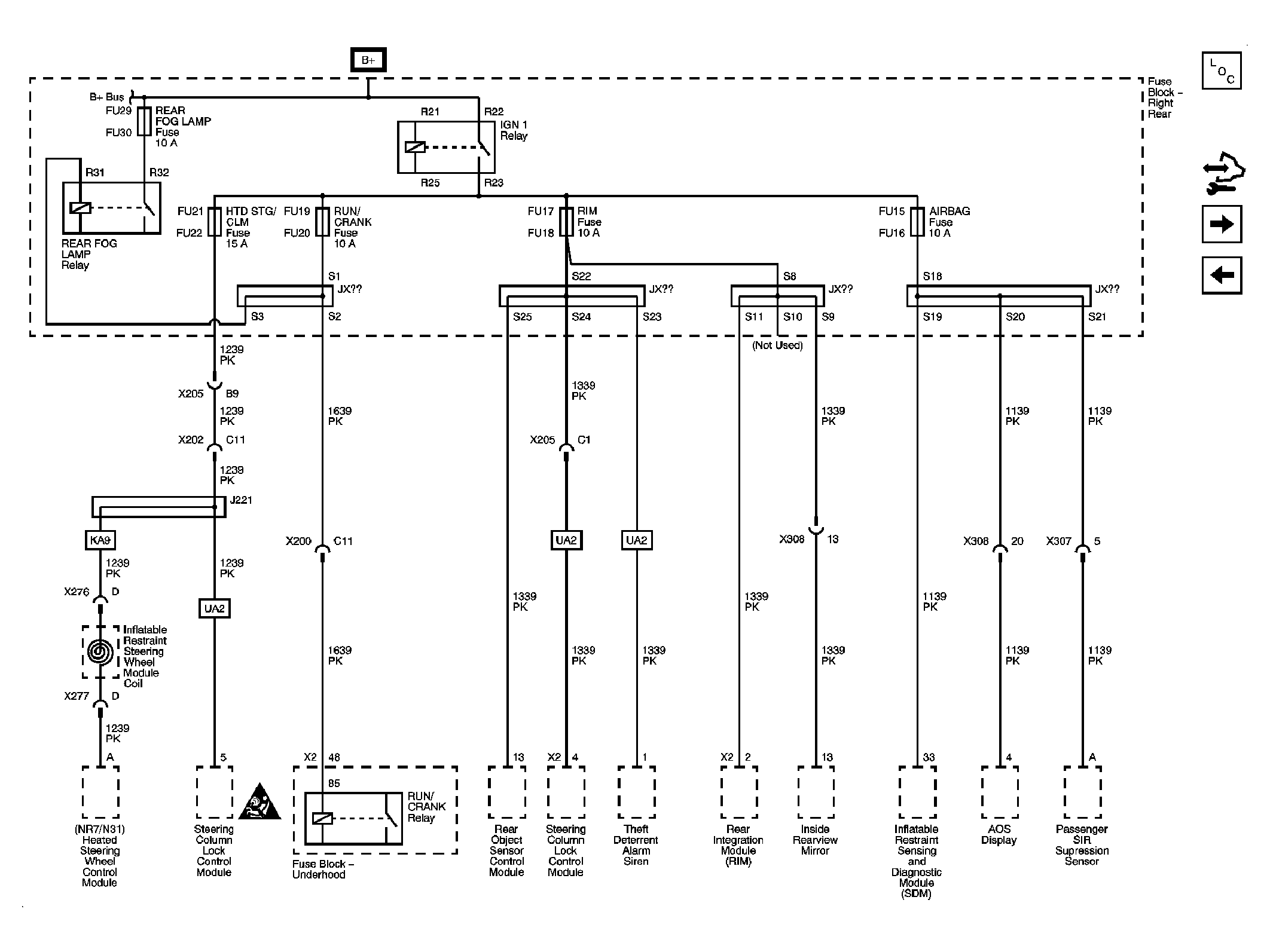

Fig 18: AIRBAG, HTD STG/CLM, REAR FOG LAMP, RIM and RUN/CRANK Fuses Schematic

GM1905176

Courtesy of GENERAL MOTORS CORP.

Fig 19: LT TURN/RIM, and PSGR DR MOD and RIM Fuse Schematic

GM1914927

Courtesy of GENERAL MOTORS CORP.

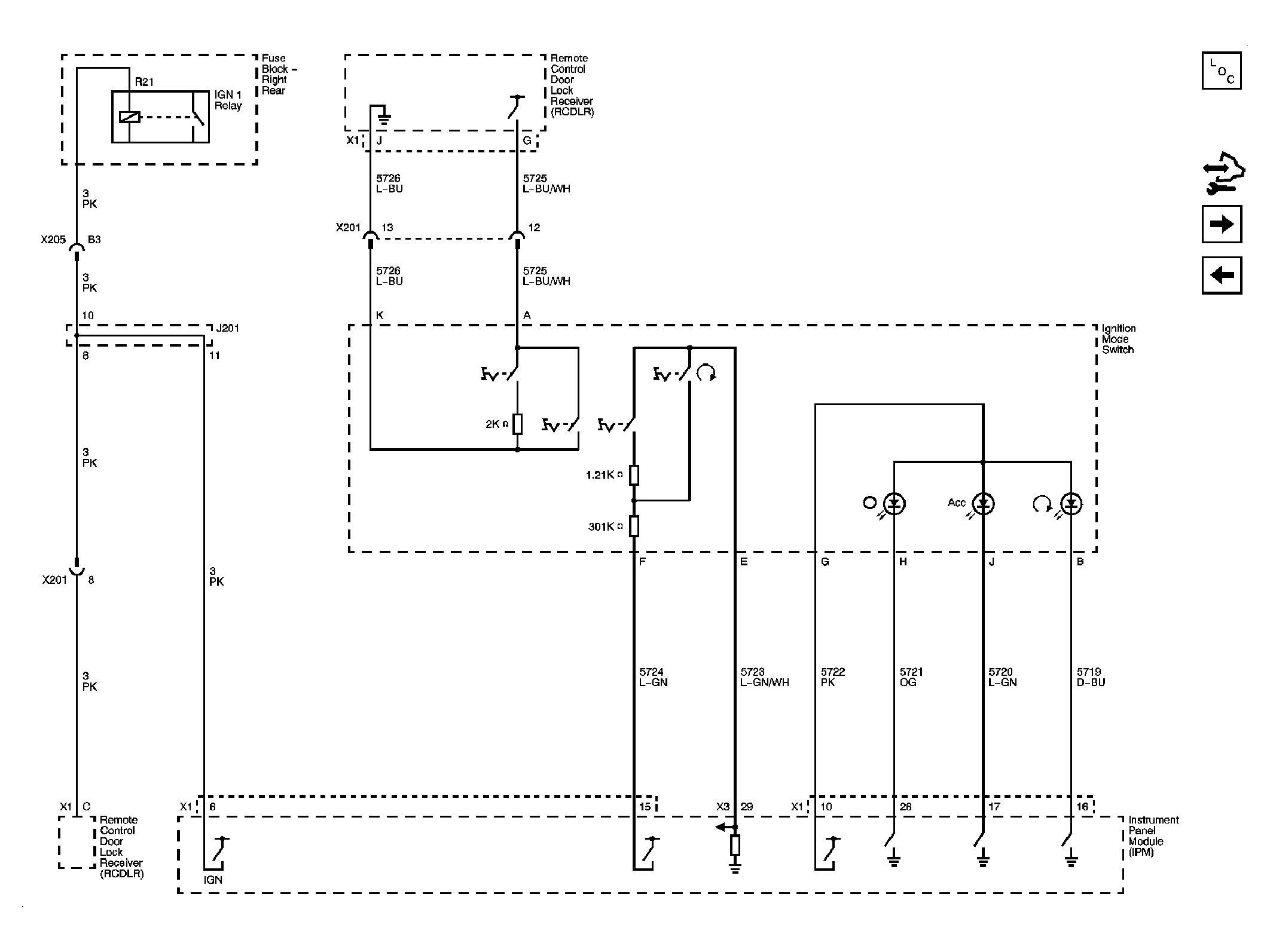

Fig 20: Ignition Mode Switch Schematic

GM1905187

Courtesy of GENERAL MOTORS CORP.

Fig 21: Power Modes Schematic

GM1905223

Courtesy of GENERAL MOTORS CORP.
