Automatic Transmission Electronic Component Views



Automatic Transmission Electronic Component Views

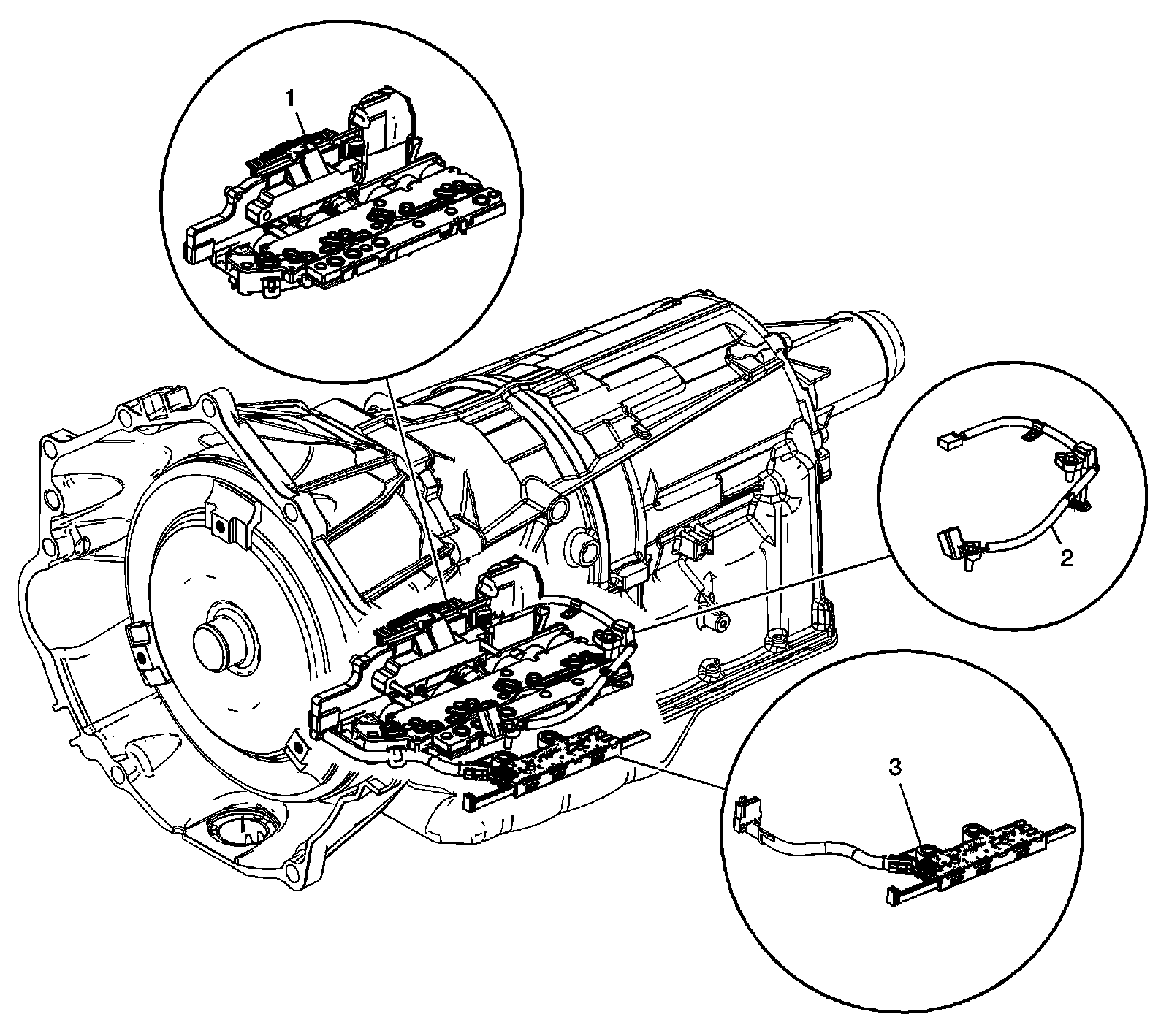

Electronic Components

Electronic Components:




1 - Control Solenoid (with Body and TCM) Valve Assembly
2 - A/Trans Input and Output Speed Sensor Assembly
3 - A/Trans Manual Shift Shaft Position Switch Assembly
