Timing Components: Specifications
Crankshaft Balancer BoltFirst Pass 50 Nm (37 lb ft.)
Final Pass 150°
Tensioner Bolt 50 Nm (37 lb ft.)
Engine Front Cover Bolts* 15 N.m (11 lb ft)

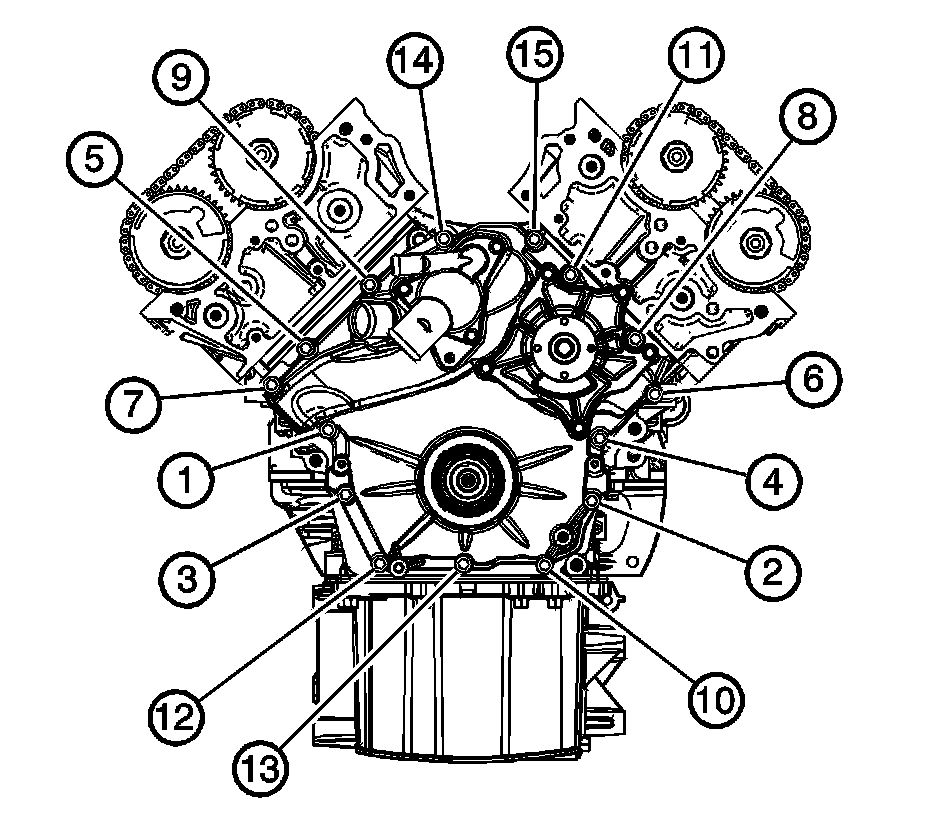

* Tighten the engine front cover bolts in the sequence shown.
First Pass 50 Nm (37 lb ft.)
Final Pass 150°
Tensioner Bolt 50 Nm (37 lb ft.)
Engine Front Cover Bolts* 15 N.m (11 lb ft)
* Tighten the engine front cover bolts in the sequence shown.
