Timing Cover





Engine Front Cover Bolts* 23 Nm (17 lb ft)

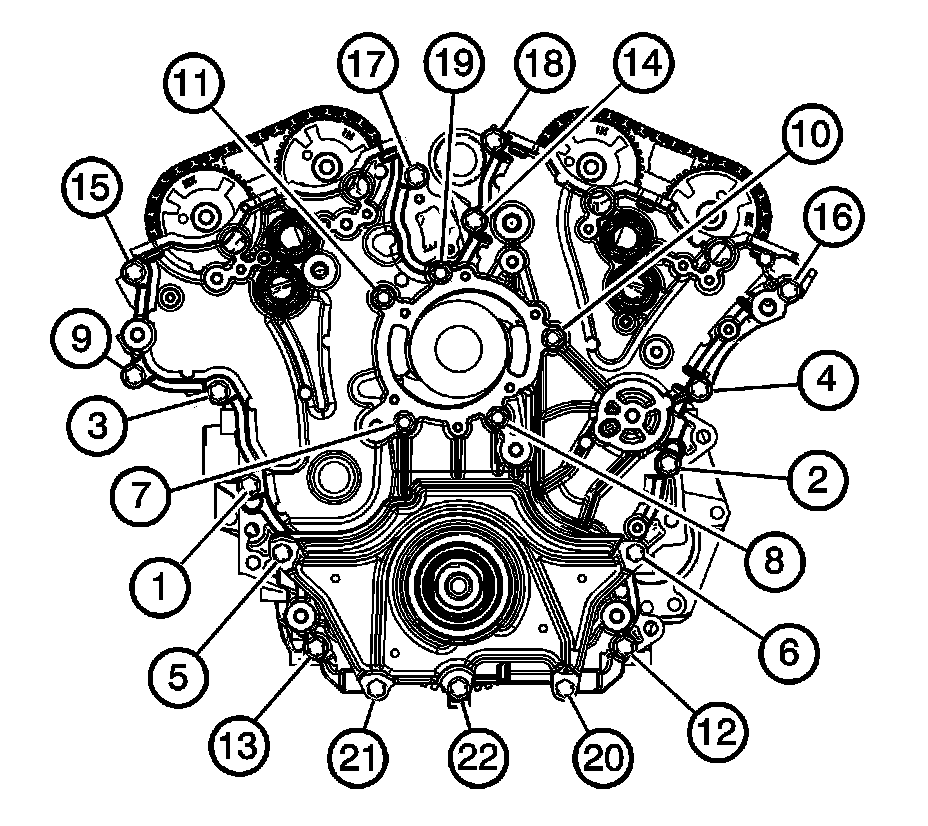

* Tighten the engine front cover bolts in the sequence shown (1-22).
