Fuse Block - Left Rear

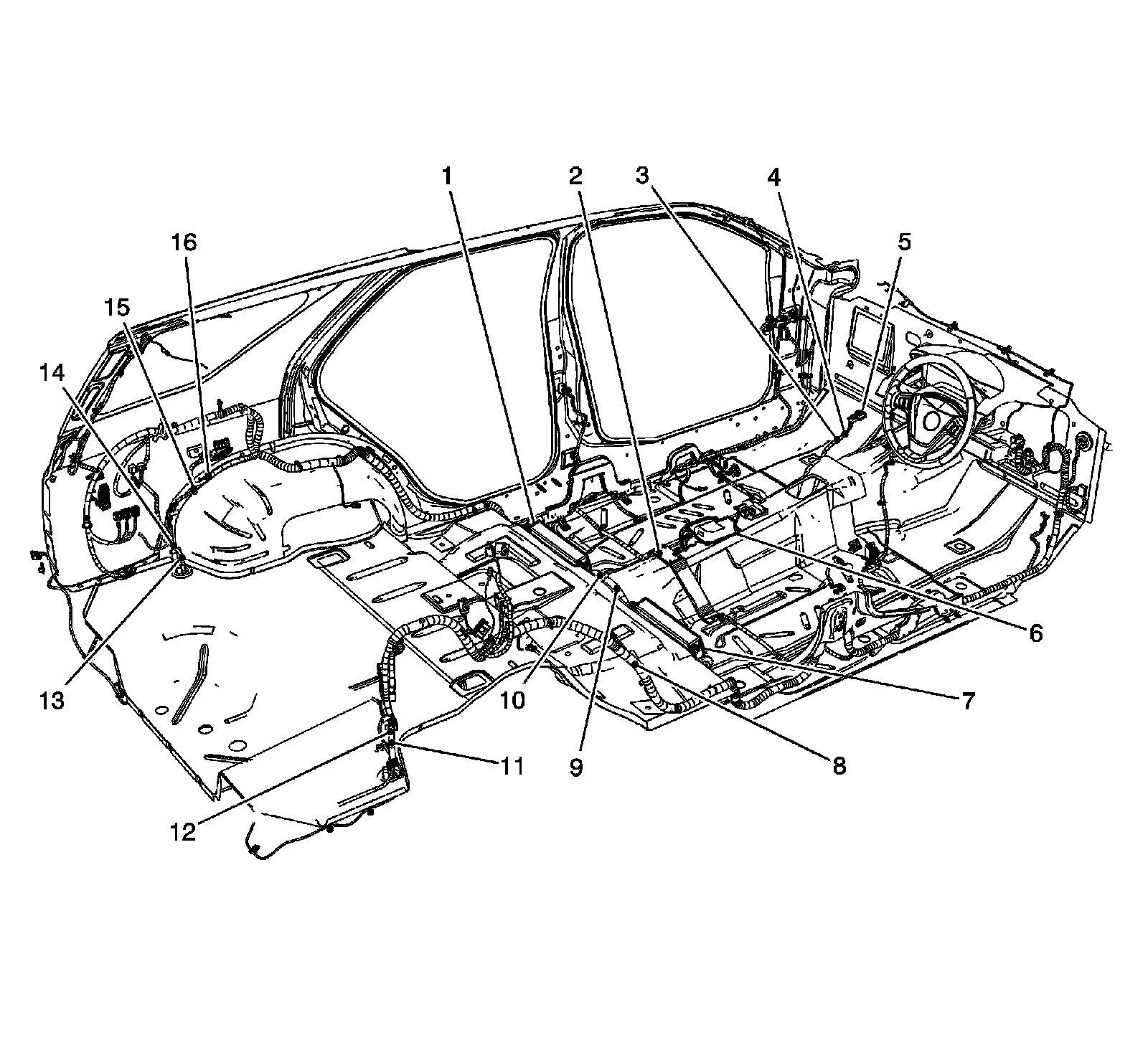

Harness Routing Views (RHD)




1 - Fuse Block - Left Rear
2 - J305
3 - J309
4 - J410
5 - X205
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Fuse Block - Right Rear
8 - J406
9 - J304
10 - J303
11 - J407
12 - J402
13 - J403
14 - J404
15 - J416
16 - J415
