Windshield Washer Switch



Component Connector End Views

Rear Wiper/Washer Switch







Component Connector End Views

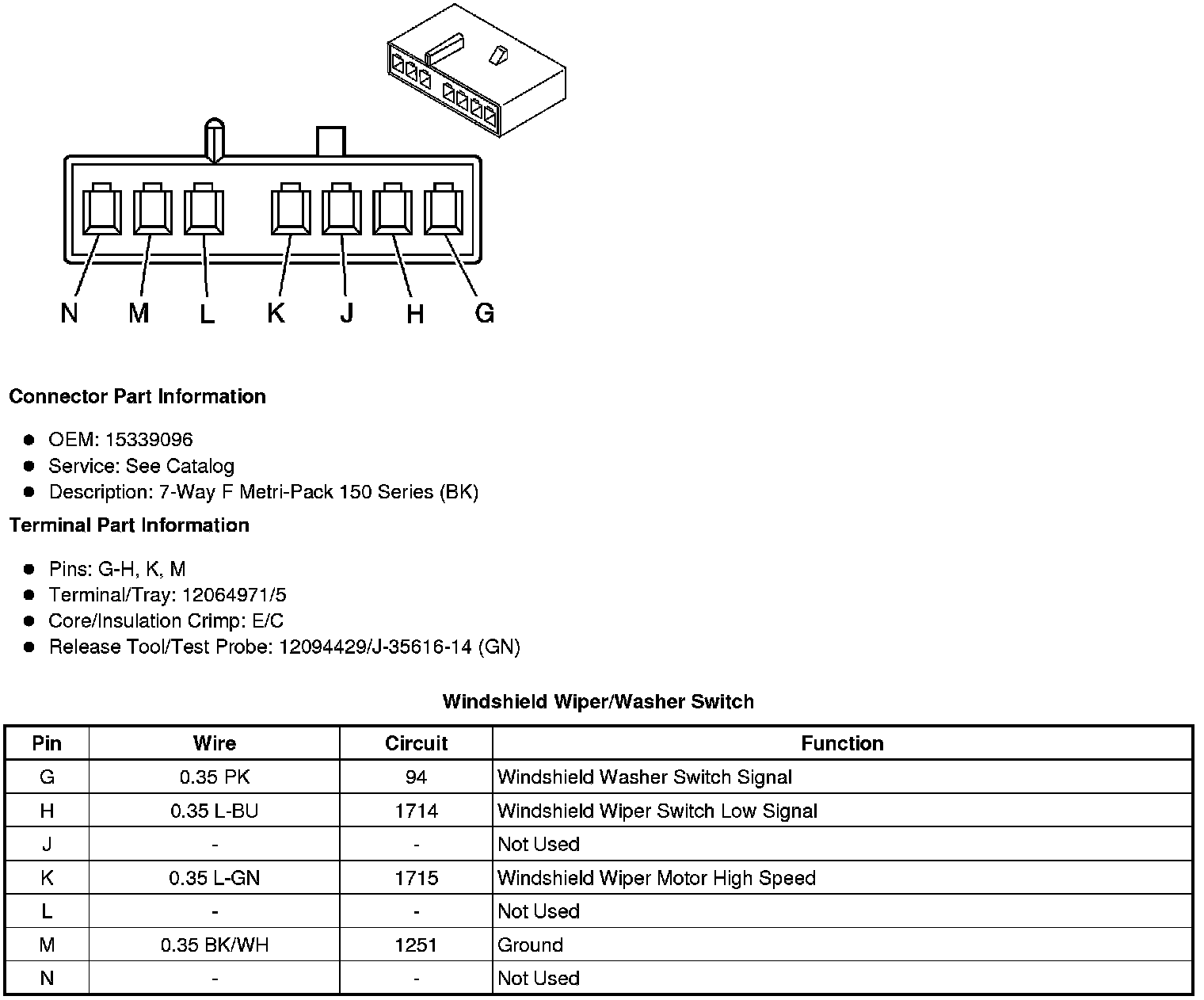

Windshield Wiper/Washer Switch
