Power Seat Motor Position Sensor



Component Connector End Views

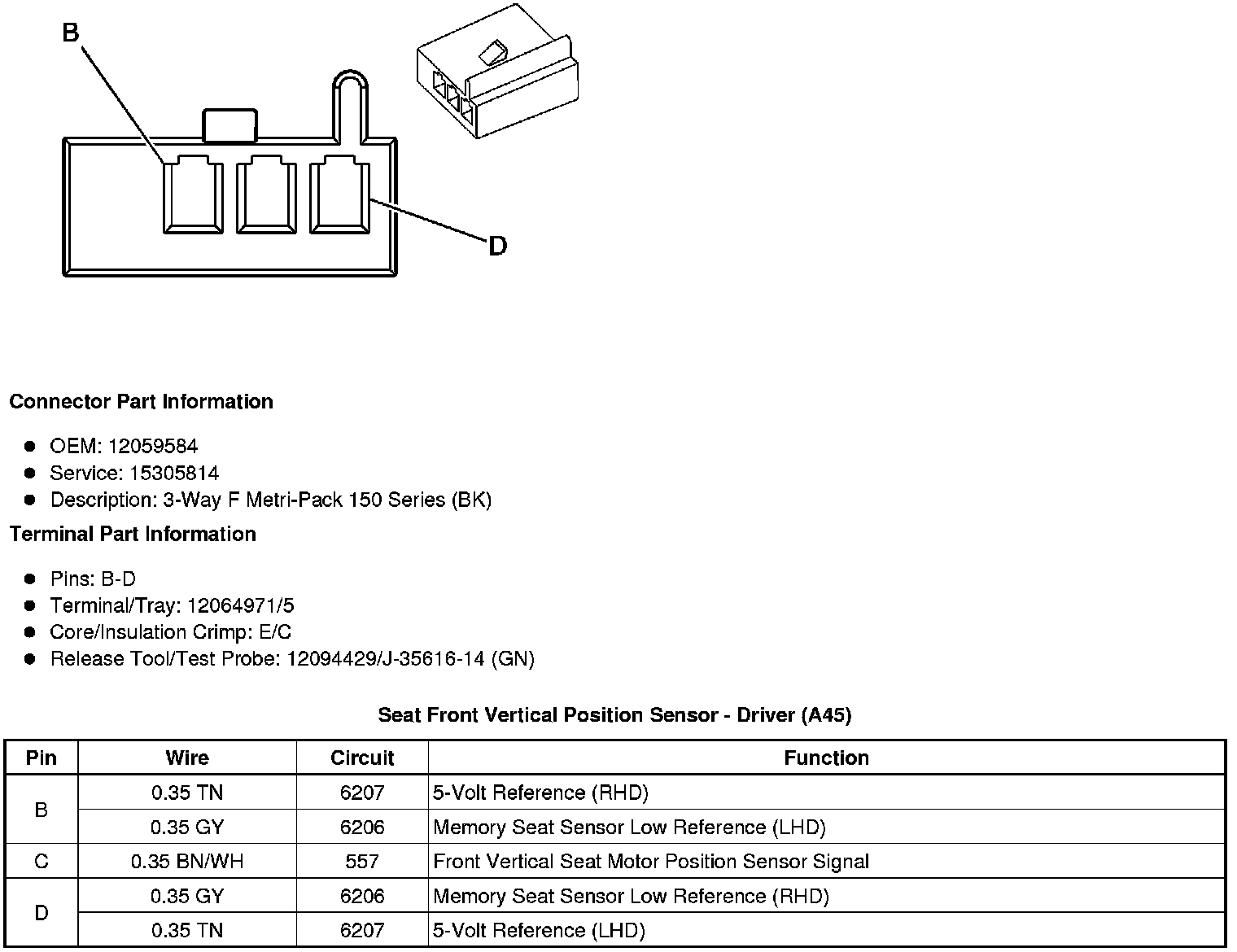

Seat Front Vertical Position Sensor - Driver (A45)

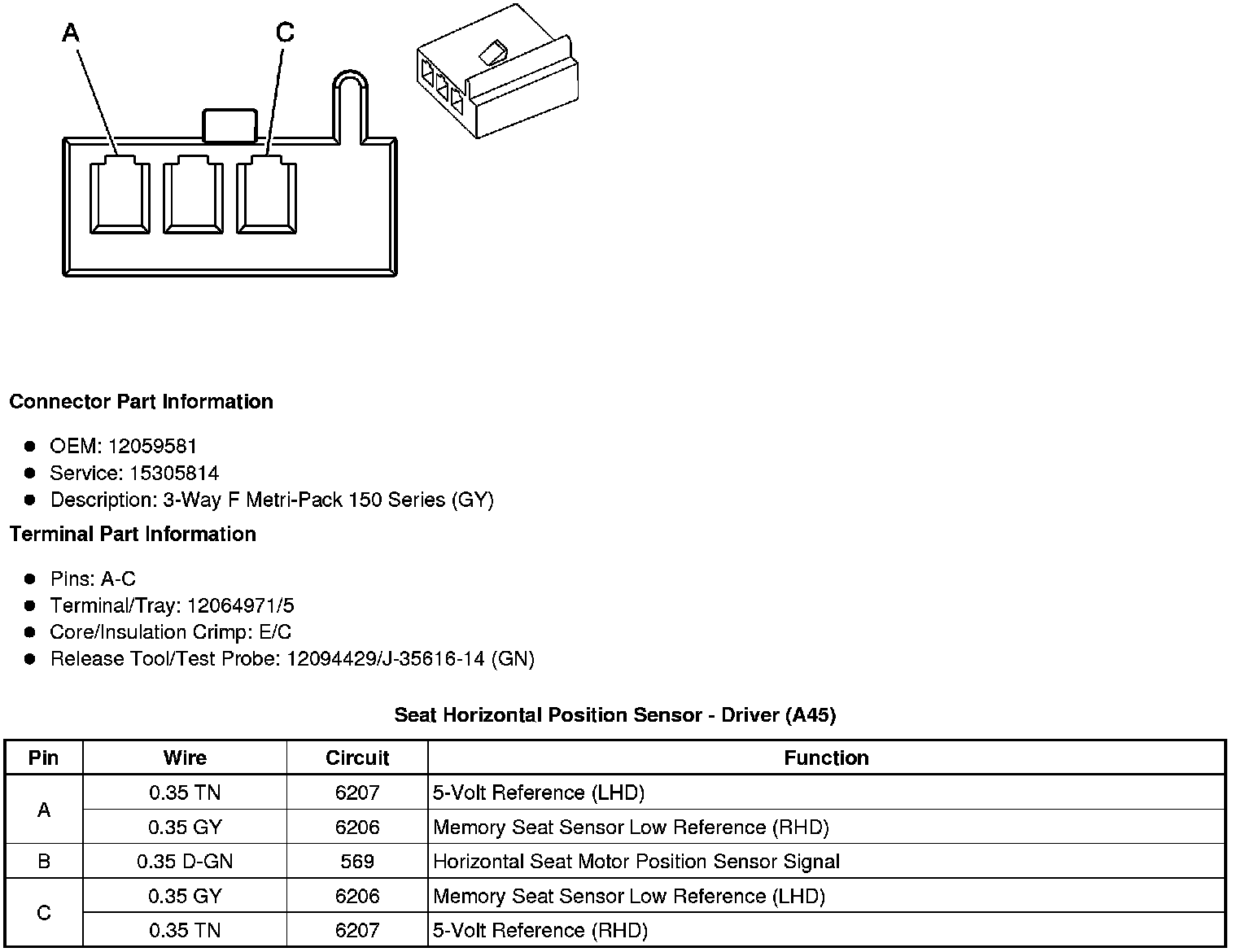

Seat Horizontal Position Sensor - Driver (A45)

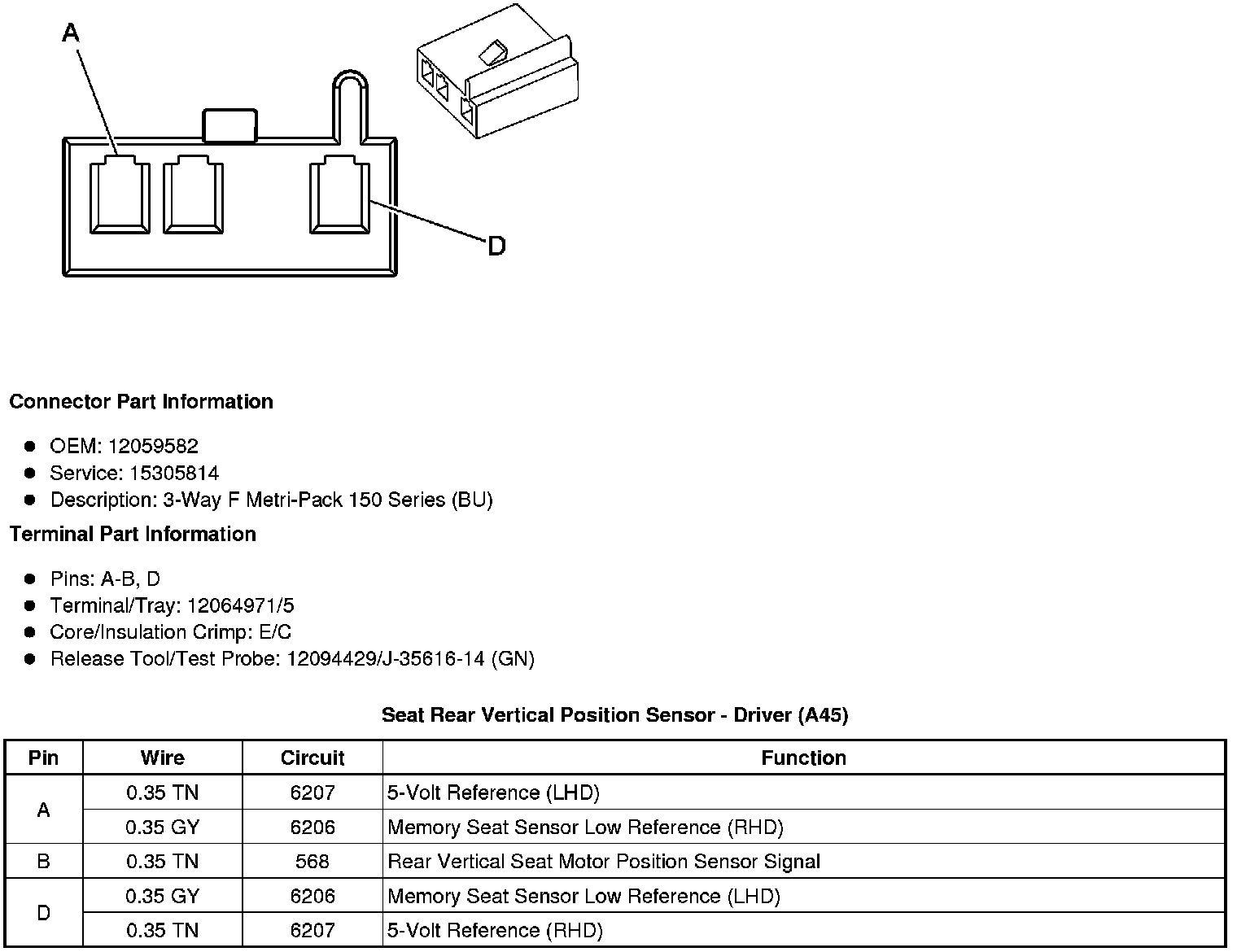

Seat Rear Vertical Position Sensor - Driver (A45)





Seat Recline Position Sensor - Driver (A45)
