Pedal Positioning Sensor



Component Connector End Views

Adjustable Accelerator Pedal Position Sensor (JF4)





Adjustable Brake Pedal Position Sensor (JF4)

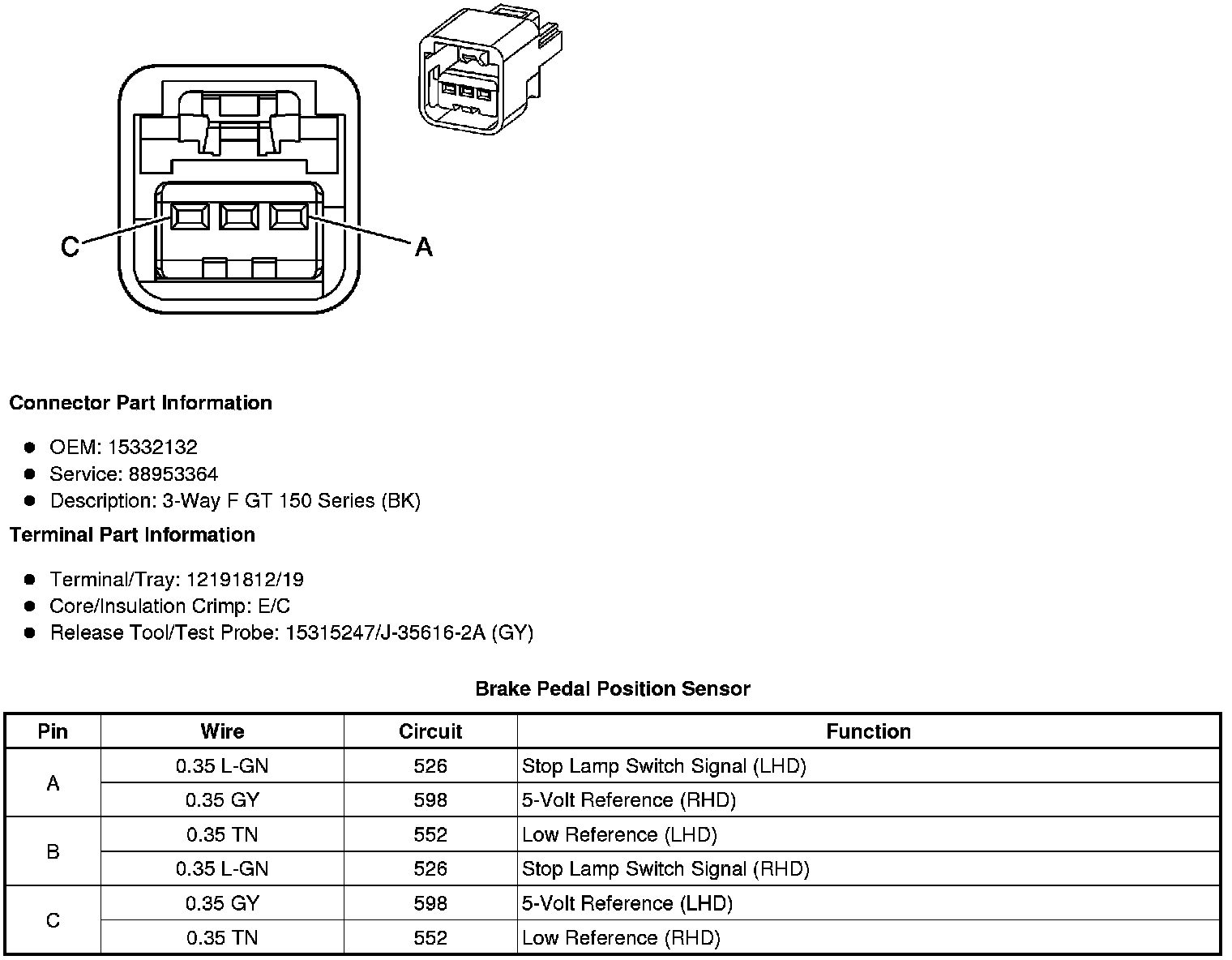

Brake Pedal Position Sensor
