Amplifier, Sound System



Component Connector End Views

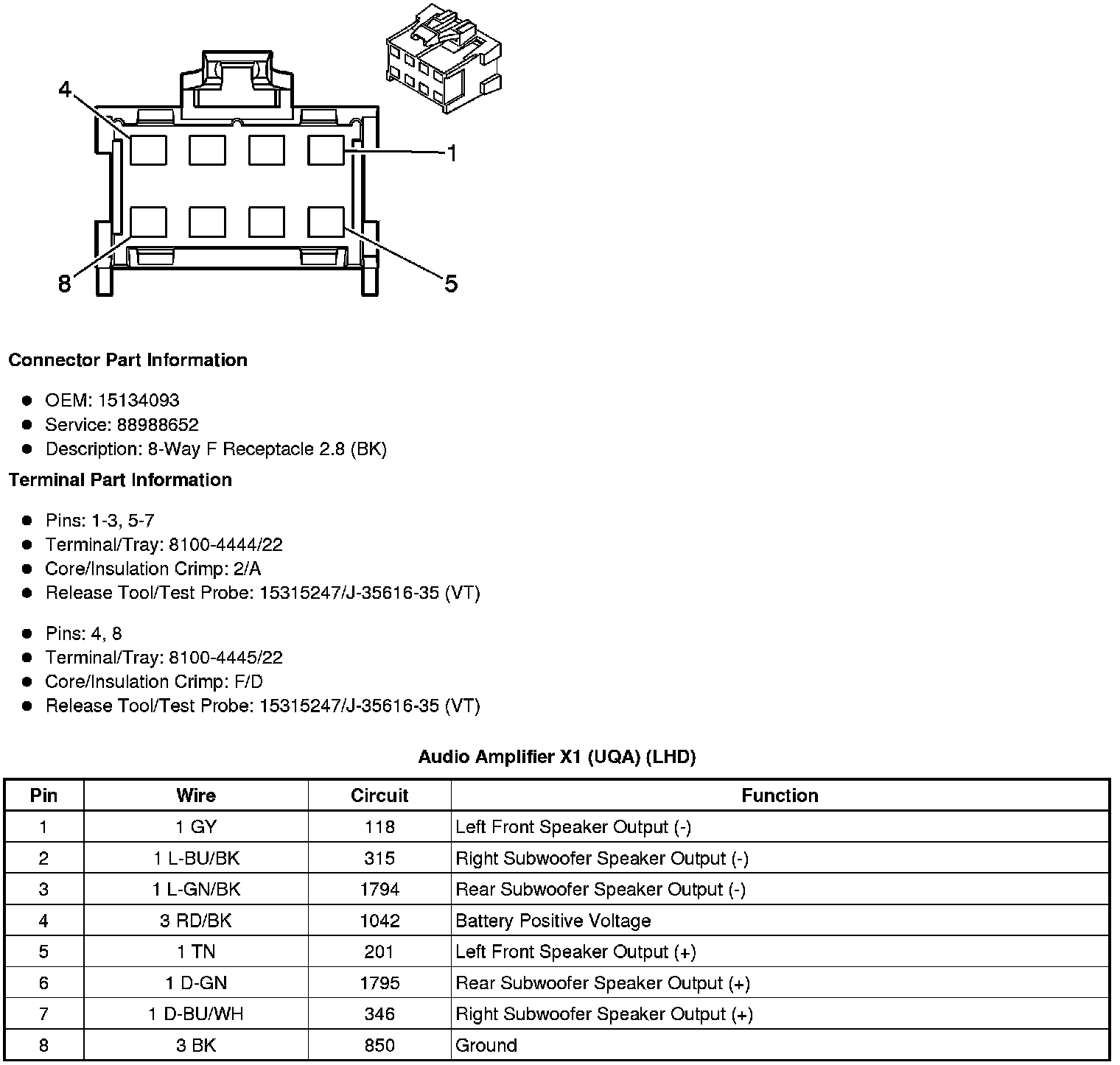

Audio Amplifier X1 (UQA) (LHD)

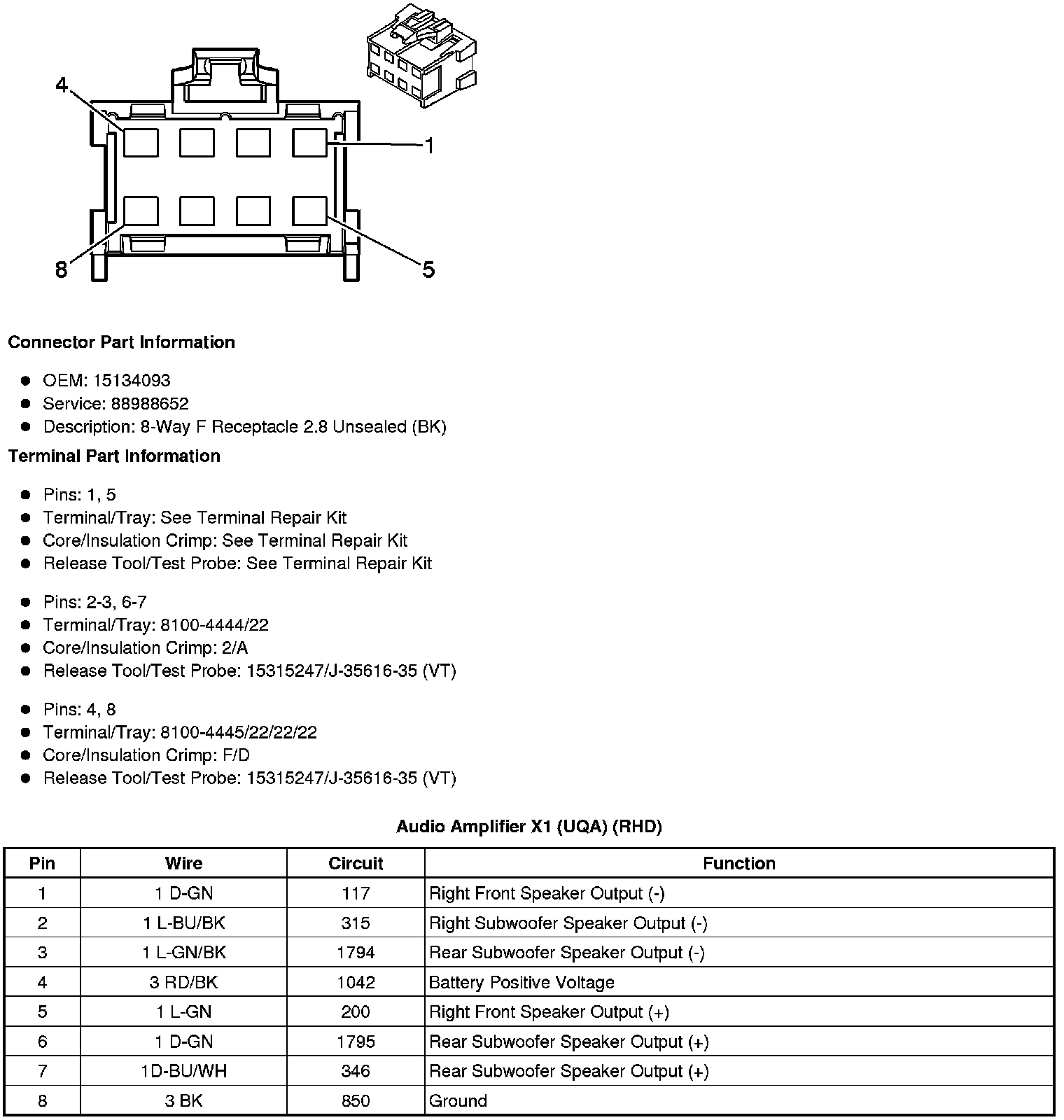

Audio Amplifier X1 (UQA) (RHD)

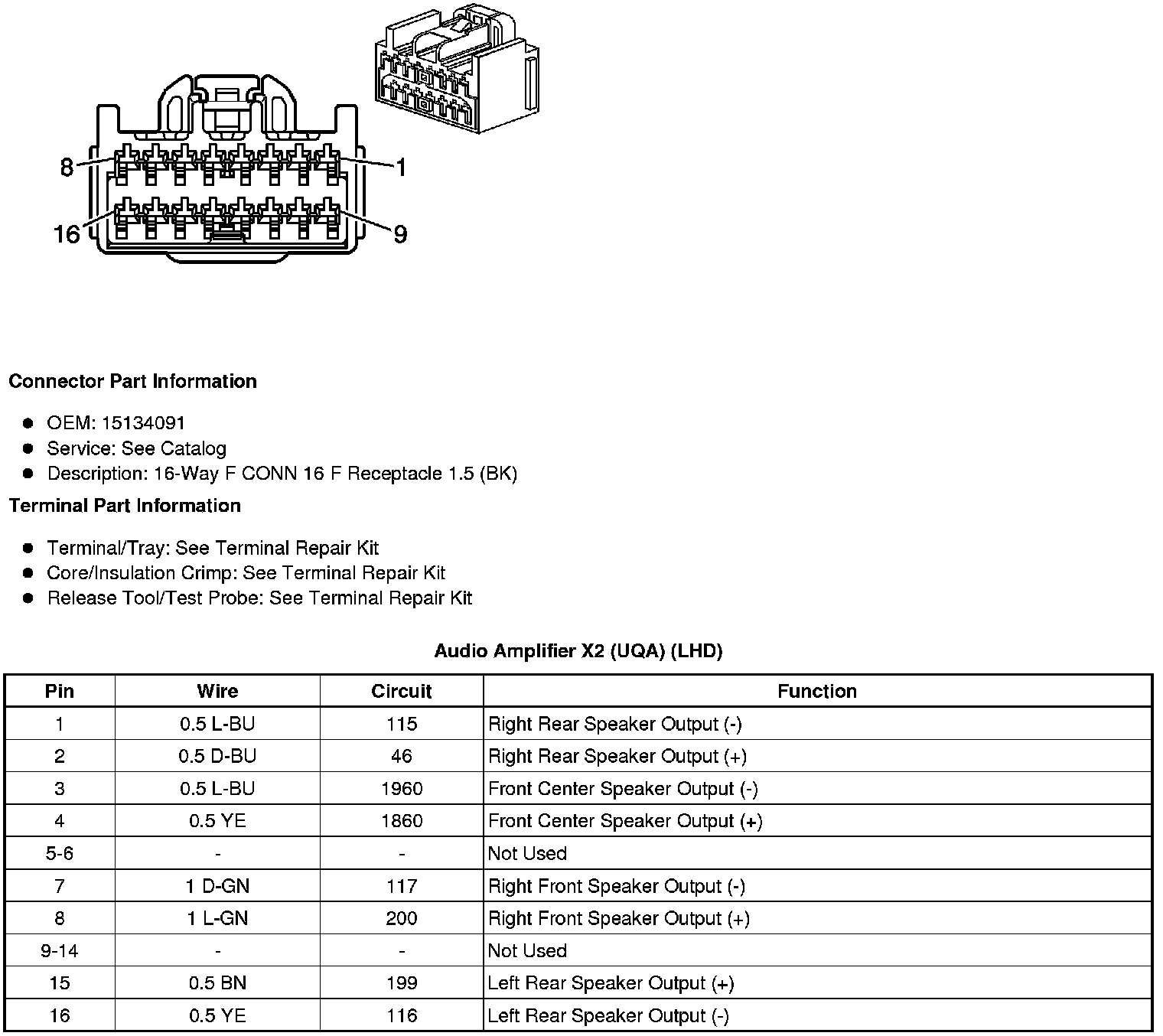

Audio Amplifier X2 (UQA) (LHD)

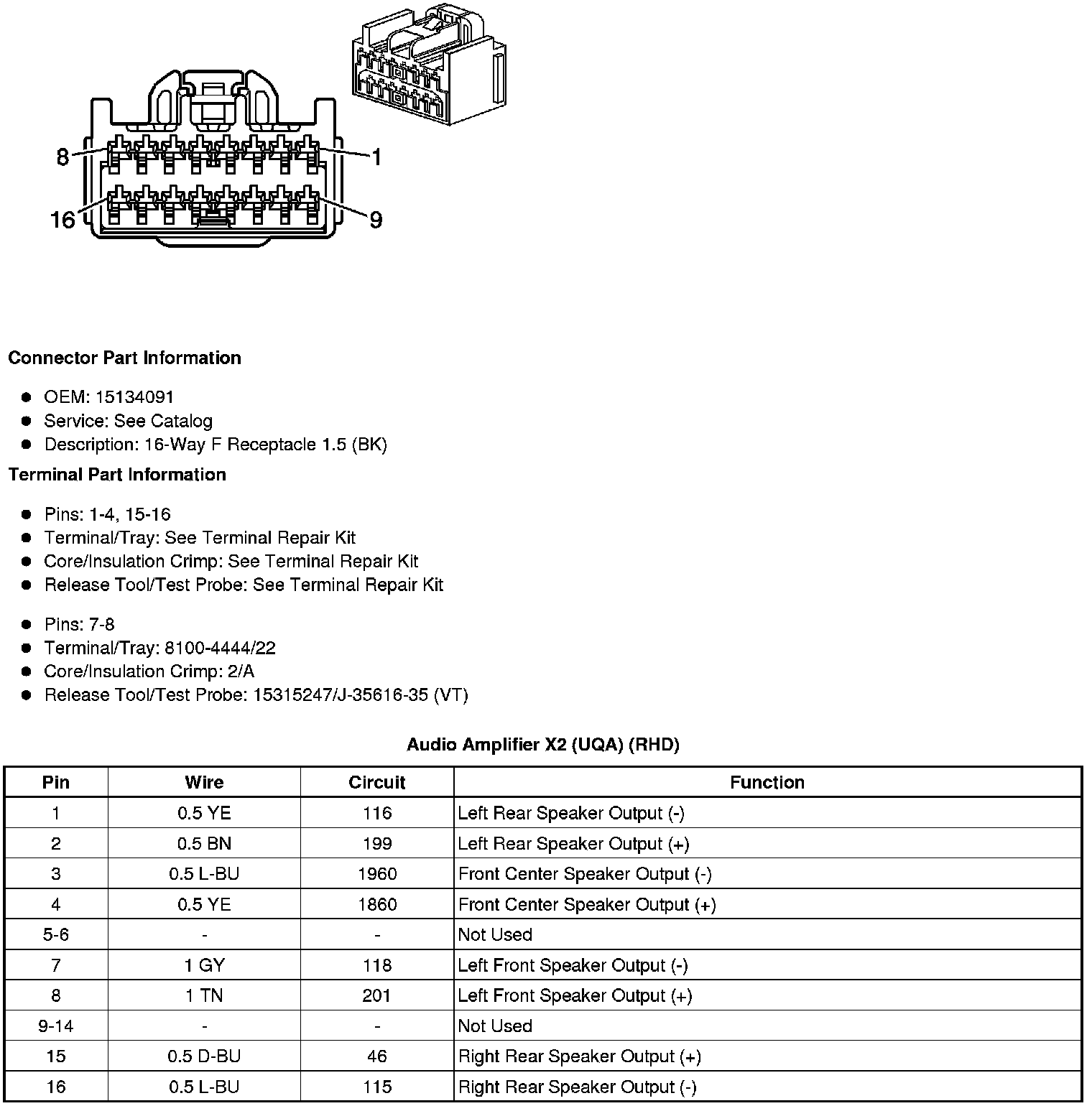

Audio Amplifier X2 (UQA) (RHD)

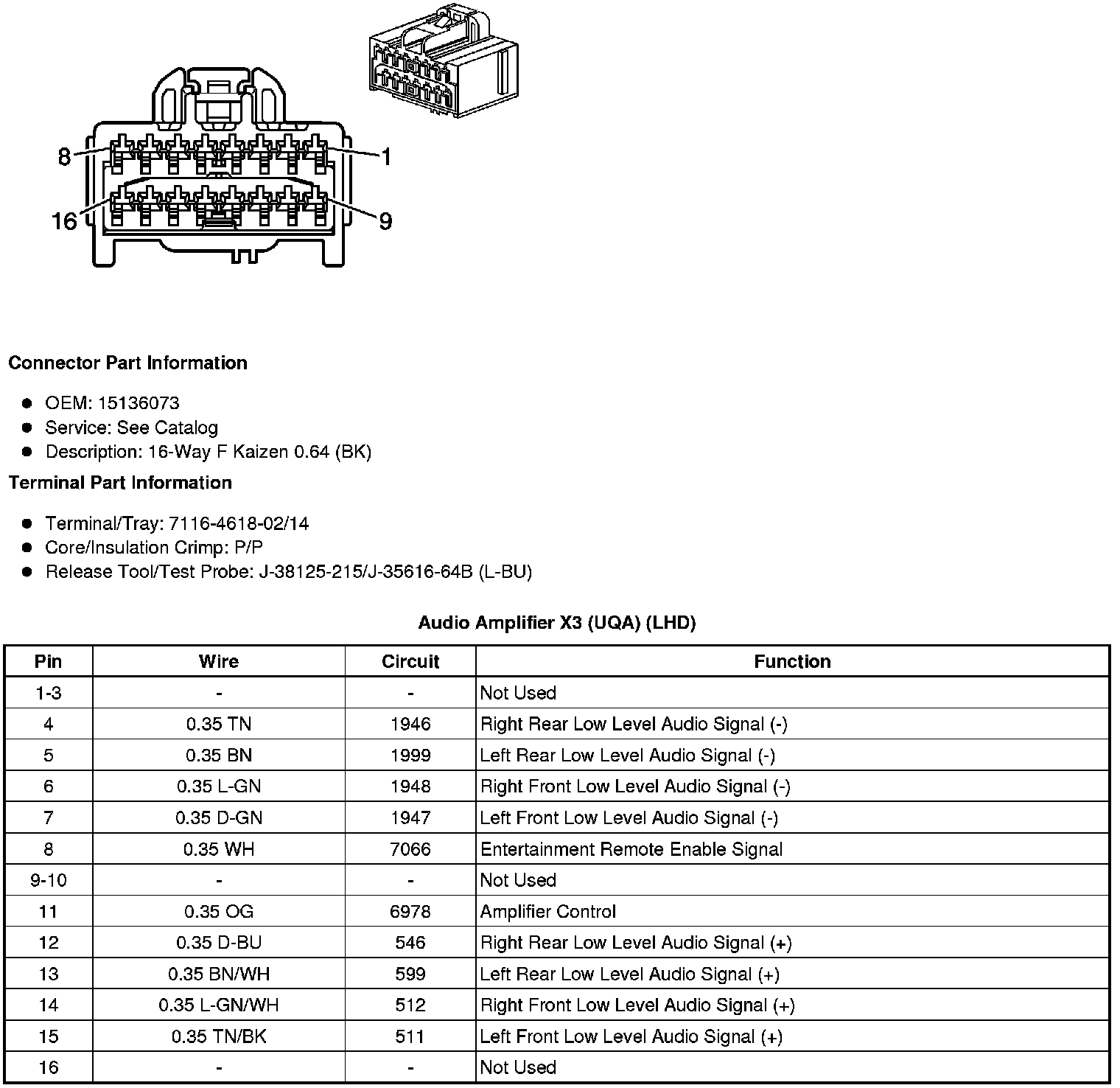

Audio Amplifier X3 (UQA) (LHD)






Audio Amplifier X3 (UQA) (RHD)

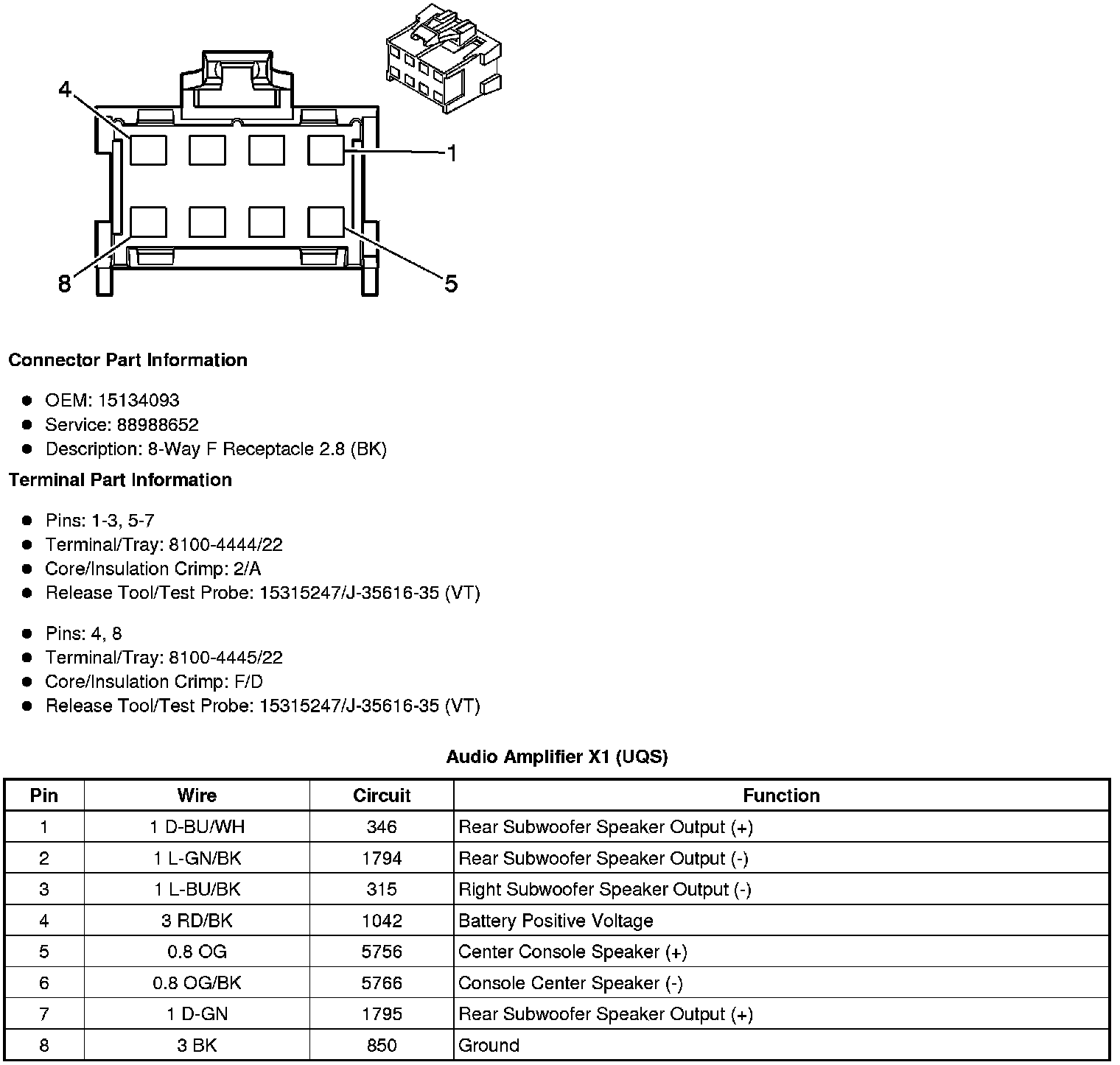

Audio Amplifier X1 (UQS)

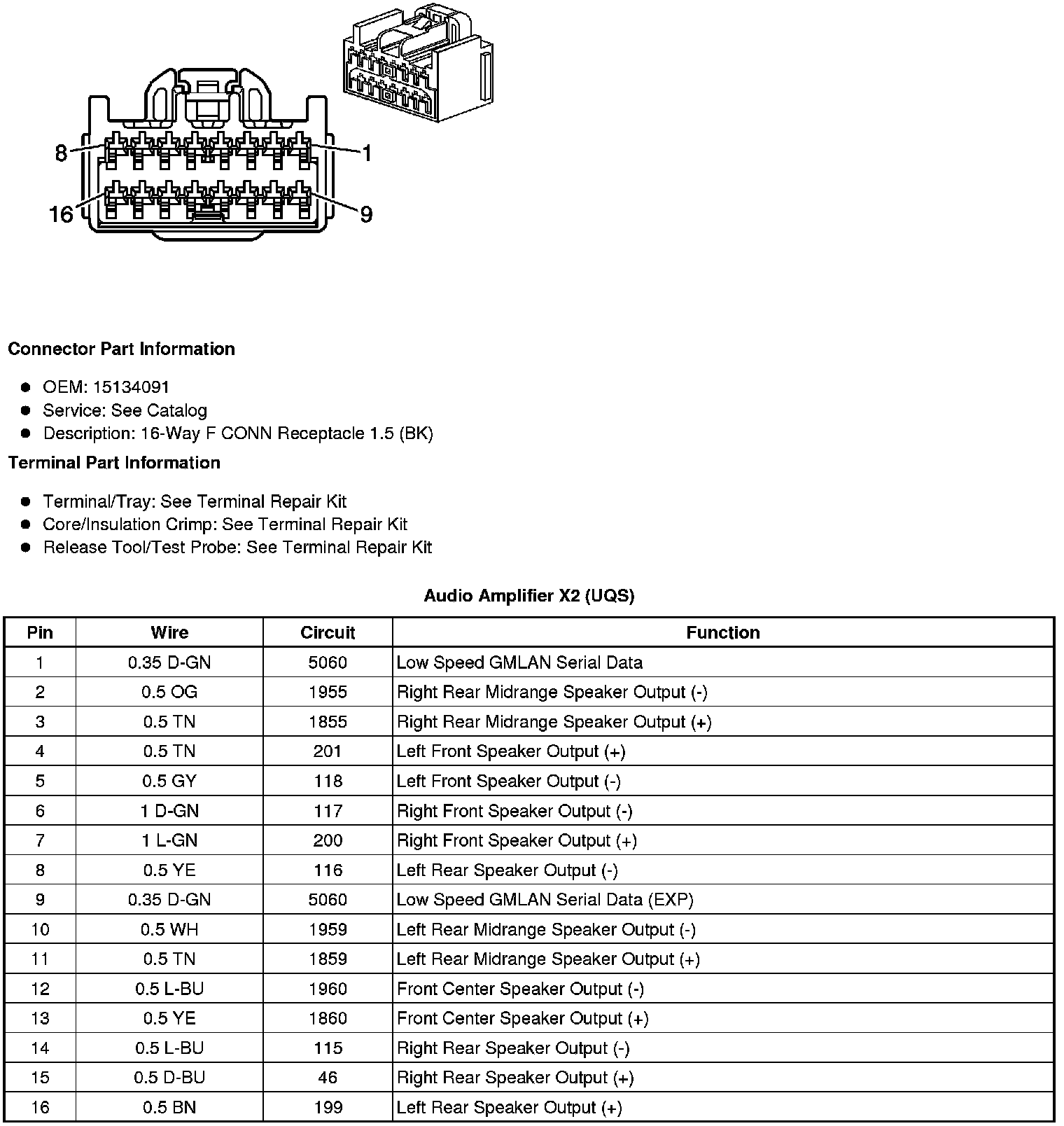

Audio Amplifier X2 (UQS)

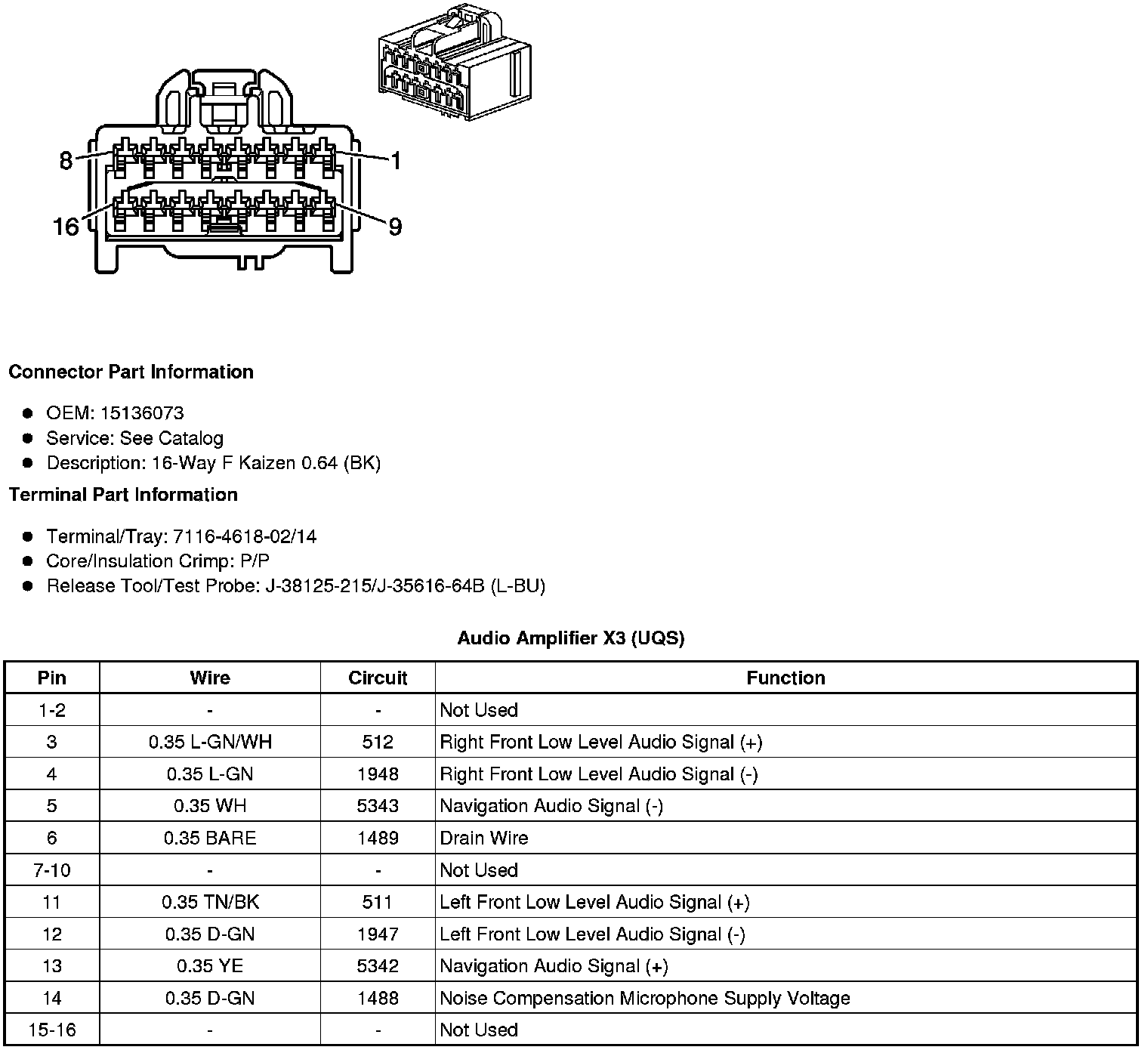

Audio Amplifier X3 (UQS)

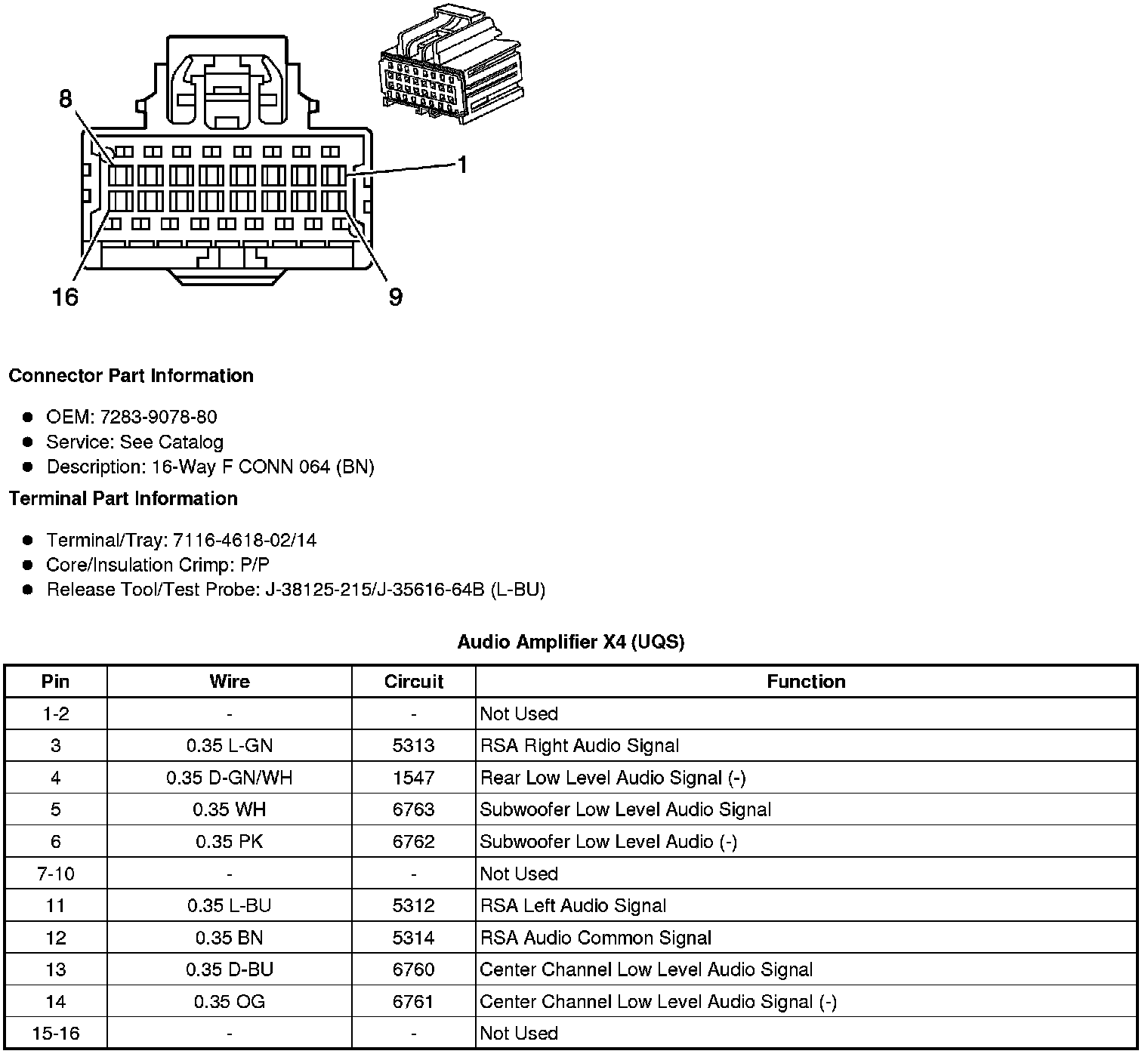

Audio Amplifier X4 (UQS)
