Steering Wheel Secondary/Configurable Control Schematics

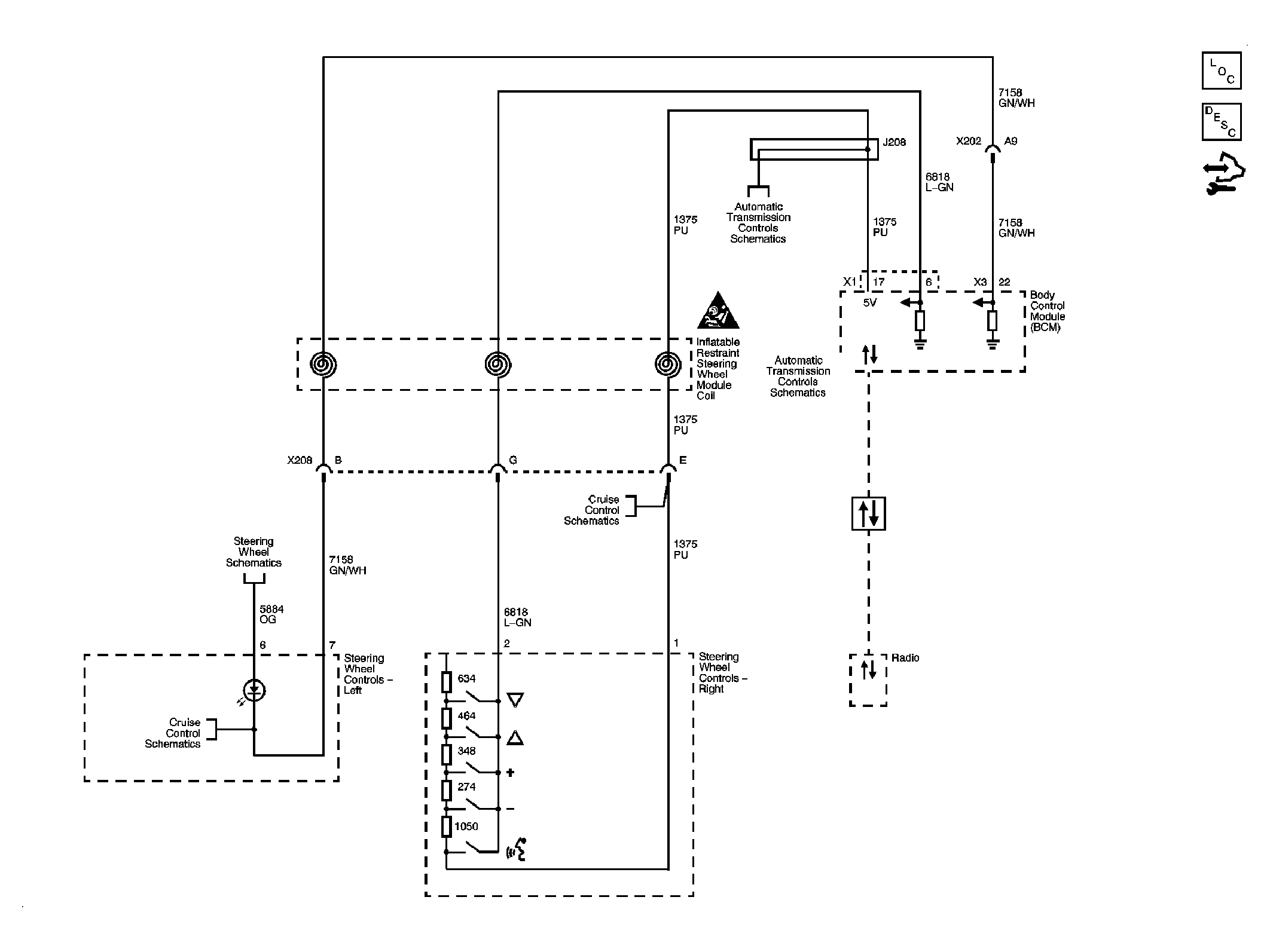

Fig 1: Steering Wheel Secondary/Configurable Control Schematics (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Steering Wheel Secondary/Configurable Control Schematics (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
