Ground Distribution Schematics

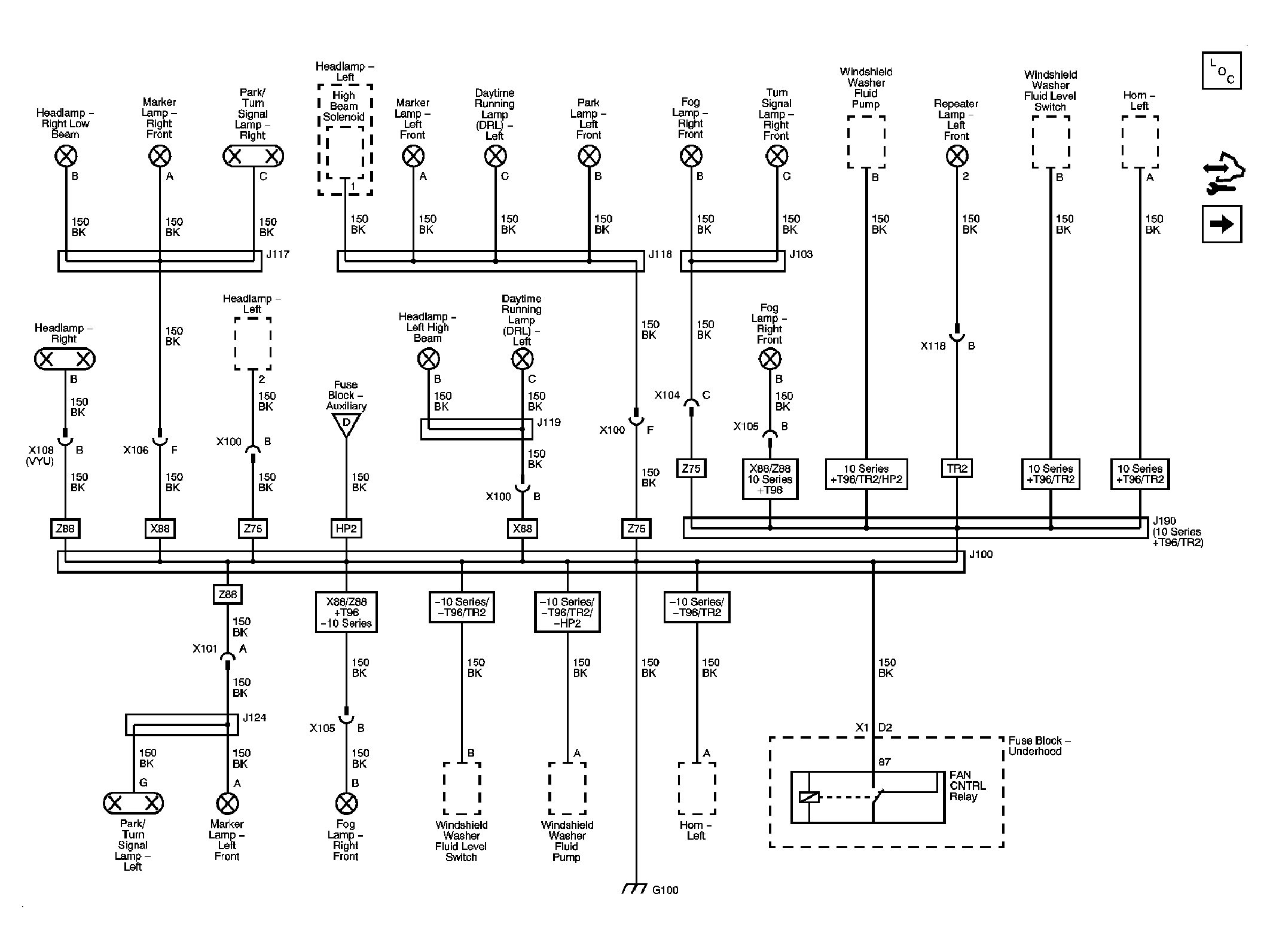

Fig 1: G100 Schematic

GM1906761

Courtesy of GENERAL MOTORS CORP.

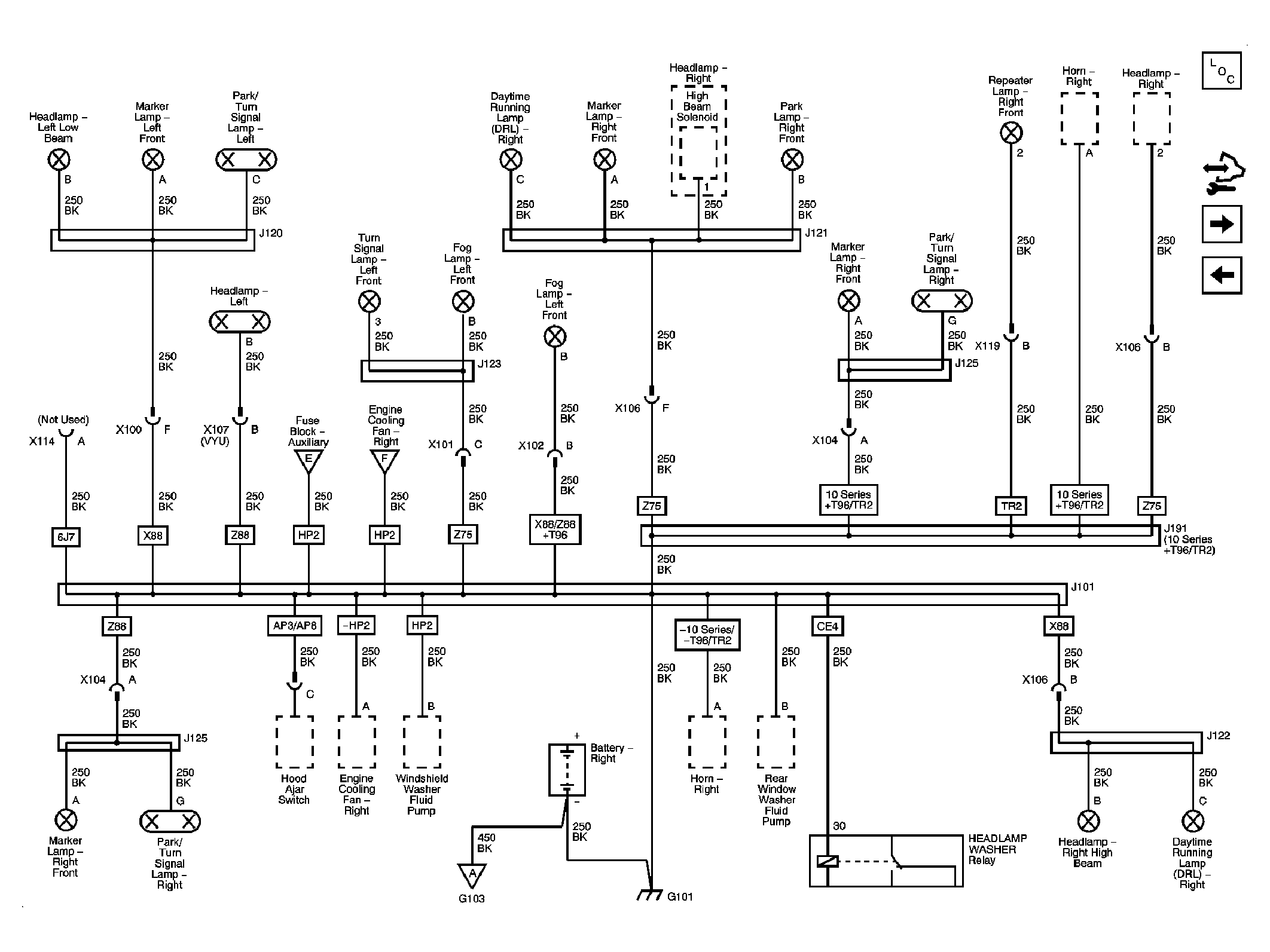

Fig 2: G101 Schematic

GM1906765

Courtesy of GENERAL MOTORS CORP.

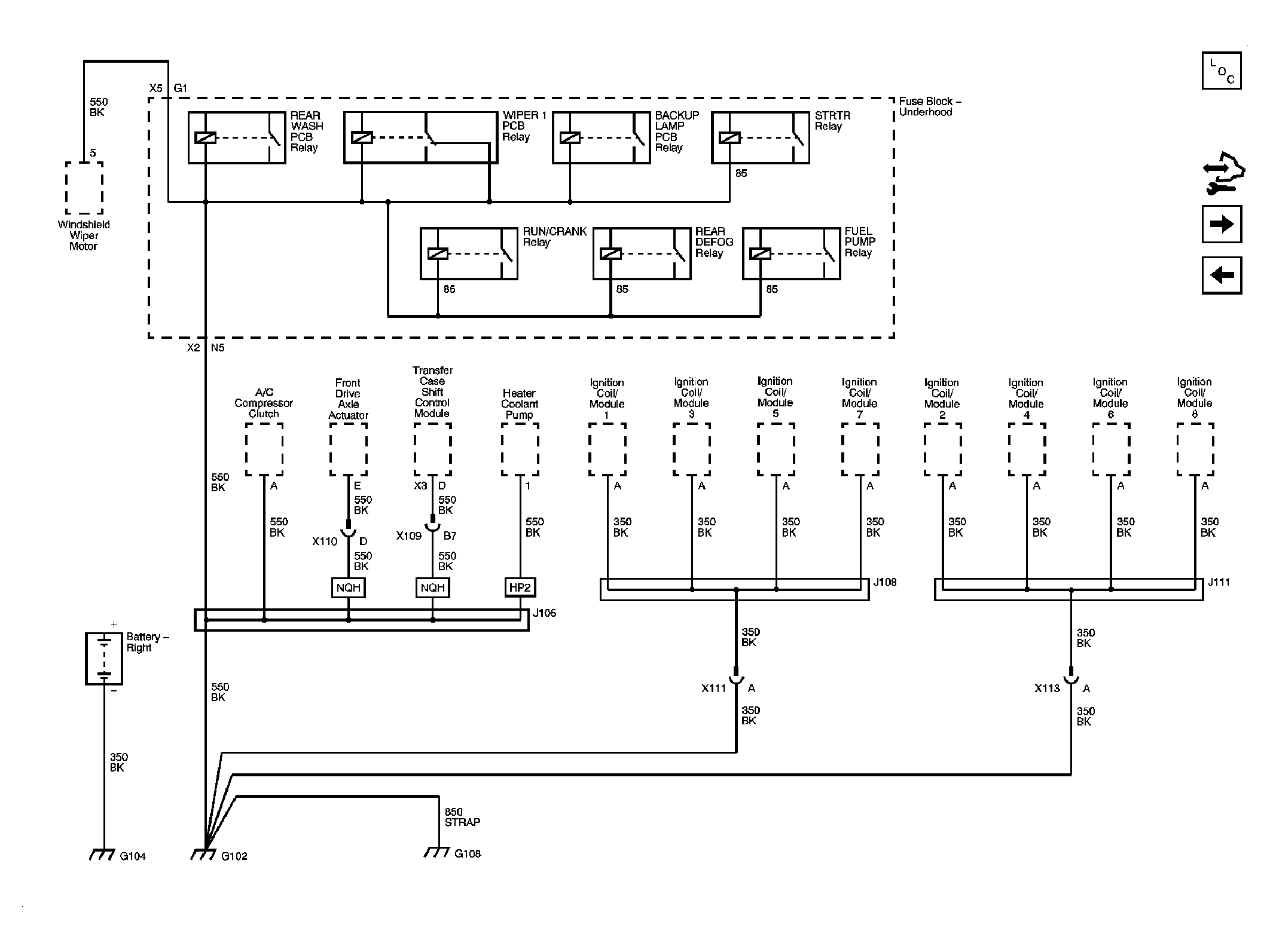

Fig 3: G102, G104 & G108 Schematic

GM1906767

Courtesy of GENERAL MOTORS CORP.

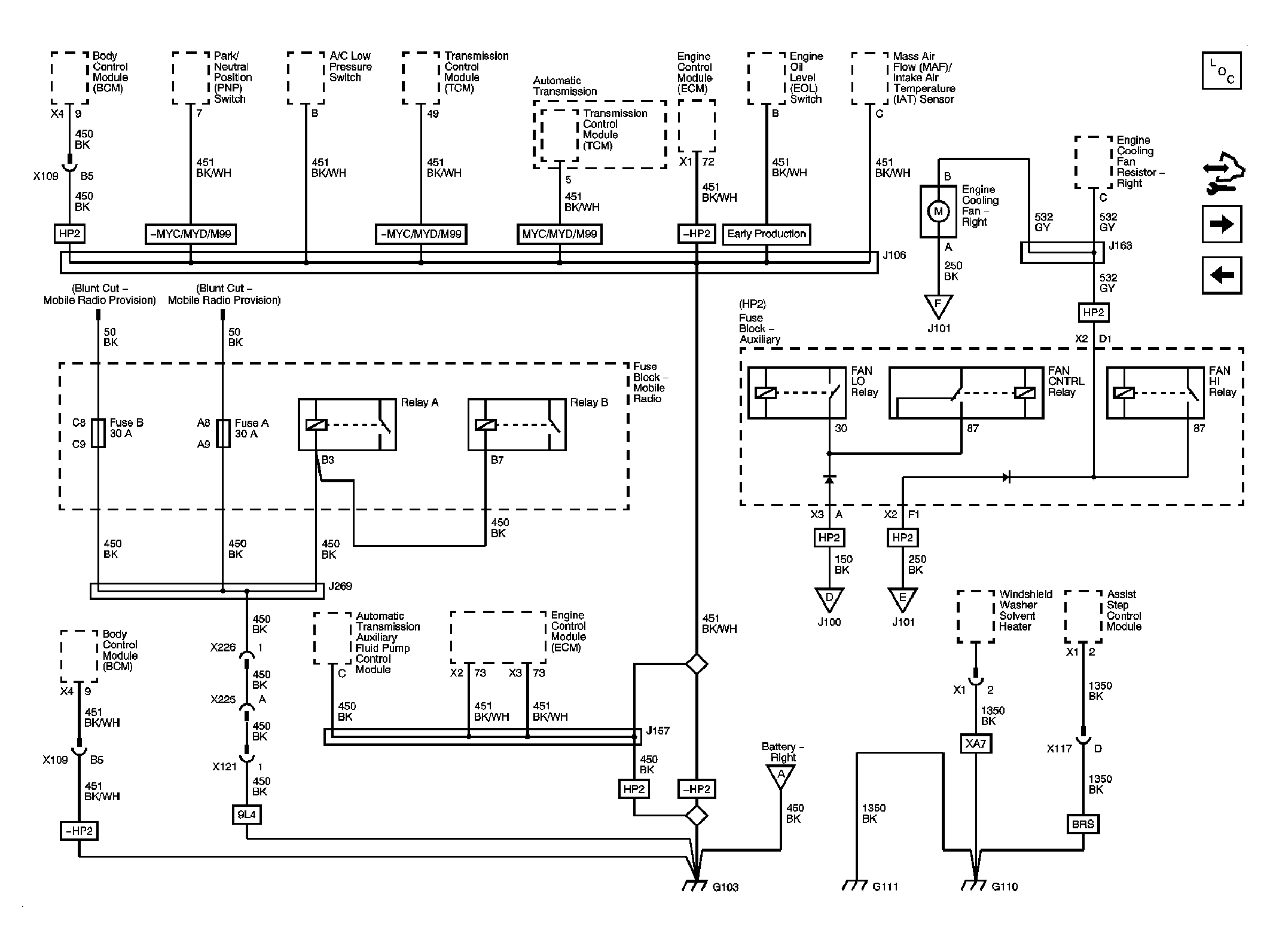

Fig 4: G103, G110 & G111 Schematic

GM1906769

Courtesy of GENERAL MOTORS CORP.

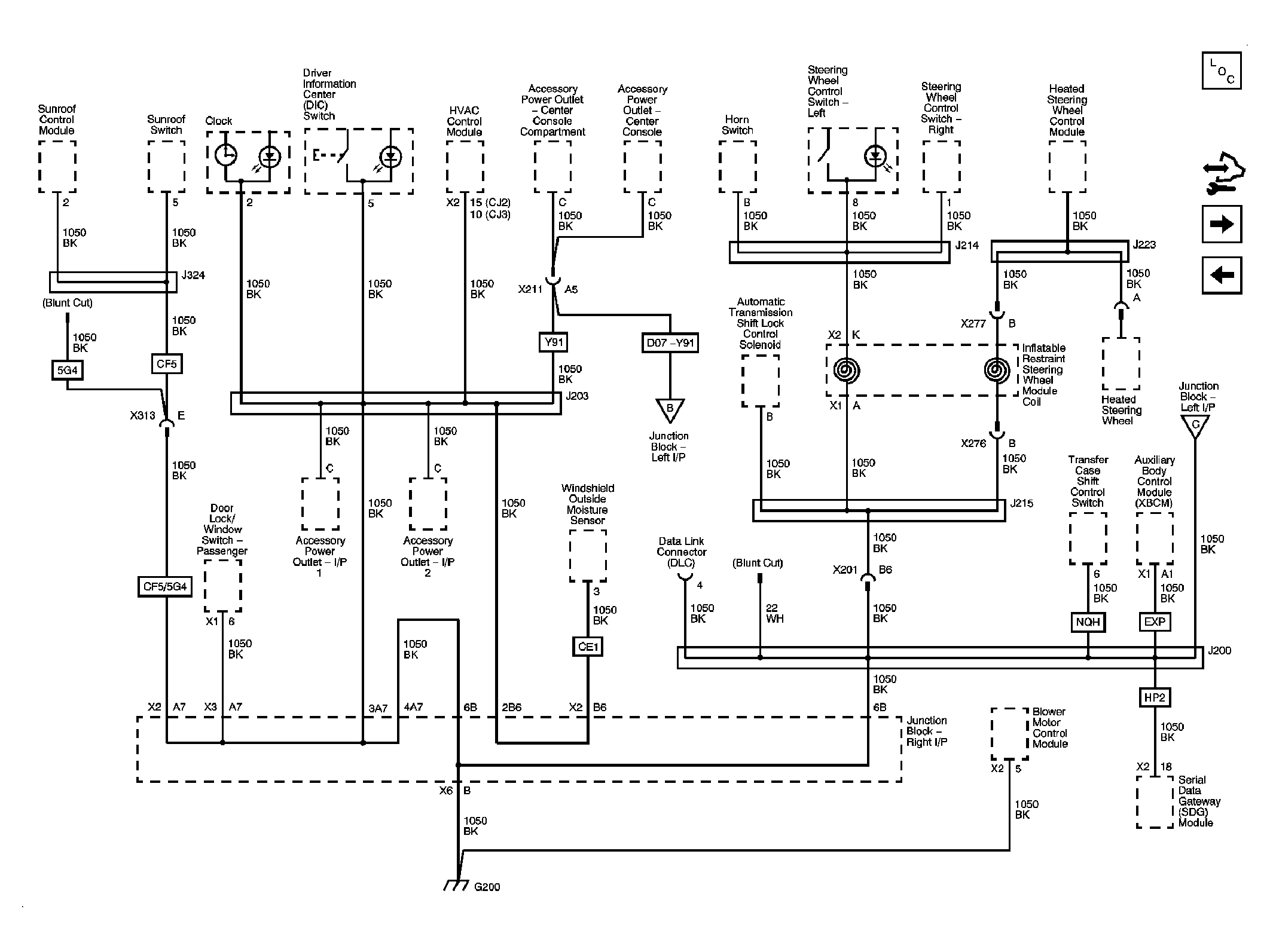

Fig 5: G200 Schematic - 1 Of 2

GM1906772

Courtesy of GENERAL MOTORS CORP.

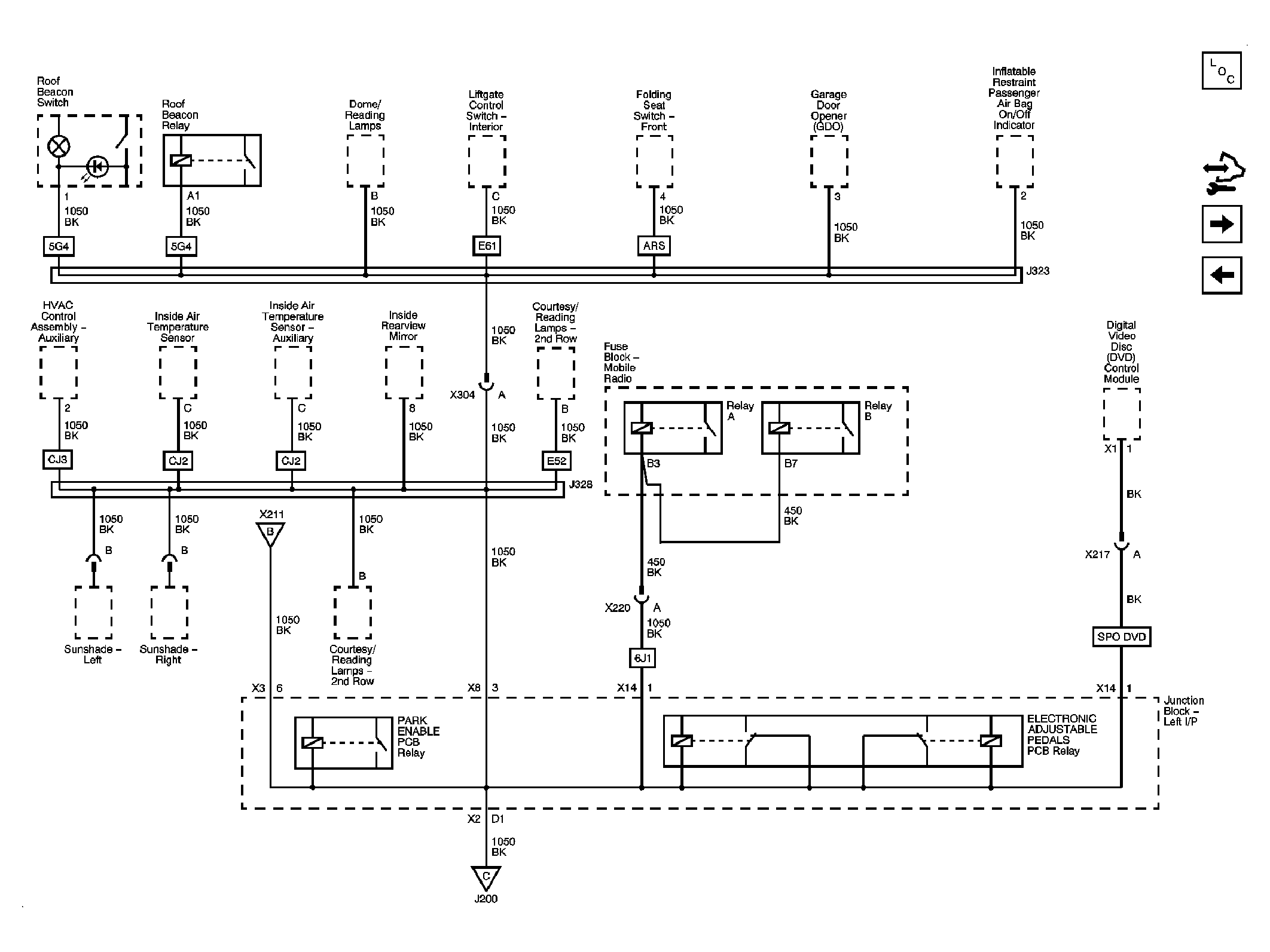

Fig 6: G200 Schematic - 2 Of 2

GM1906774

Courtesy of GENERAL MOTORS CORP.

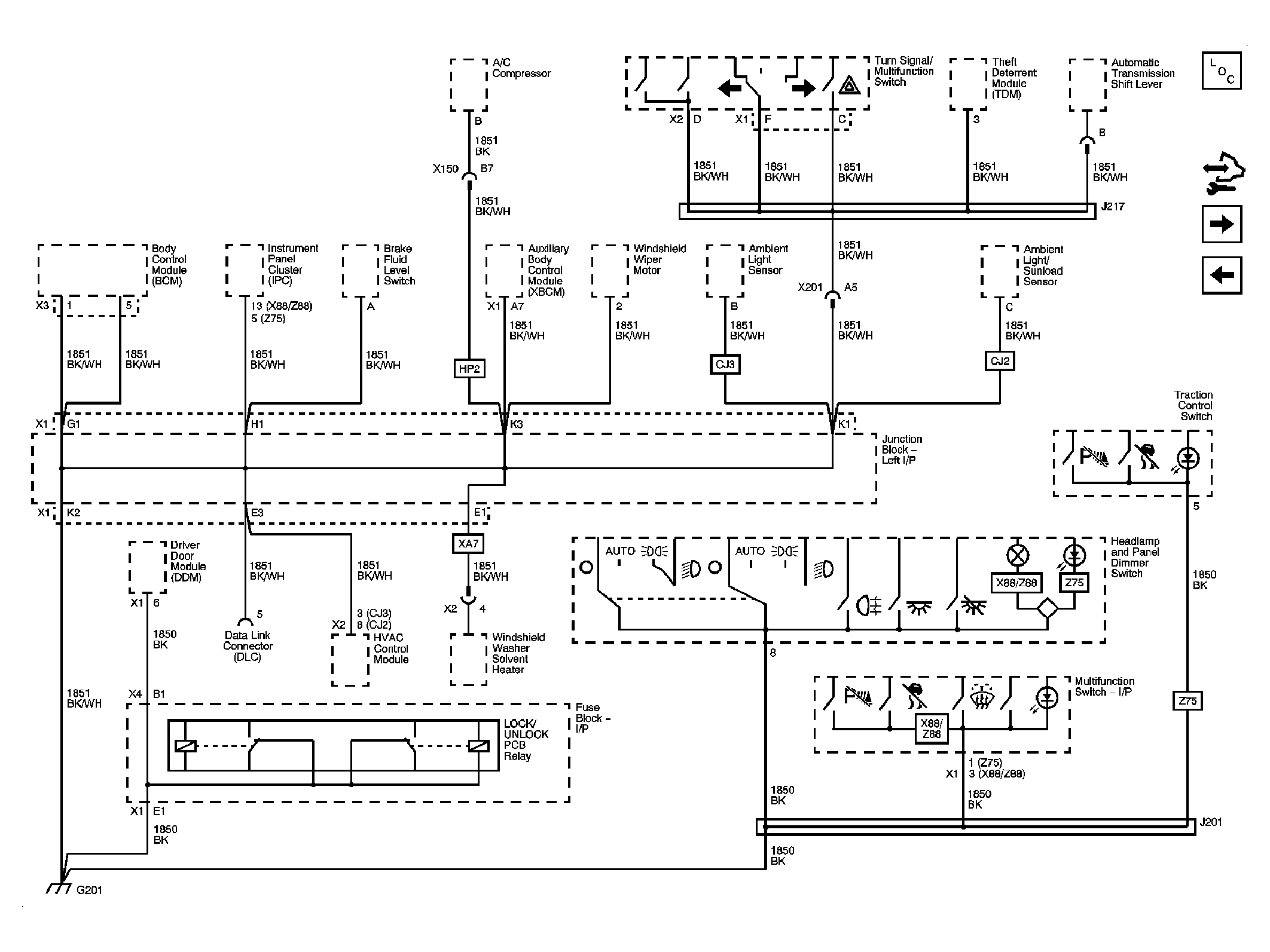

Fig 7: G201 Schematic

GM1906776

Courtesy of GENERAL MOTORS CORP.

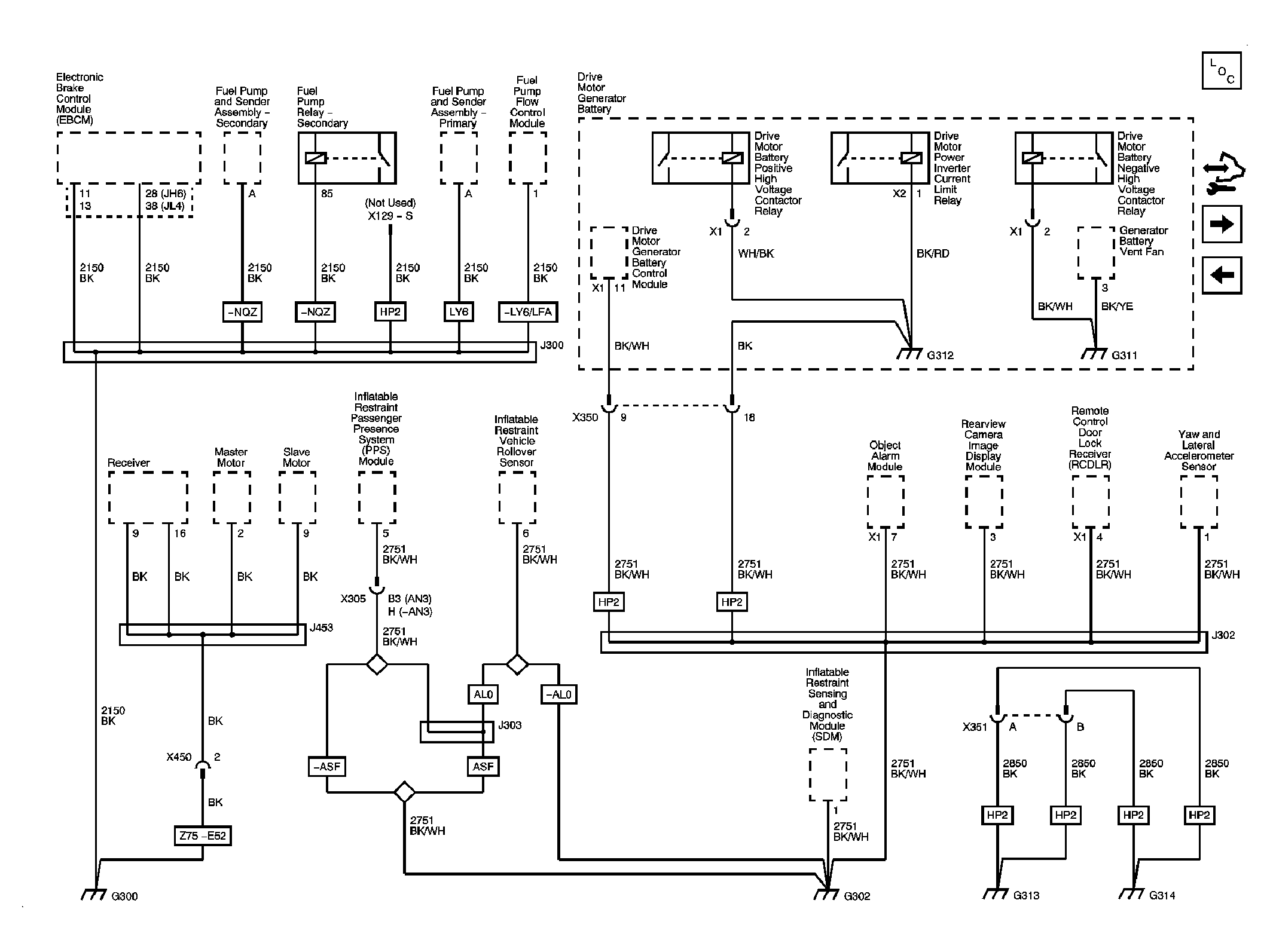

Fig 8: G300, G302, G311 & G302 Schematic

GM1906778

Courtesy of GENERAL MOTORS CORP.

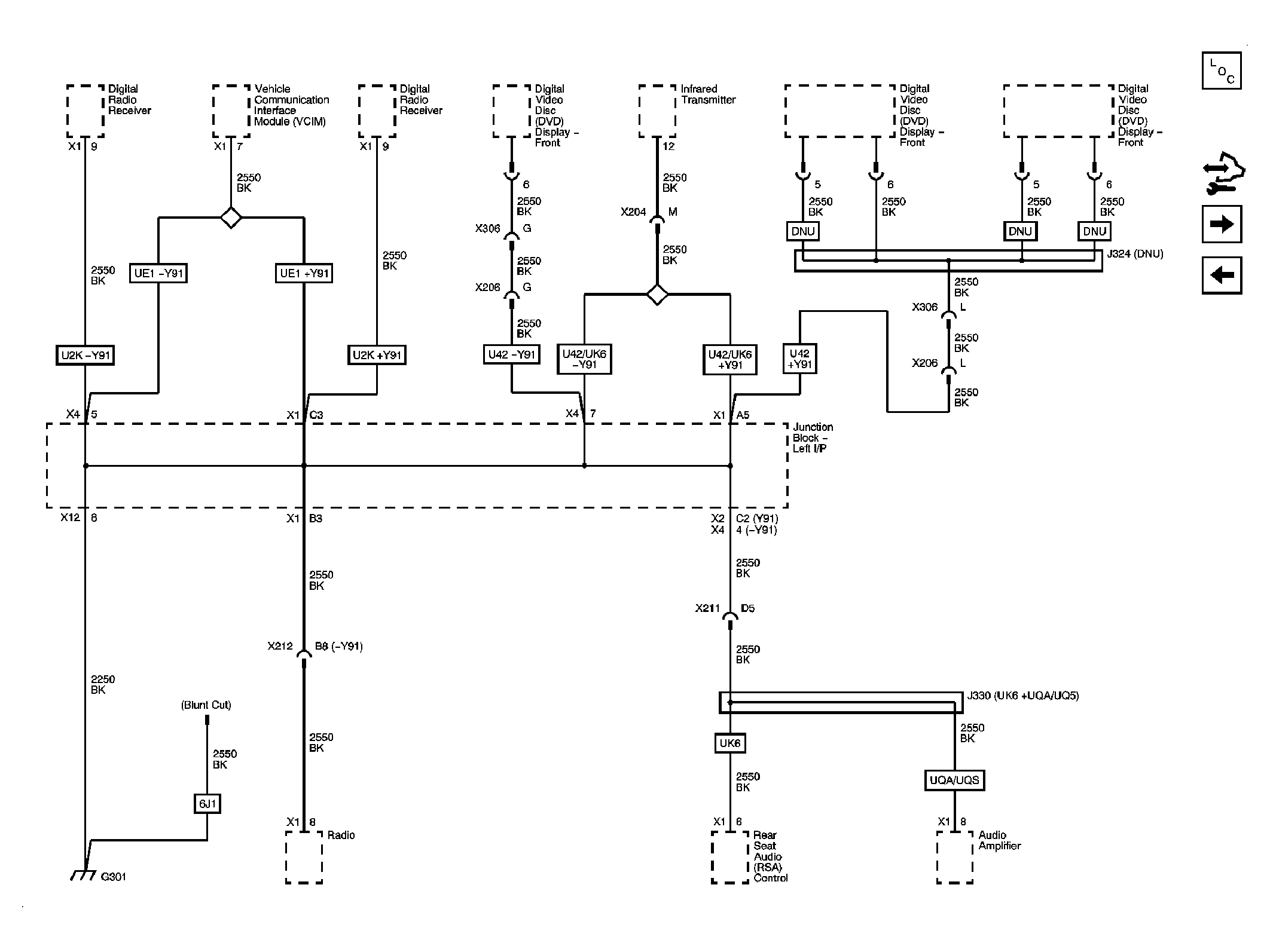

Fig 9: G301 Schematic

GM1906781

Courtesy of GENERAL MOTORS CORP.

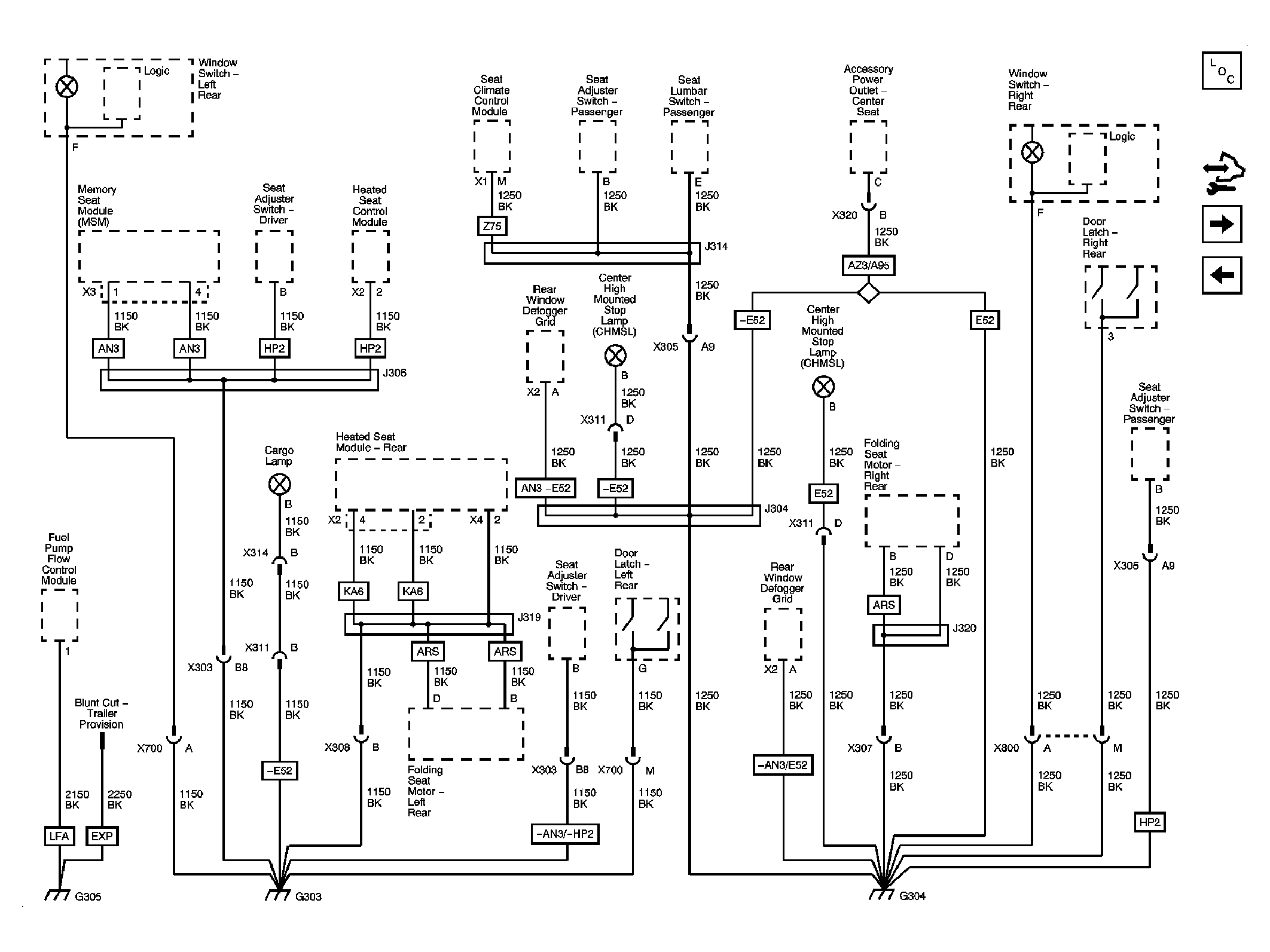

Fig 10: G303, G304 & G305 Schematic

GM1906783

Courtesy of GENERAL MOTORS CORP.

Fig 11: G400 Schematic

GM1906785

Courtesy of GENERAL MOTORS CORP.

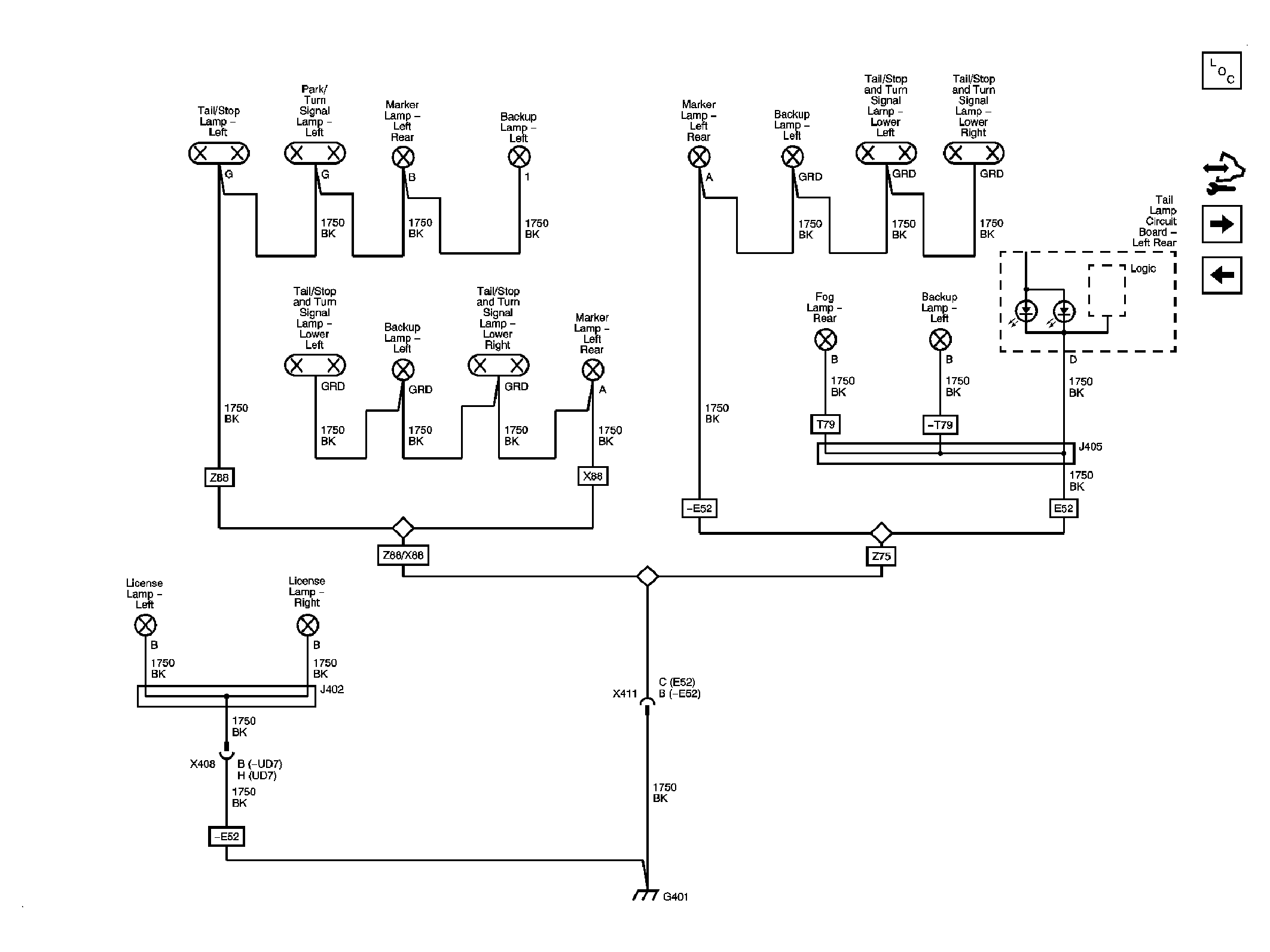

Fig 12: G401 Schematic

GM1906787

Courtesy of GENERAL MOTORS CORP.

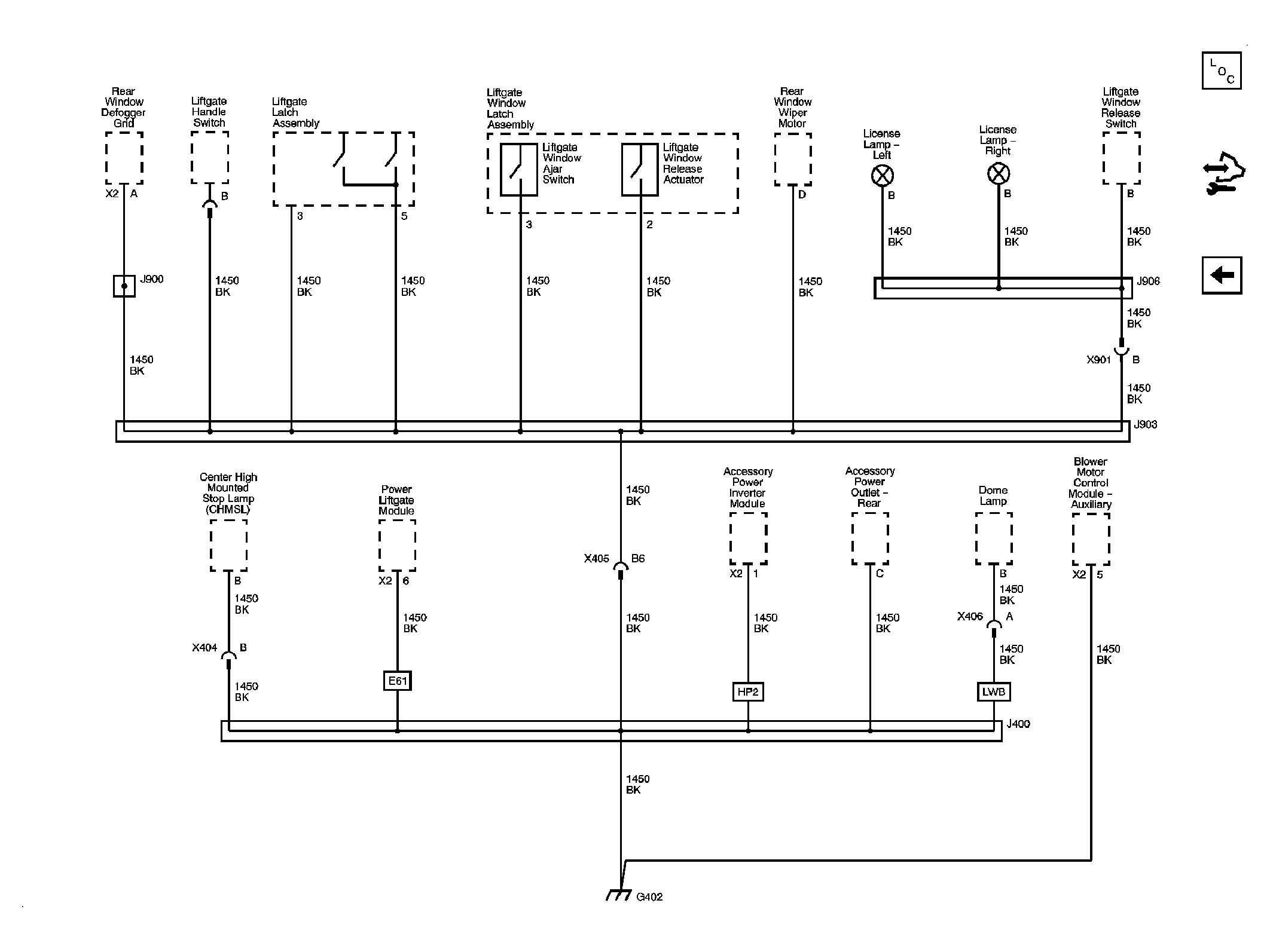

Fig 13: G402 - E52 Schematic

GM1906790

Courtesy of GENERAL MOTORS CORP.
