Driver Door Module (DDM) X3
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

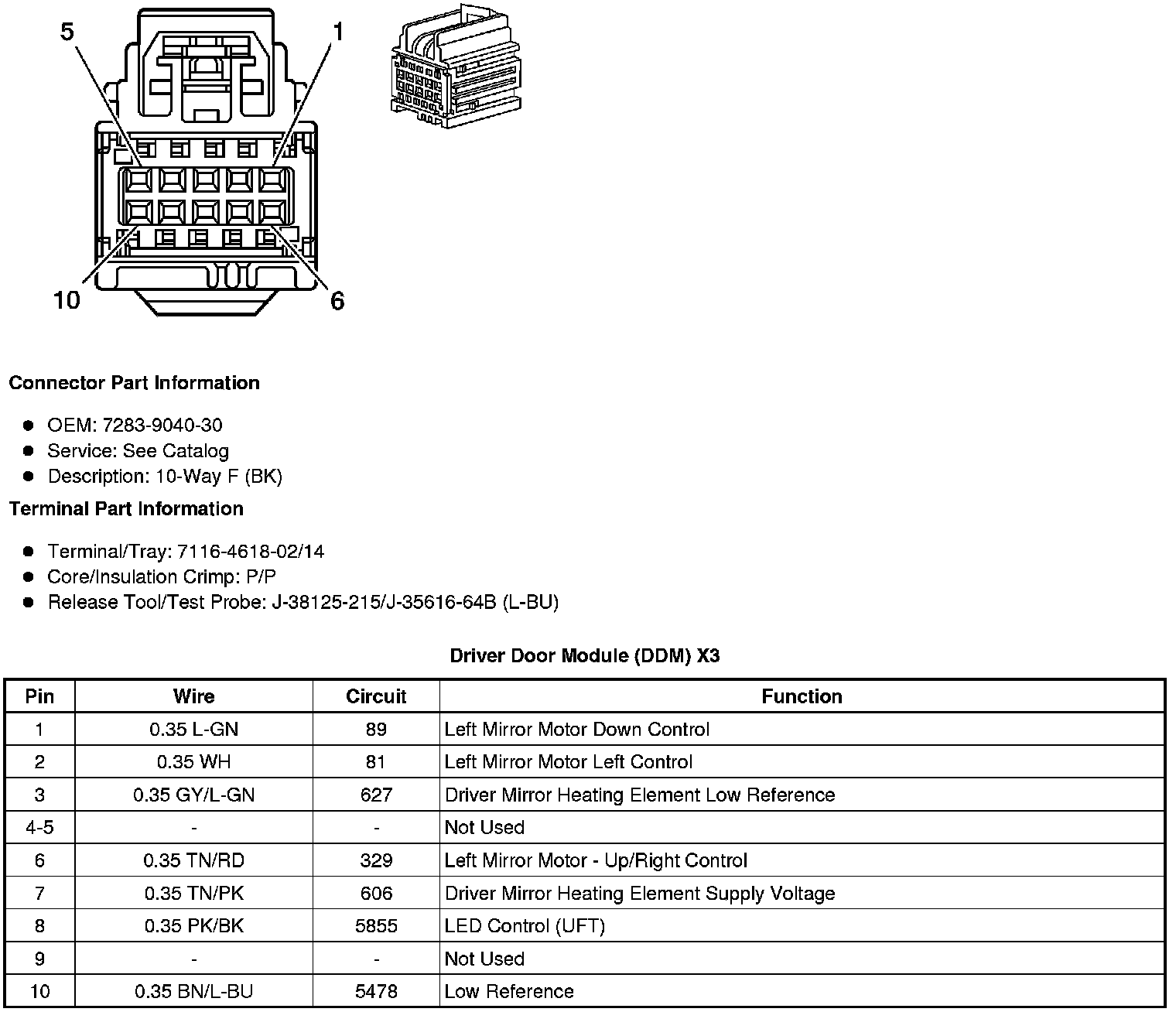

Driver Door Module (DDM) X3
Component Connector End Views
Driver Door Module (DDM) X3
