Keyless Entry Module: Diagrams

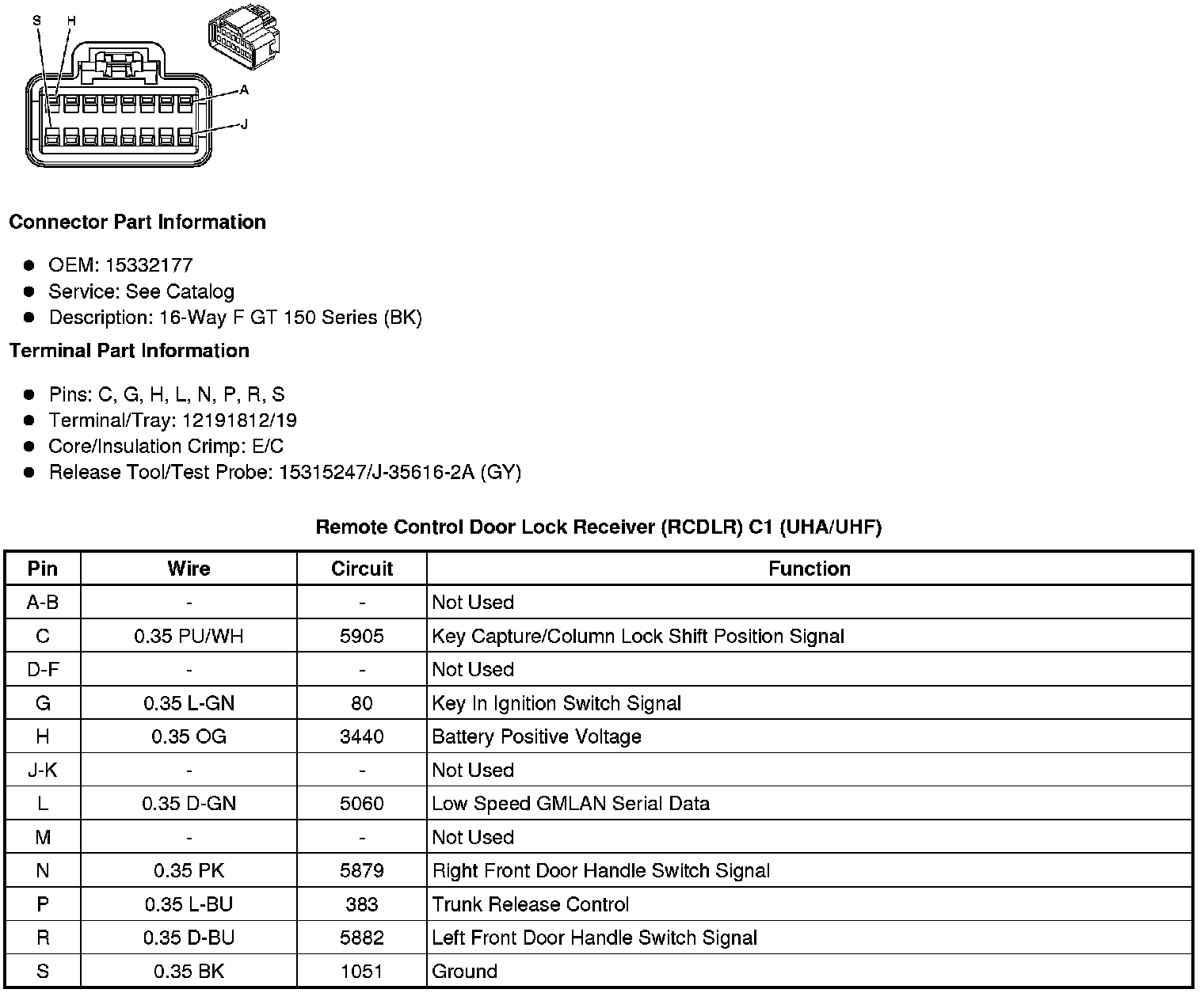

Remote Control Door Lock Receiver (RCDLR) C1 (UHA/UHF)

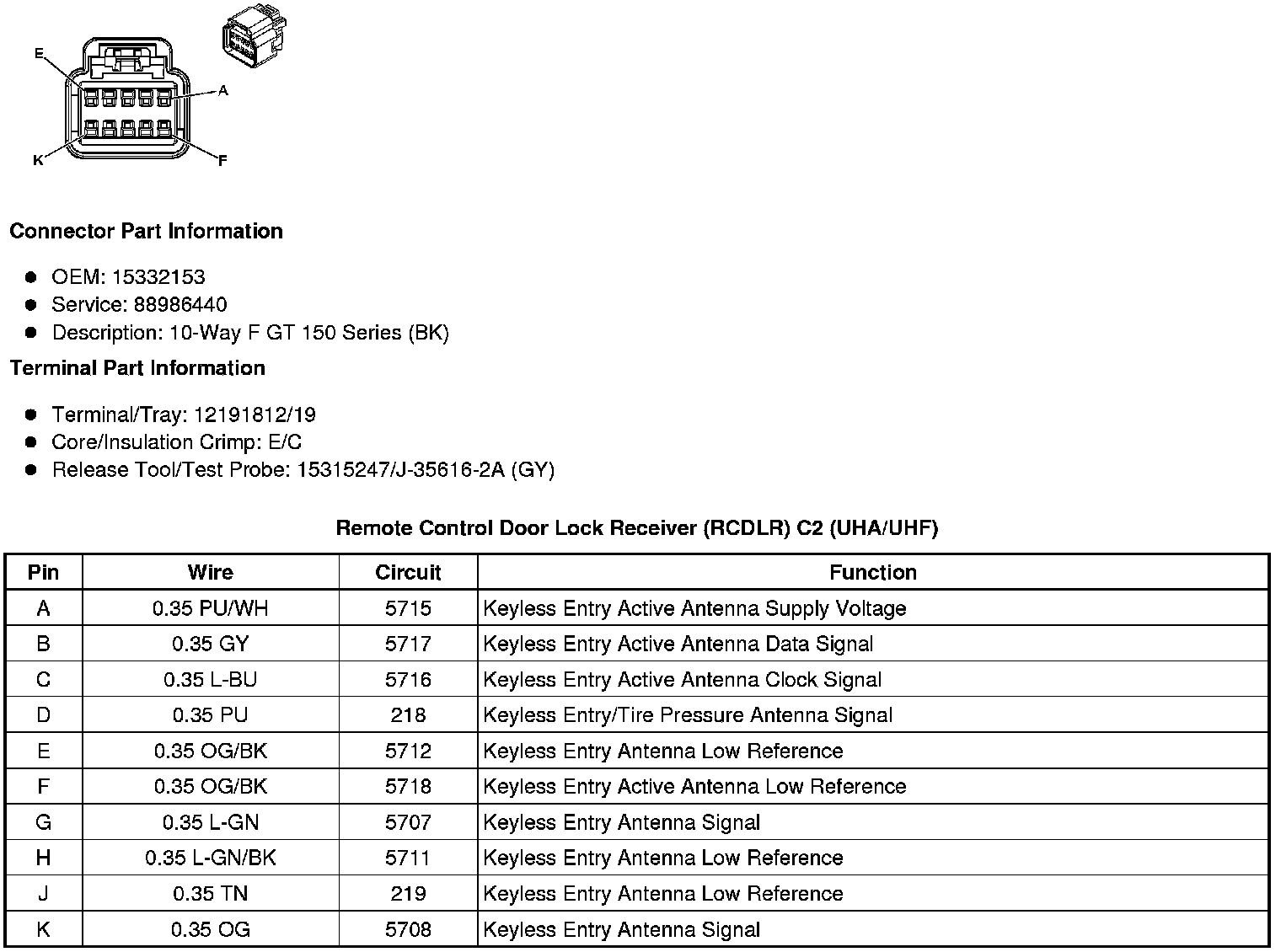

Remote Control Door Lock Receiver (RCDLR) C2 (UHA/UHF)

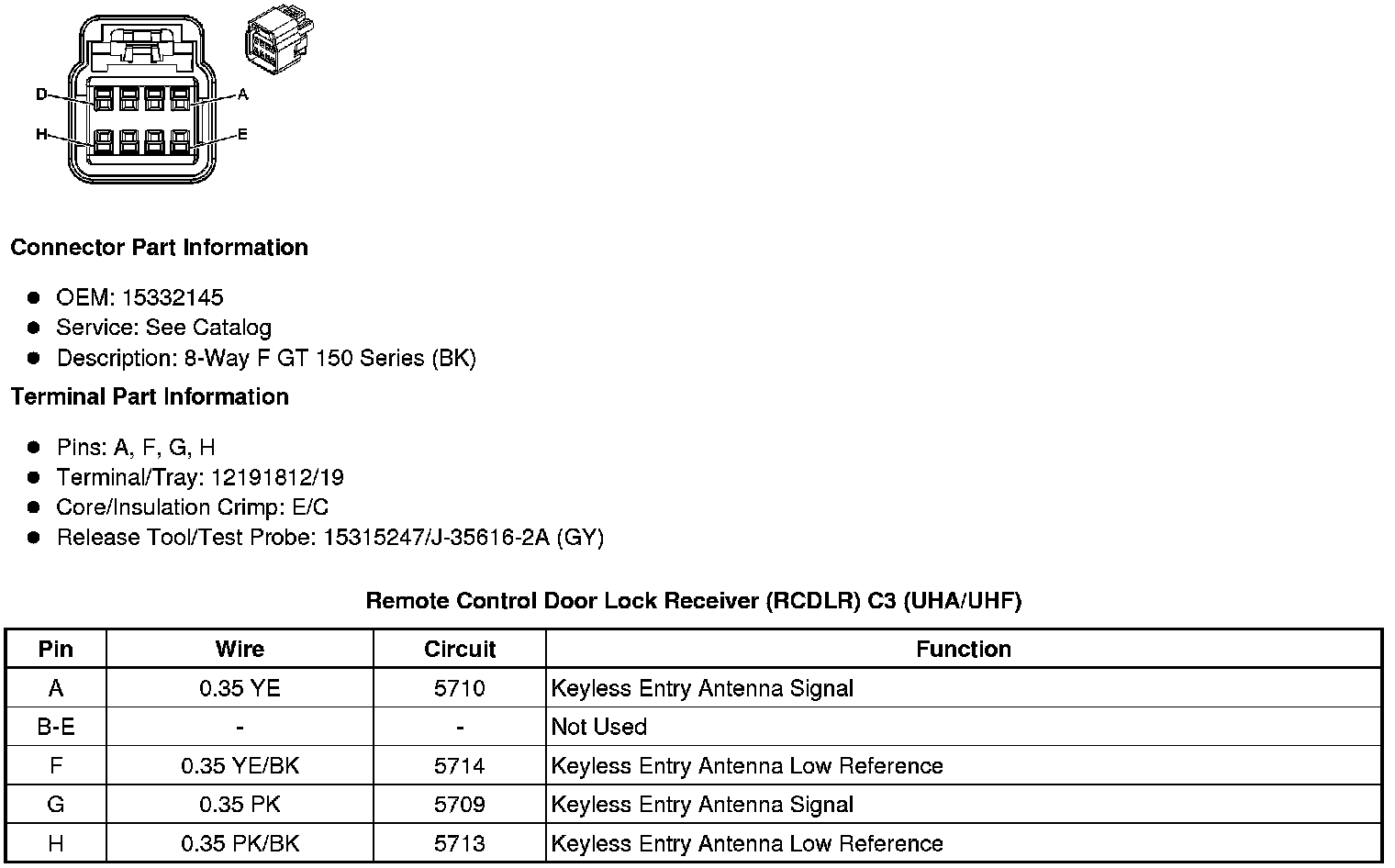

Remote Control Door Lock Receiver (RCDLR) C3 (UHA/UHF)
