Control Module HVAC: Locations



HVAC Component Views

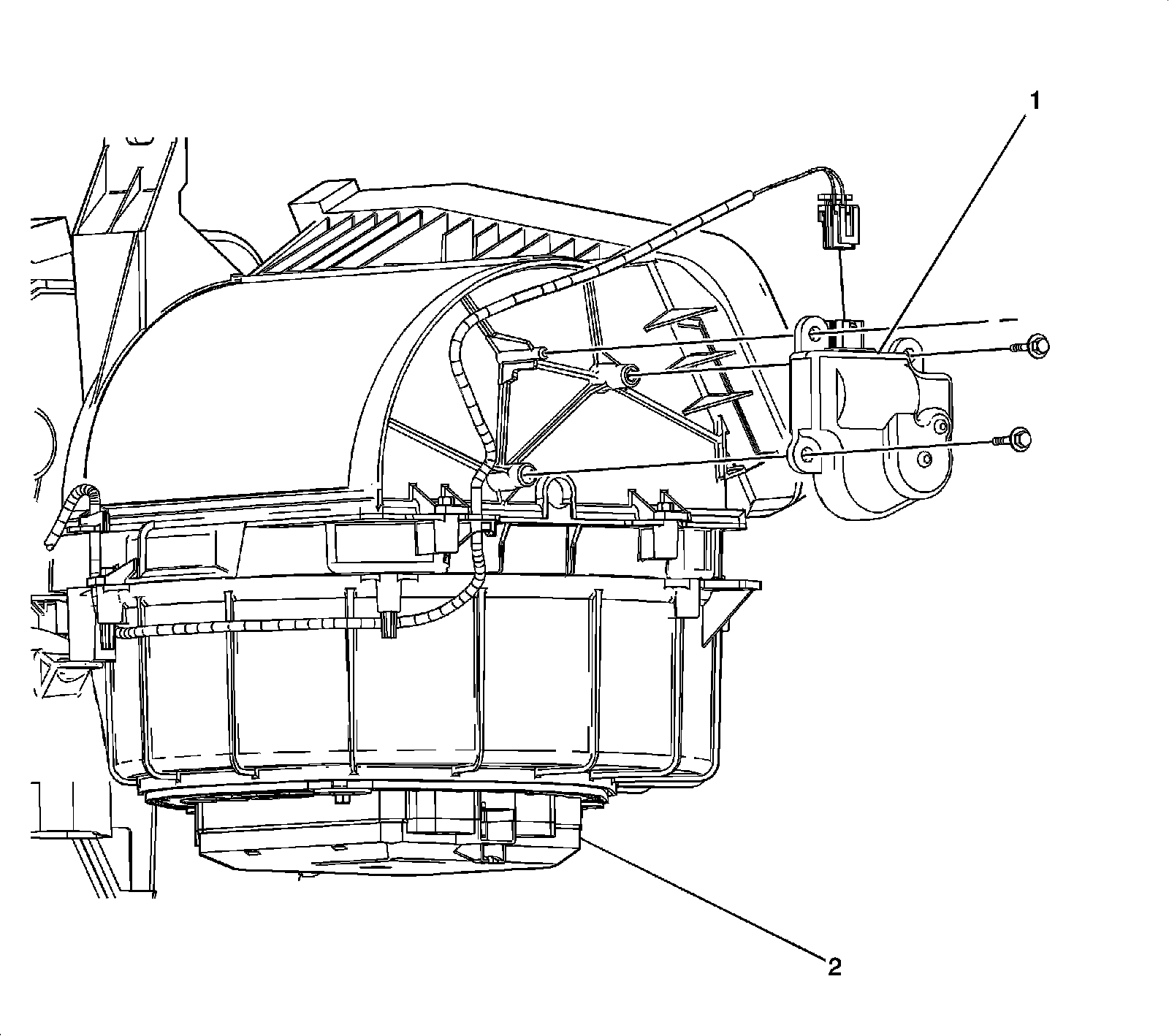

Right Side of Blower Motor




1 - Recirculation Actuator
2 - Blower Motor Control Processor
