Memory Positioning Module: Diagrams

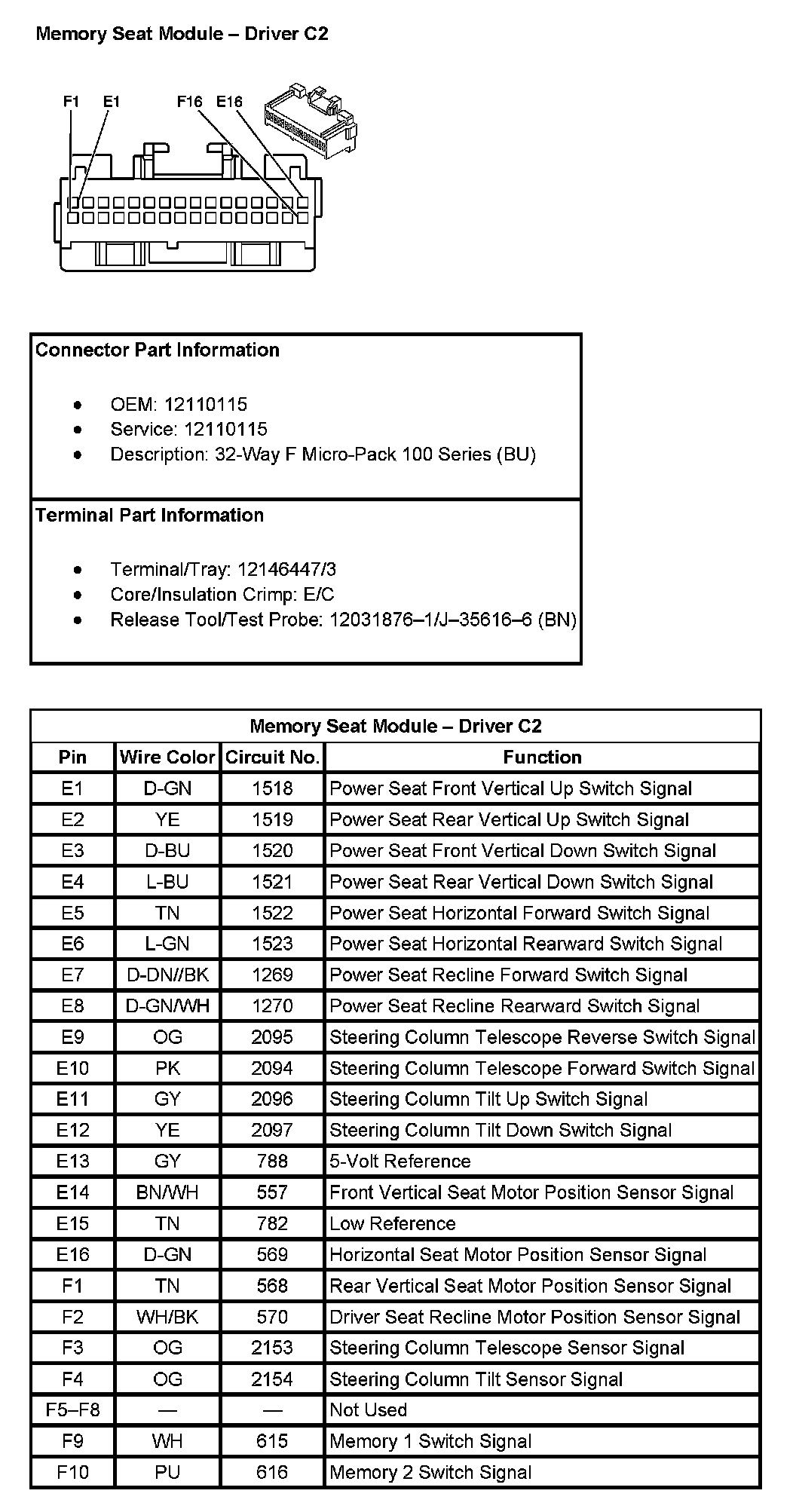

Memory Seat Module - Driver C2 (Pin E1 To F10):



Memory Seat Module - Driver C2 (Pin F11 To F16):

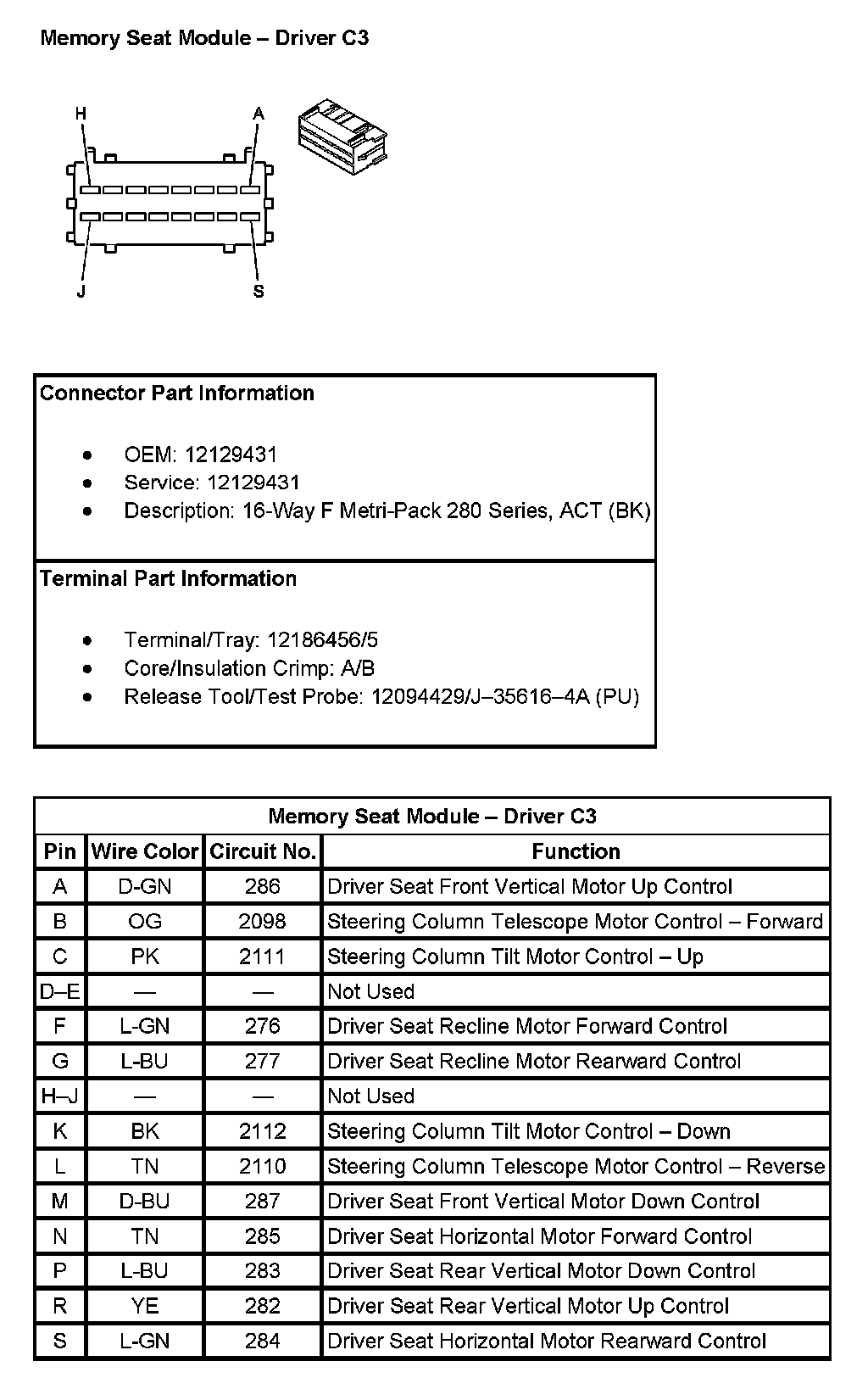

Memory Seat Module - Driver C3:



Memory Seat Module - Driver C1:
