Repeater Lamp Replacement

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

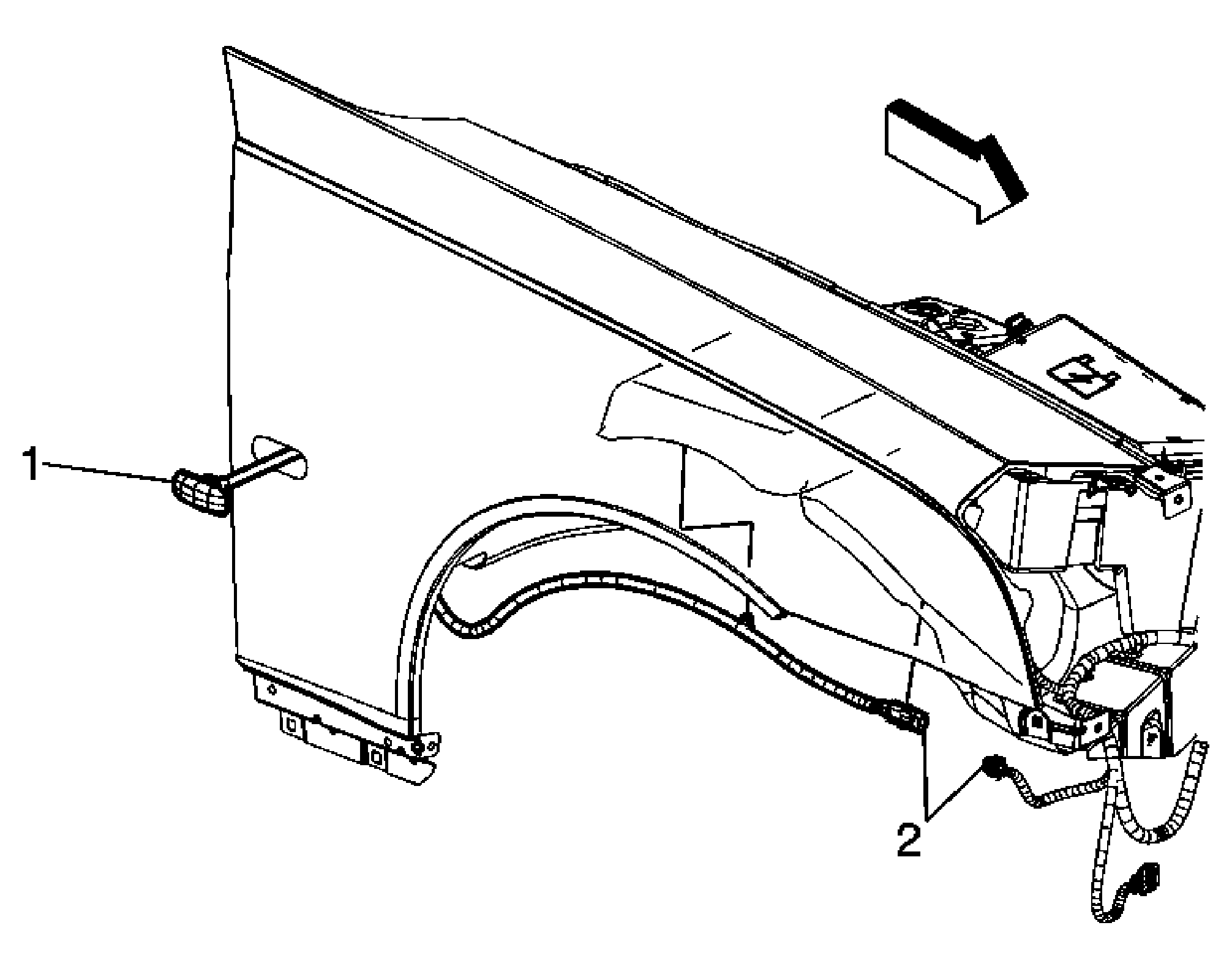

Fig 1: Identifying Front Side Turn Signal Lamp
GM1748641Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove either the right front or left front wheelhouse liner. Refer to Wheelhouse Panel Replacement - Right Side or Wheelhouse Panel Replacement - Left Side .
1 Front Side Turn Signal Lamp Assembly
Procedure:
Install the locator tab on the lamp towards the rear of the fender flange.
2 Front Side Turn Signal Lamp Harness Connector
