Cargo Lamp Bulb Replacement
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

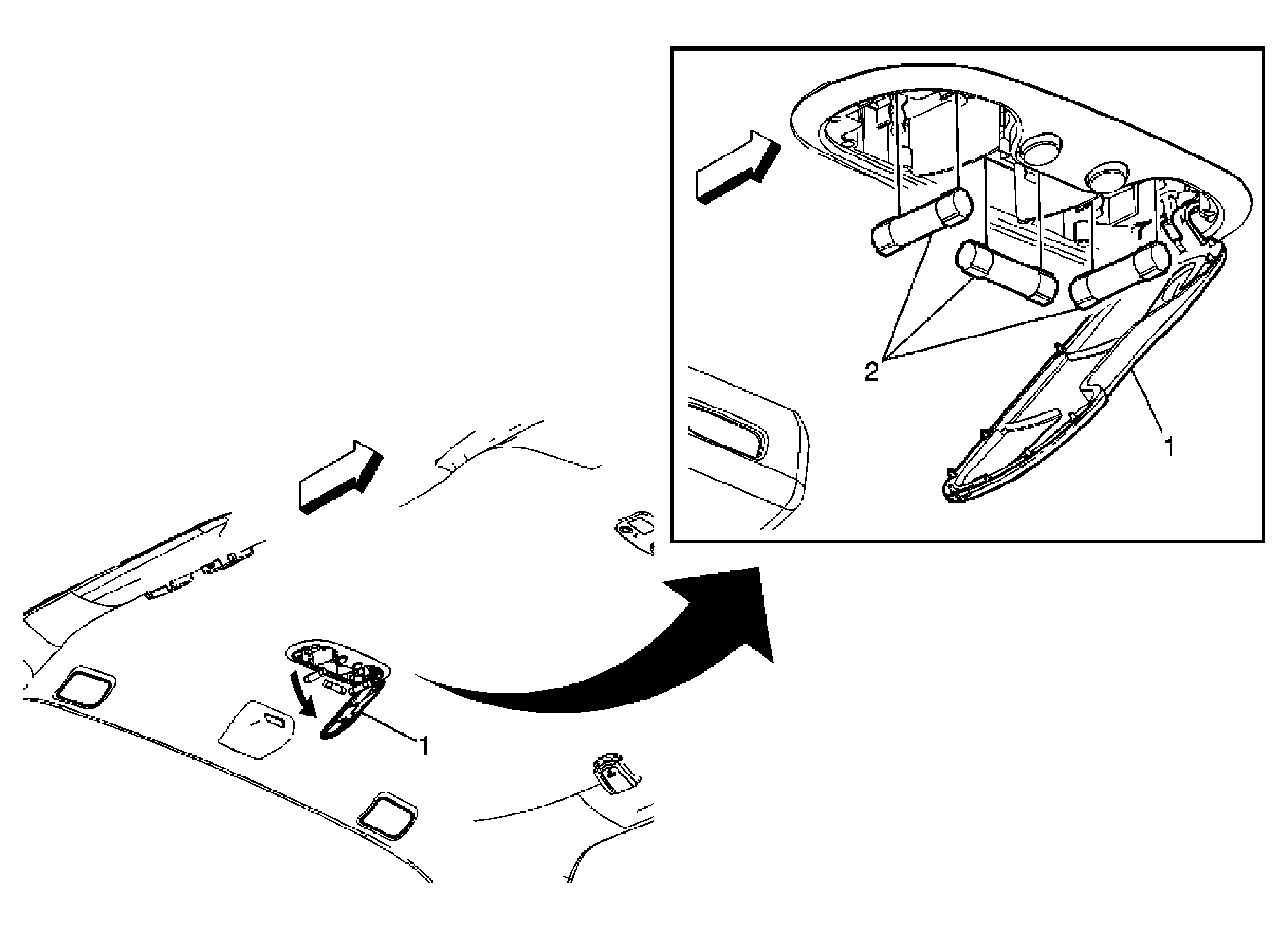

| Callout |
Component Name |
| 1 |
Cargo Lamp Lens
Procedure:
Use a small plastic flat bladed tool to aid in the opening of the cargo lamp lens. |
| 2 |
Cargo Lamp Bulb (Qty: 3) |
