Remote Control Door Lock and Theft Deterrent Receiver Replacement

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

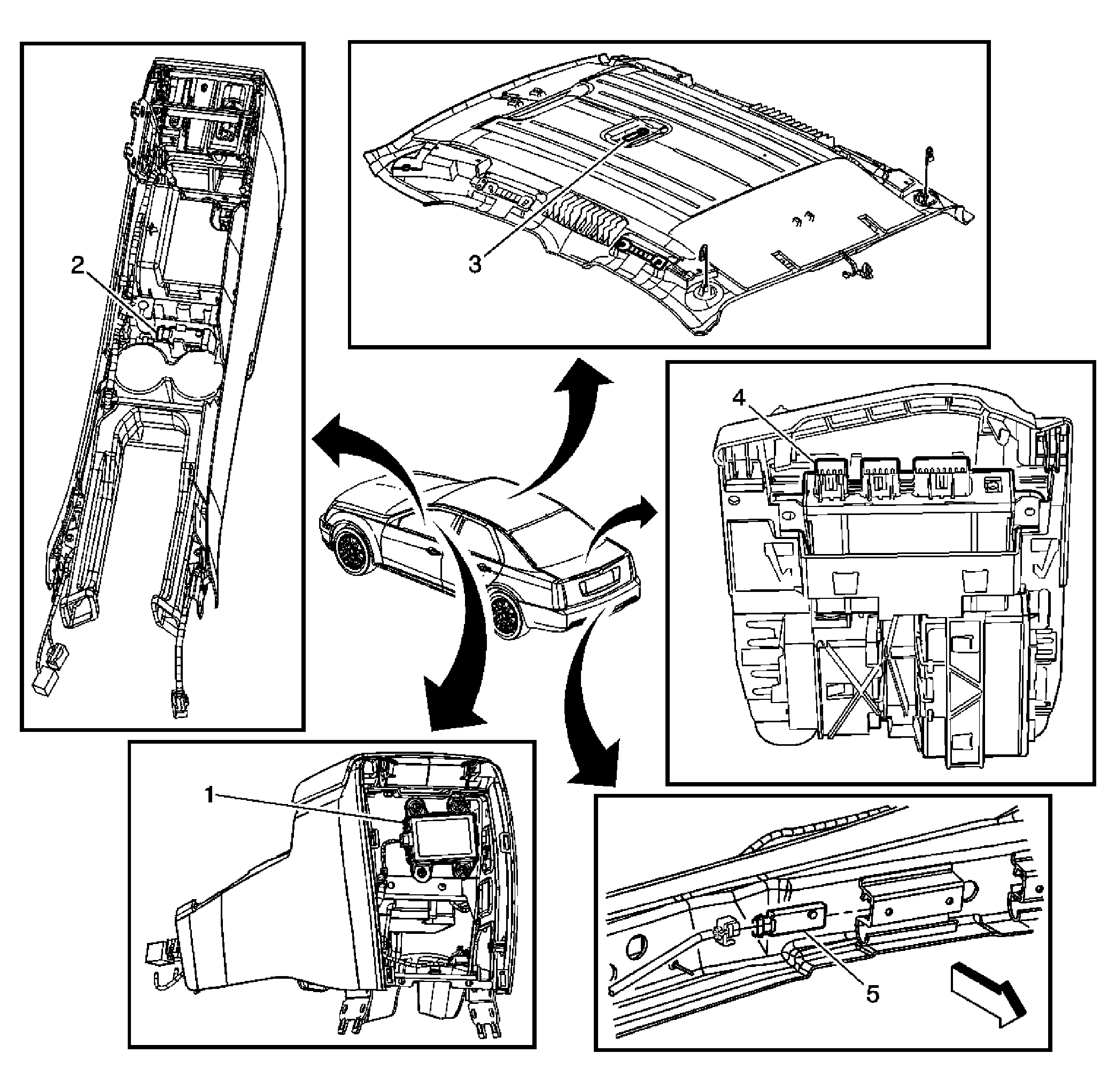

Fig 1: View Of Keyless Entry Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Door Lock Antenna Assembly Preliminary Procedure Remove the center console end cap. Refer to Center Console End Panel Replacement in Instrument Panel, Gages, and Console. Disconnect the electrical connectors.
1	Antenna Assembly, Door Lock
Door Lock Ignition Key Antenna Assembly Preliminary Procedure Remove the center console. Refer to Front Floor Console Replacement in Instrument Panel, Gages, and Console. Remove the console HVAC air duct.
2	Antenna Assembly, Ignition Lock Key
Door Lock Ignition Key Antenna Assembly Preliminary Procedure Remove the headliner. Refer to Headlining Trim Panel Replacement in Interior Trim. Disconnect the electrical connectors.
3	Antenna Assembly, Ignition Lock Key
Door Lock Ignition Key Antenna Assembly Preliminary Procedure Remove the rear compartment sill trim. Refer to Rear Compartment Sill Trim Plate Replacement in Body Rear End. Disconnect the electrical connectors.
4	Antenna Assembly, Ignition Lock Key
Remote Control Door Lock Receiver Preliminary Procedure Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement in Body Rear End. Disconnect the electrical connectors. If replacing the receiver, program the receiver. Refer to Control Module References in Computer/Integrating Systems.
5	Receiver Assembly, Remote Control Door Lock and Theft Deterrent
