Mirror Component Views

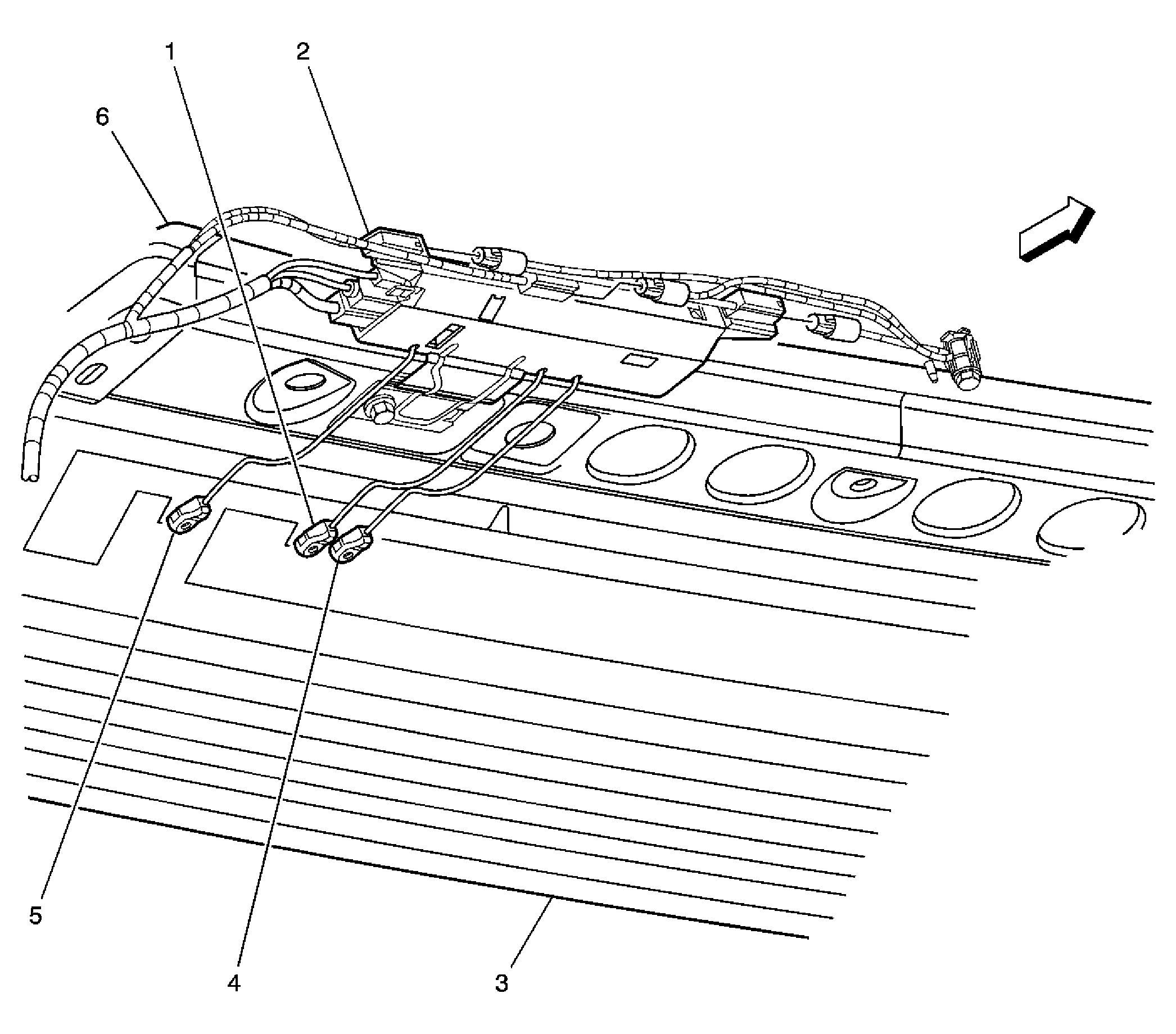

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
VICS-FM3 Antenna |
| 2 |
Radio Antenna Module |
| 3 |
Rear Window Defogger Grid |
| 4 |
AM/FM 1 Antenna |
| 5 |
FM 2 Antenna |
| 6 |
Roof Rail |

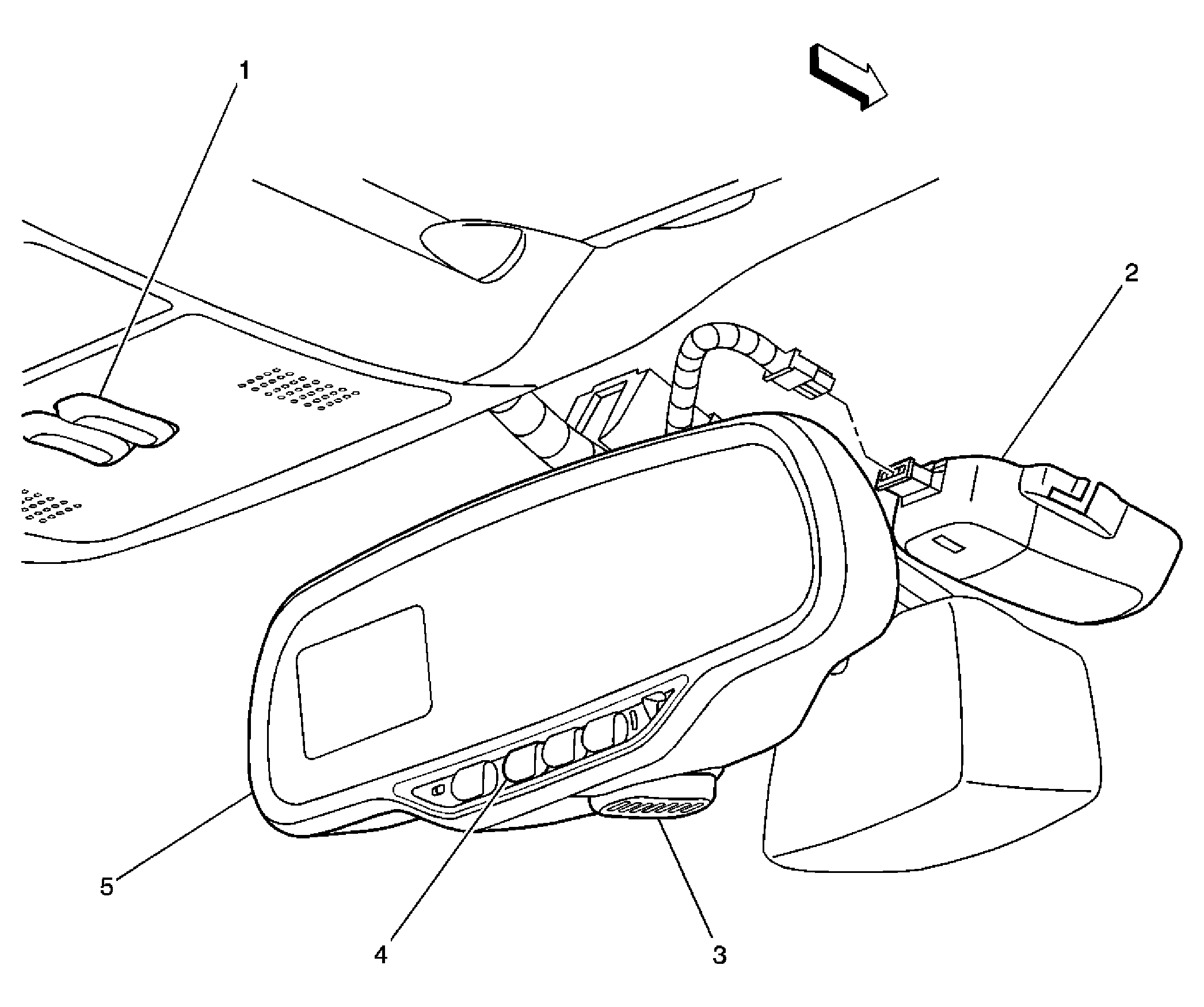

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Switch (CF5) |
| 2 |
Outside Moisture Sensor (CE1) |
| 3 |
Intellabeam Sensor (TQ5) |
| 4 |
Cellular Microphone (UE1) |
| 5 |
OnStar® Button Assembly (UE1) |
| 6 |
Inside Rearview Mirror (ISRVM) |
