Immobilizer Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Hood Ajar Switch |
| 2 |
RF Strut Tower |

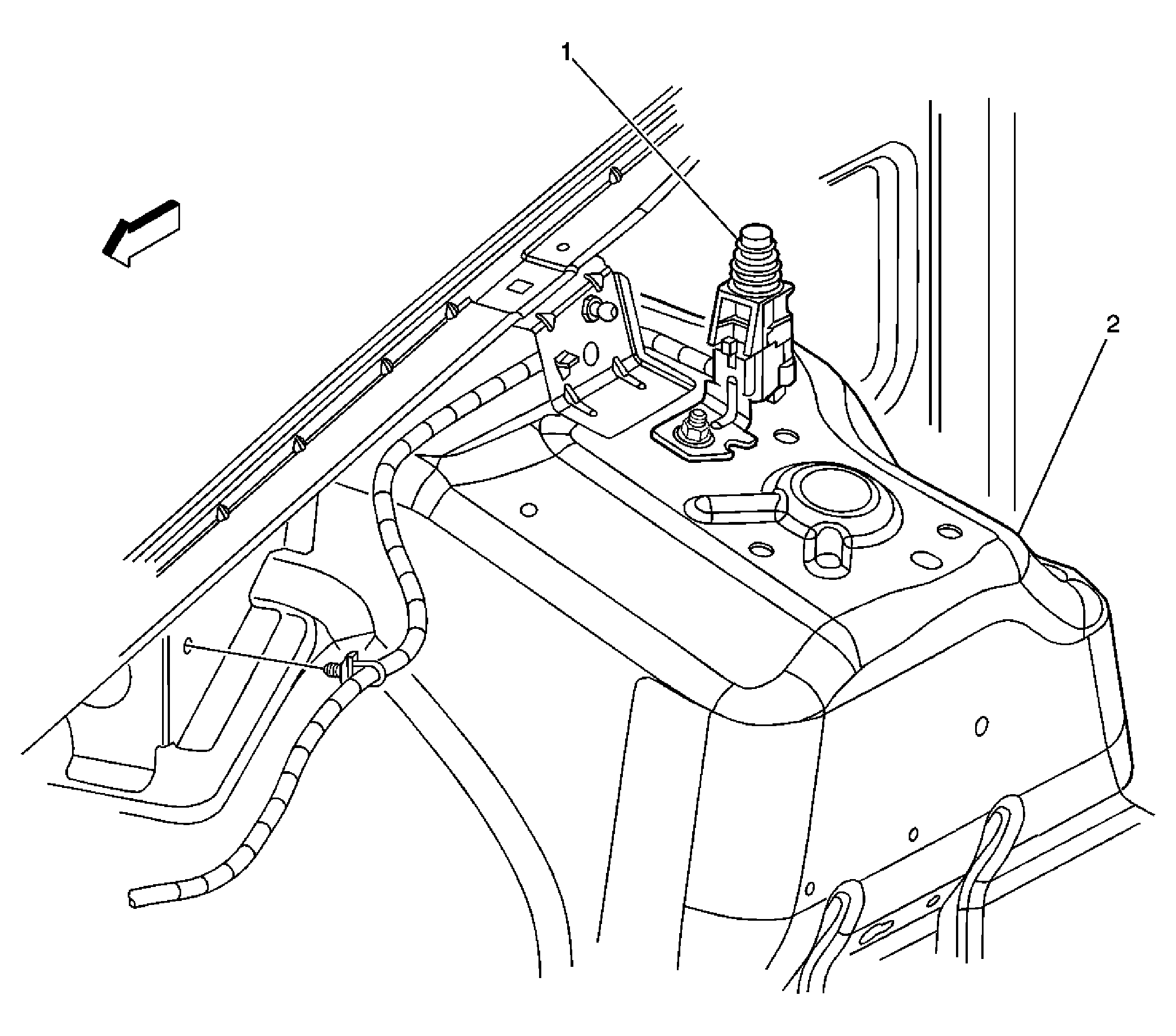

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Intrusion Sensor (UA2) |

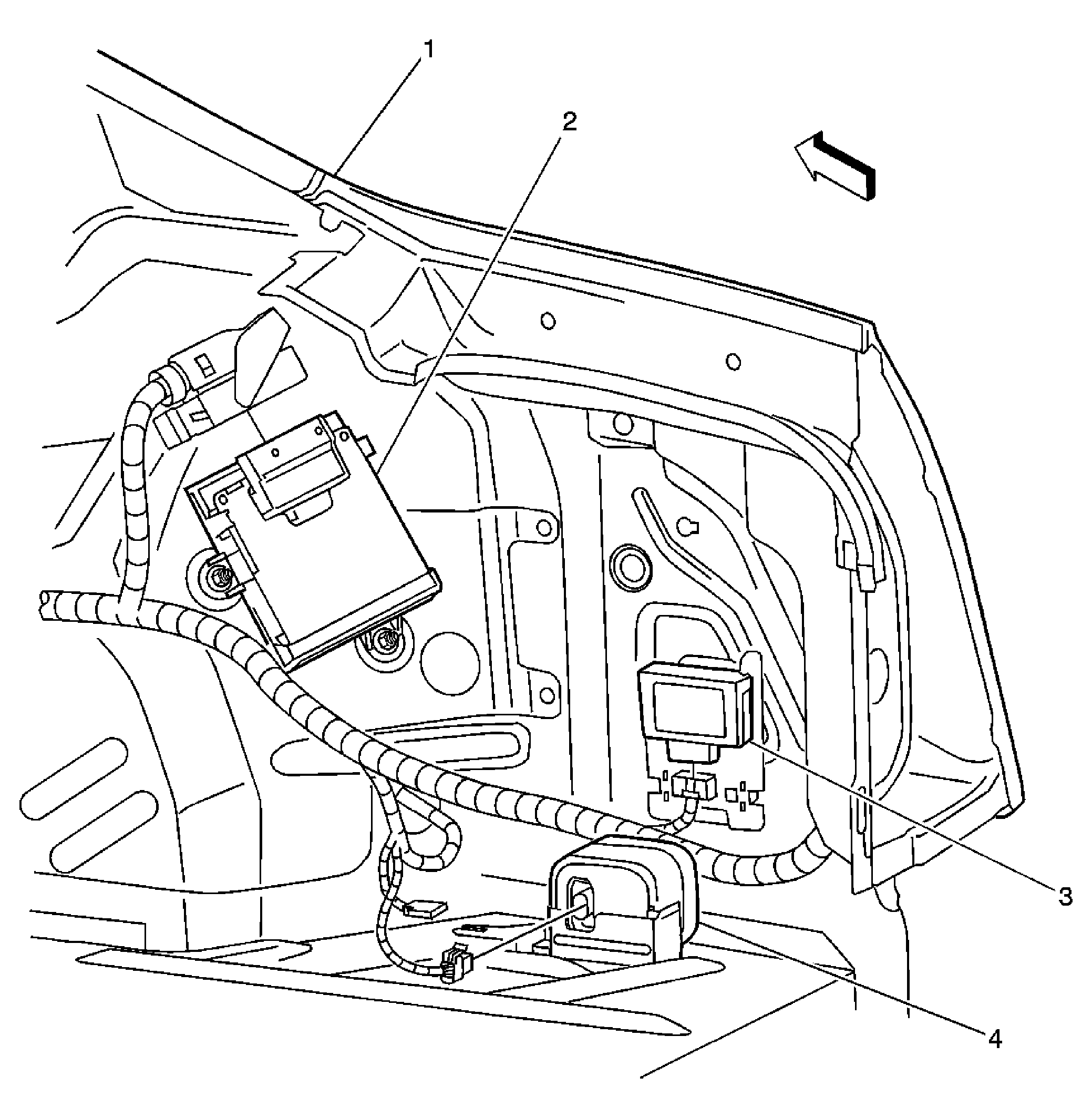

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Right Side C Pillar |
| 2 |
Electronic Suspension Control (ESC) Module (F55) |
| 3 |
Tire Pressure Module (UH3-Japan Only) - Right Side Shown, Left Similar |
| 4 |
Theft Deterrent Alarm Siren (UA2 /Inclination Sensor (Export w/UA2) |
