Remote Function Schematics

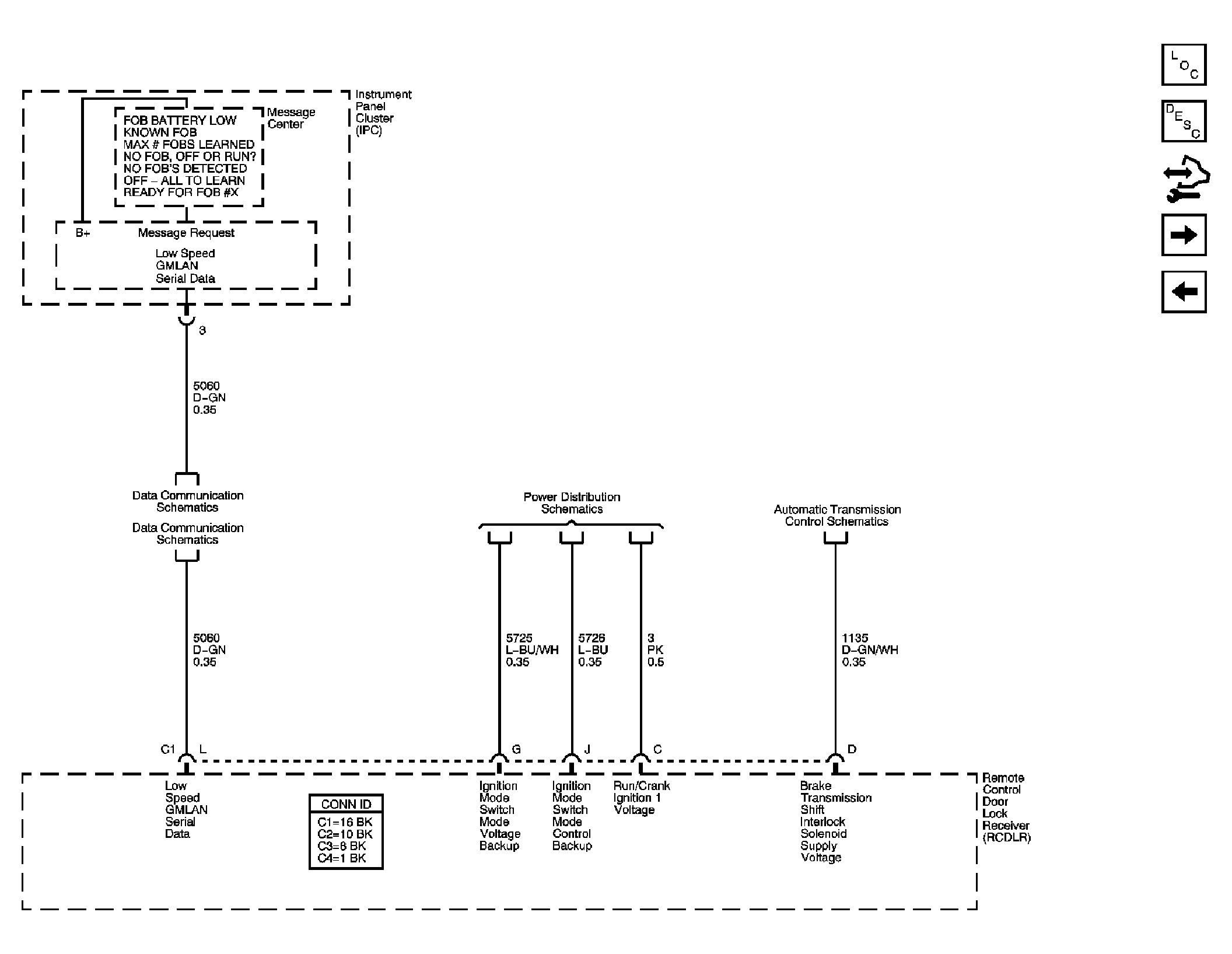

Fig 1: Garage Door Opener Schematic

Courtesy of GENERAL MOTORS CORP.

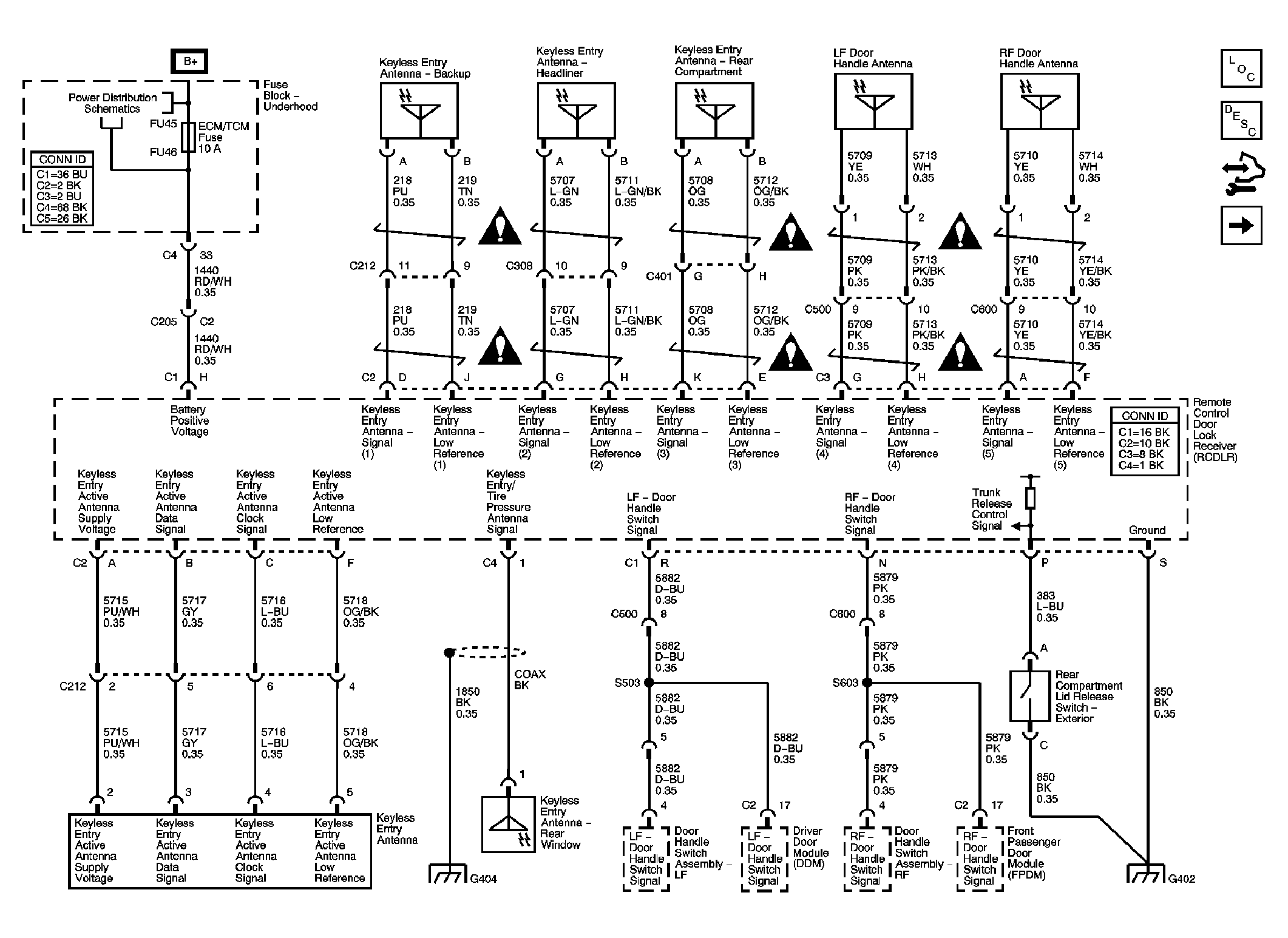

Fig 2: Module Power, Grounds, Antennas and Switches Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: DLC, Instrument Panel Cluster (IPC) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Hood Ajar Switch Schematic

Courtesy of GENERAL MOTORS CORP.
