Automatic Level Control (ALC) Compressor Connector End View

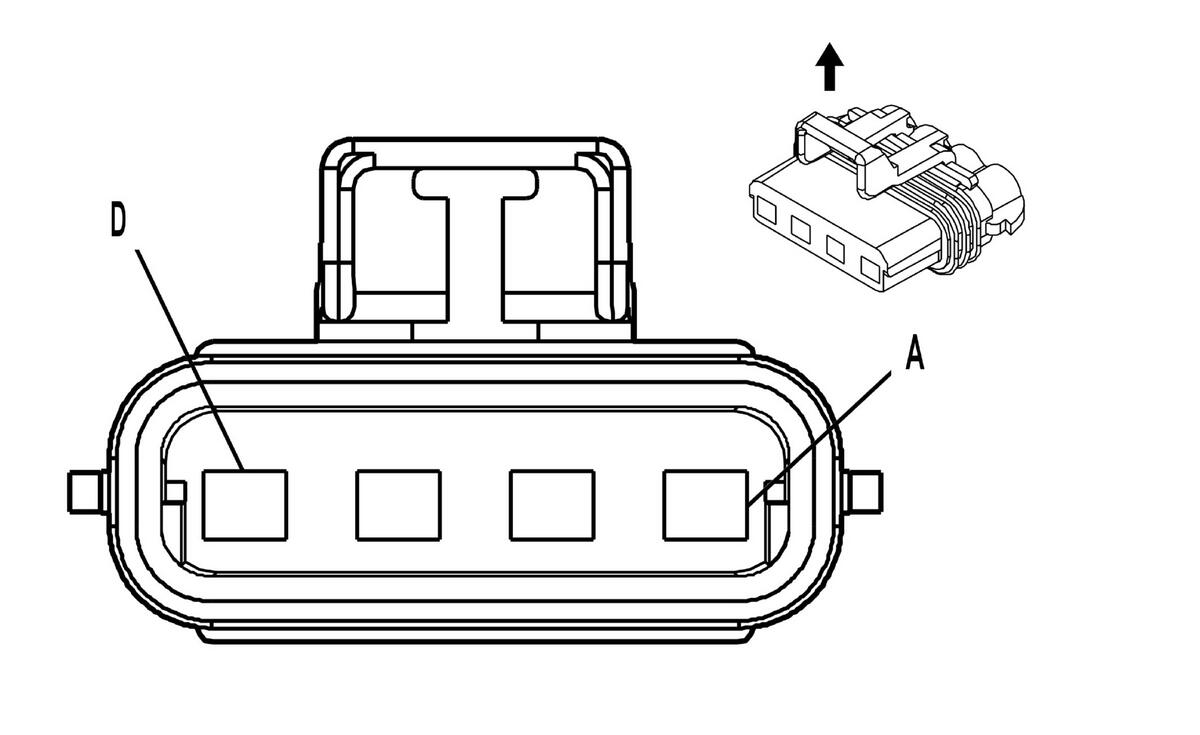

Fig 1: Automatic Level Control (ALC) Compressor Connector End View
GM697053Courtesy of GENERAL MOTORS CORP.
Automatic Level Control (ALC) Compressor Connector Parts Information

Connector Part Information
  • OEM: 12129565
  • Service: 15306069
  • Description: 4-Way F Metri-Pack 280 Series, Sealed (GY)
Terminal Part Information
  • Pins: A, C
  • Terminal/Tray: 12077411/2
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: B, D
  • Terminal/Tray: 12129493/2
  • Core/Insulation Crimp: 4/5
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
Automatic Level Control (ALC) Compressor Connector End View

Pin Wire Color Circuit No. Function
A WH 320 Automatic Level Control Exhaust Solenoid Control (F55)
B D-GN 322 Automatic Level Control Compressor Motor Supply Voltage (F55)
C RD/BK 1342 Battery Positive Voltage (F55)
D BK 1050 Ground (F55)
