G106

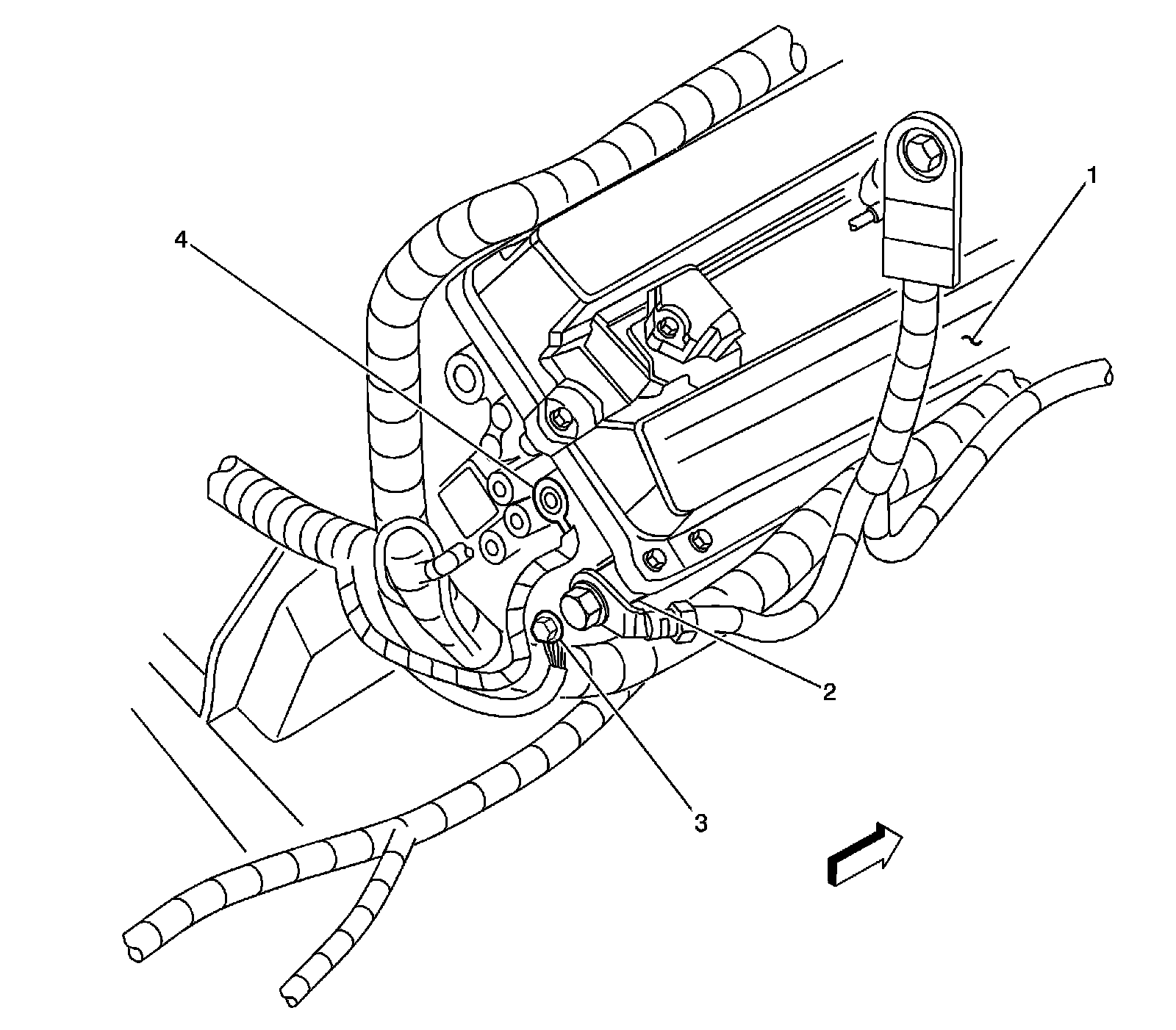

Power and Grounding Component Views

G100, G106 and G107




1 - Right Cylinder Head
2 - G106
3 - G100 (LH2)
4 - G107 (LH2)
