C219

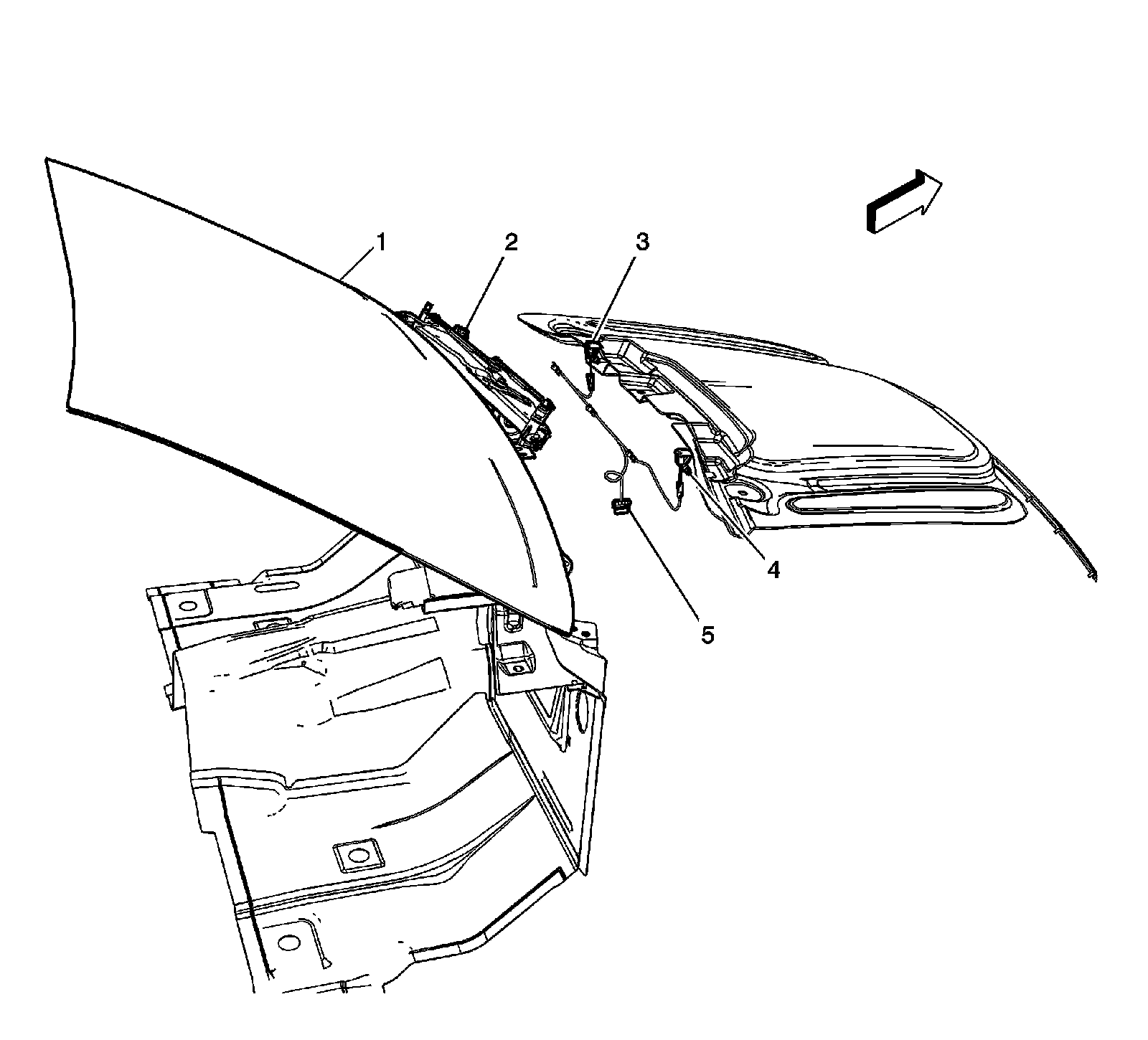

Harness Routing Views

C219




1 - Windshield
2 - Windshield Wiper/Washer Module
3 - Heated Washer Nozzle - Left (XA7/LC3)
4 - Heated Washer Nozzle - Right (XA7/LC3)
5 - C219 (XA7/LC3)
