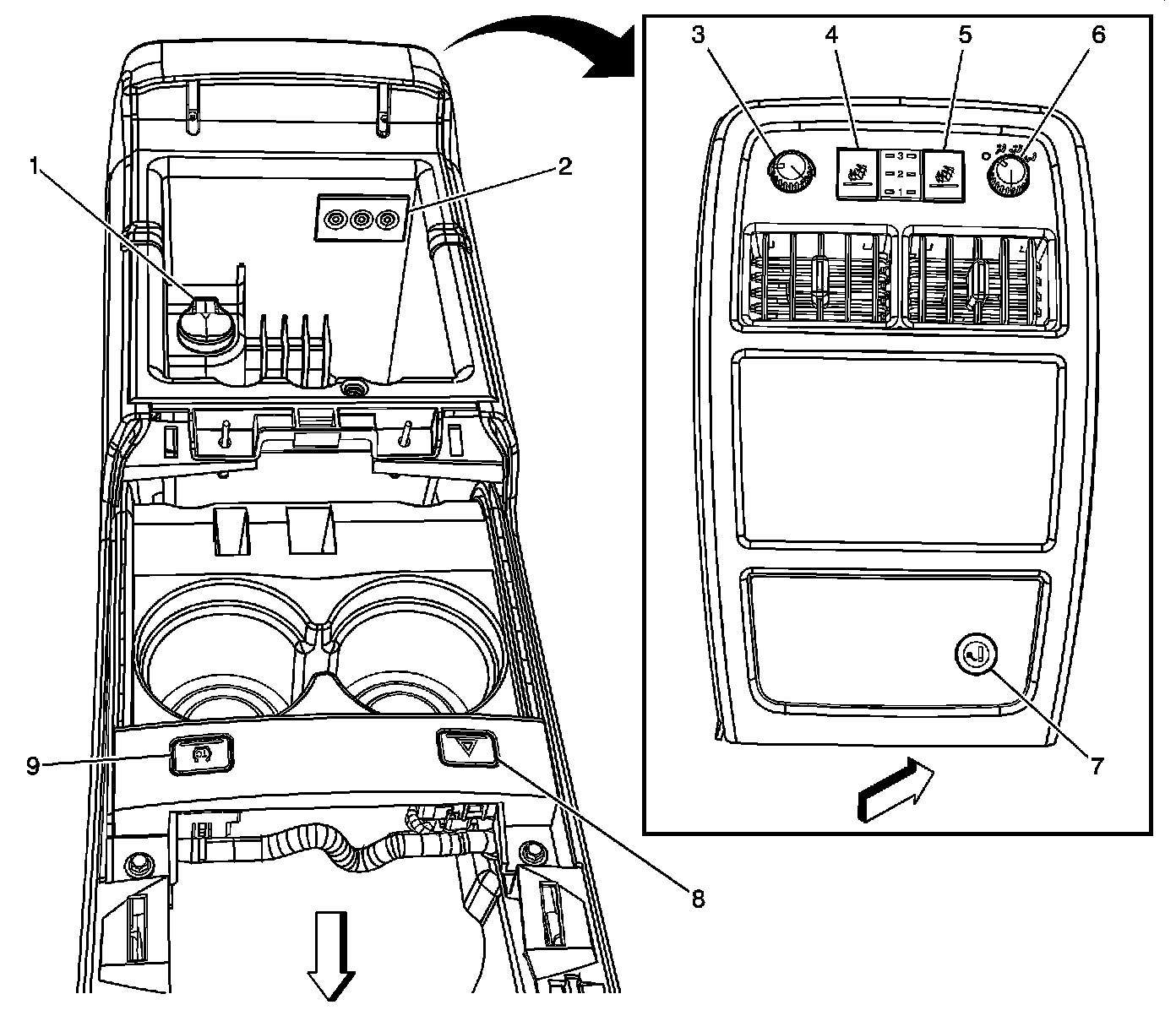

Traction Control Switch: Locations

Console Components




1 - Auxiliary Power Outlet - Console
2 - Auxiliary Audio/Video Control (UY5)
3 - HVAC Control Module - Rear Auxiliary (KA6)
4 - LR Heated Seat Switch - Part of the Rear Auxiliary Module
5 - RR Heated Seat Switch - Part of the Rear Auxiliary Module
6 - Mode Select Switch - Auxiliary (KA6)
7 - Auxiliary Power Outlet - Rear
8 - Hazard Switch
9 - Traction Control Switch
