Scan Tool Output Controls



Scan Tool Output Controls

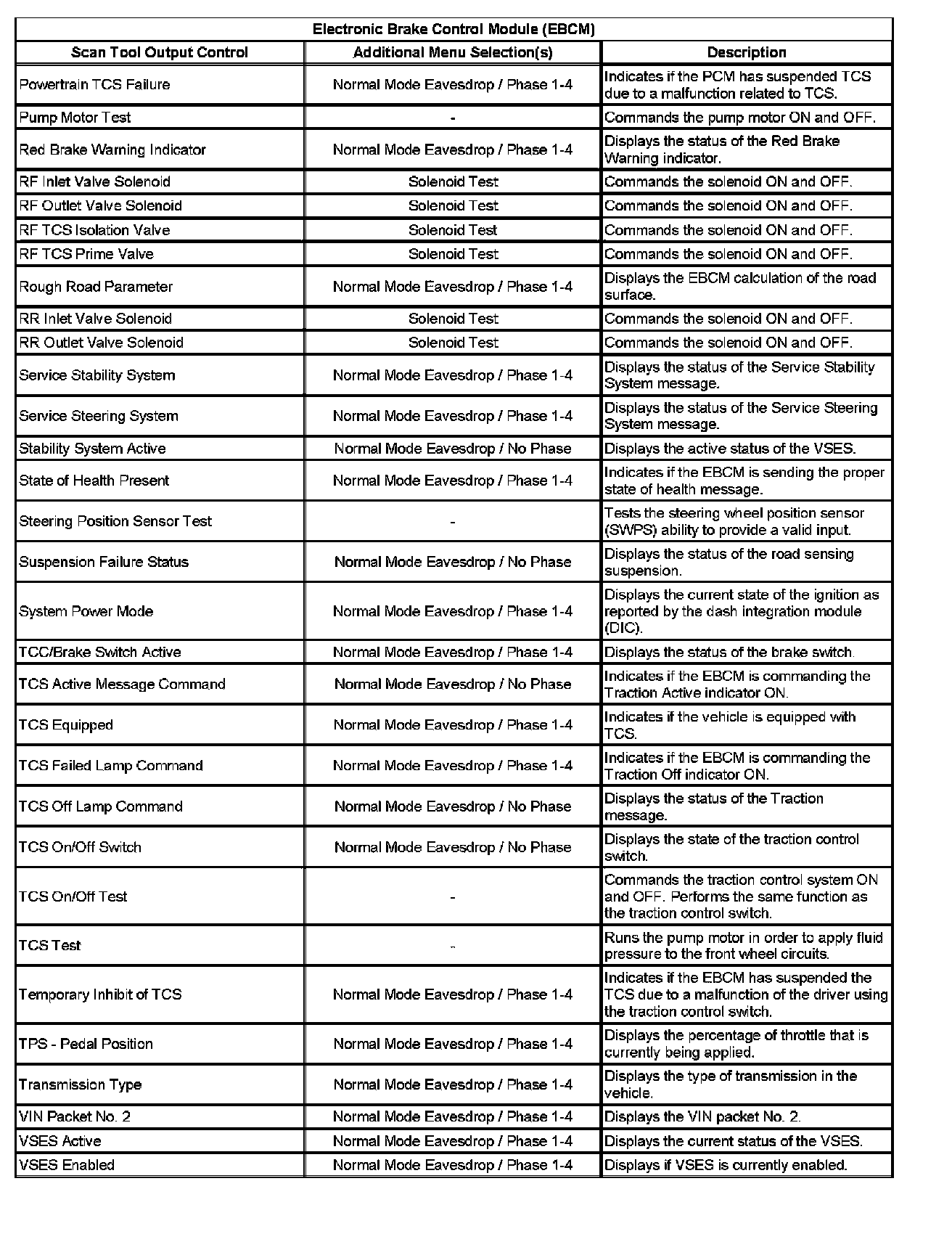

Electronic Brake Control Module (EBCM) (Part 1):

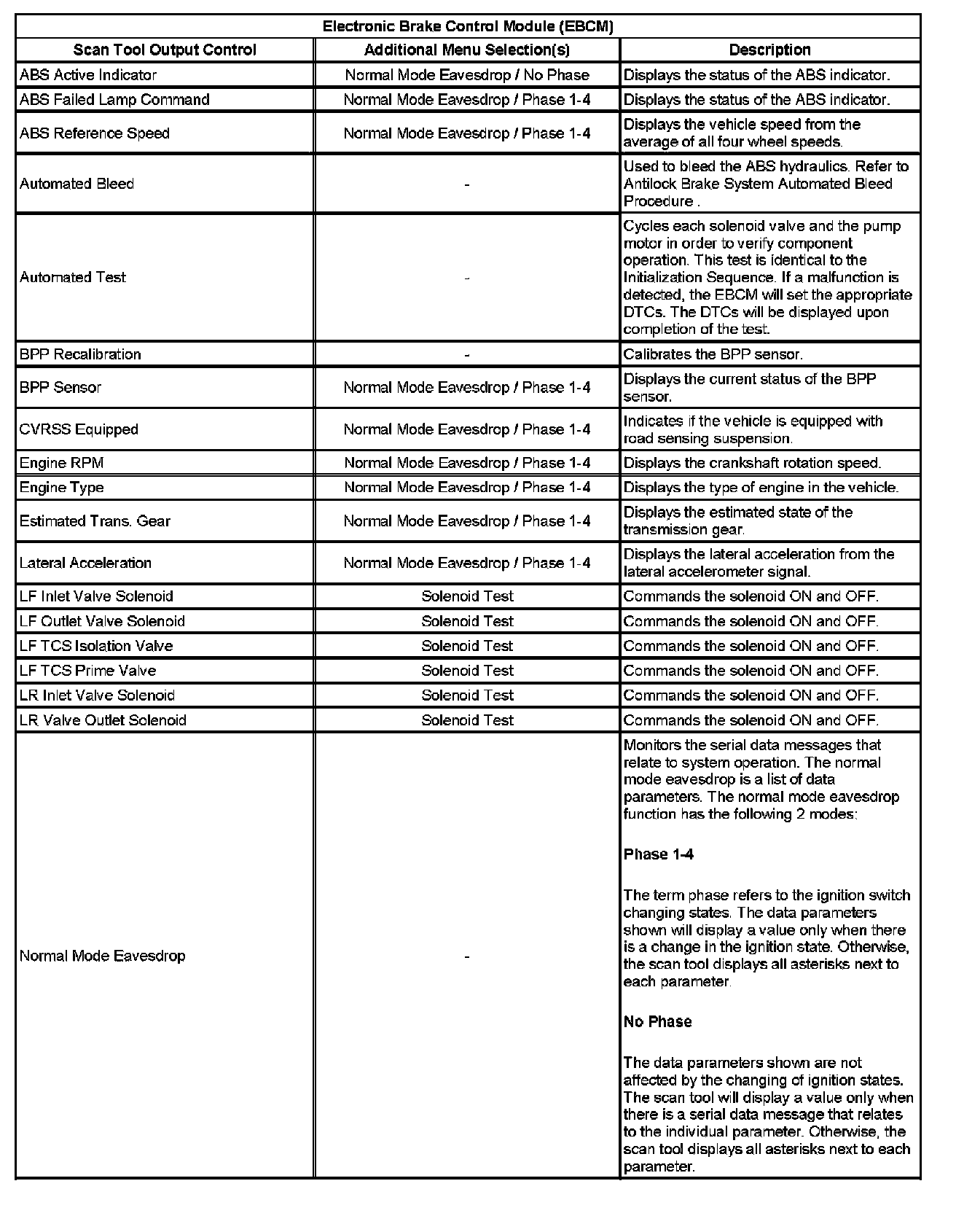

Electronic Brake Control Module (EBCM) (Part 2):
