Rear Wheel Drive Shaft Disassembled Views

Rear Wheel Drive Shaft Disassembled Views (AWD)

Wheel Drive Shafts Disassembled Views

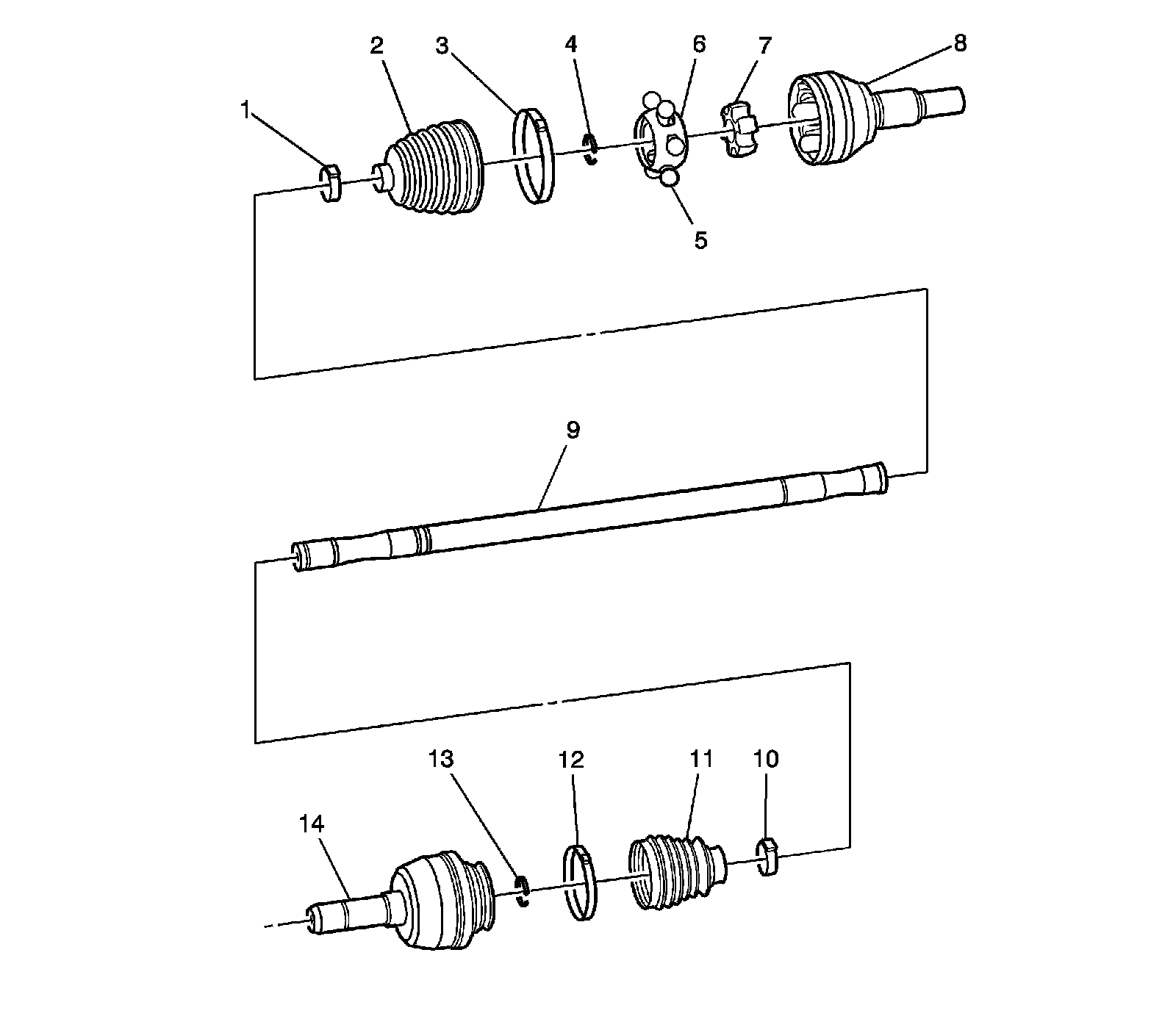

Rear Wheel Drive Shaft Disassembled Views (AWD):

1 - Shaft Clamp
2 - Outer Joint Seal
3 - Joint Clamp
4 - Retaining Ring
5 - CV Joint Balls
6 - Fixed Cage
7 - Fixed Inner Race
8 - Fixed Outer Race
9 - Bar, Wheel Drive Shaft
10 - Shaft Clamp
11 - Inner Joint Seal
12 - Joint Clamp
13 - Retaining Ring
14 - Inner Joint Assembly
