Windows

Moveable Window Schematics

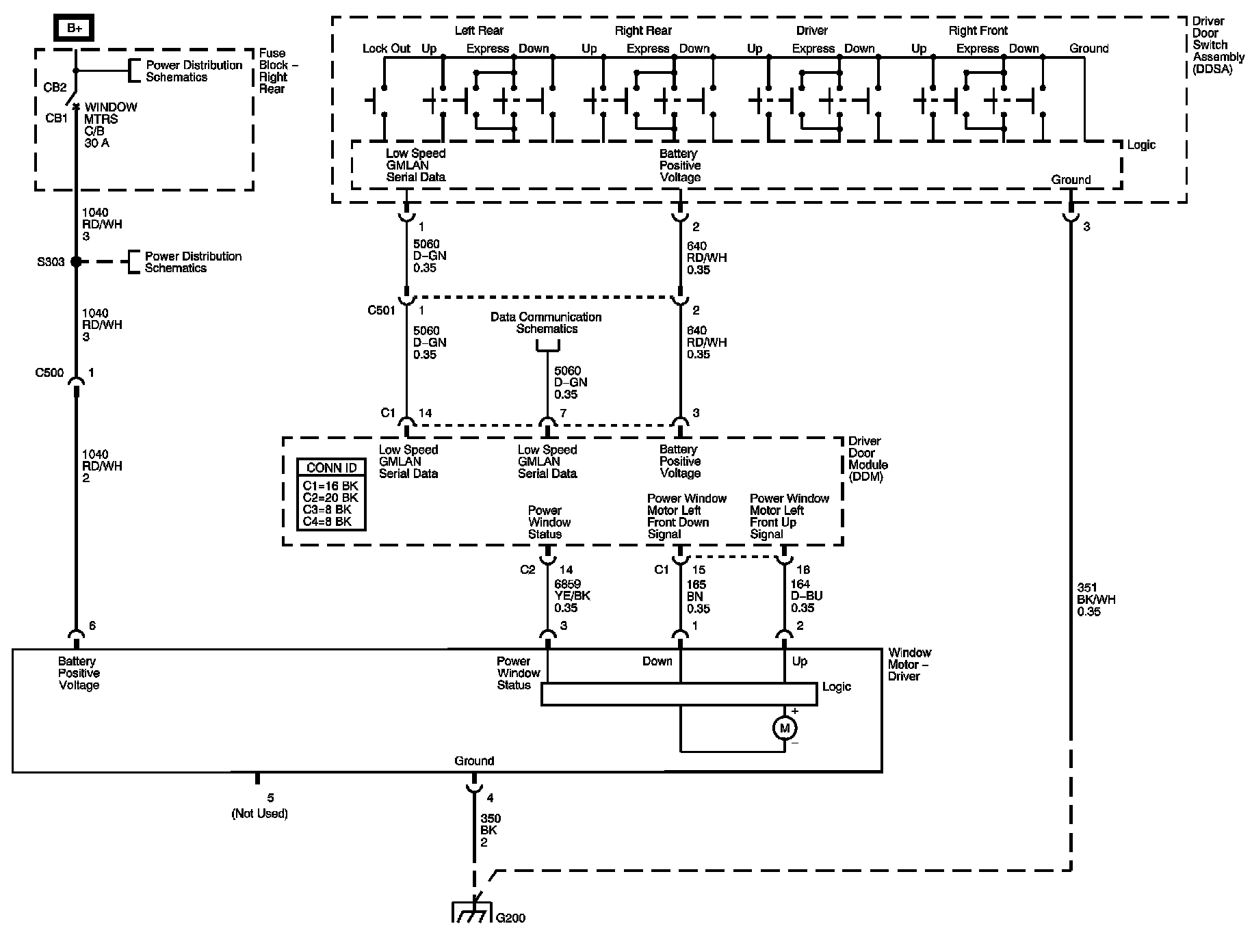

Driver Window Switches, Motor

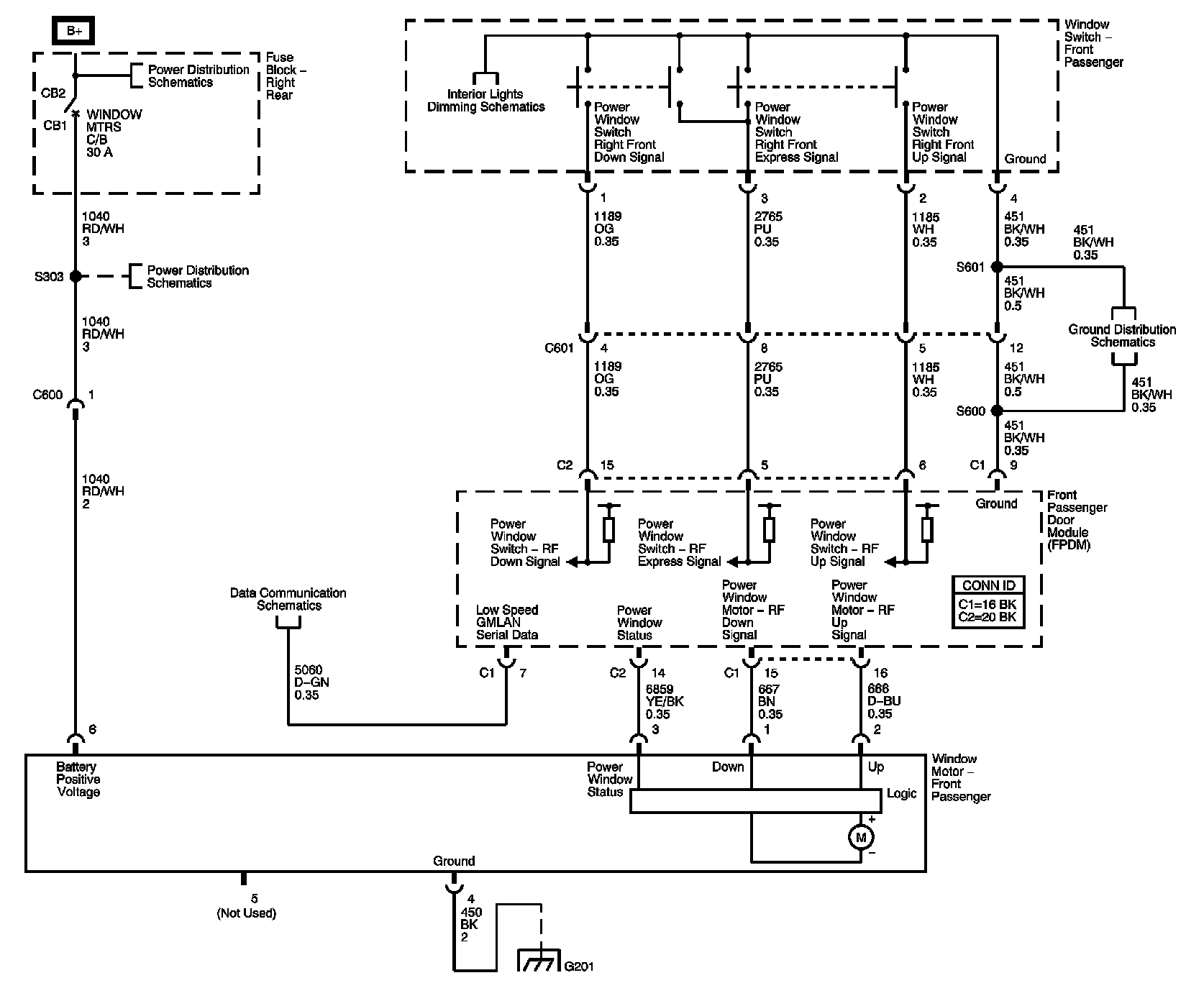

Front Passenger Window Switch, Motor

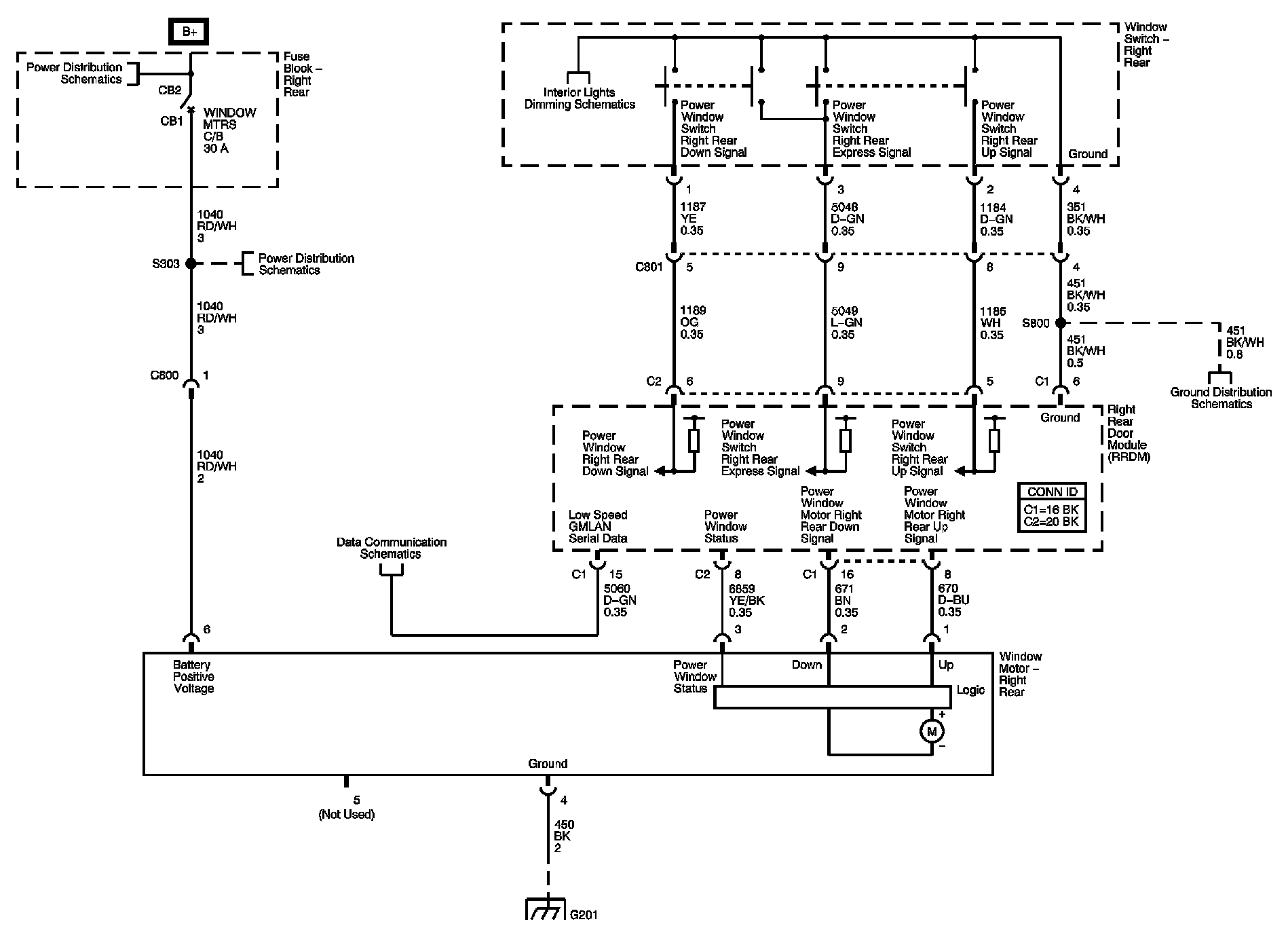

Right Rear Window Switch, Motor

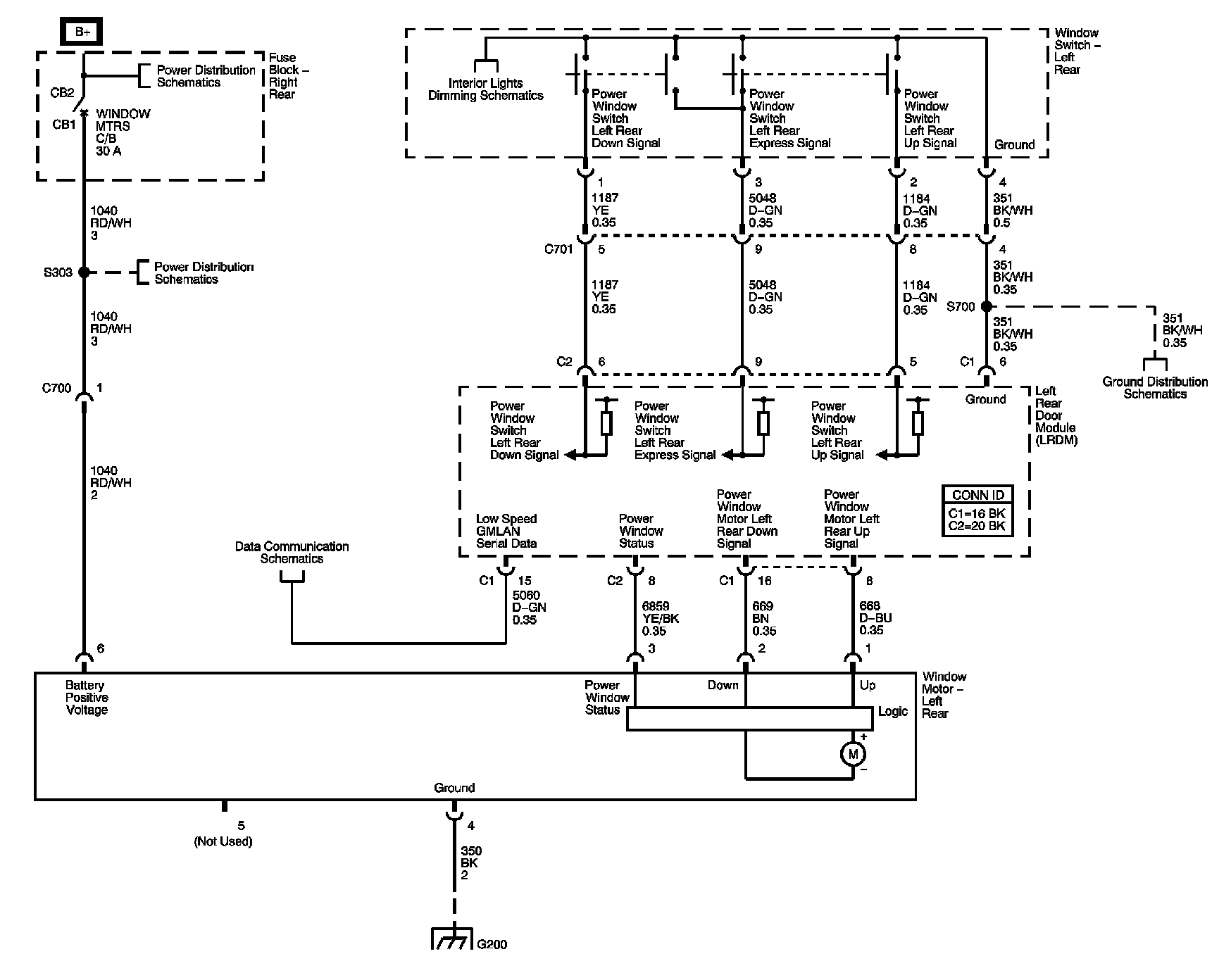

Left Rear Window Switch, Motor






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
