Timing Components: Specifications

Primary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 lb ft)

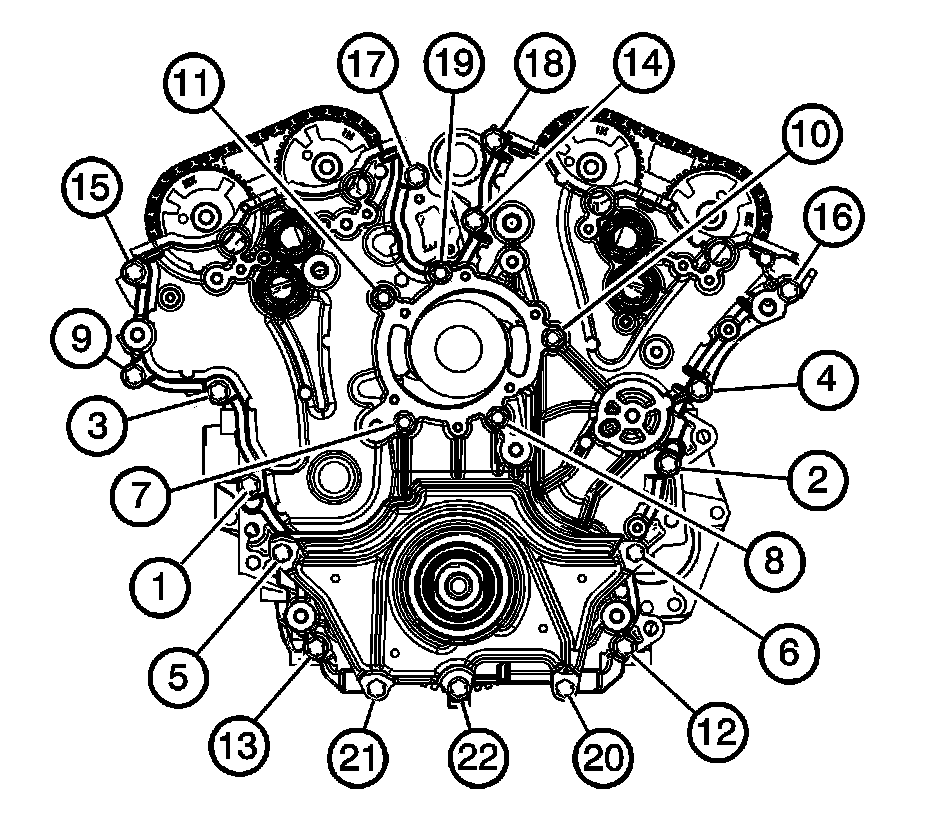

Engine Front Cover Bolt 23 Nm (17 lb ft)

Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees

Secondary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 lb ft)
