Underhood Fuse Block
Electrical Center Identification Views

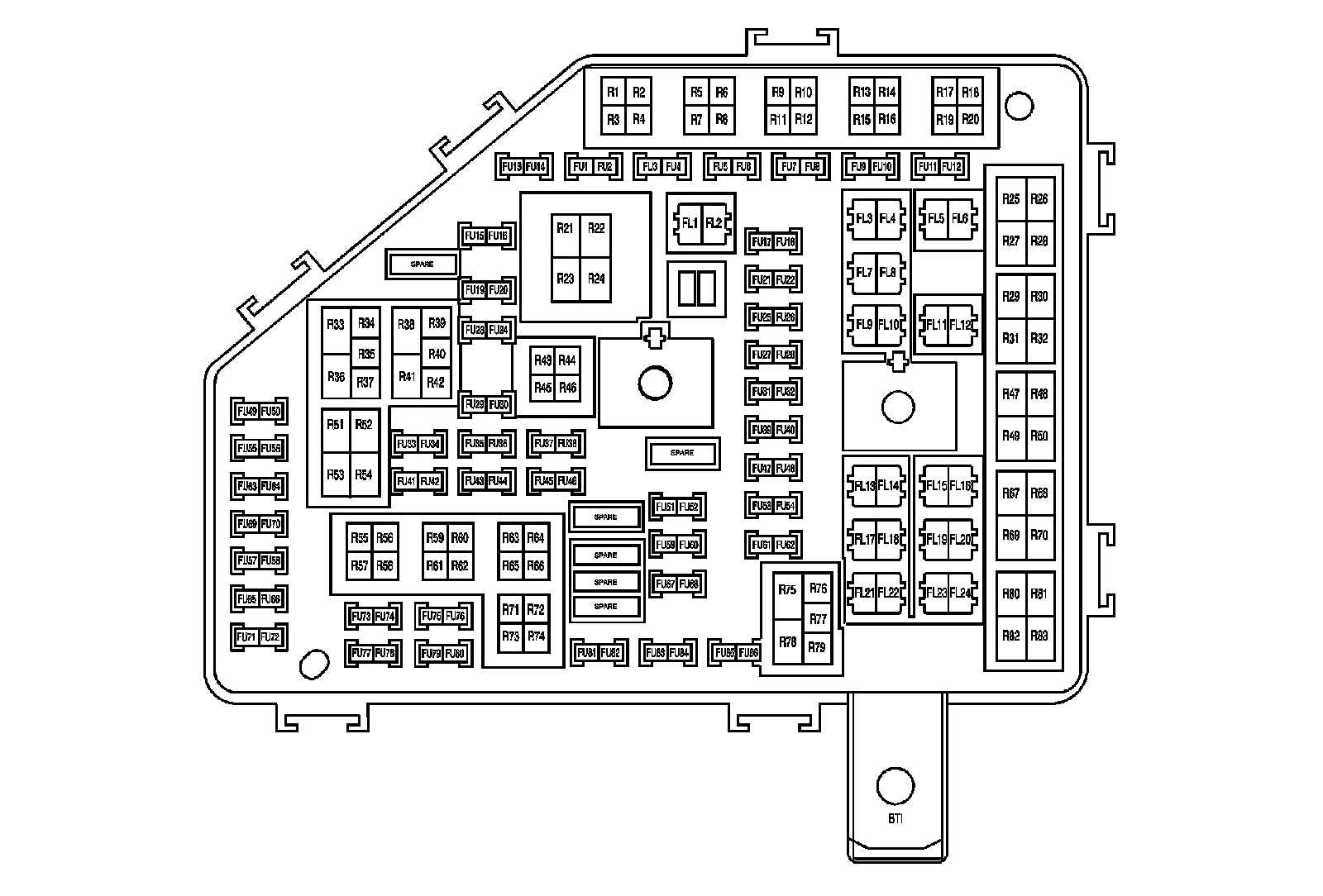

Fuse Block - Underhood Top View

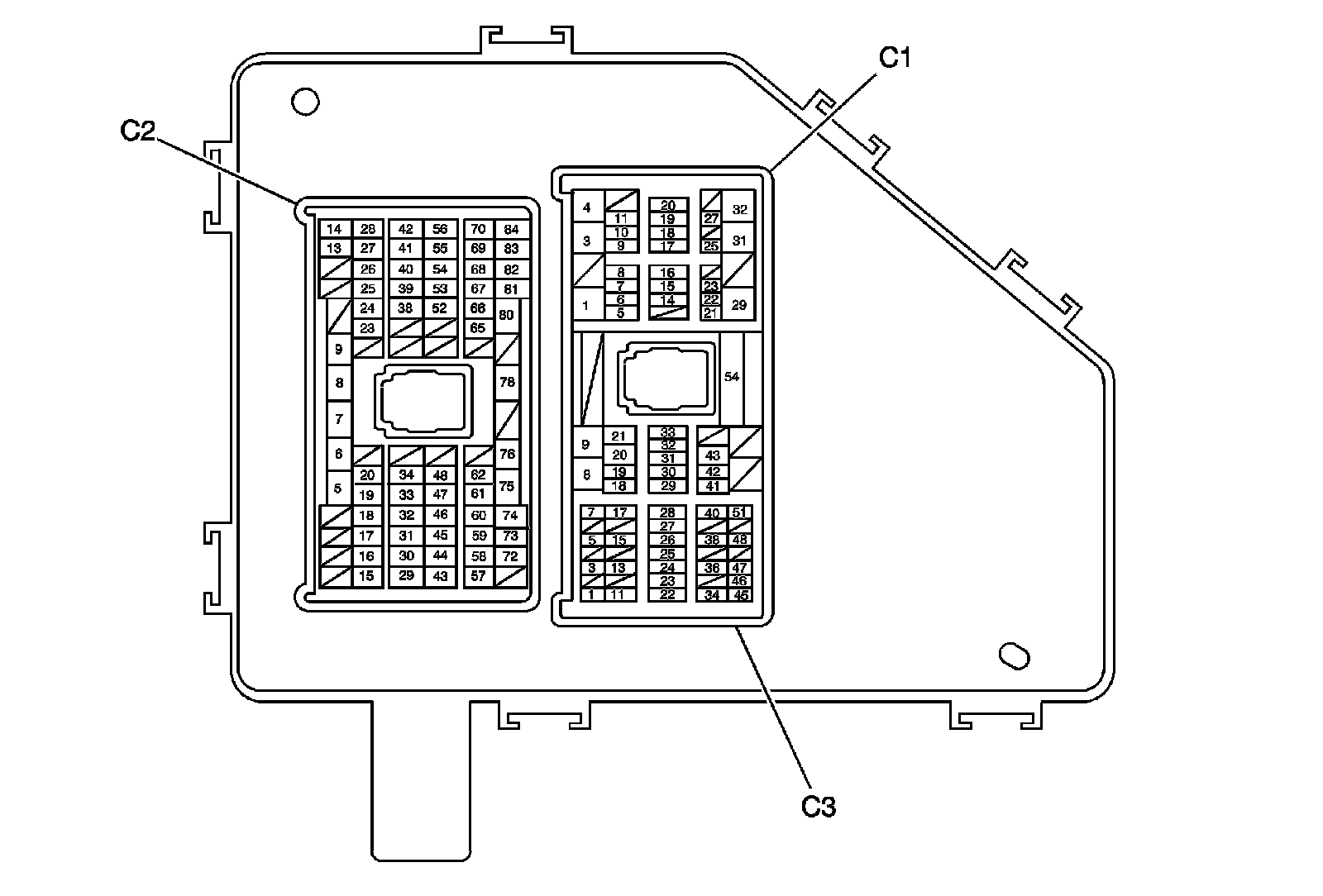

Fuse Block - Underhood Bottom View

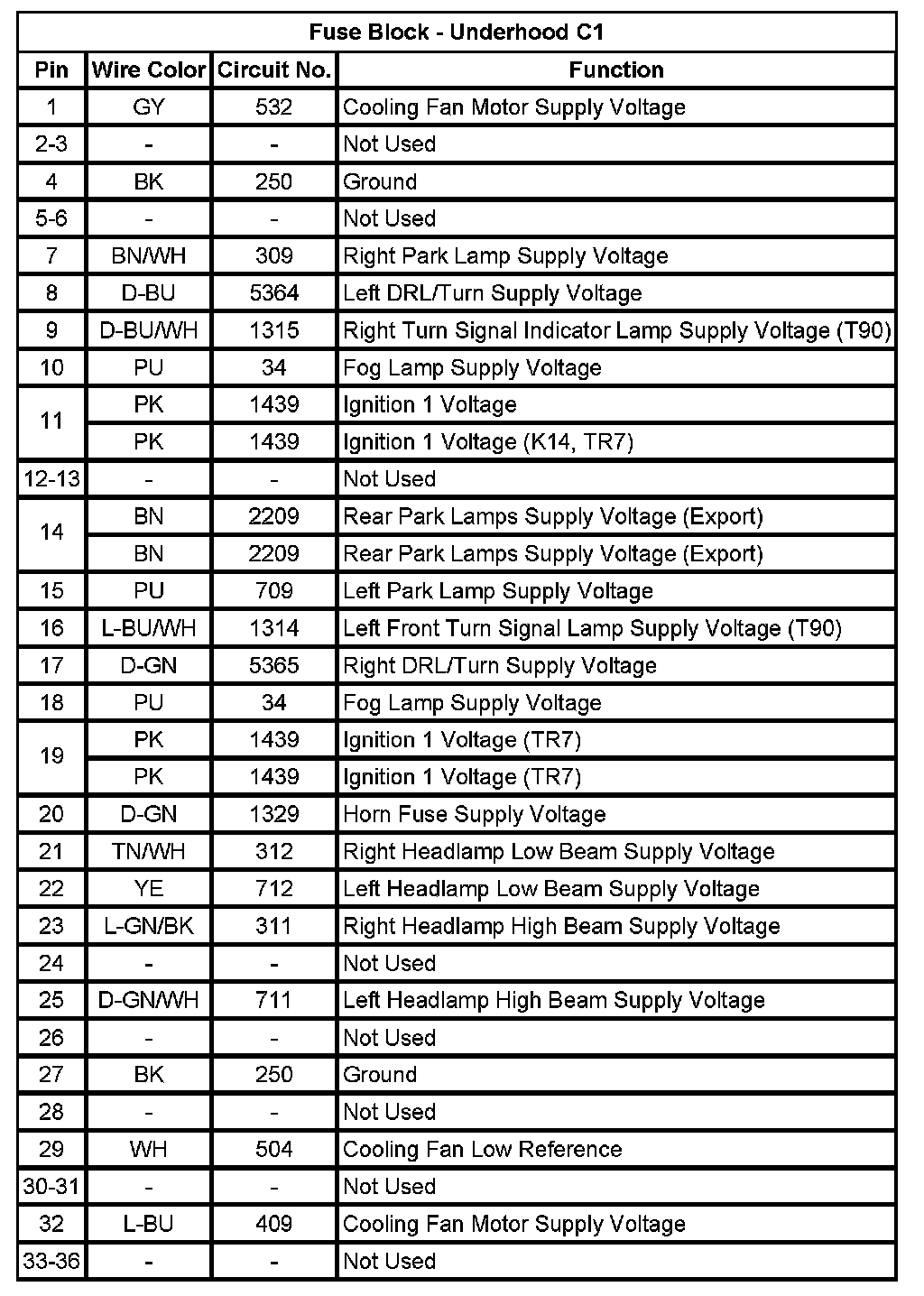

Fuse Block - Underhood C1

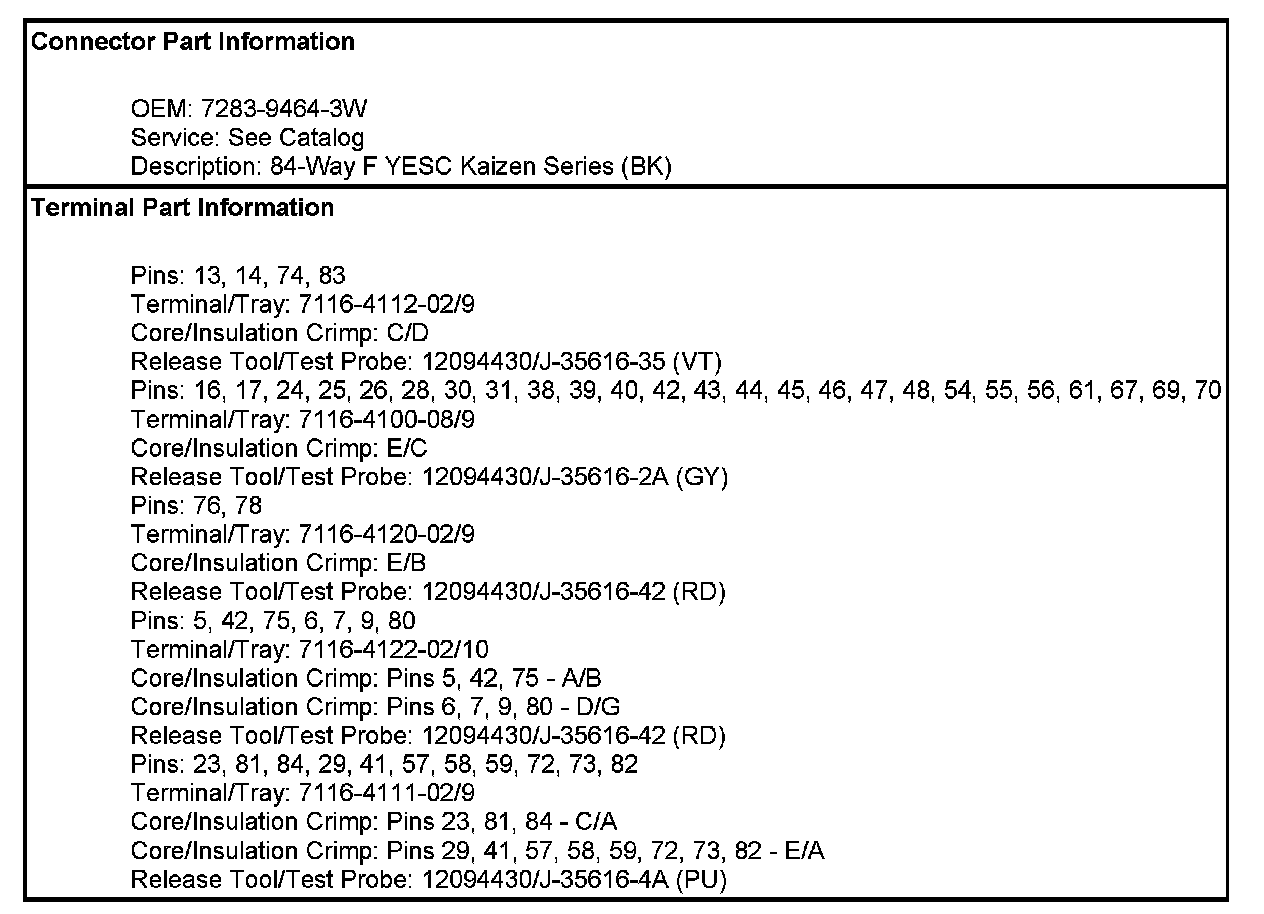

Fuse Block - Underhood C2

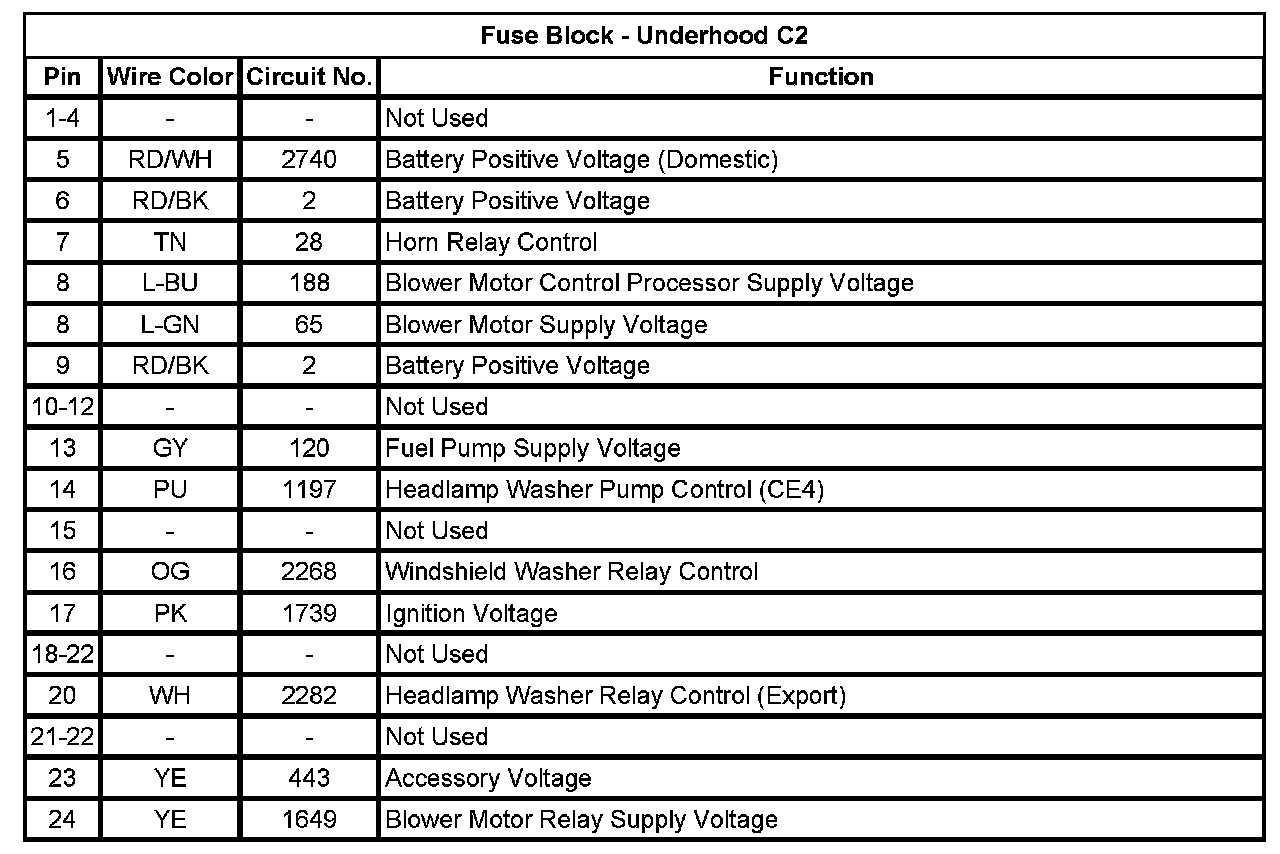

Fuse Block - Underhood C2 (Pin 1 To 24):

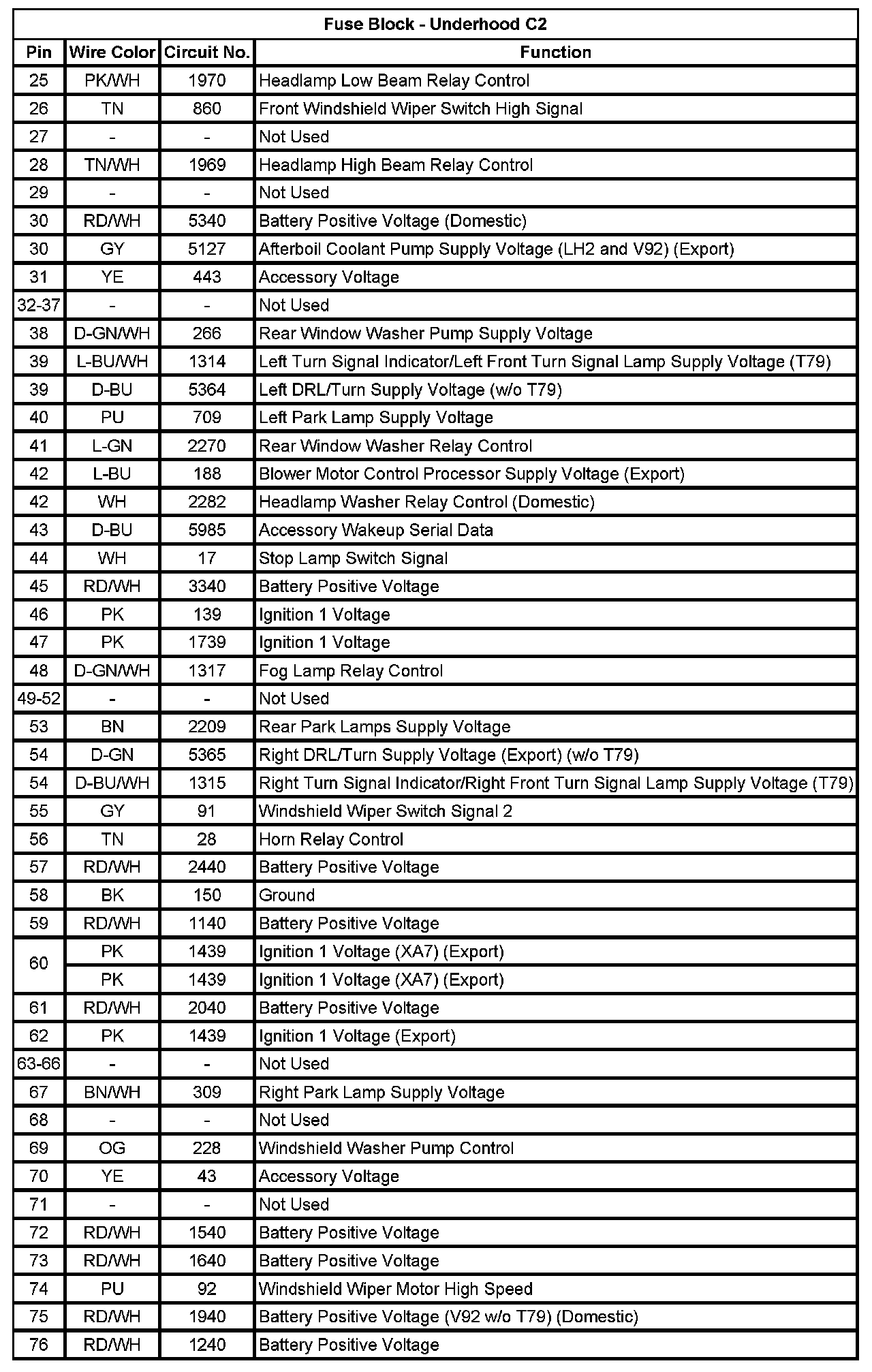

Fuse Block - Underhood C2 (Pin 25 To 76):
Fuse Block - Underhood C2 (Pin 77 To 84):

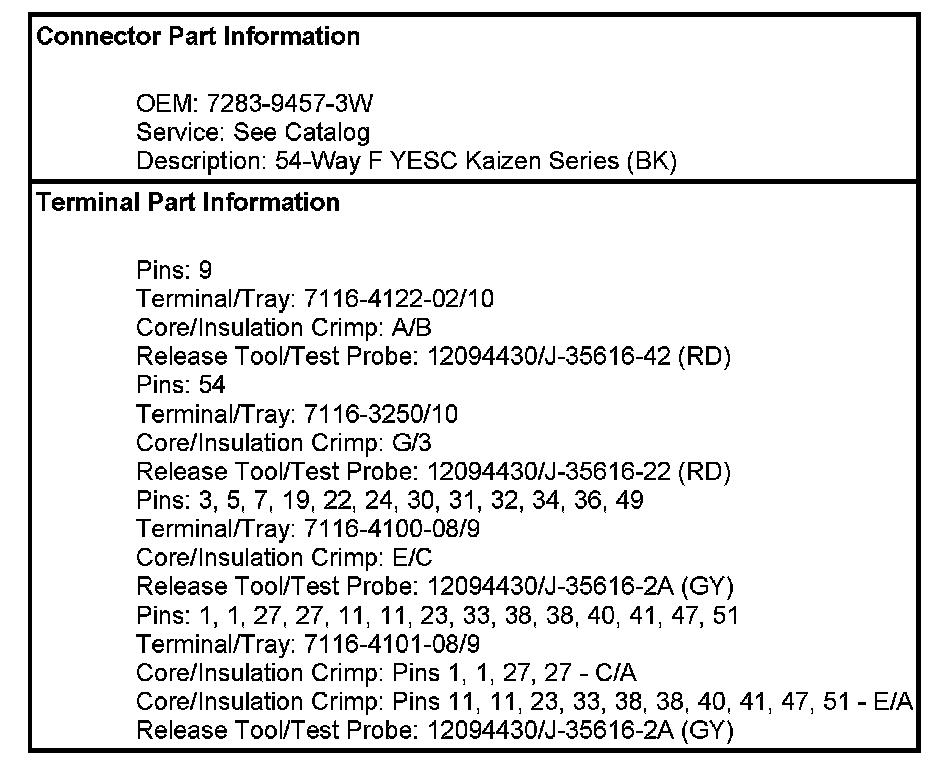

Fuse Block - Underhood C3
Fuse Block - Underhood C3 (Pin 1 To 26):

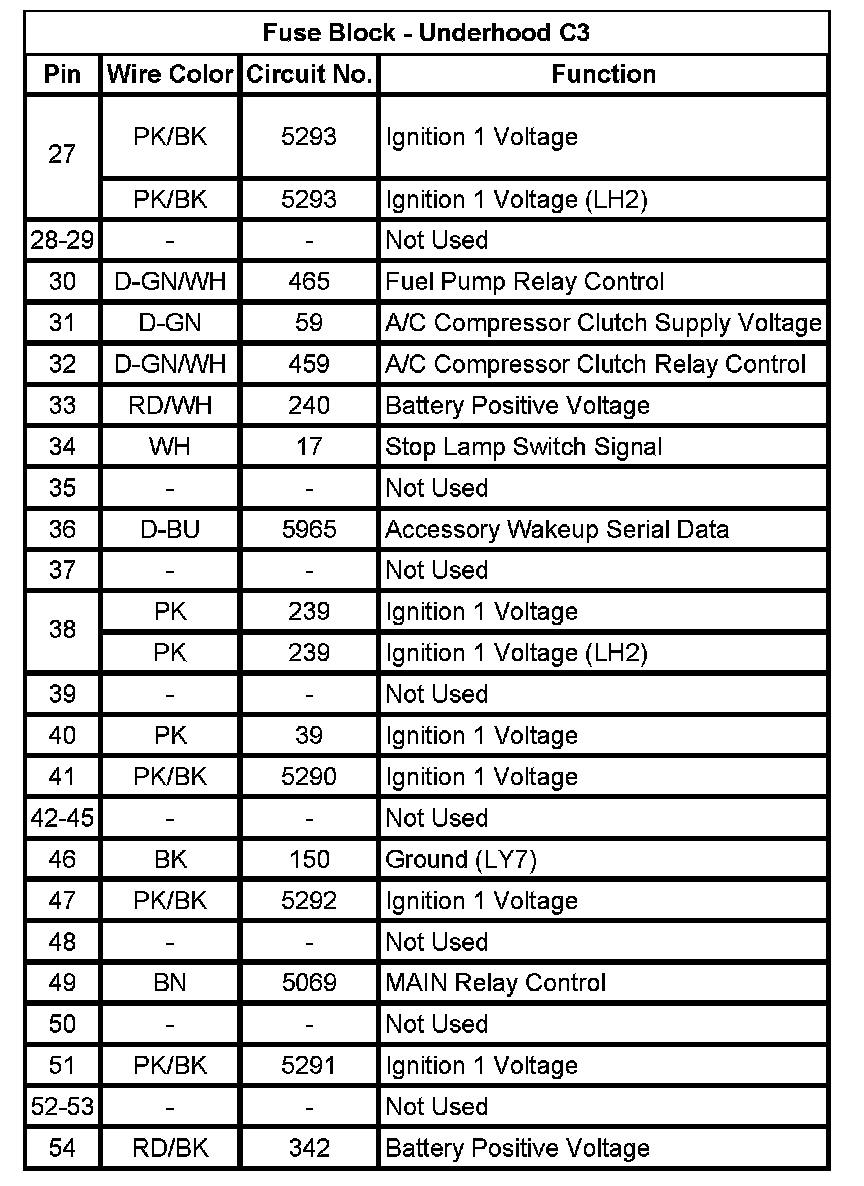

Fuse Block - Underhood C3 (Pin 27 To 54):
