Brake Fluid Level Sensor/Switch: Locations

Hydraulic Brake Component Views (LHD)

Brake and Brake Fluid Level Switches

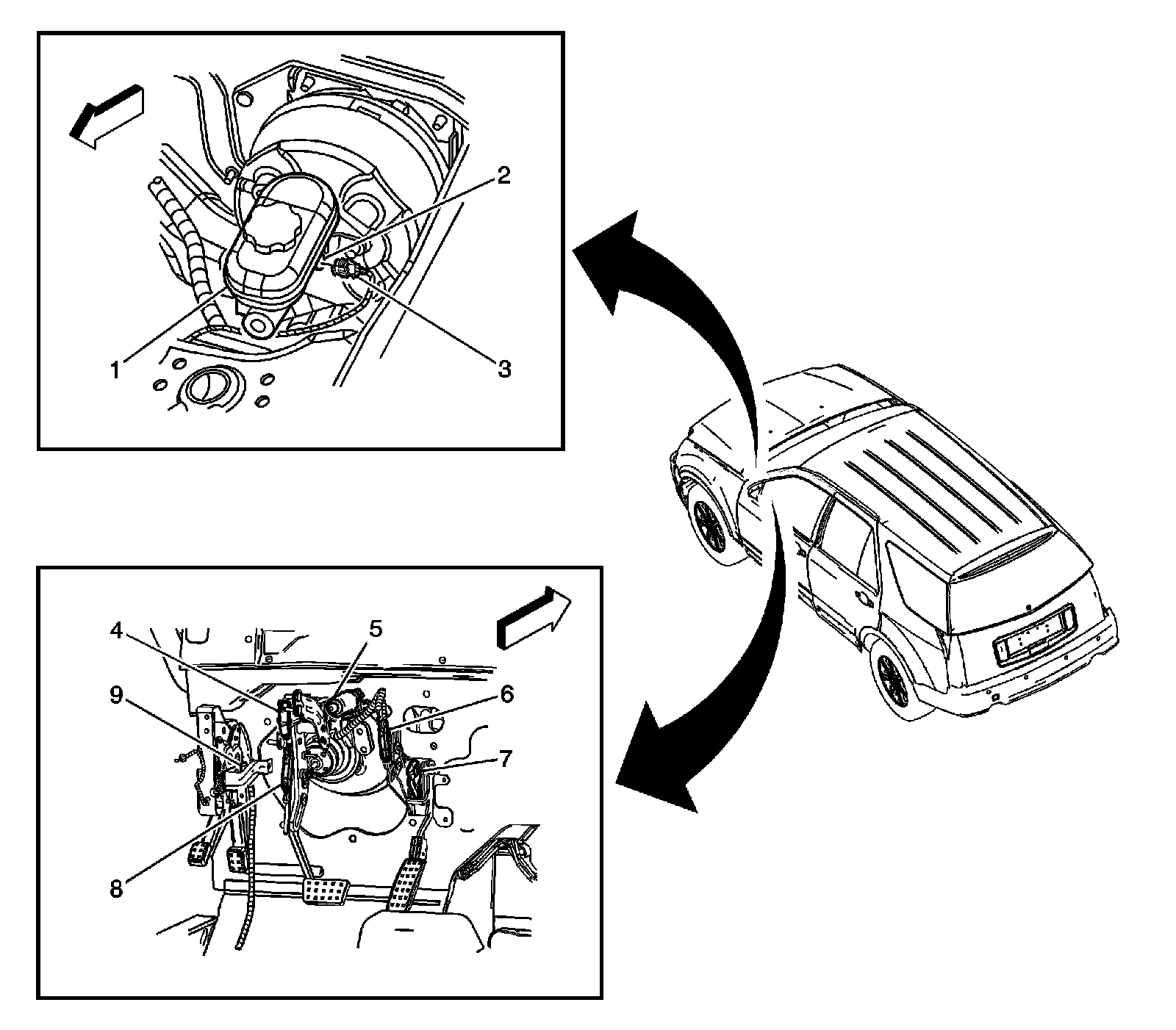

Brake And Brake Fluid Level Switches:

1 - Brake Fluid Reservoir
2 - Brake Fluid Level Switch
3 - Brake Fluid Level Switch Connector
4 - Adjustable Brake Pedal Position Sensor Connector (JF4)
5 - Adjust Pedal Motor (JF4)
6 - Adjustable Accelerator Pedal Position Sensor (JF4)
7 - Accelerator Pedal Position (APP) Sensor (JF4)
8 - Adjustable Brake Pedal Position Sensor (JF4)
9 - Park Brake Switch
