Secondary/Configurable Control Component Views

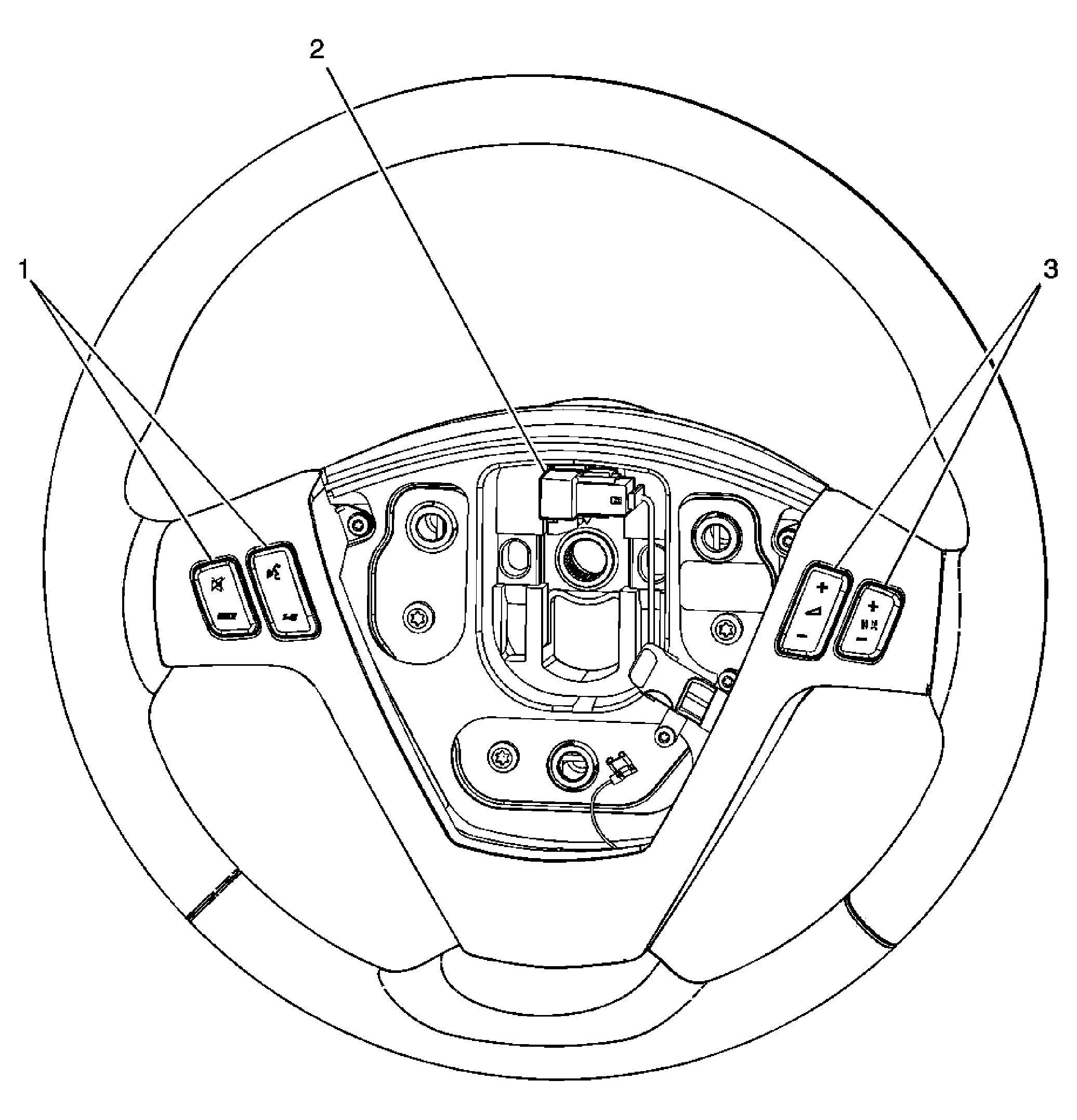

Fig 1: Steering Wheel Component View
GM1847702Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Controls - Left
2 C208
3 Steering Wheel Controls - Right
