Body Rear End Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Folding Top Actuator

Courtesy of GENERAL MOTORS CORP.

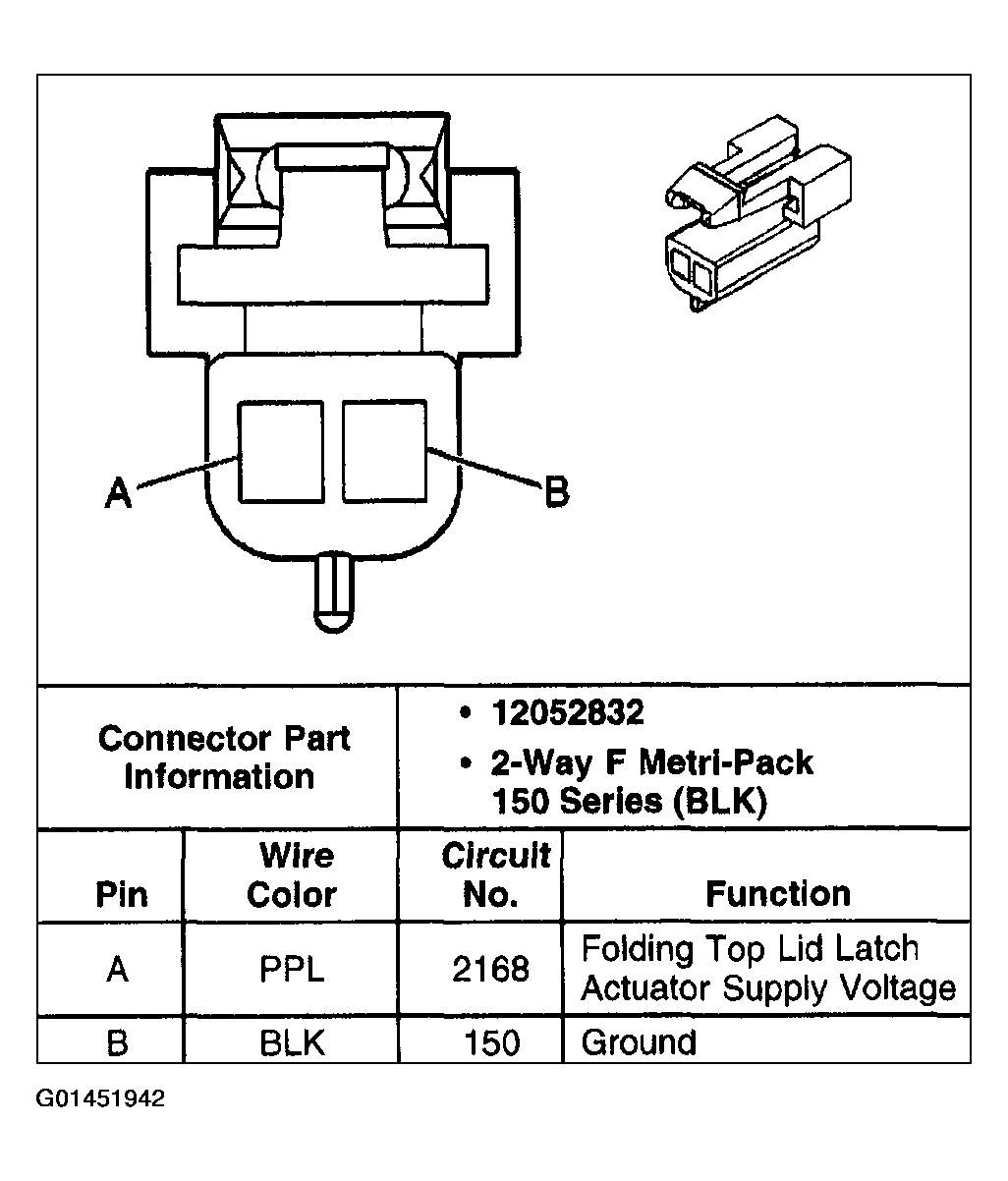

Fig 2: Folding Top Lid Latch

Courtesy of GENERAL MOTORS CORP.

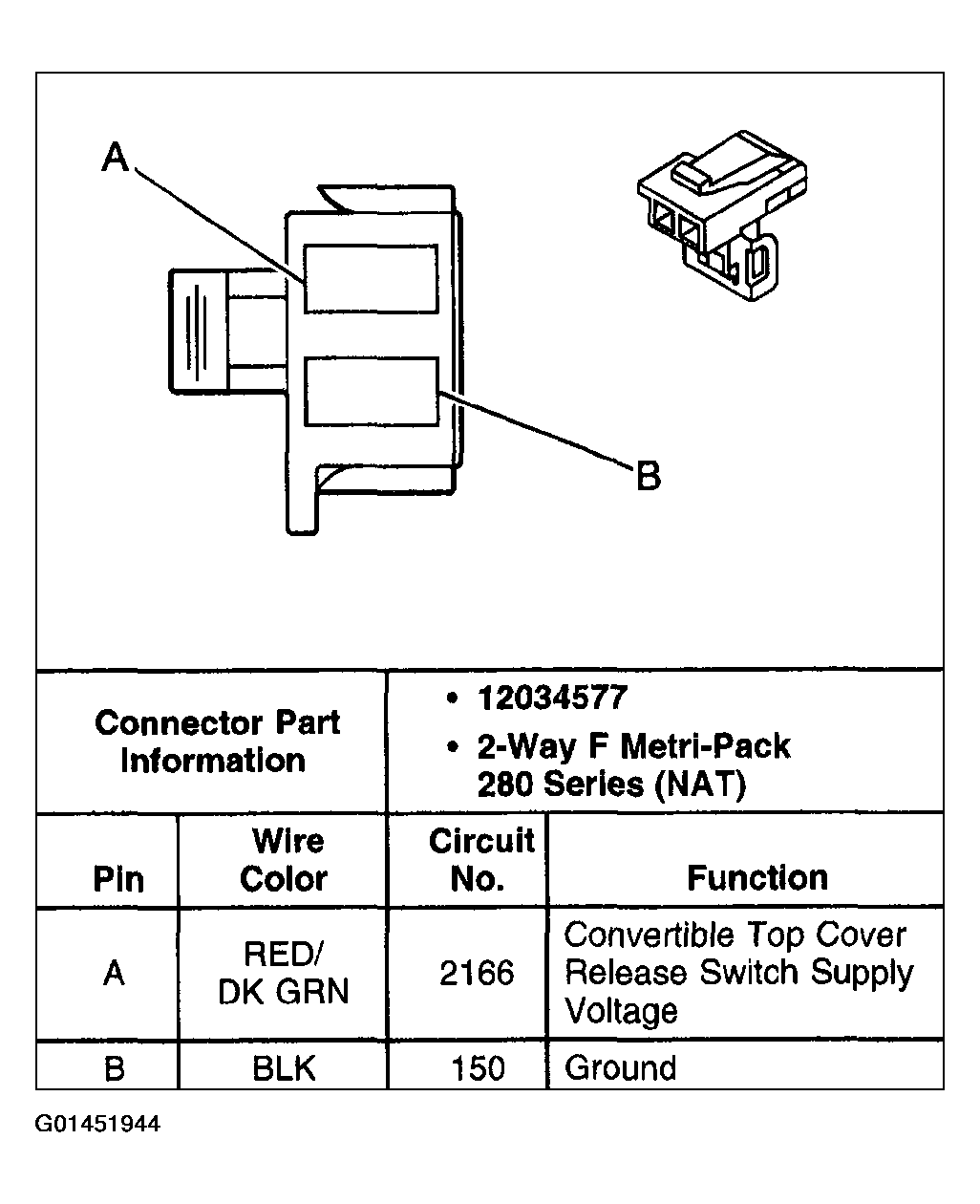

Fig 3: Folding Top Release Switch

Courtesy of GENERAL MOTORS CORP.

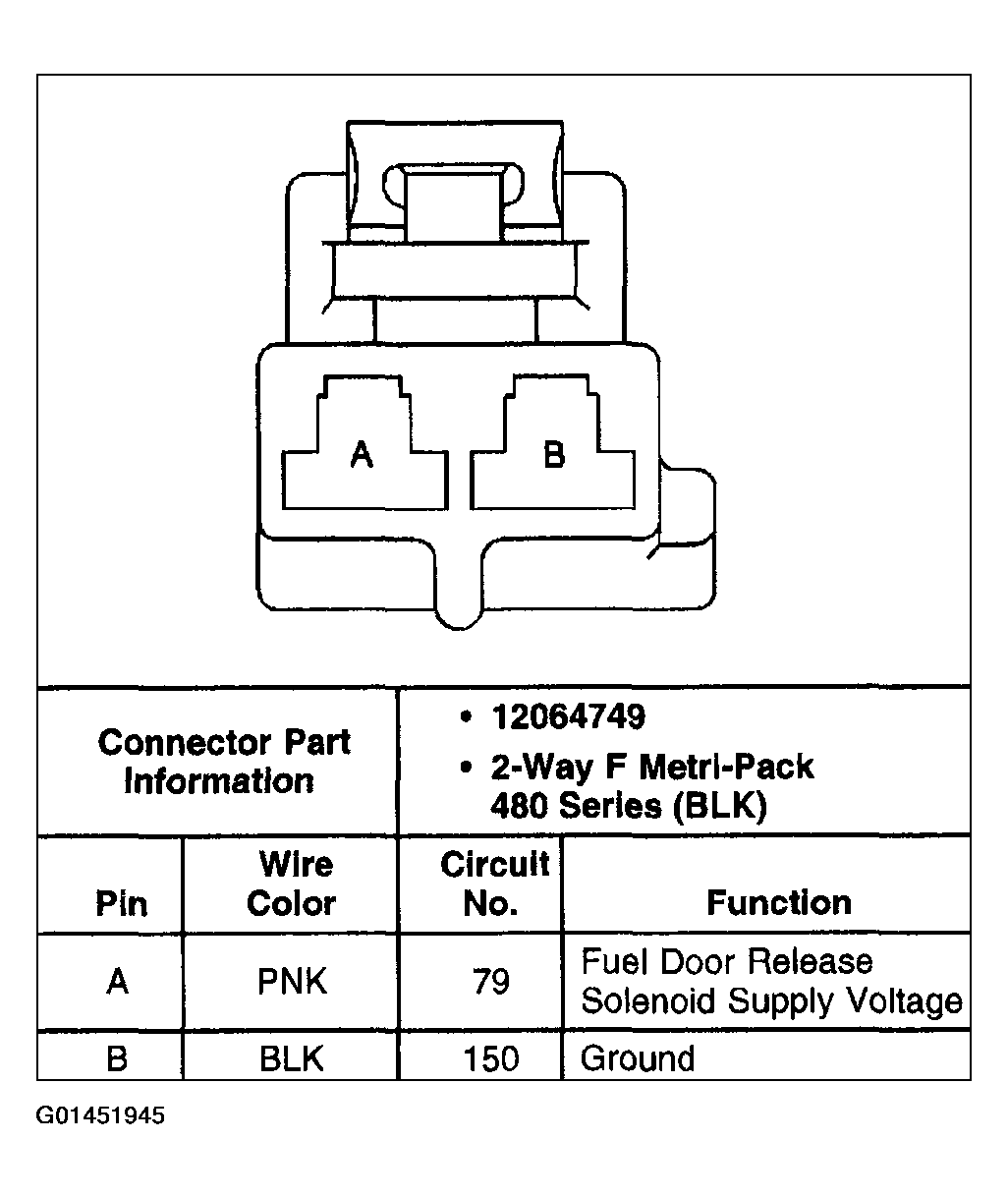

Fig 4: Fuel Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.
