Window Systems Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Door Frame |
| 2 |
Outside Rearview Mirror - Driver |
| 3 |
Memory/Heated Seat Switch (AN3 Except KB6) / Memory Seat Switch (KB6) |
| 4 |
Driver Door Switch (DDS) |
| 5 |
Speaker - LF Door |
| 6 |
Window Motor - Driver |
| 7 |
Inflatable Restraint Side Impact Sensor (SIS) - LF (ASF) |
| 8 |
Door Latch Assembly - Driver |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Outside Rearview Mirror - Passenger |
| 2 |
Passenger Door Switch (PDS) |
| 3 |
Door Latch Assembly - Passenger |
| 4 |
Inflatable Restraint Side Impact Sensor (SIS) - RF (ASF) |
| 5 |
Speaker - RF Door |
| 6 |
Window Motor - Passenger |
| 7 |
Heated Seat Switch (KA6) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Door Frame |
| 2 |
Window Motor - LR |
| 3 |
Window Switch - LR |
| 4 |
Speaker - LR Door |
| 5 |
Inflatable Restraint Side Impact Sensor (SIS) - LR (ASF) |
| 6 |
Door Latch Assembly - LR |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Window Switch - RR |
| 2 |
Door Frame |
| 3 |
Inflatable Restraint Side Impact Sensor (SIS) - RR (ASF) |
| 4 |
Speaker - RR Door |
| 5 |
Window Motor - RR |

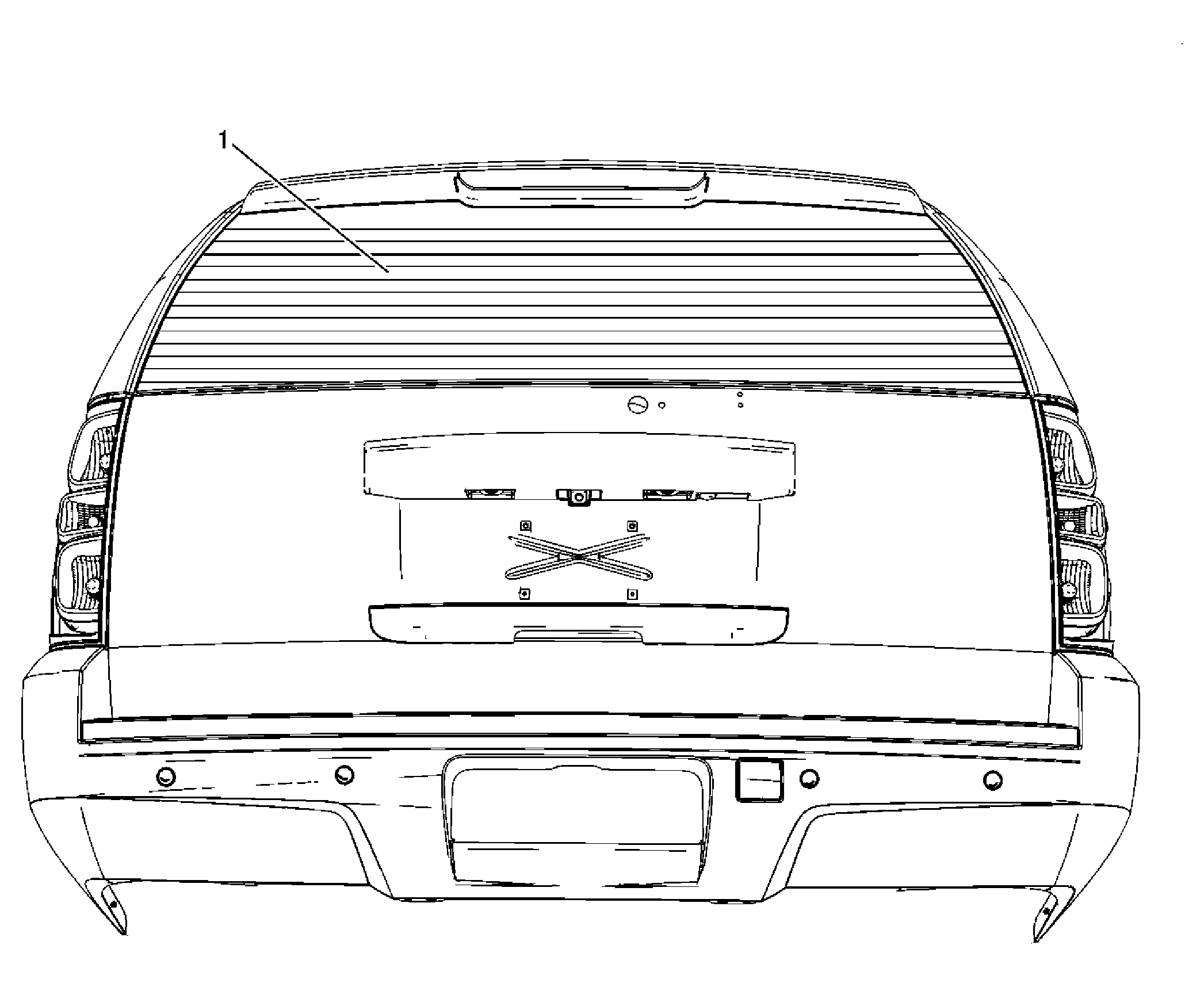

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Defogger Grid |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Defogger Grid |
| 2 |
Information Center Telltale Assembly (UD7) |
| 3 |
Remote Control Door Lock Receiver (RCDLR) (AP3/AP8) |
