Trailer Connector/Provision Schematics

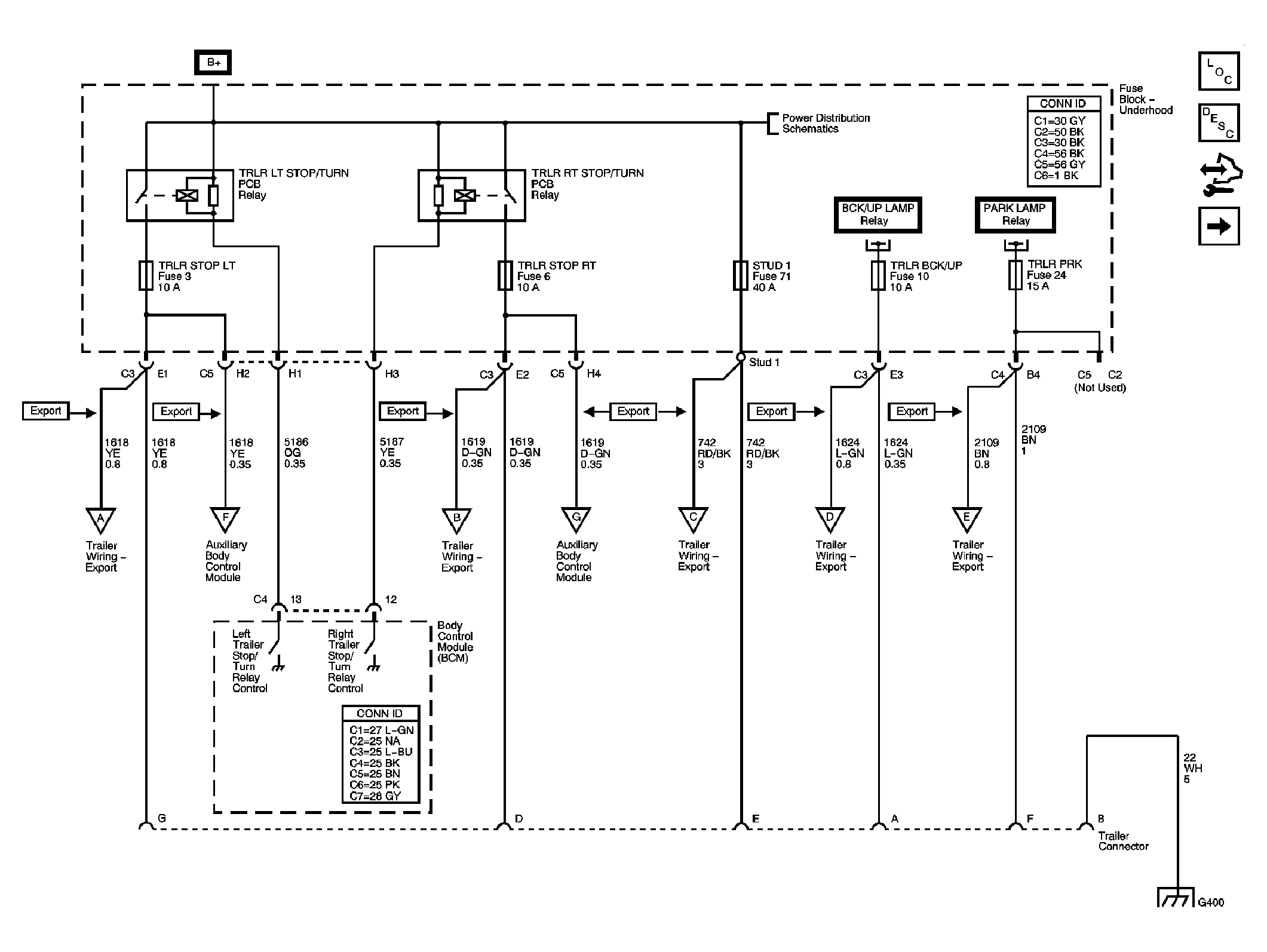

Fig 1: Trailer Lighting Control - Export 1 of 2 & all Domestic Schematic
GM1762153Courtesy of GENERAL MOTORS CORP.

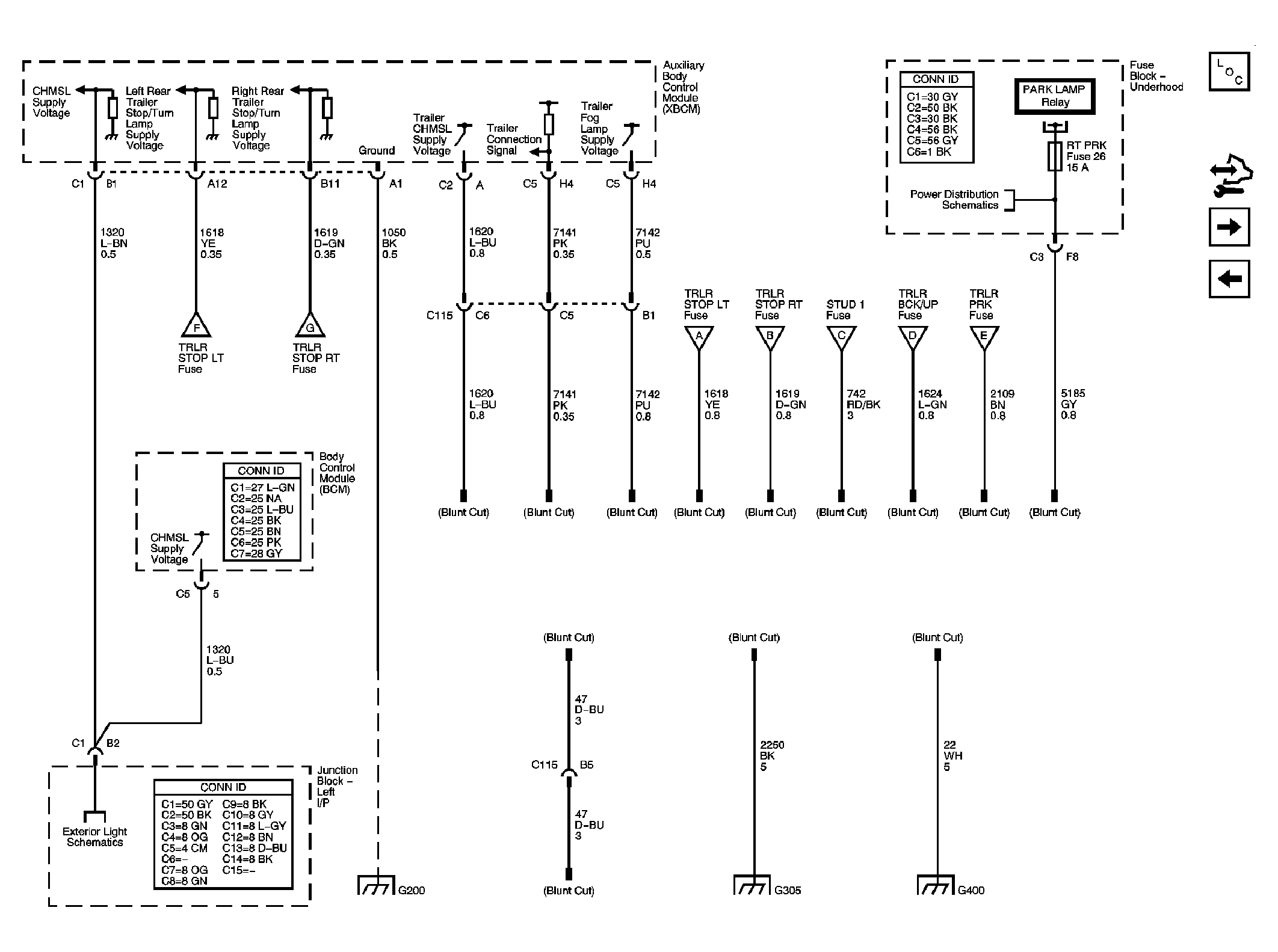

Fig 2: Export Trailer Wiring - 2 of 2 Schematic
GM1762156Courtesy of GENERAL MOTORS CORP.

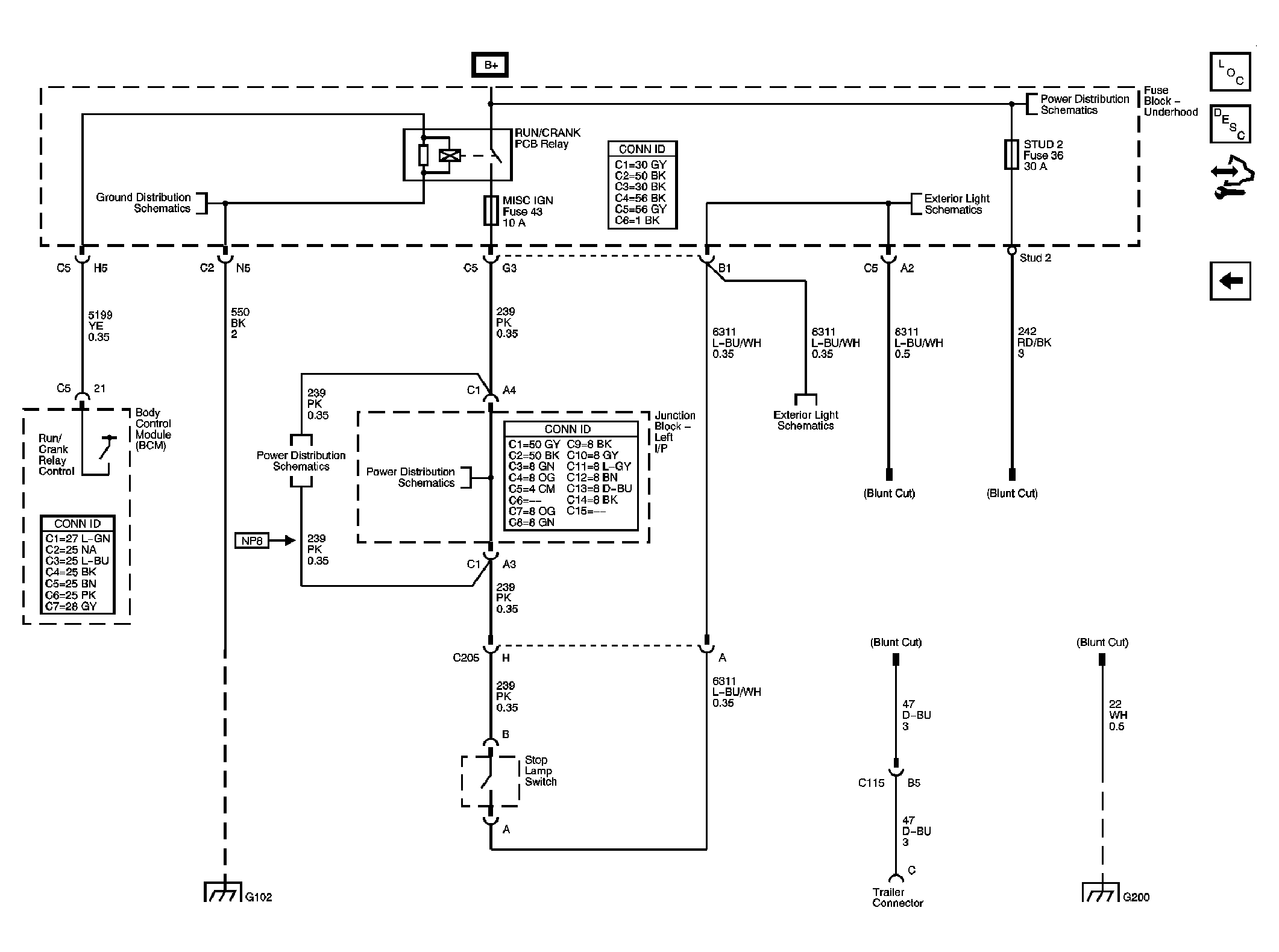

Fig 3: Trailer Brake Control - Domestic Schematic
GM1762154Courtesy of GENERAL MOTORS CORP.
