Steering Wheel



Steering Wheel and Column Connector End Views

Heated Steering Wheel (KA9):







Heated Steering Wheel (KA9):






Heated Steering Wheel

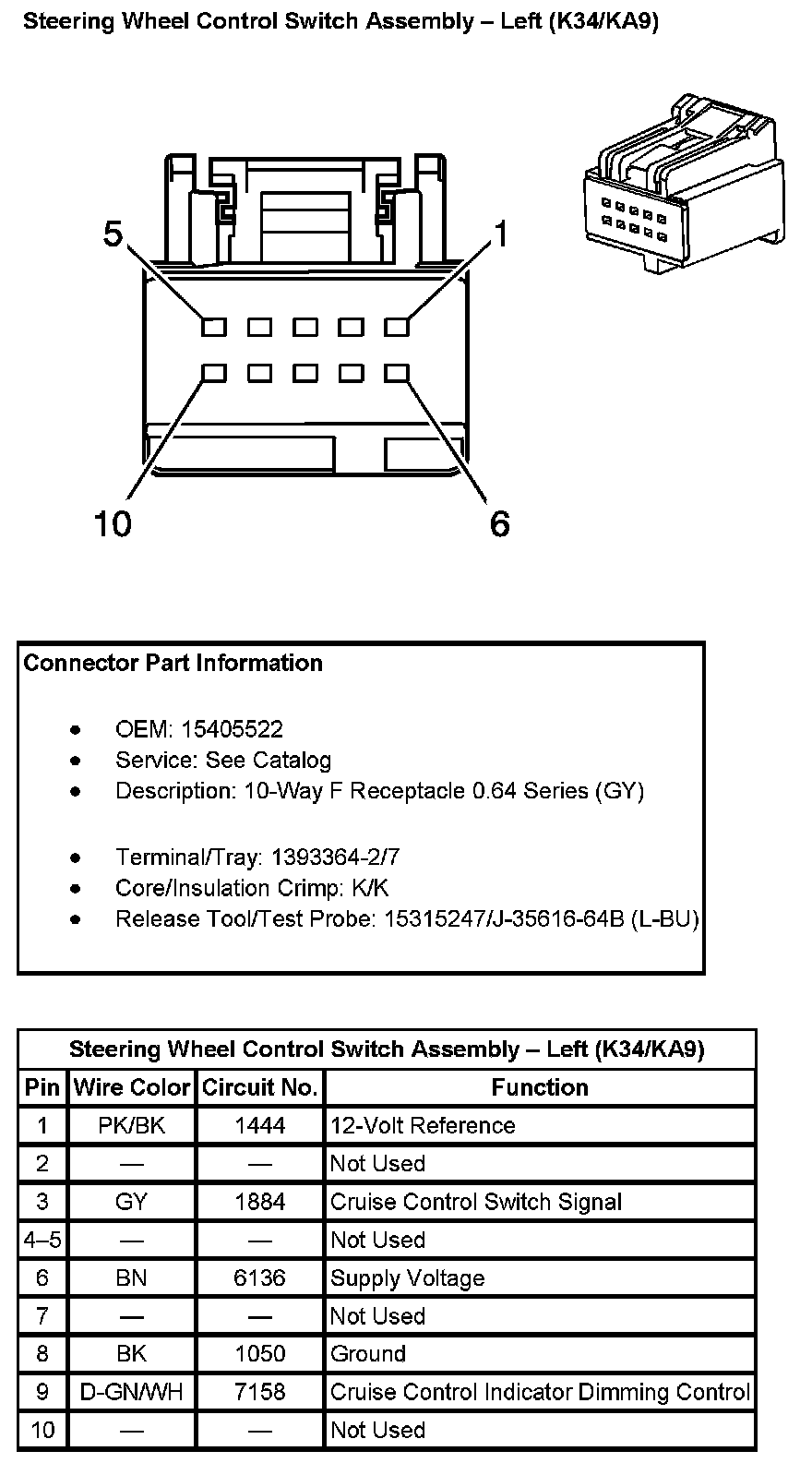

Steering Wheel Control Switch Assembly - Left (With RPO Codes K34/KA9):

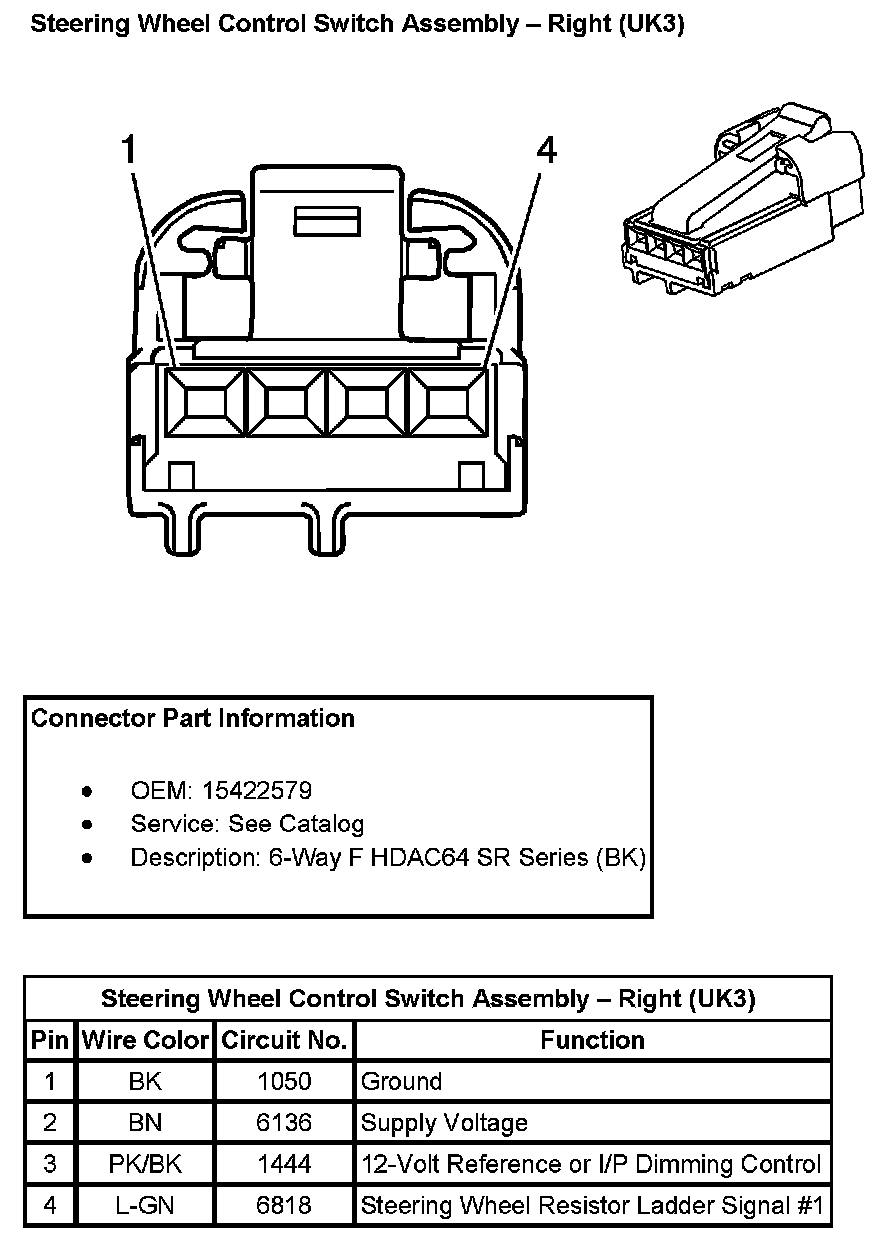

Steering Wheel Control Switch Assembly - Right (With RPO Code UK3):






Steering Wheel Control Switch Assembly - Left (With RPO Codes K34/KA9)
