Rear Vision Camera

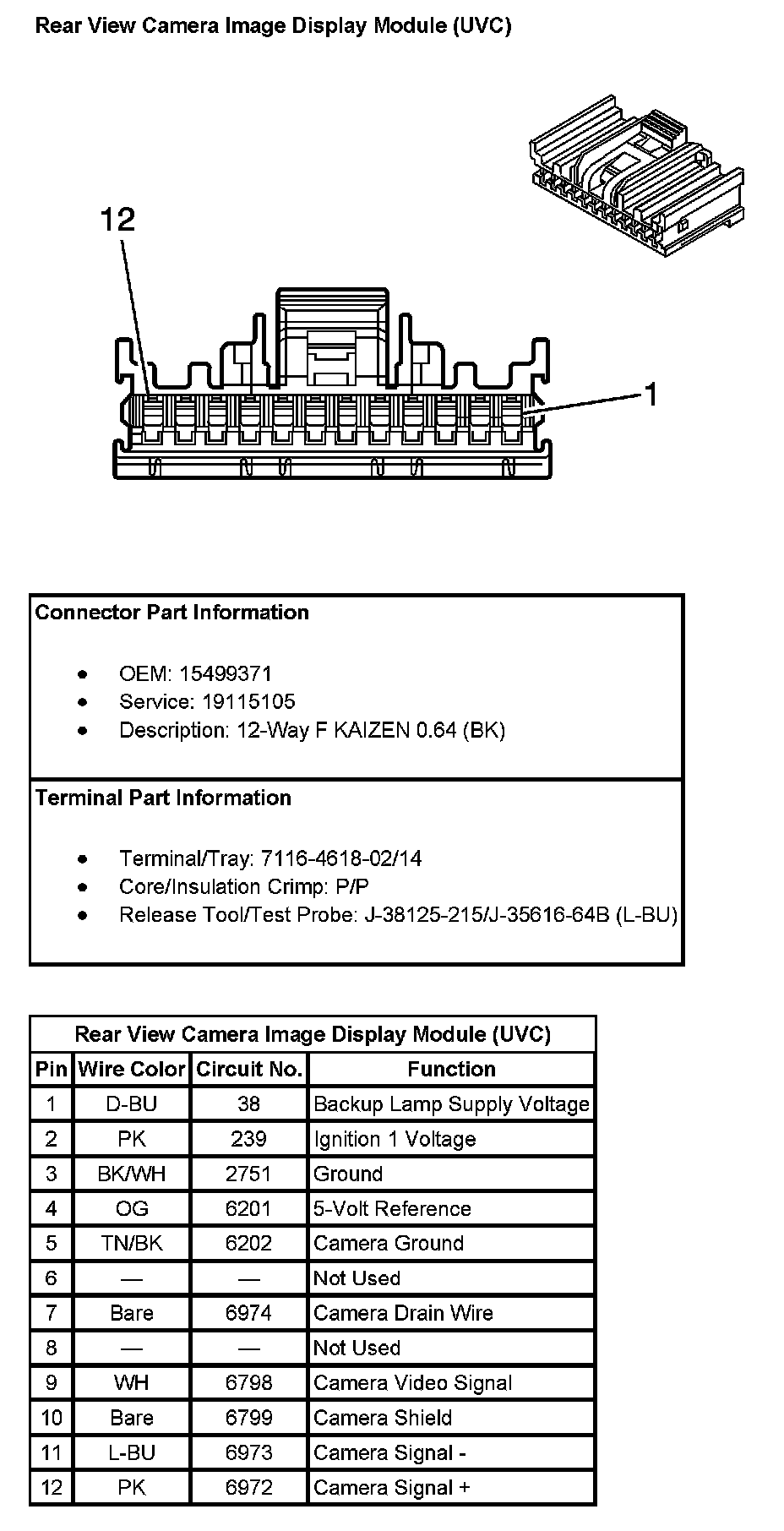

Rear View Camera Image Display Module (With RPO Code UVC):

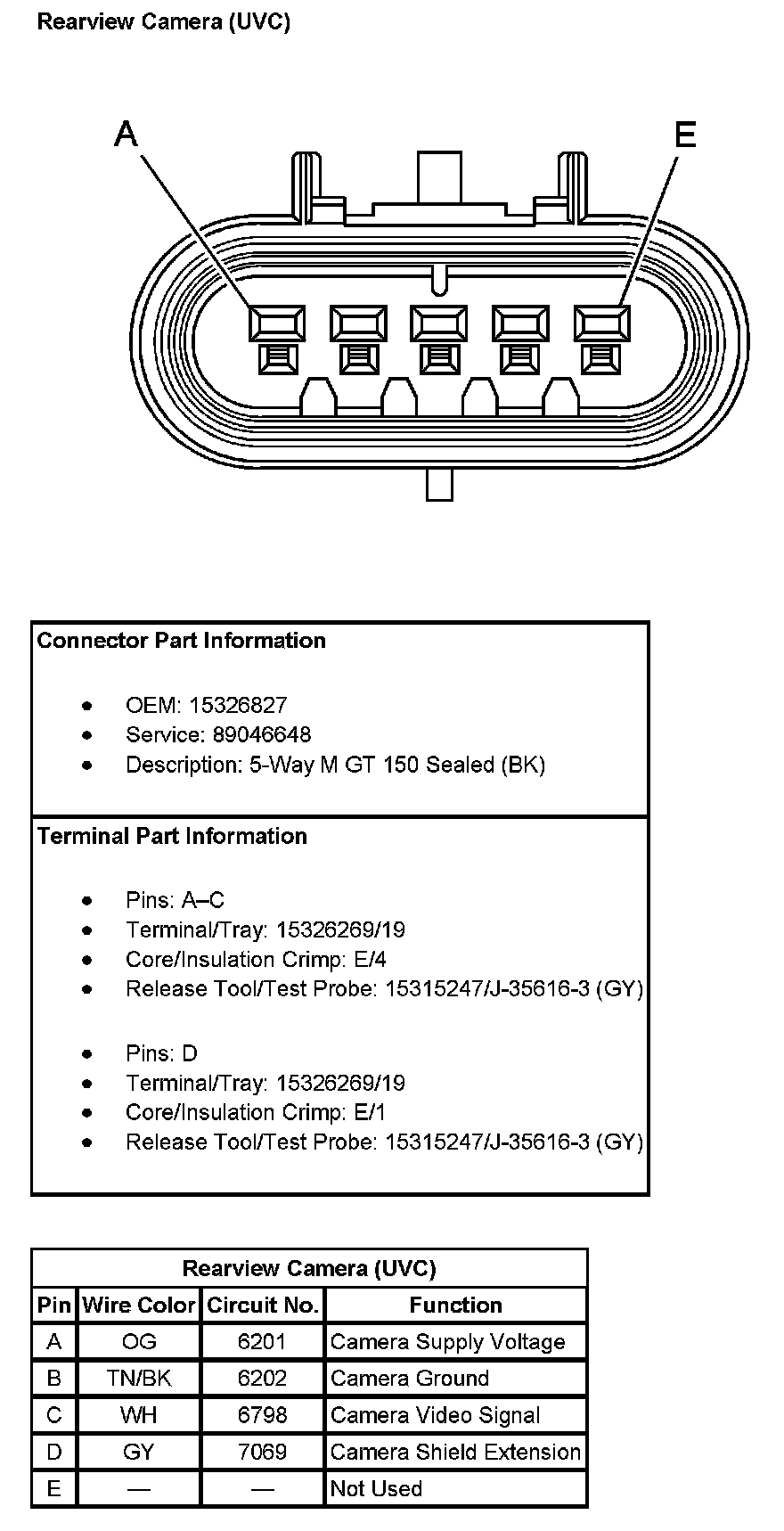

Rearview Camera (With RPO Code UVC):
