Parking Assist Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parking Assist Control Module

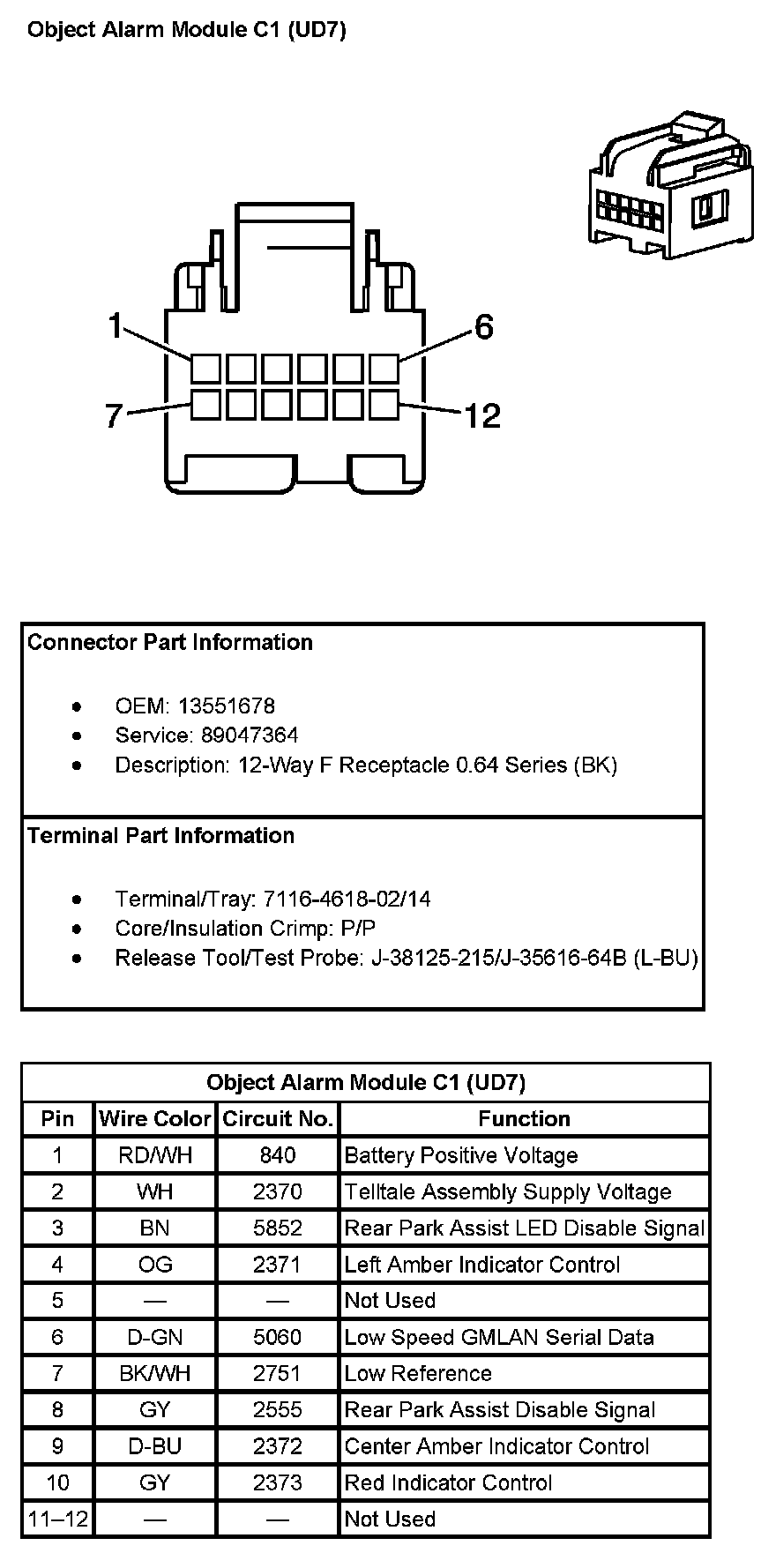

Object Alarm Module C1 (With RPO Code UD7):

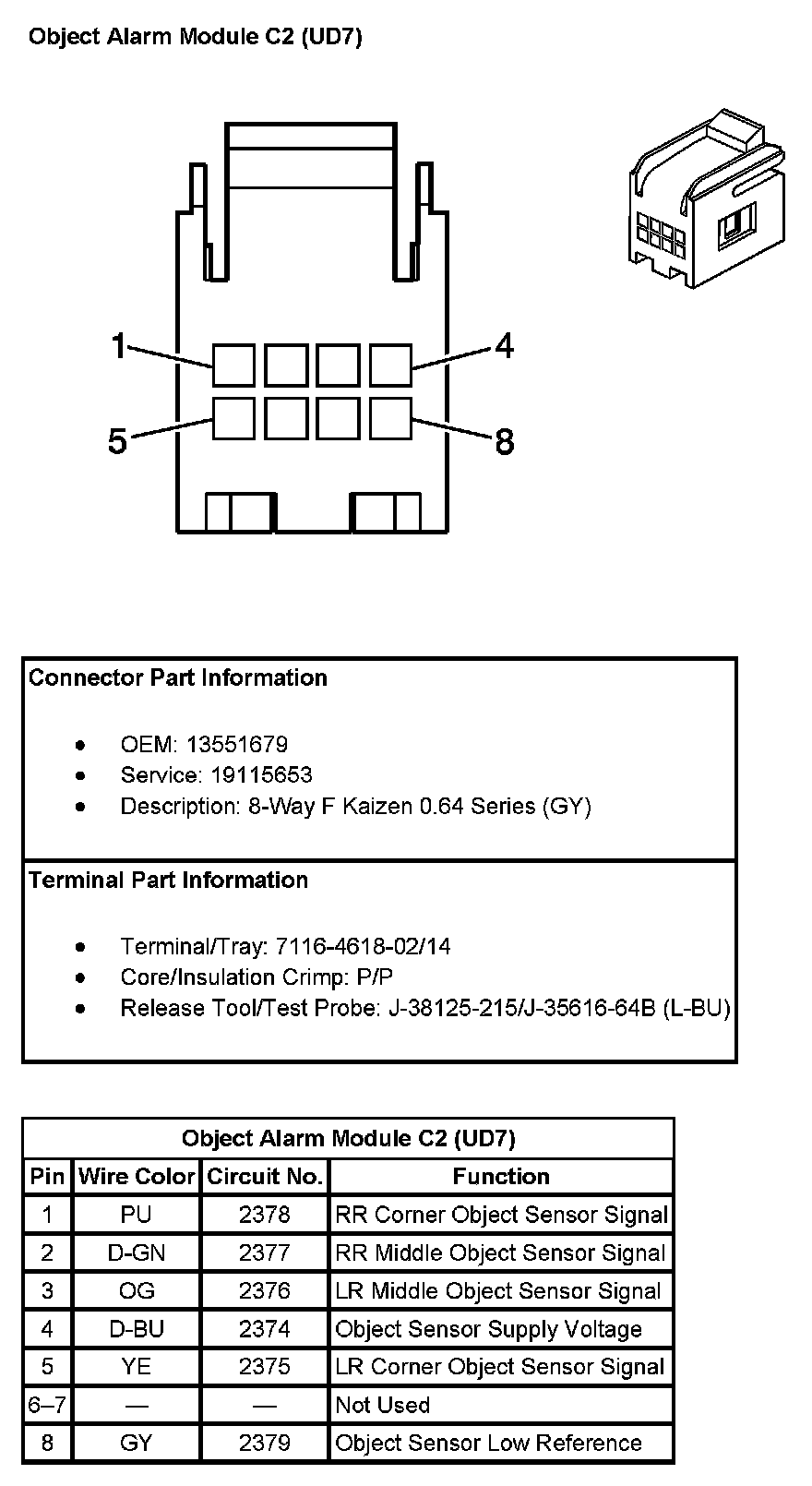

Object Alarm Module C2 (With RPO Code UD7):
