Fog/Driving Lamp

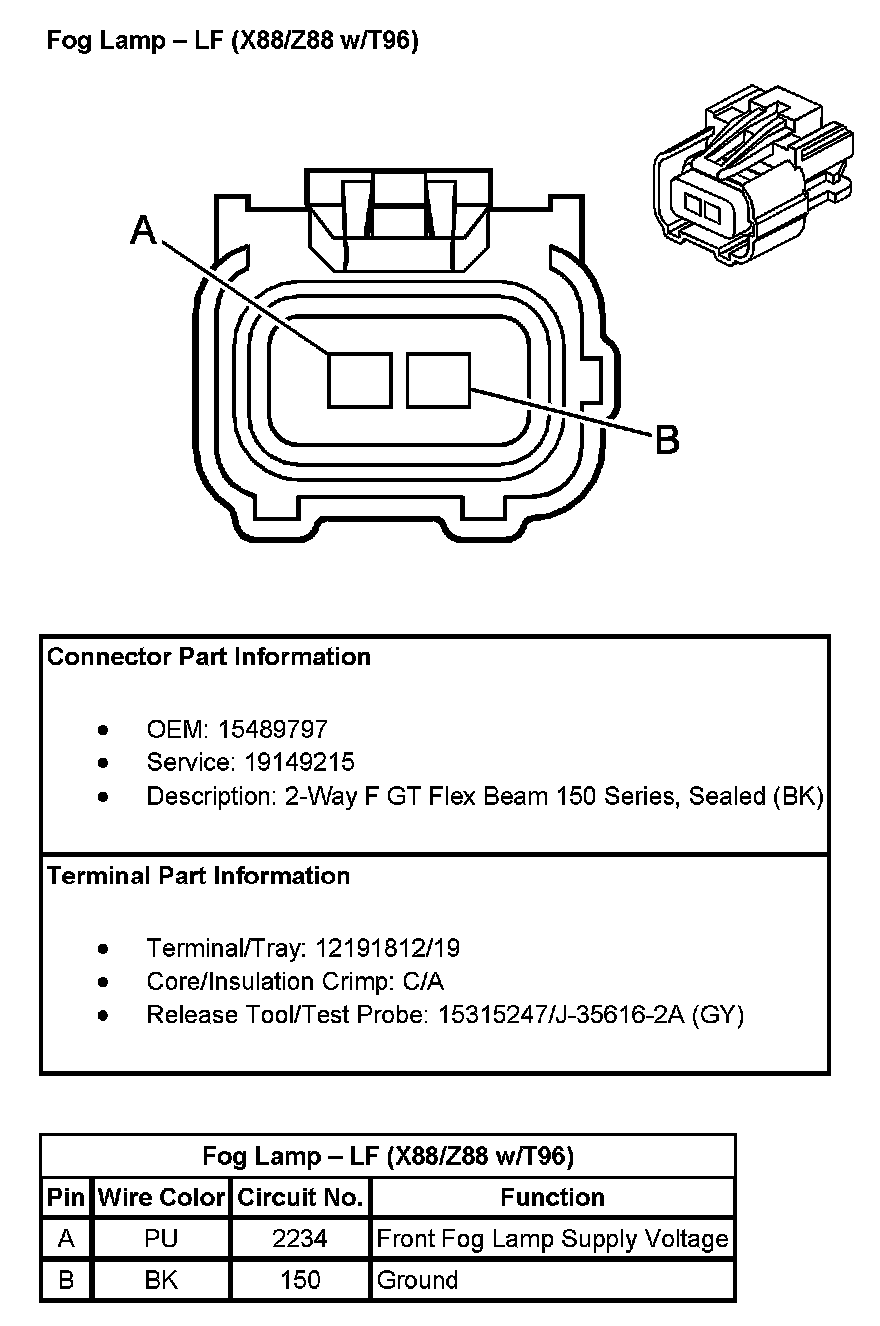

Fog Lamp - LF (With RPO Codes X88, Z88 And T96):



Fog Lamp - LF (With RPO Code Z75):

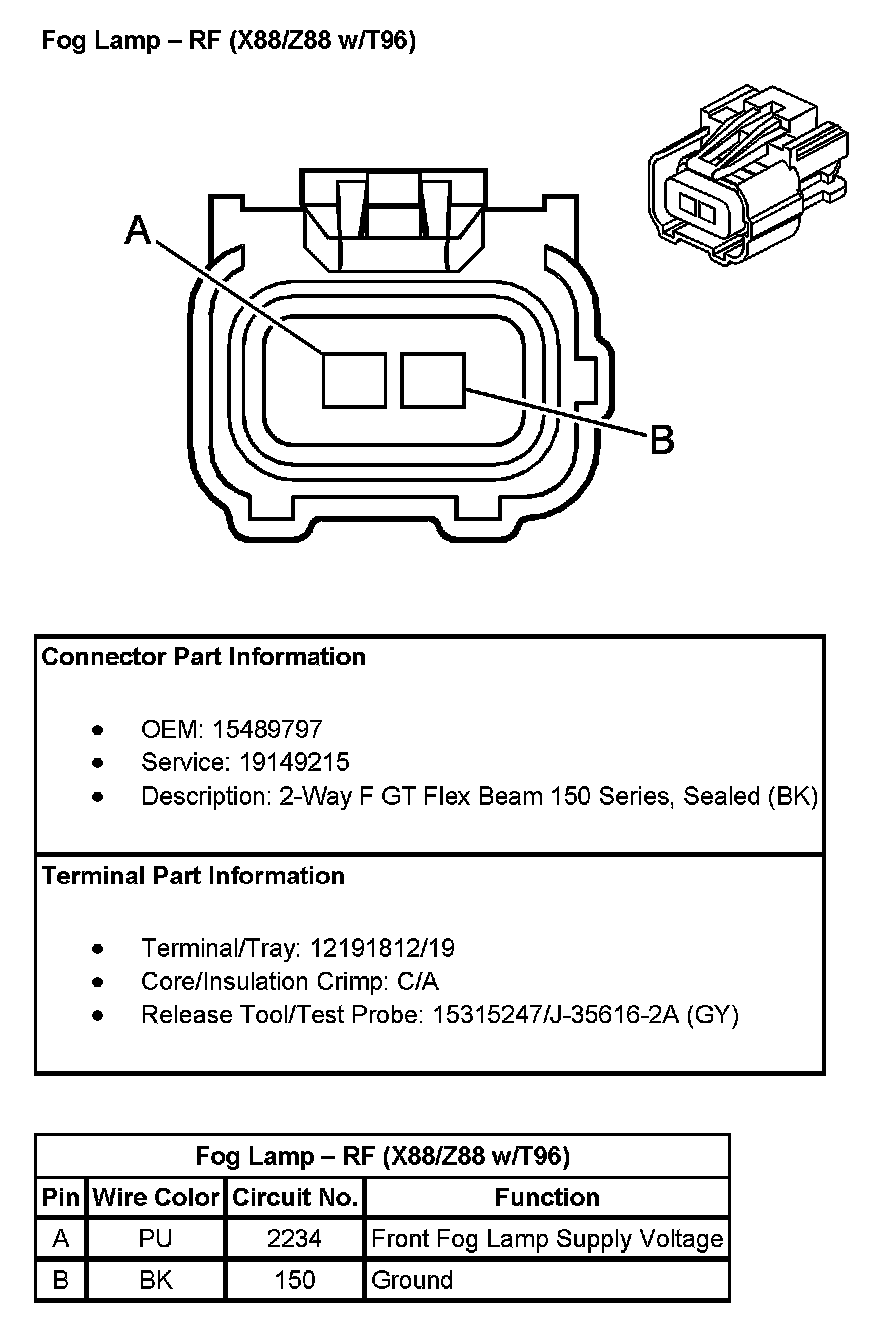

Fog Lamp - RF (With RPO Codes X88, Z88 And T96):



Fog Lamp - RF (With RPO Code Z75):
