Underhood Fuse Block



Electrical Center Identification Views

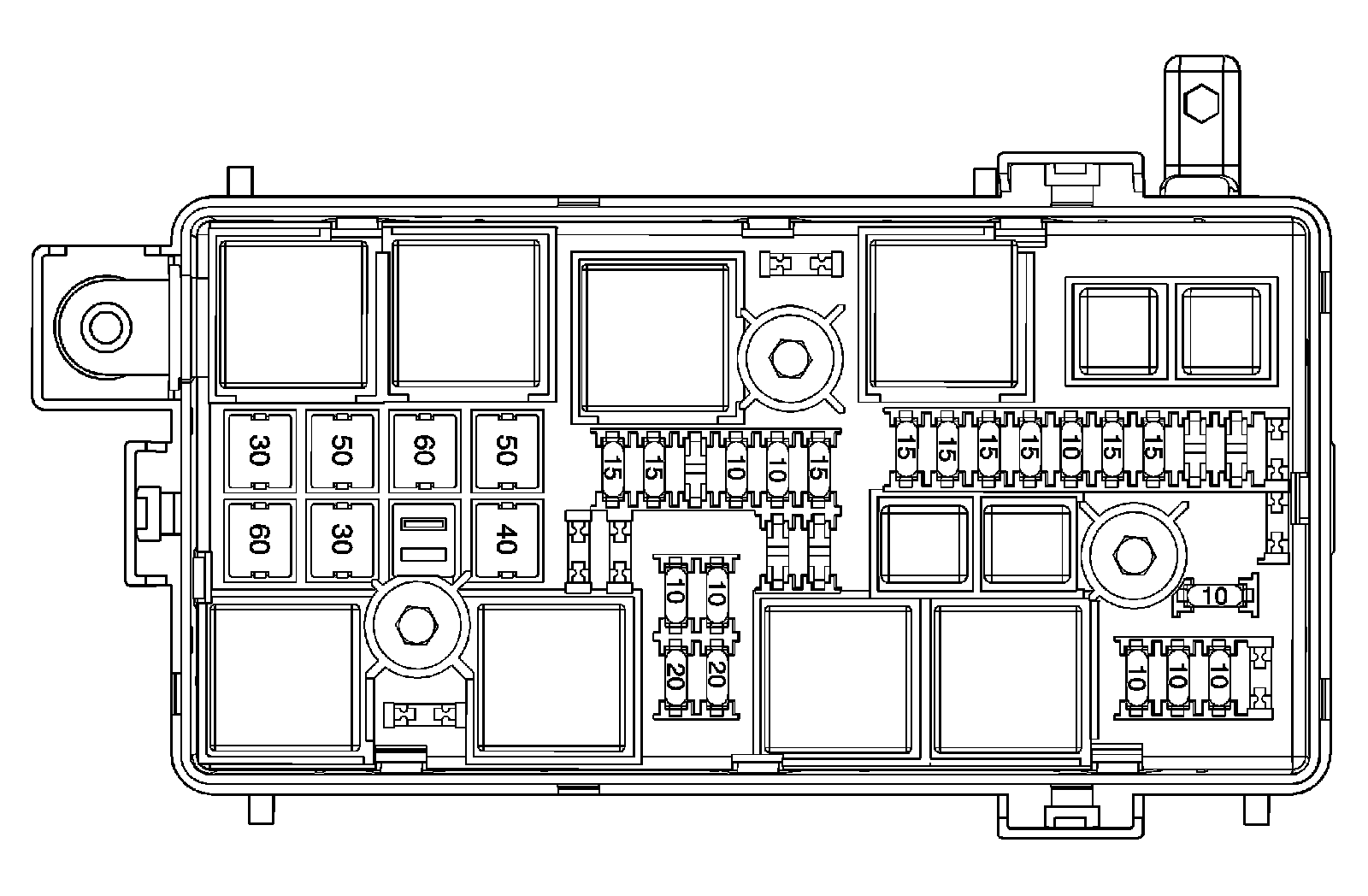

Fuse Block - Underhood Top View

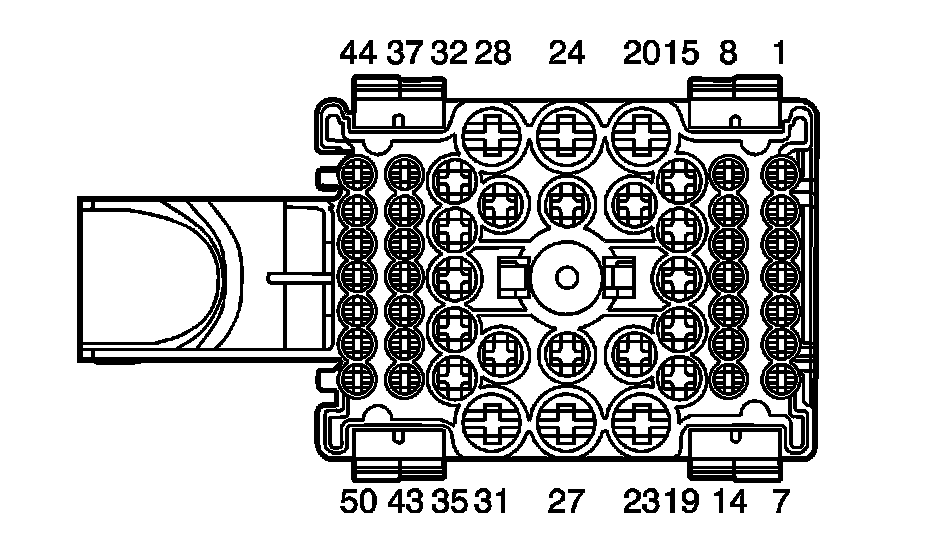

Fuse Block - Underhood Bottom View

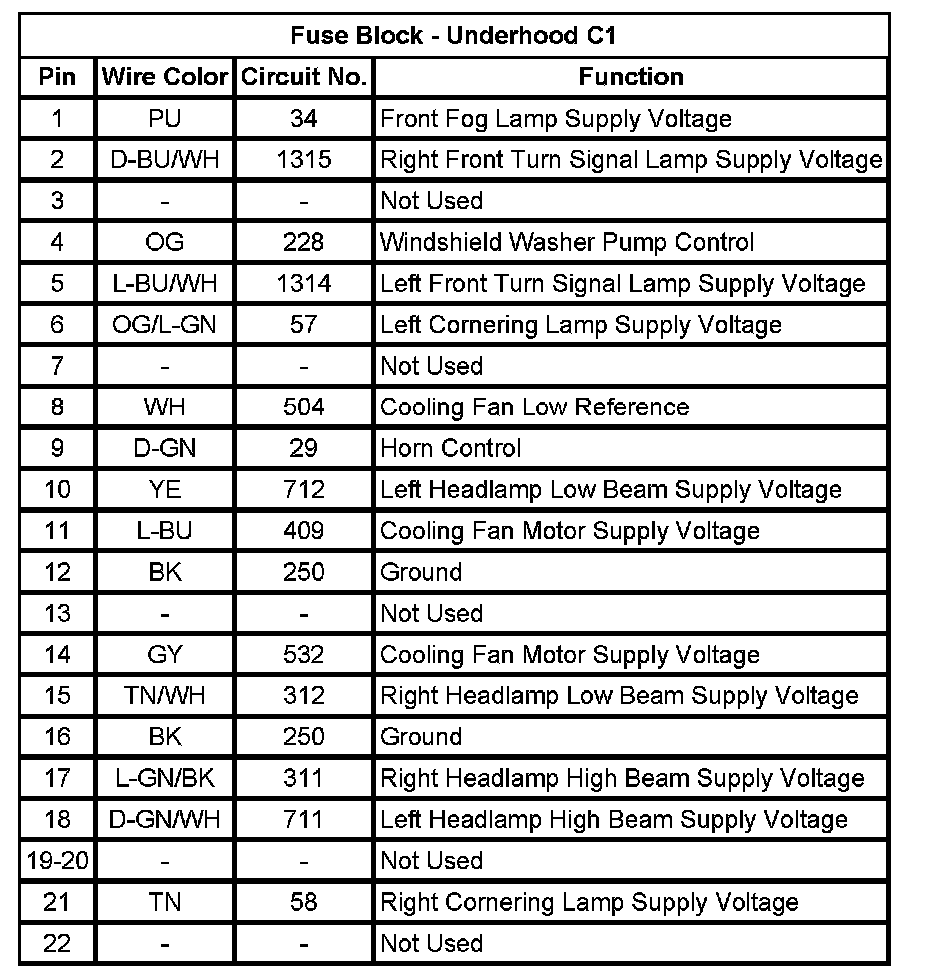

Fuse Block - Underhood C1

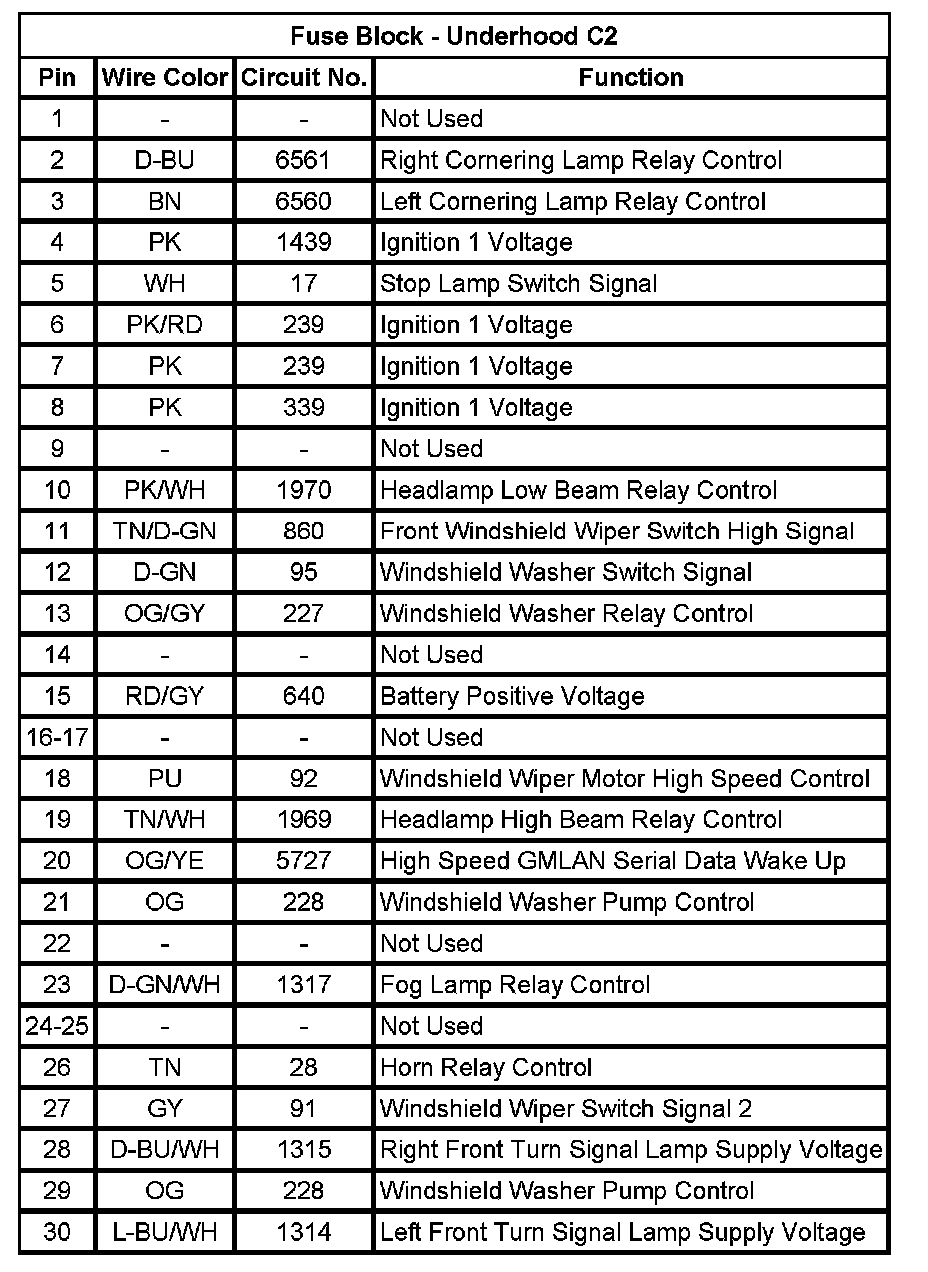

Fuse Block - Underhood C2

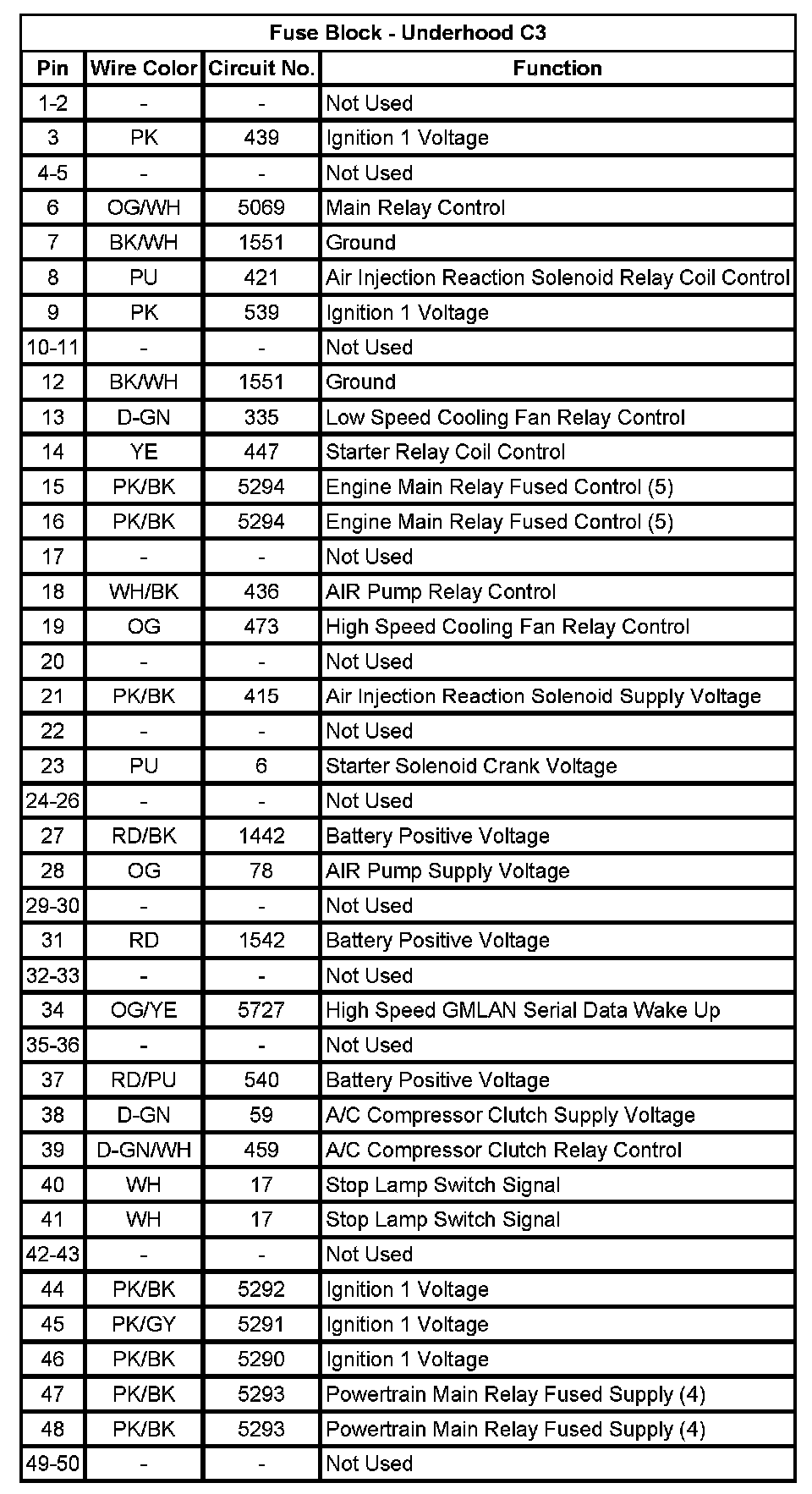

Fuse Block - Underhood C3
