Fuel Tank Pressure Sensor: Locations

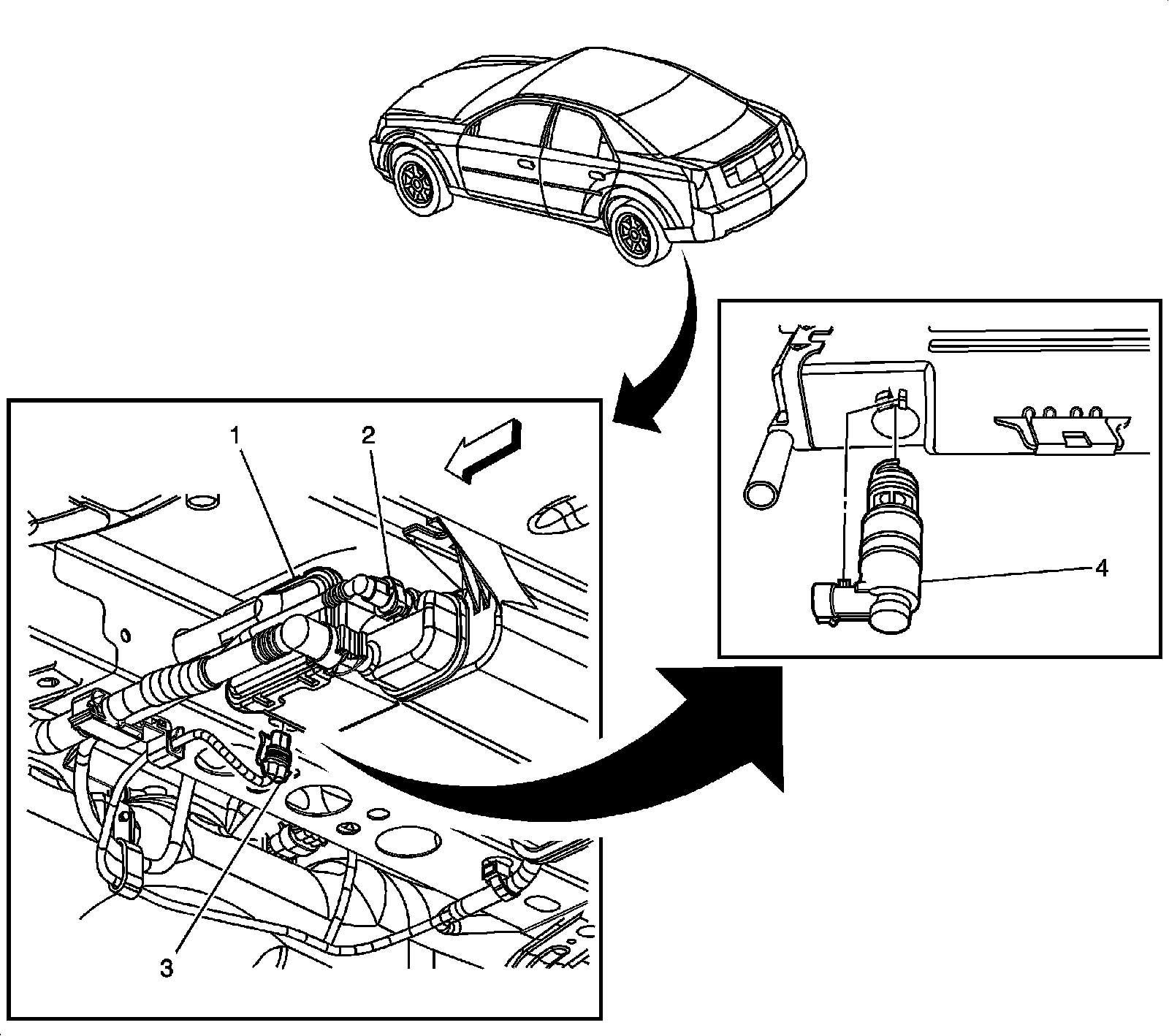

Engine Controls Component Views

EVAP Canister Vent Solenoid Valve




1 - EVAP Canister
2 - Fuel Tank Pressure Sensor
3 - EVAP Canister Vent Solenoid Valve Connector
4 - EVAP Canister Vent Solenoid Valve
