Transmission Temperature Sensor/Switch: Locations



Manual Transmission Component Views

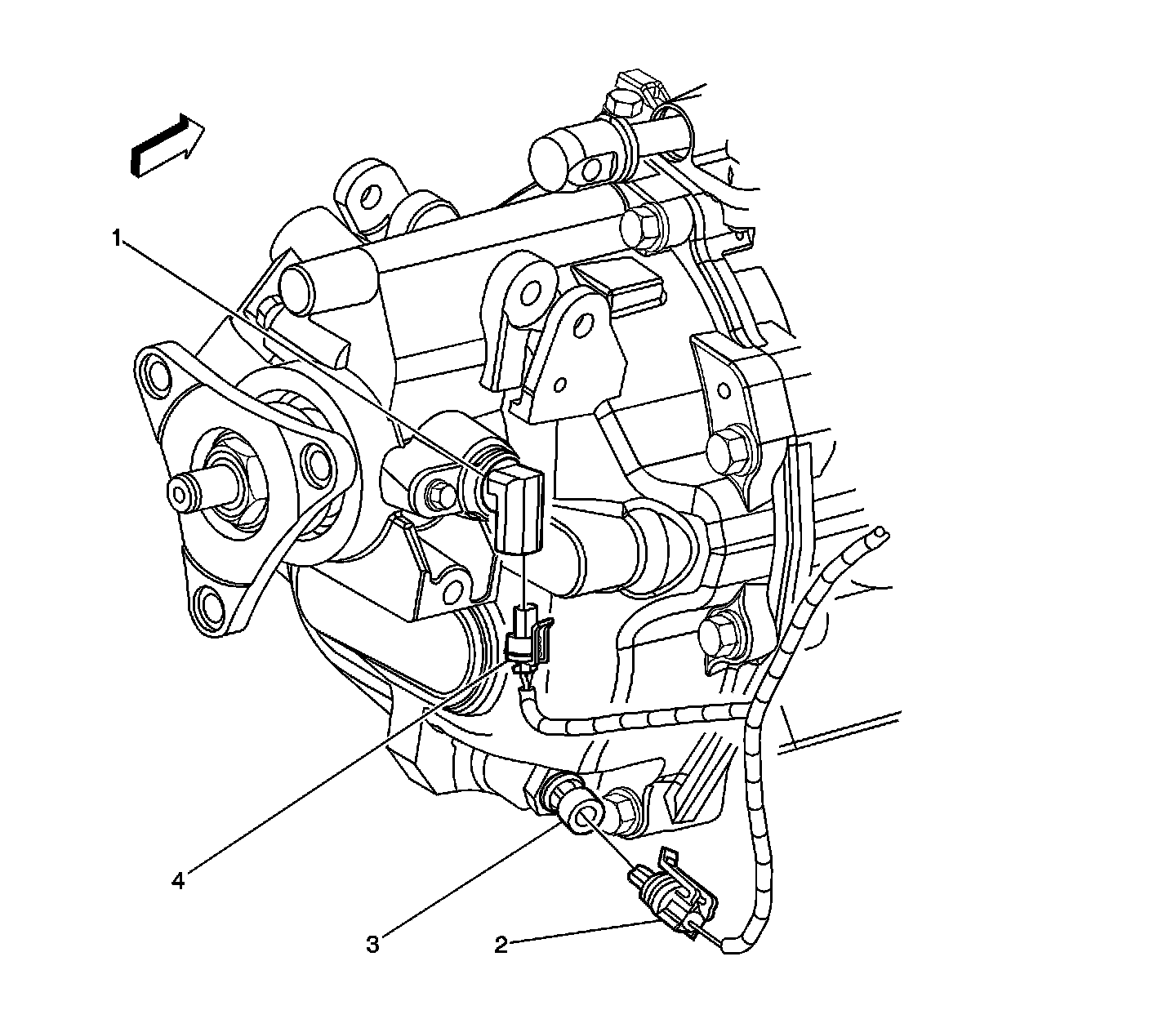

RR of Transmission - Tremec 6-Speed (M12/MN6)

RR of Transmission - Tremec 6-Speed (M12/MN6):




1 - Vehicle Speed Sensor (VSS)
2 - Transmission Fluid Temperature (TFT) Sensor Connector
3 - Transmission Fluid Temperature (TFT) Sensor
4 - Vehicle Speed Sensor (VSS) Connector
