Underhood Fuse Block



Electrical Center Identification Views

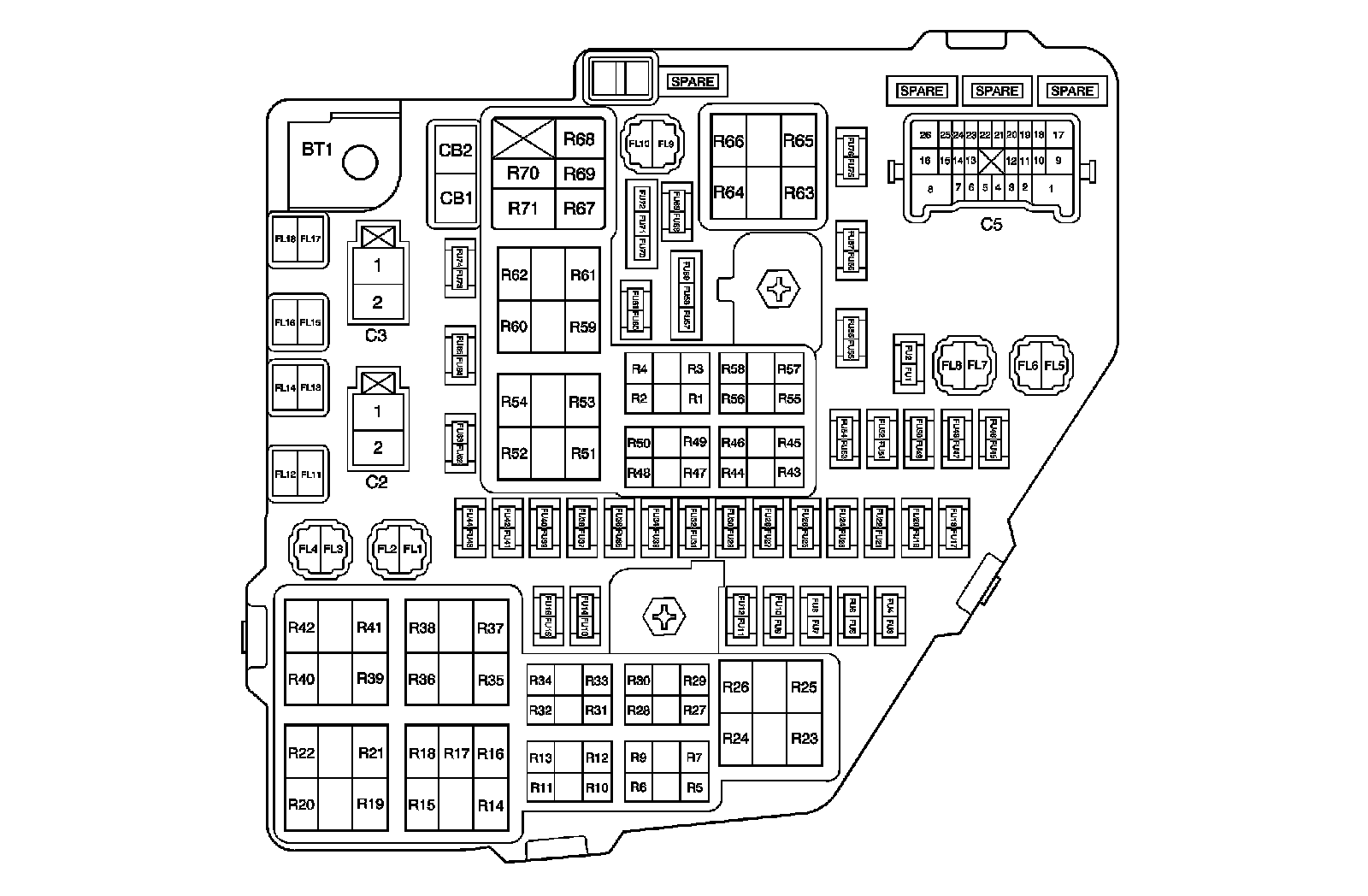

Fuse Block - Underhood Top View






Fuse Block - Underhood Bottom View

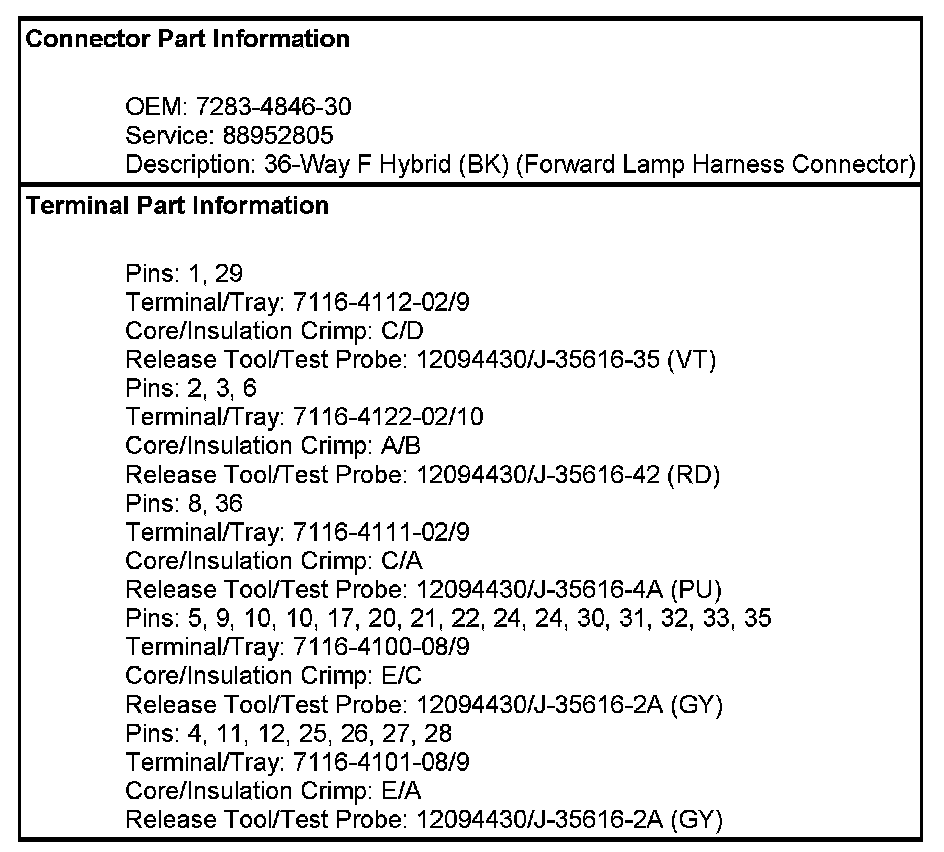

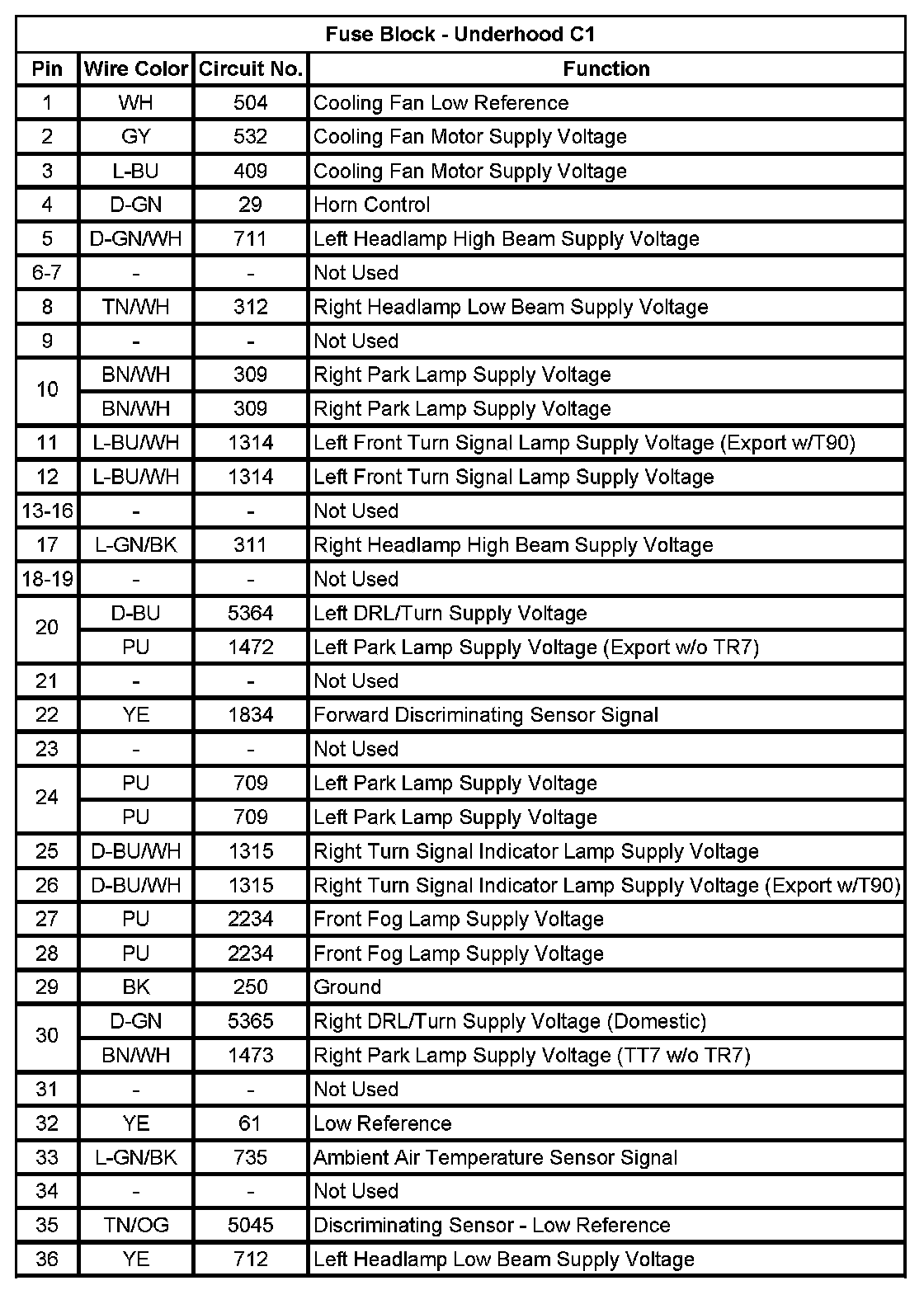

Fuse Block - Underhood C1














Fuse Block - Underhood C2














Fuse Block - Underhood C3

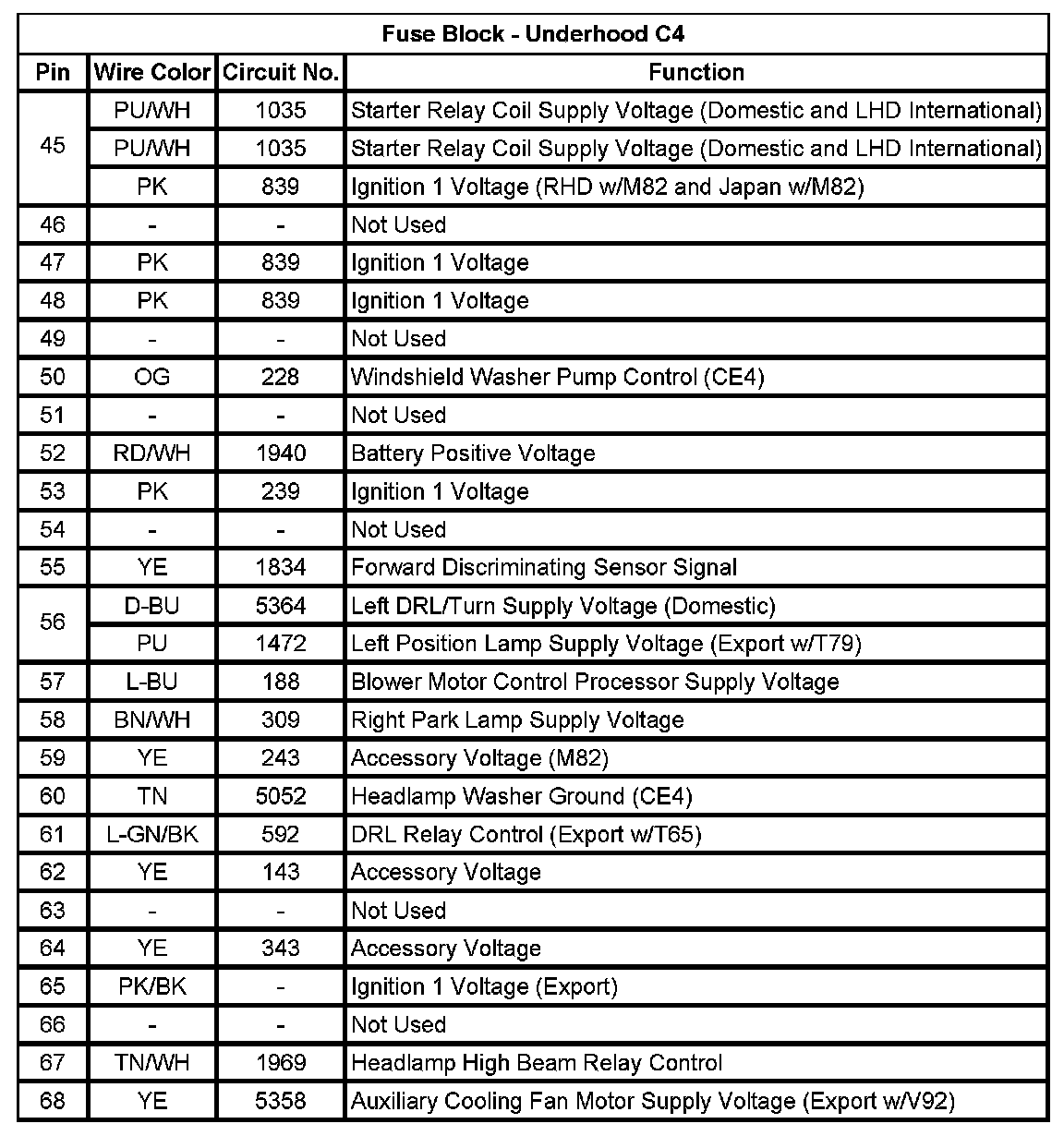

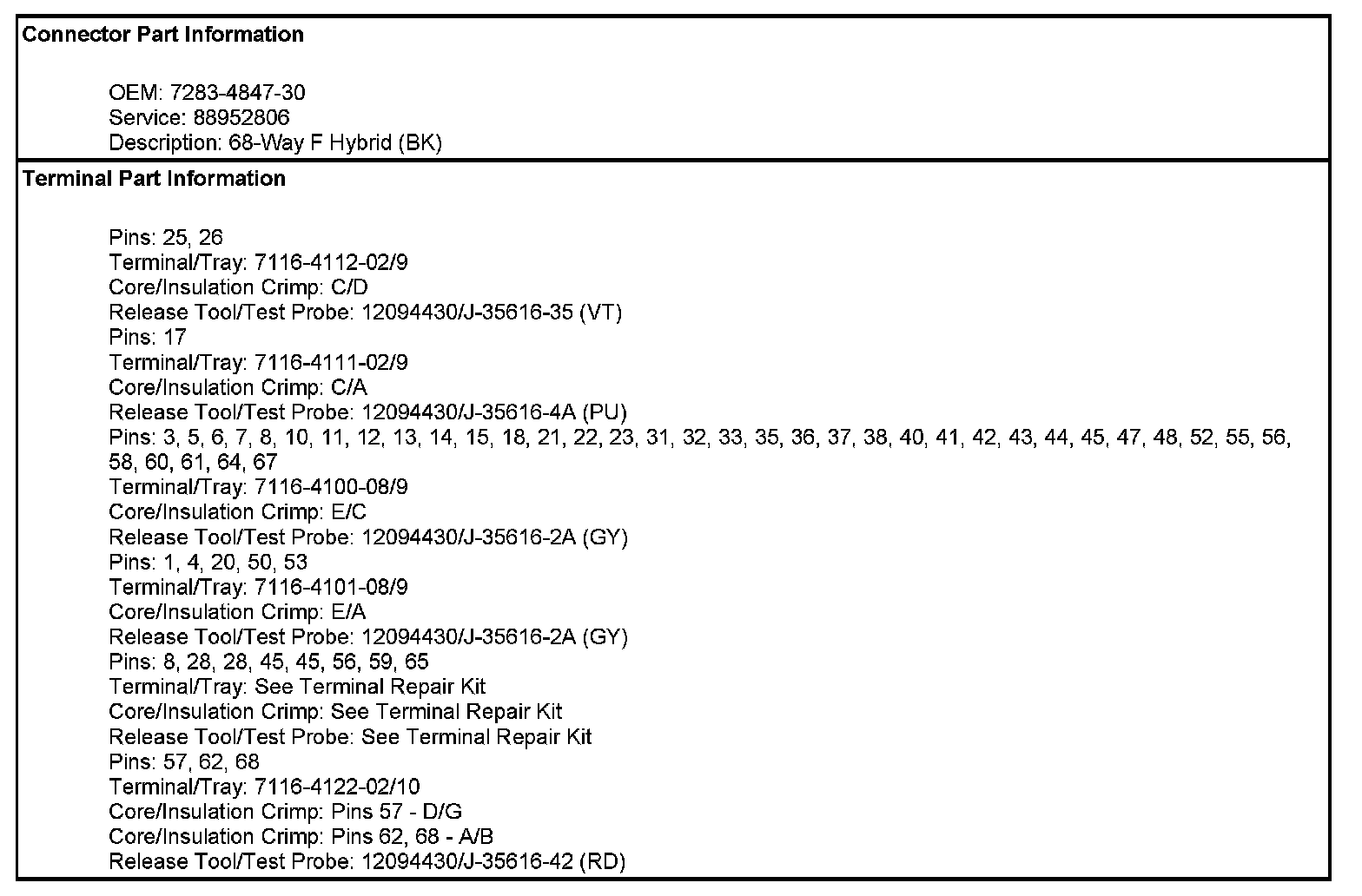

Fuse Block - Underhood C4

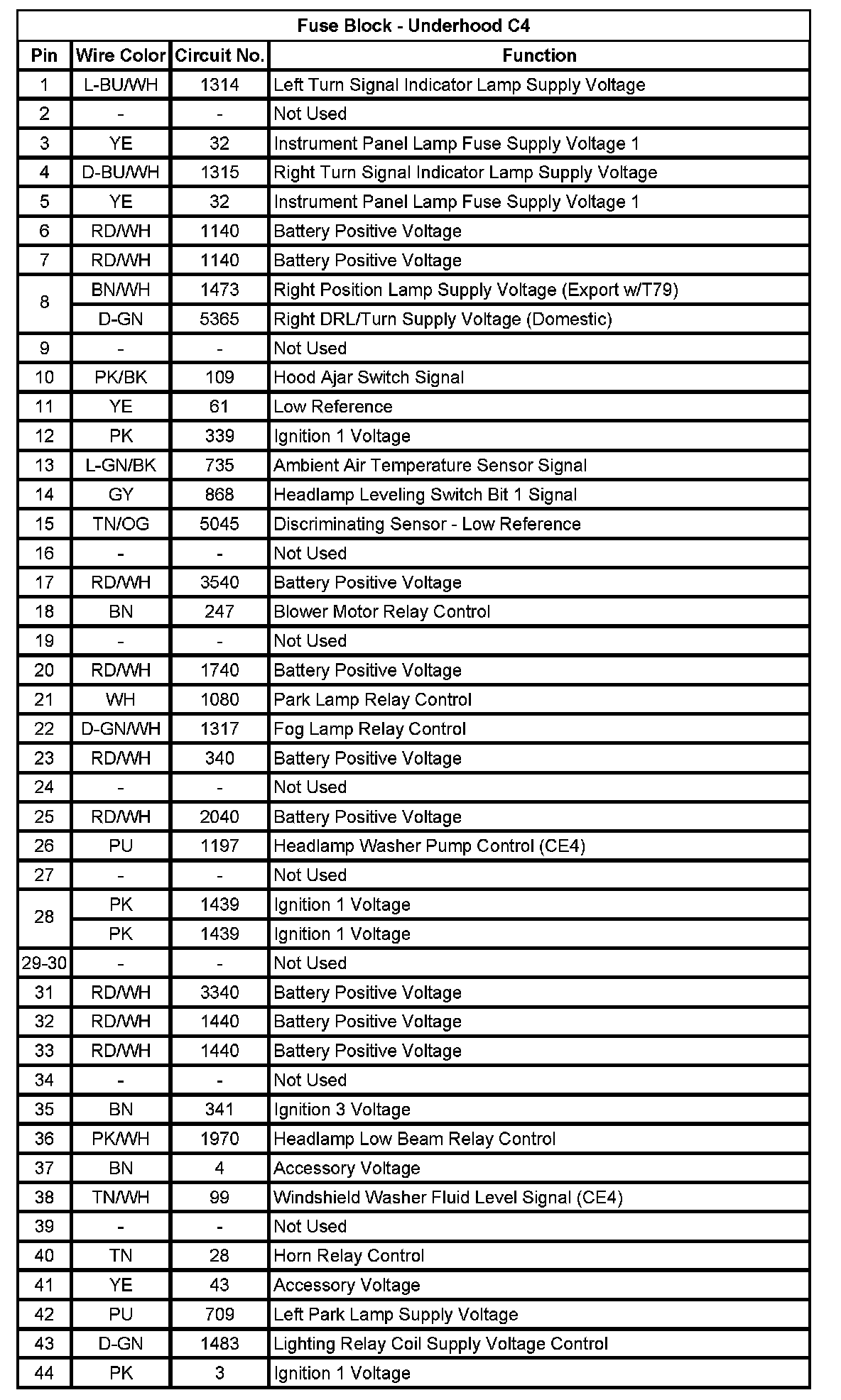

Fuse Block - Underhood C4 (Pin 1 To 44):

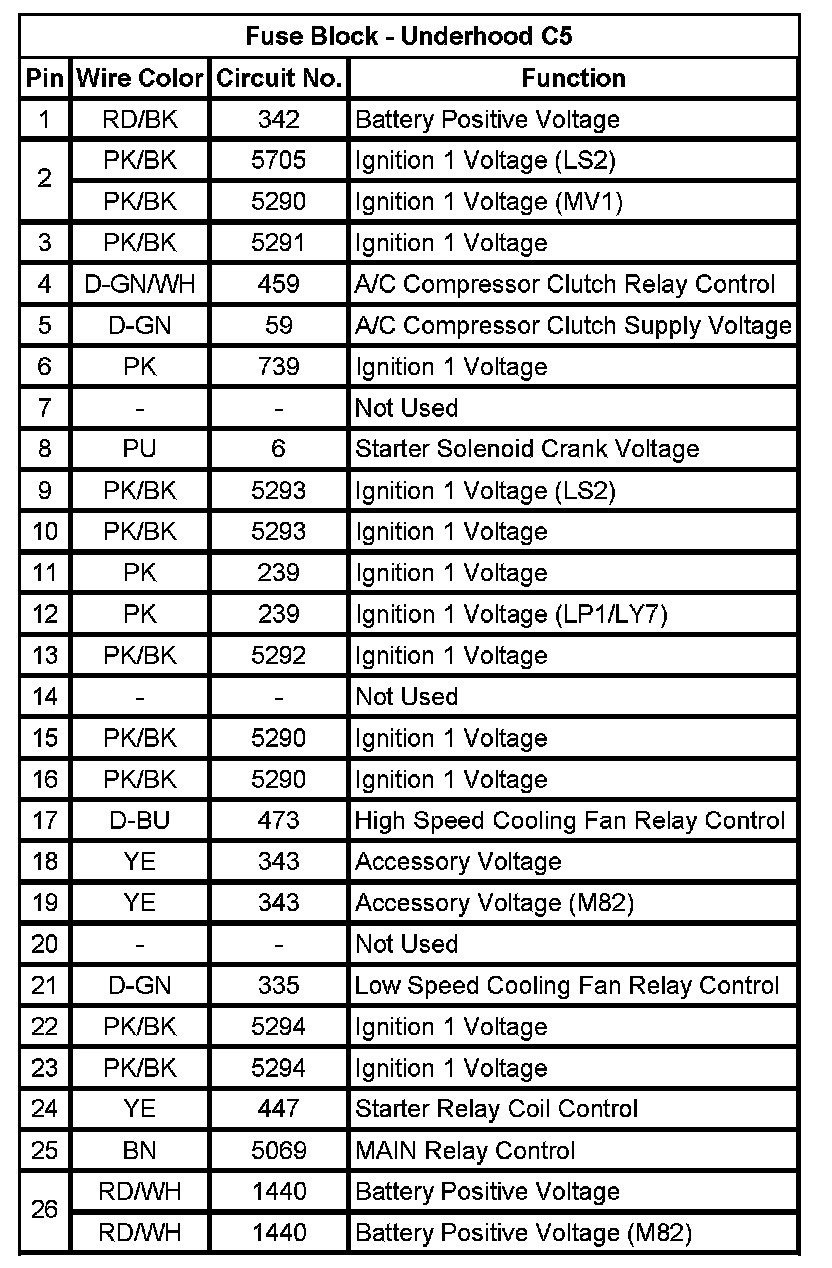

Fuse Block - Underhood C5
