Amplifier, Sound System



Entertainment/Communication Connector End Views

Audio Amplifier C1 (U57)














Audio Amplifier C1 (U66)

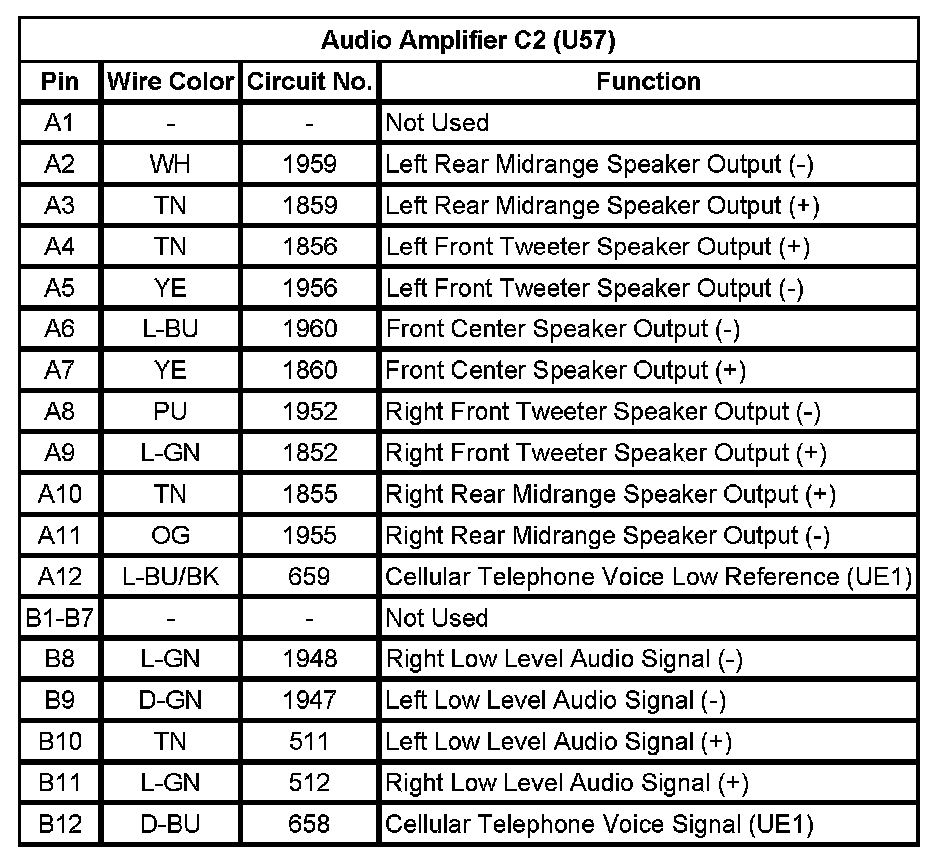

Audio Amplifier C2 (U57)














Audio Amplifier C2 (U66)














Audio Amplifier C3 (U57)

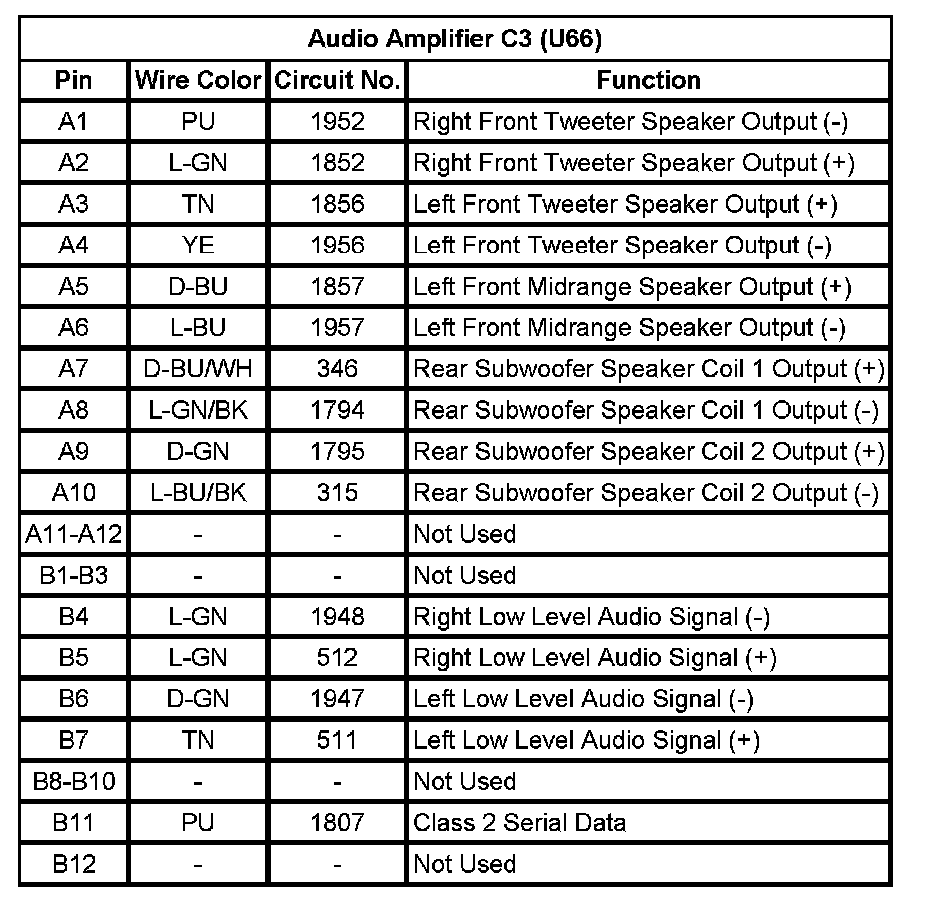

Audio Amplifier C3 (U66)
