Engine Controls Schematics

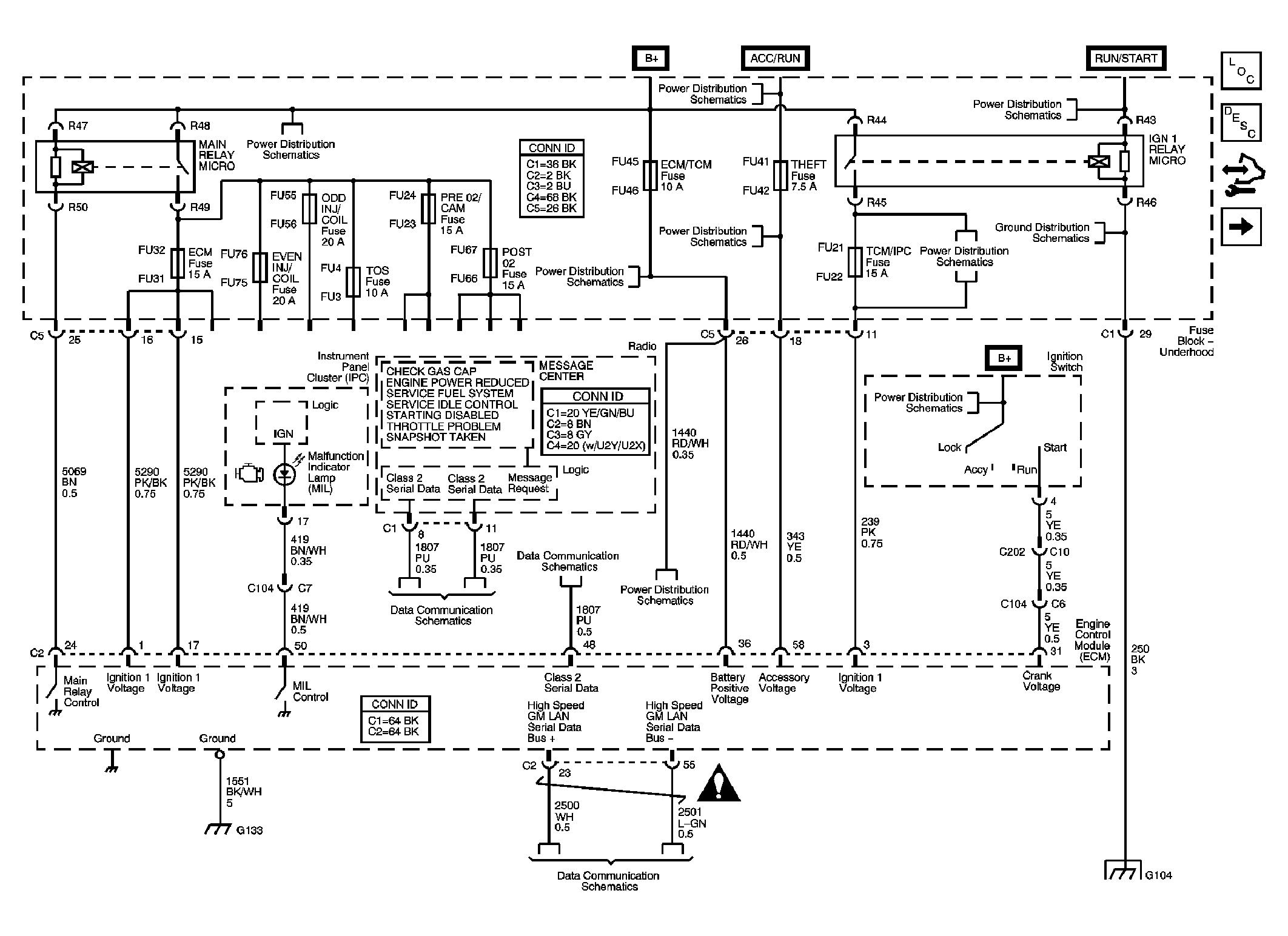

Fig 1: Power, Ground, Serial Data, DIC, and Indicators

Courtesy of GENERAL MOTORS CORP.

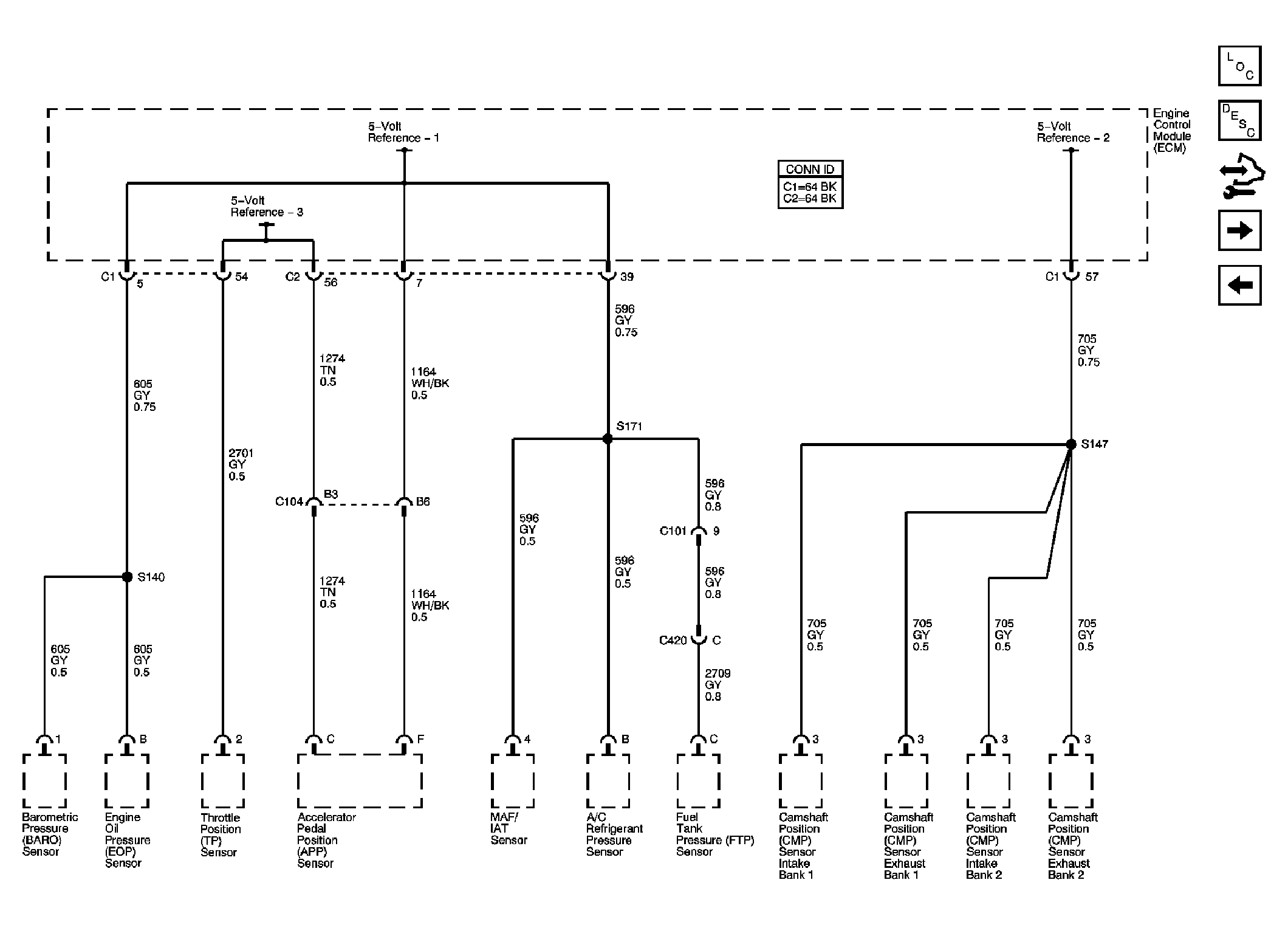

Fig 2: Engine Data Sensors - 5-Volt Reference Bus

Courtesy of GENERAL MOTORS CORP.

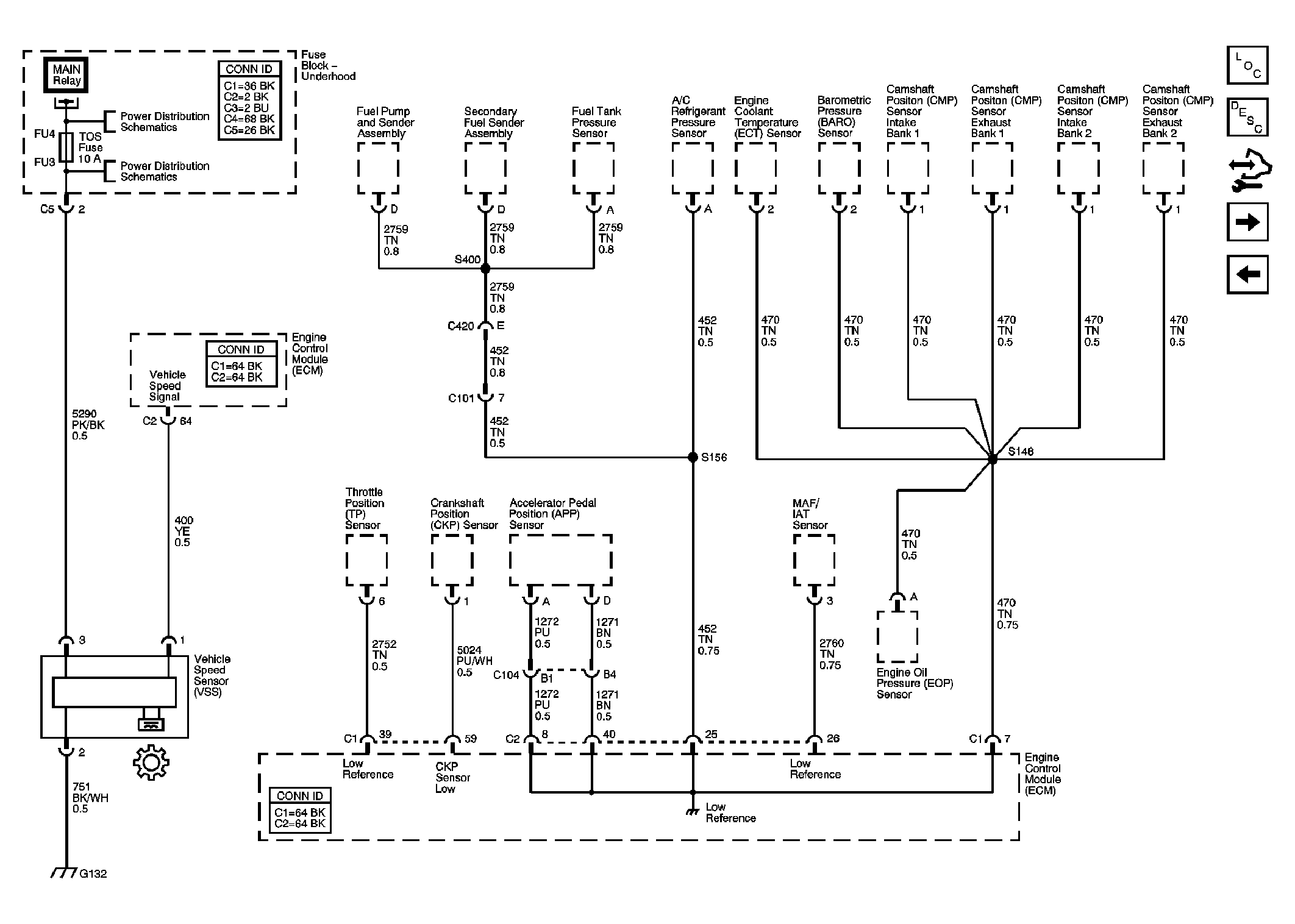

Fig 3: Engine Data Sensors - Low Reference Bus

Courtesy of GENERAL MOTORS CORP.

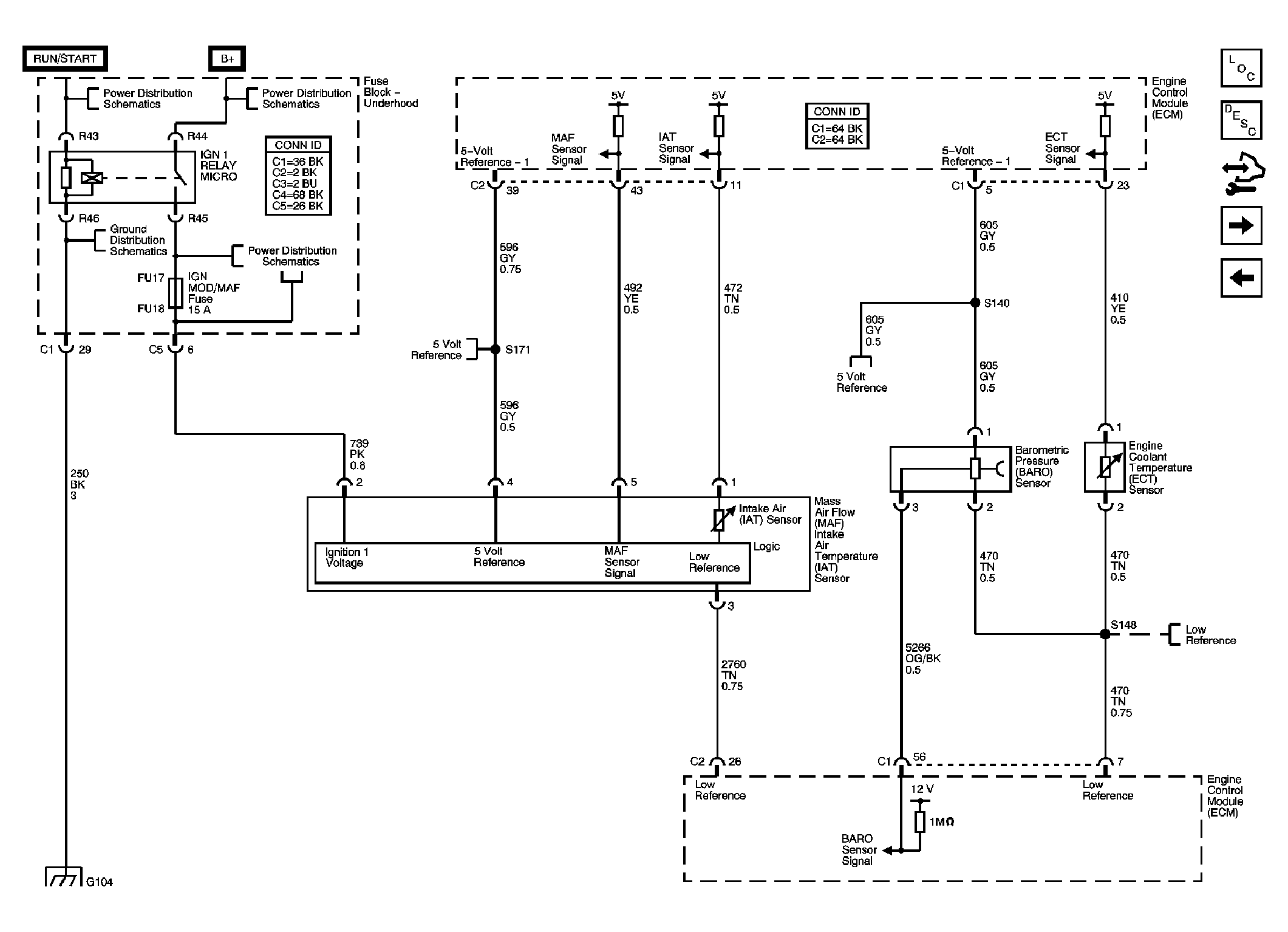

Fig 4: Engine Data Sensors - BARO, ECT, MAF, and IAT Sensors

Courtesy of GENERAL MOTORS CORP.

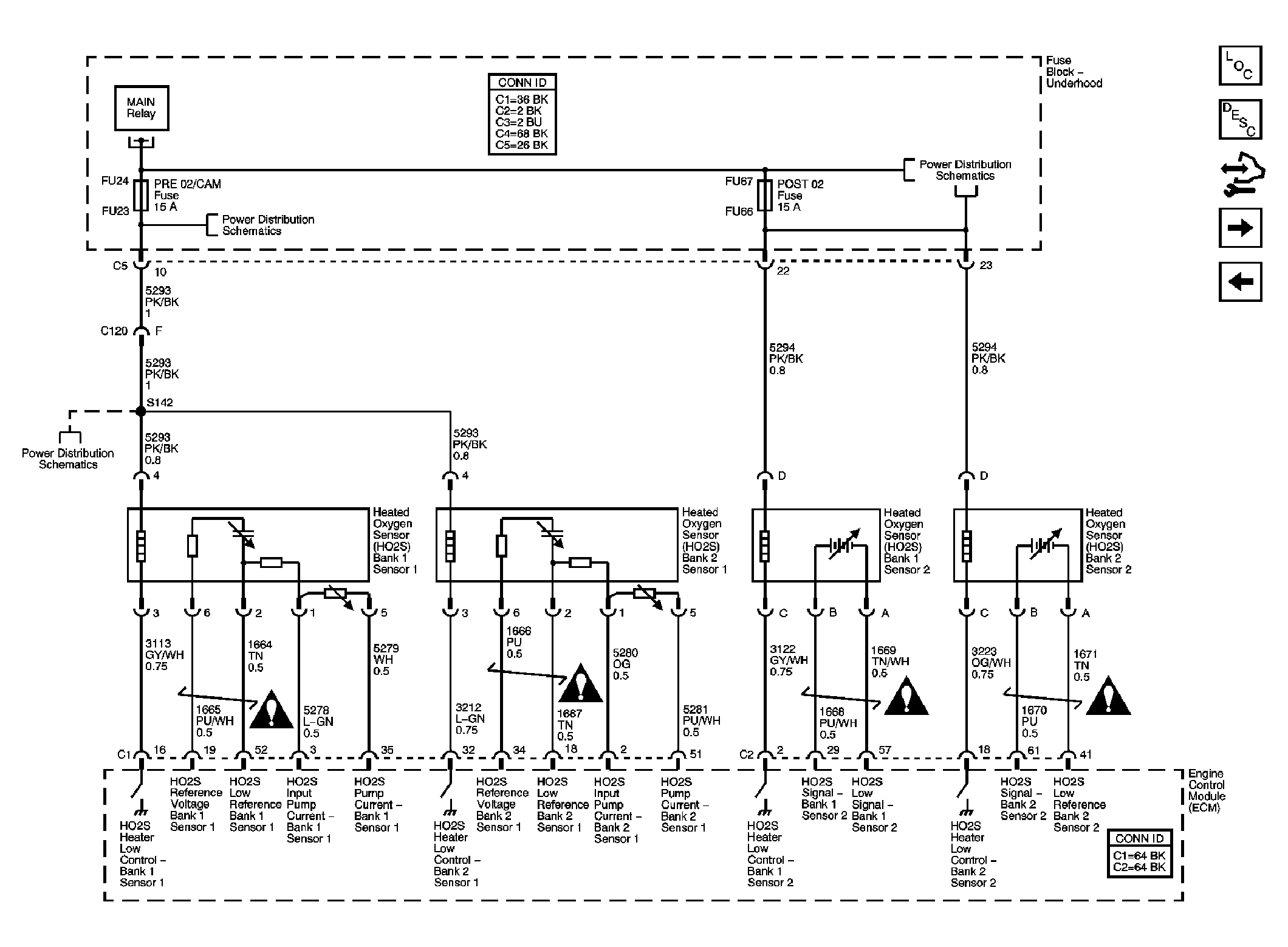

Fig 5: Engine Data Sensors - Heated Oxygen Sensors (HO2S)

Courtesy of GENERAL MOTORS CORP.

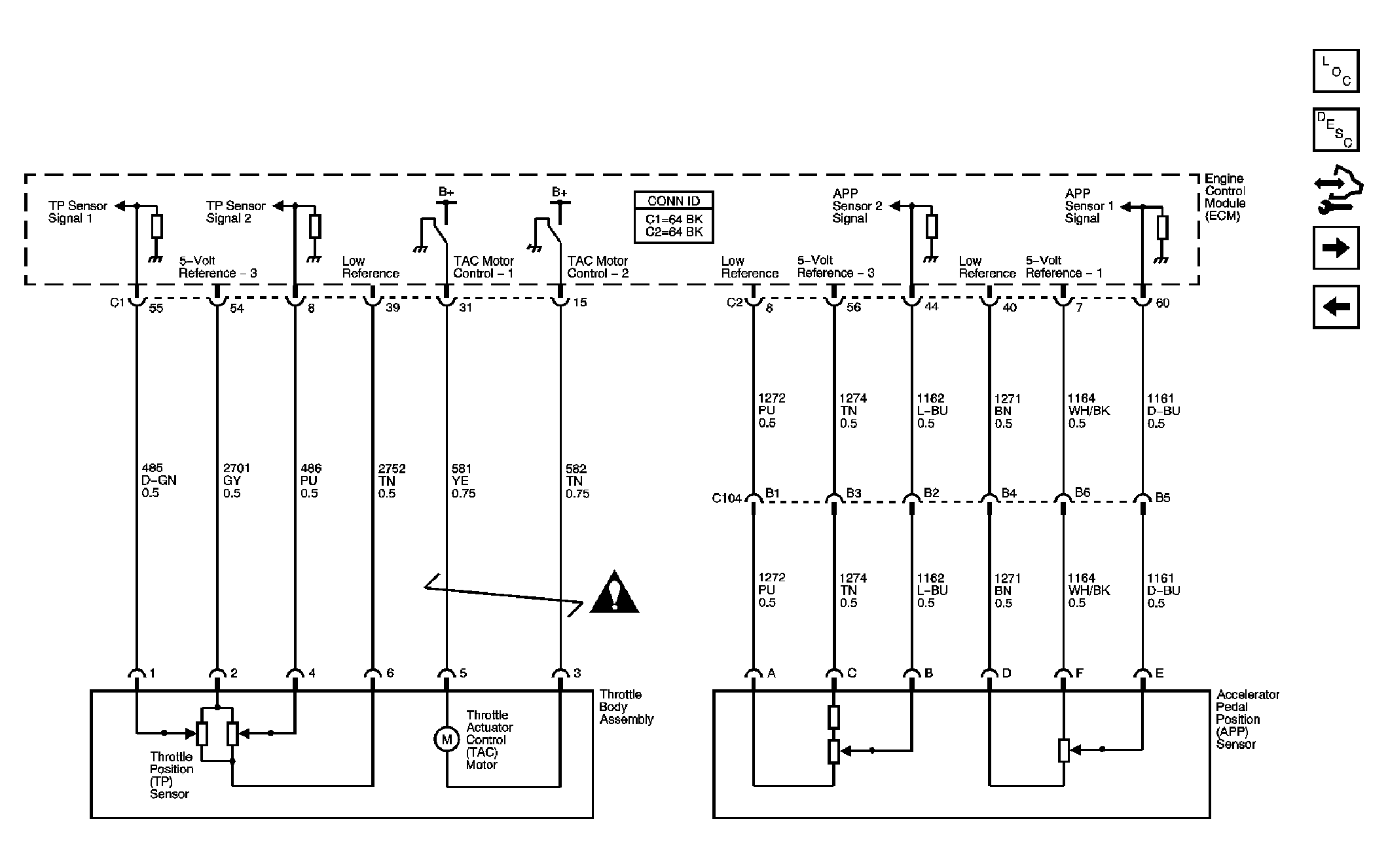

Fig 6: Engine Data Sensors - Throttle Actuator Control (TAC) System

Courtesy of GENERAL MOTORS CORP.

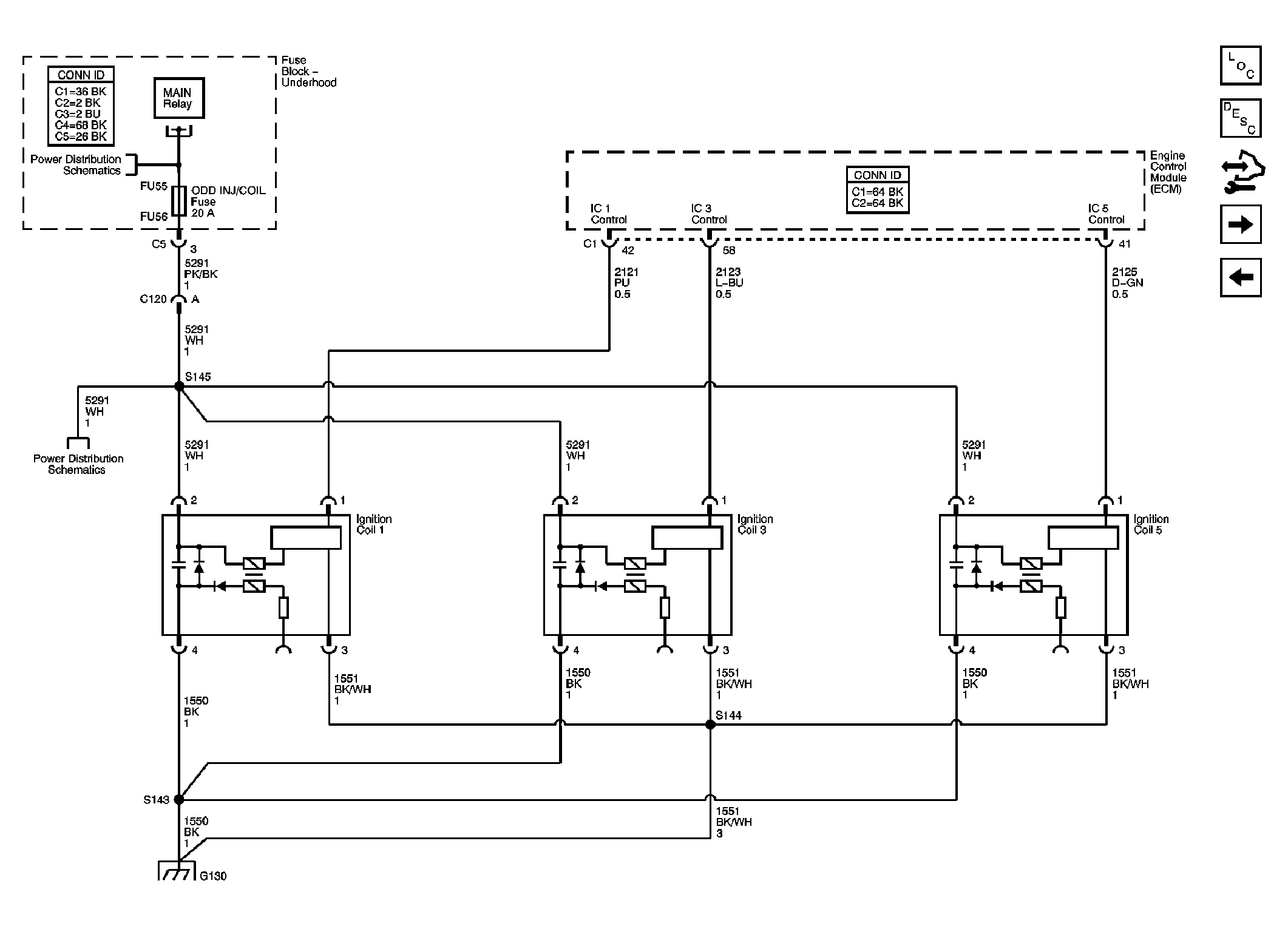

Fig 7: Ignition Controls - Bank 1 IGN Coils

Courtesy of GENERAL MOTORS CORP.

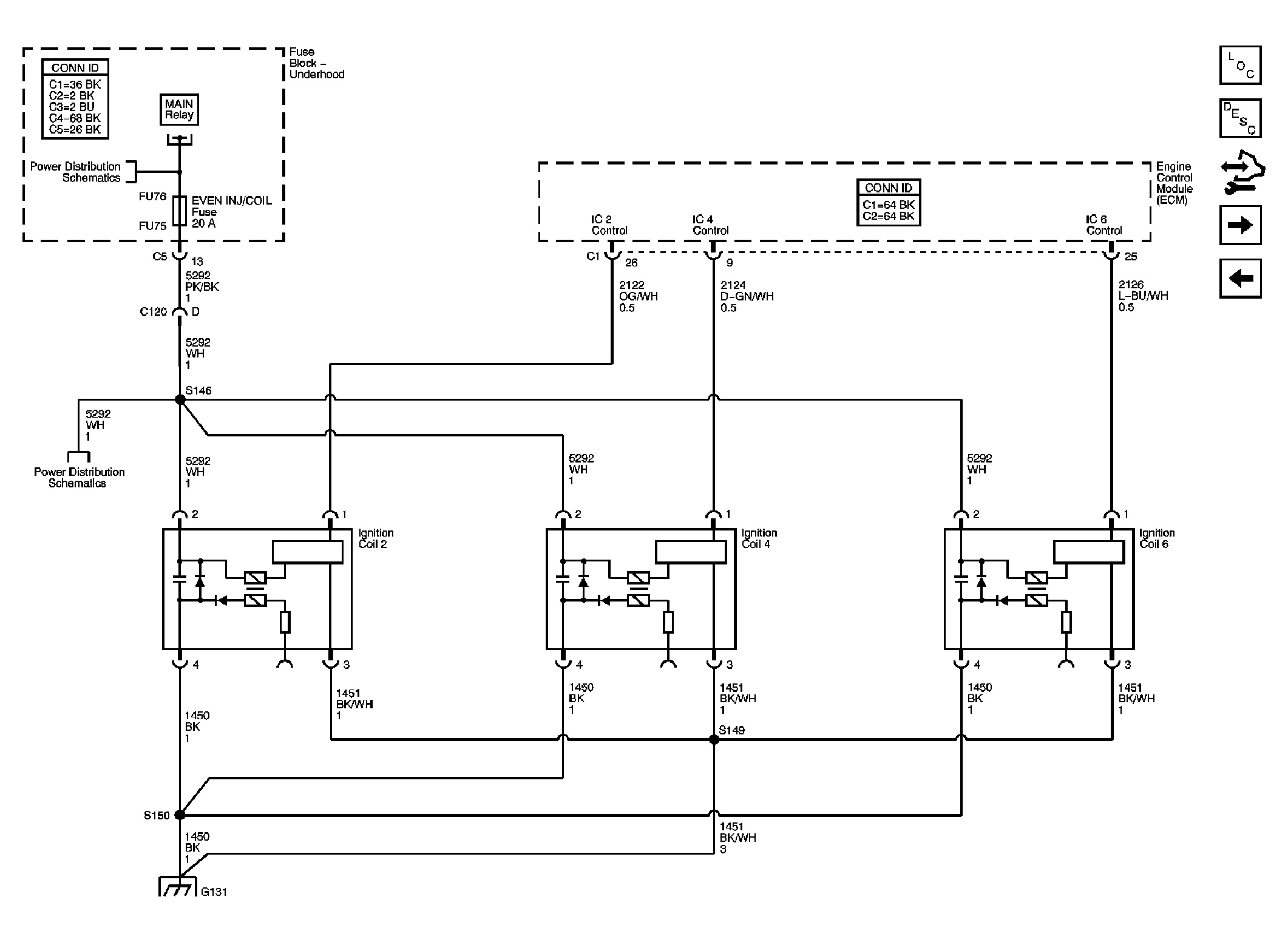

Fig 8: Ignition Controls - Bank 2 IGN Coils

Courtesy of GENERAL MOTORS CORP.

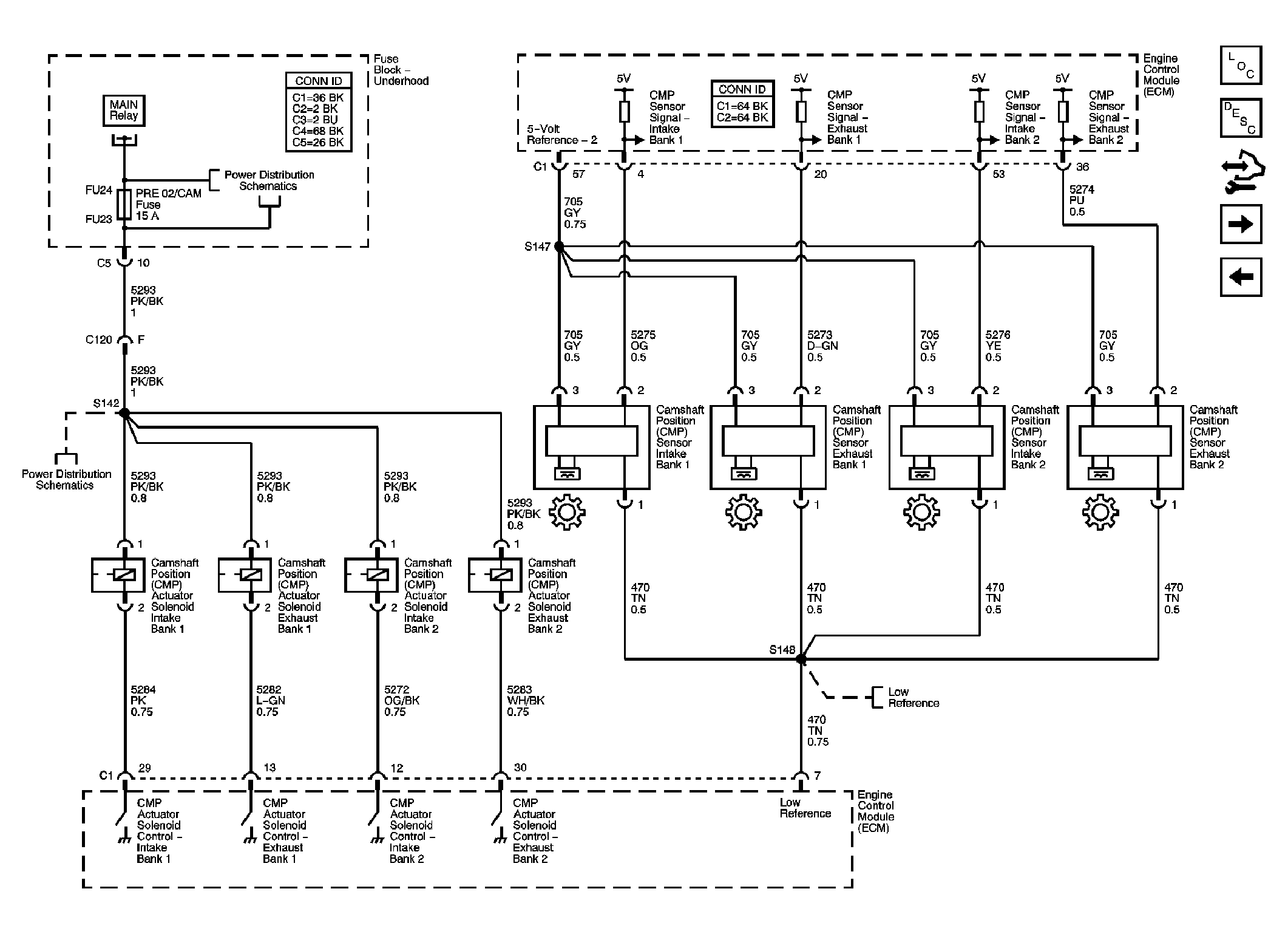

Fig 9: Ignition Controls - Sensors and CMP Actuator Solenoids

Courtesy of GENERAL MOTORS CORP.

Fig 10: Ignition Controls - Crankshaft Position Sensor (CKP) and Knock Sensors (KS)

Courtesy of GENERAL MOTORS CORP.

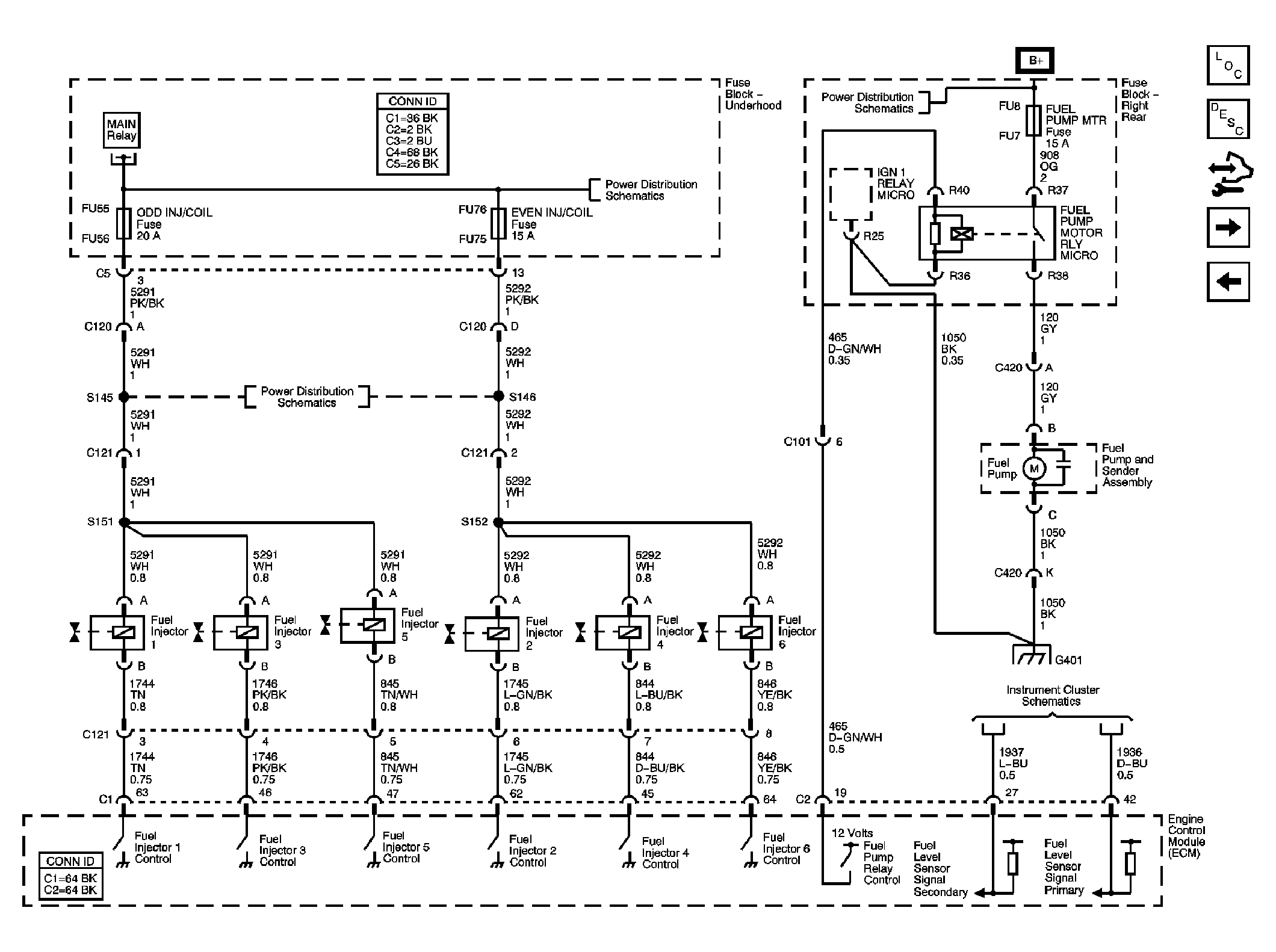

Fig 11: Fuel Controls - Fuel Injectors, Fuel Pump and Sender Assembly

Courtesy of GENERAL MOTORS CORP.

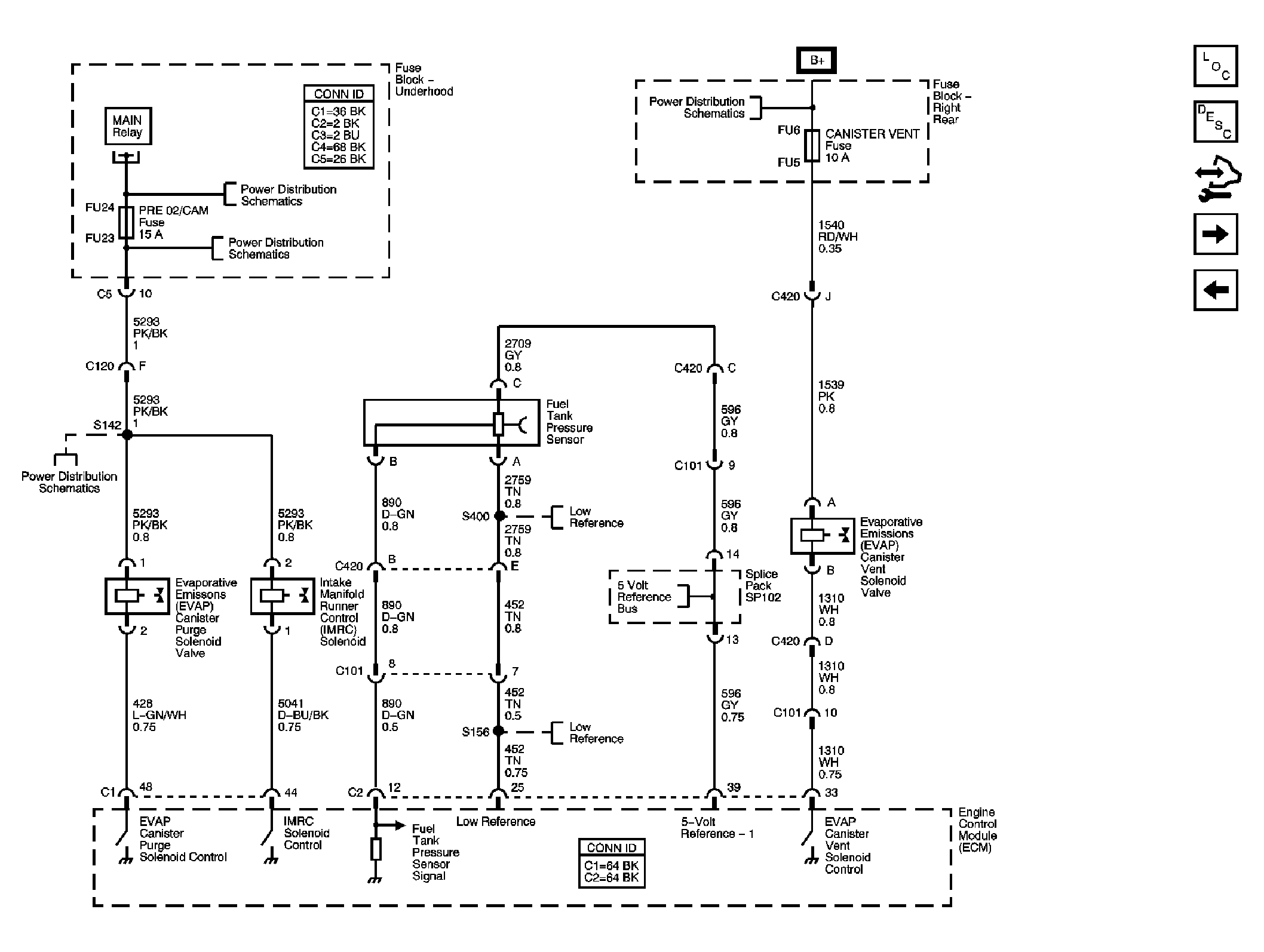

Fig 12: Fuel Controls - EVAP Controls and IMRC Solenoid

Courtesy of GENERAL MOTORS CORP.

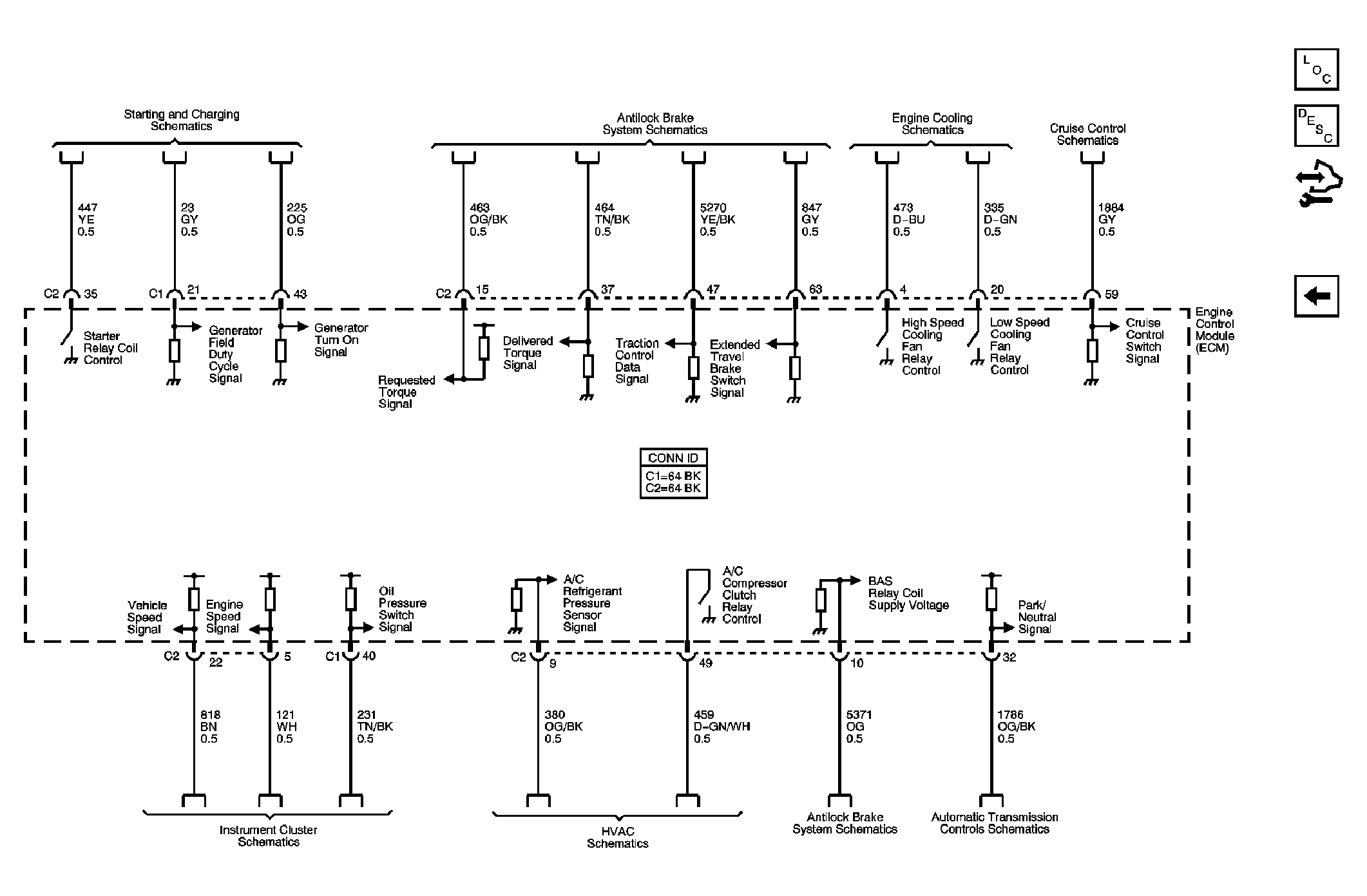

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
