Door Control Module Schematics

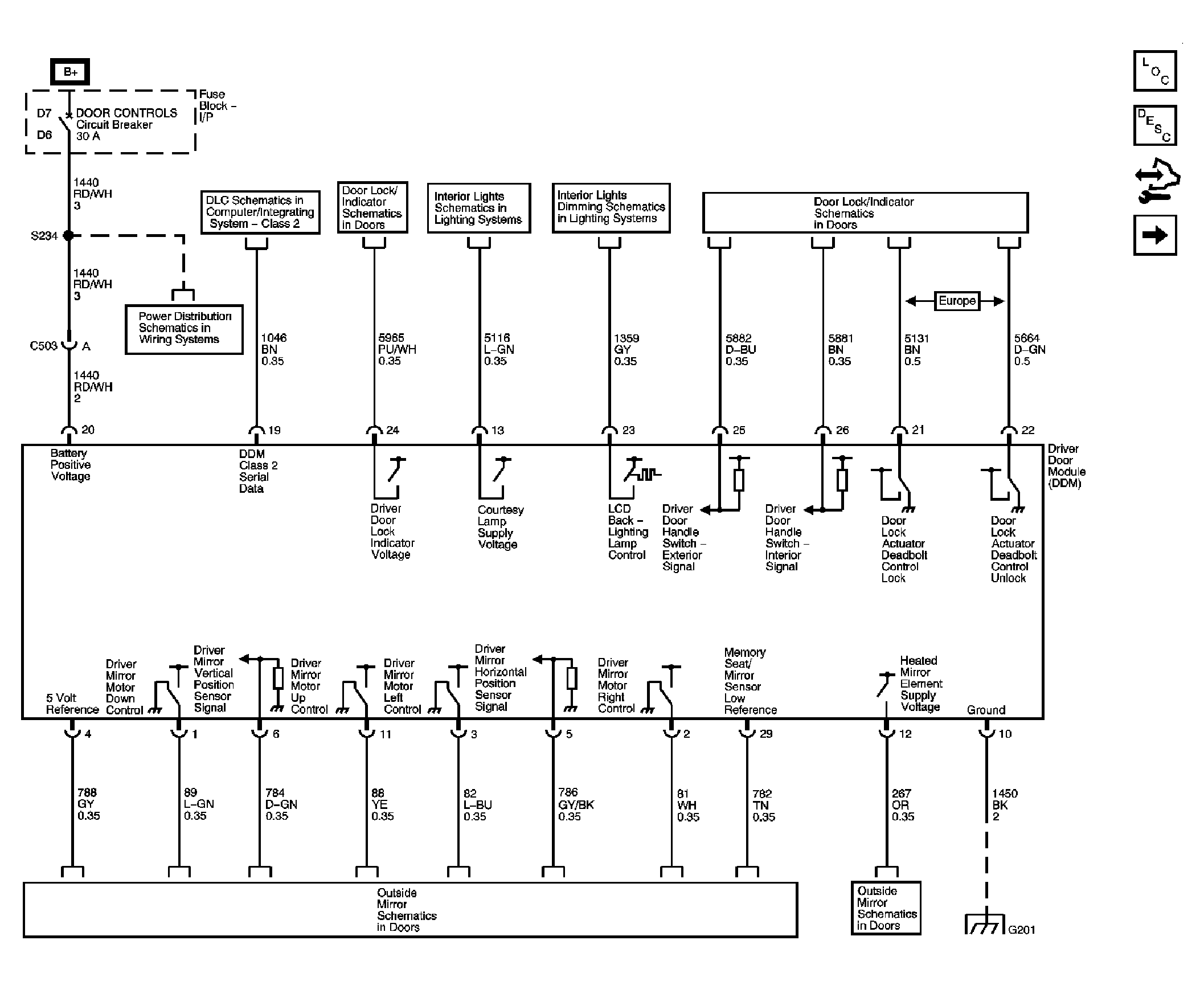

Fig 1: Driver

Courtesy of GENERAL MOTORS CORP.

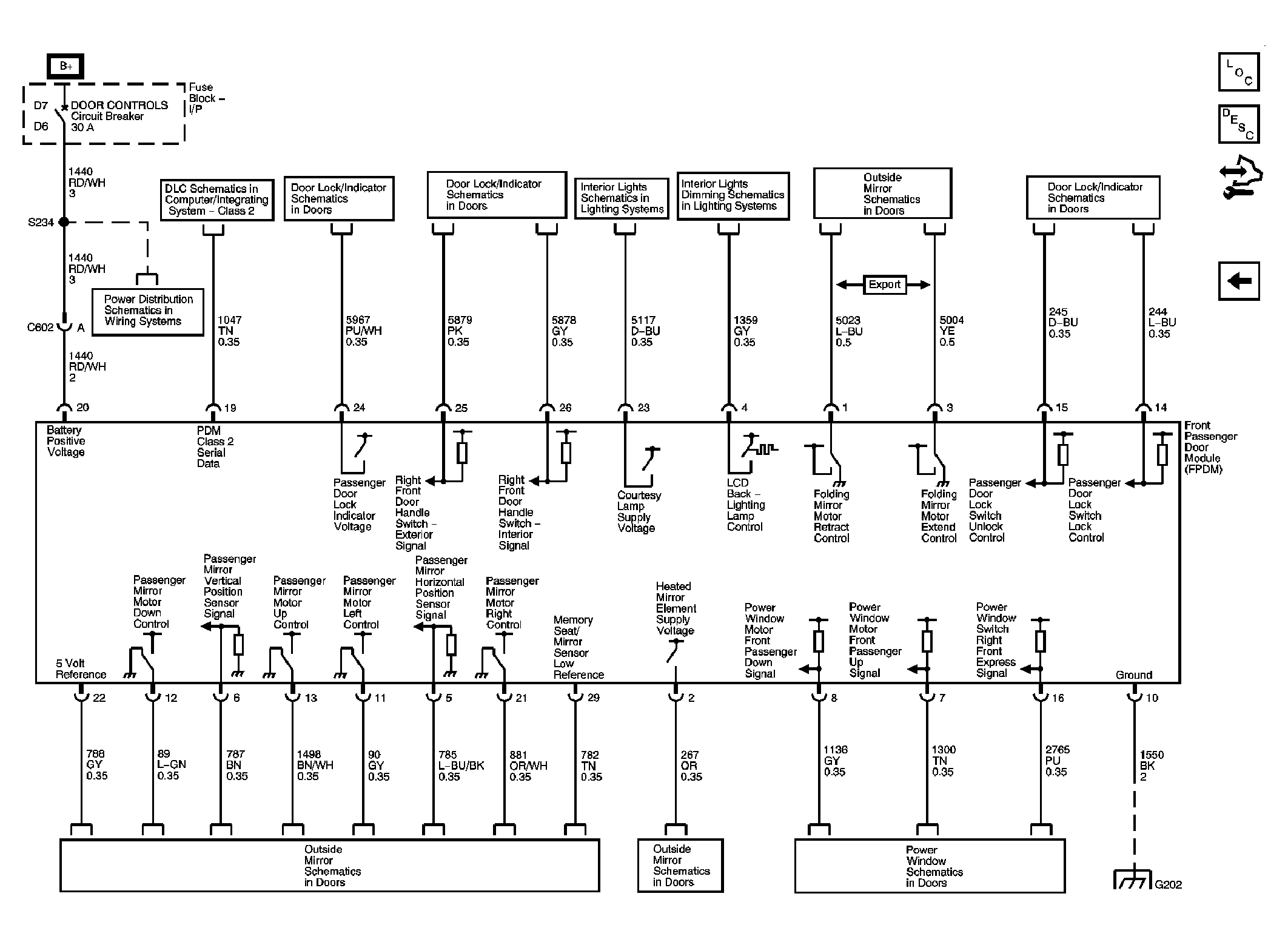

Fig 2: Passenger

Courtesy of GENERAL MOTORS CORP.
