Engine Controls Schematics

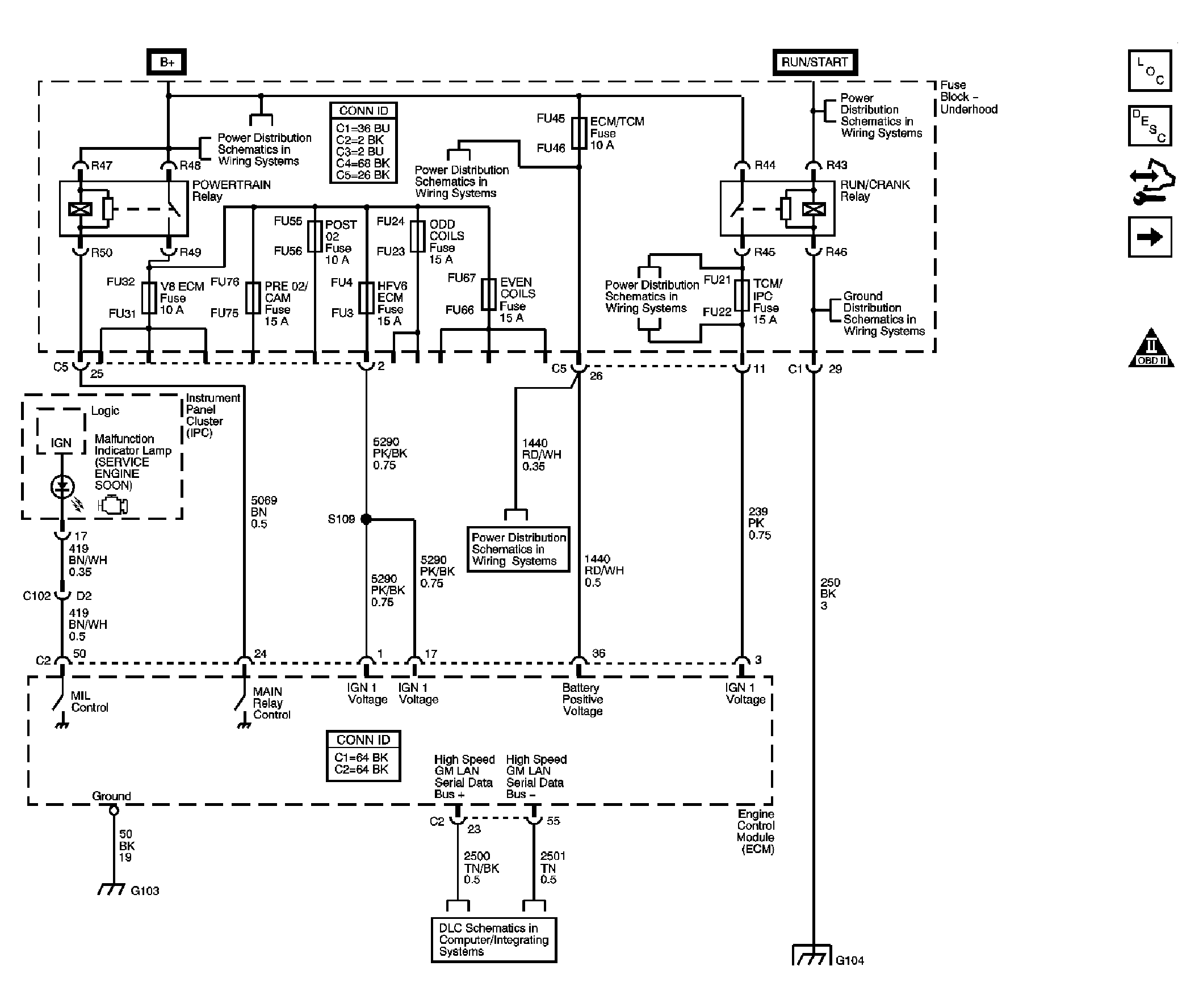

Fig 1: ECM Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

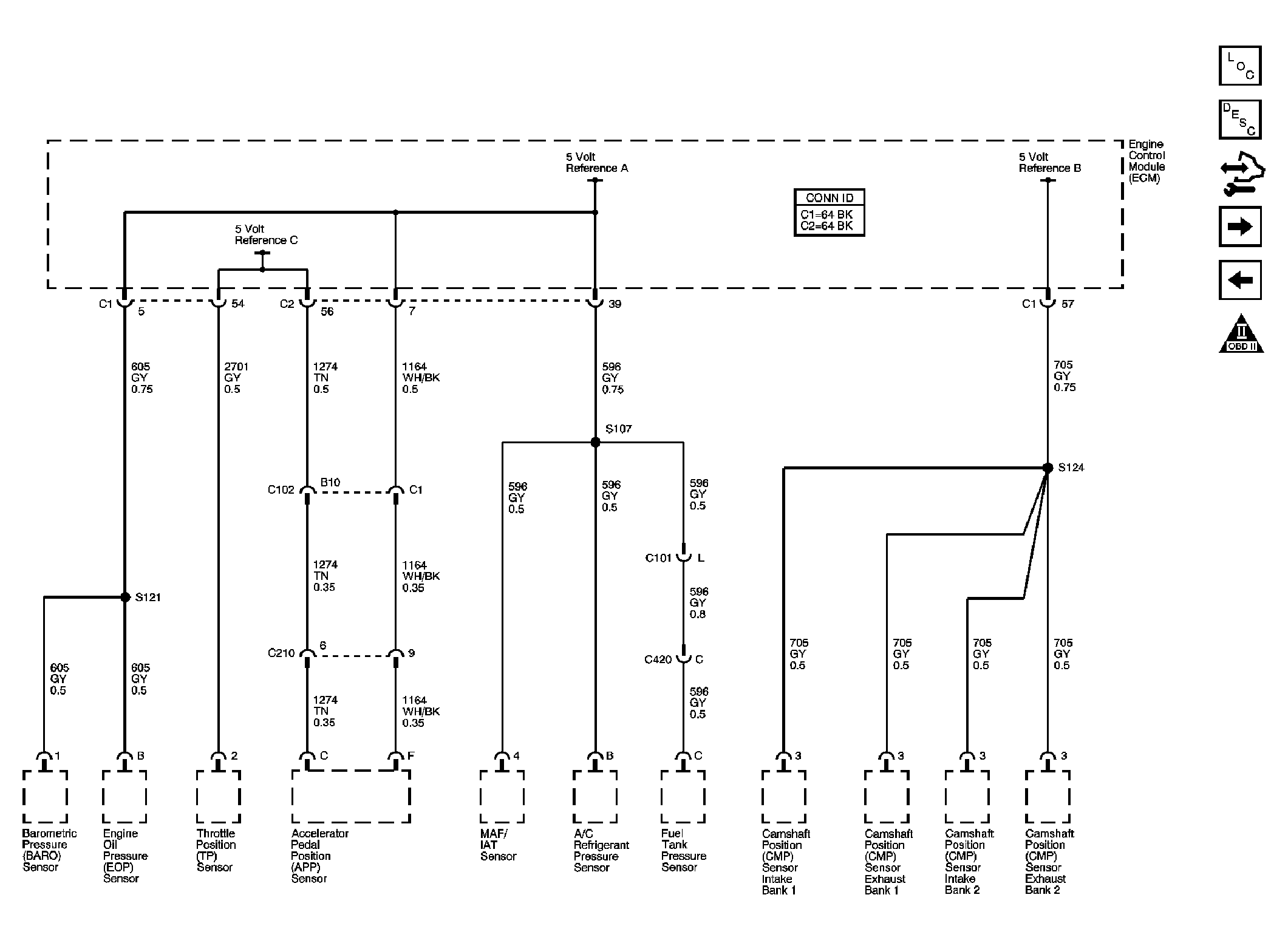

Fig 2: Engine Data Sensors - 5-Volt Reference Bus

Courtesy of GENERAL MOTORS CORP.

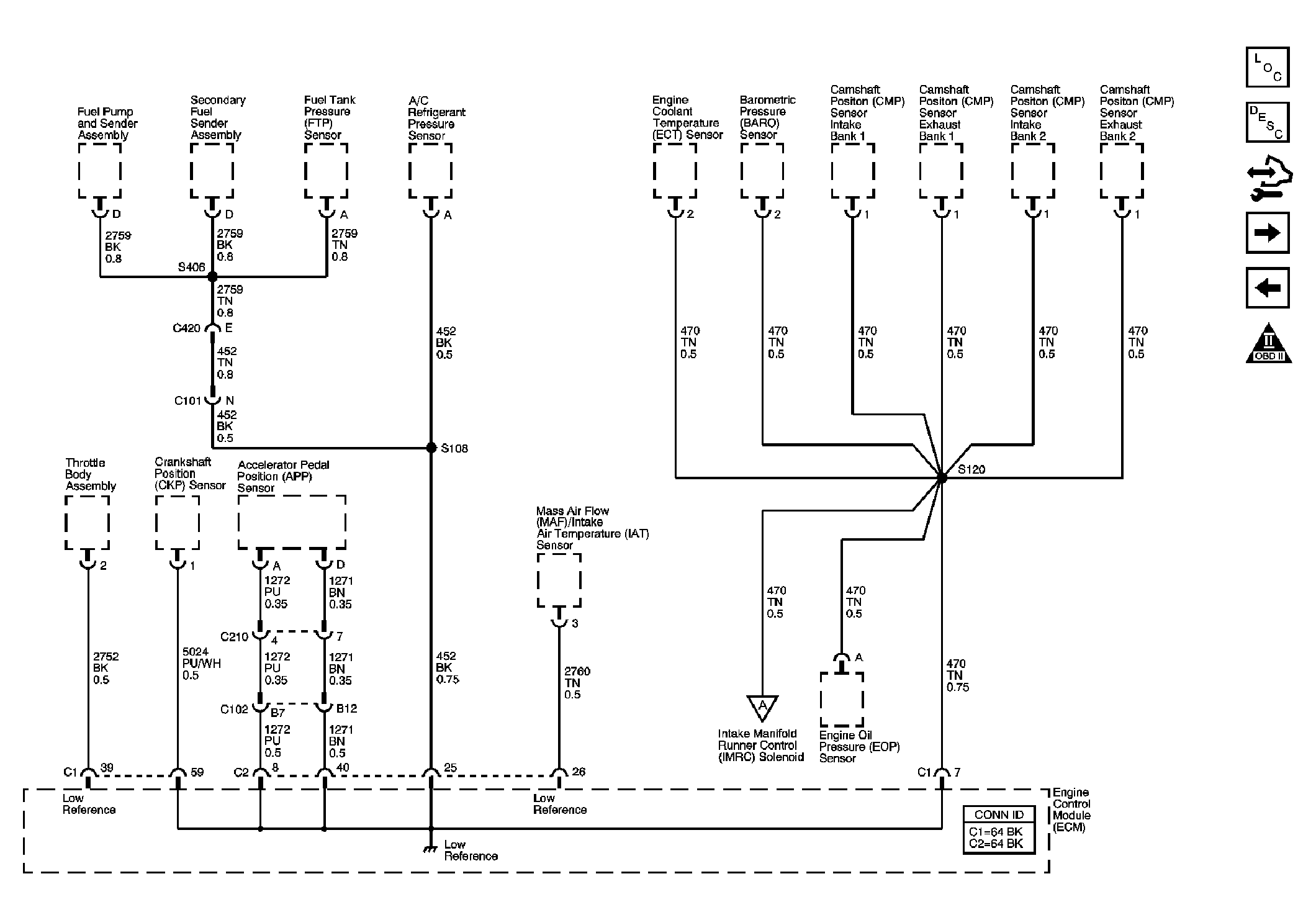

Fig 3: Engine Data Sensors - Low Reference Bus

Courtesy of GENERAL MOTORS CORP.

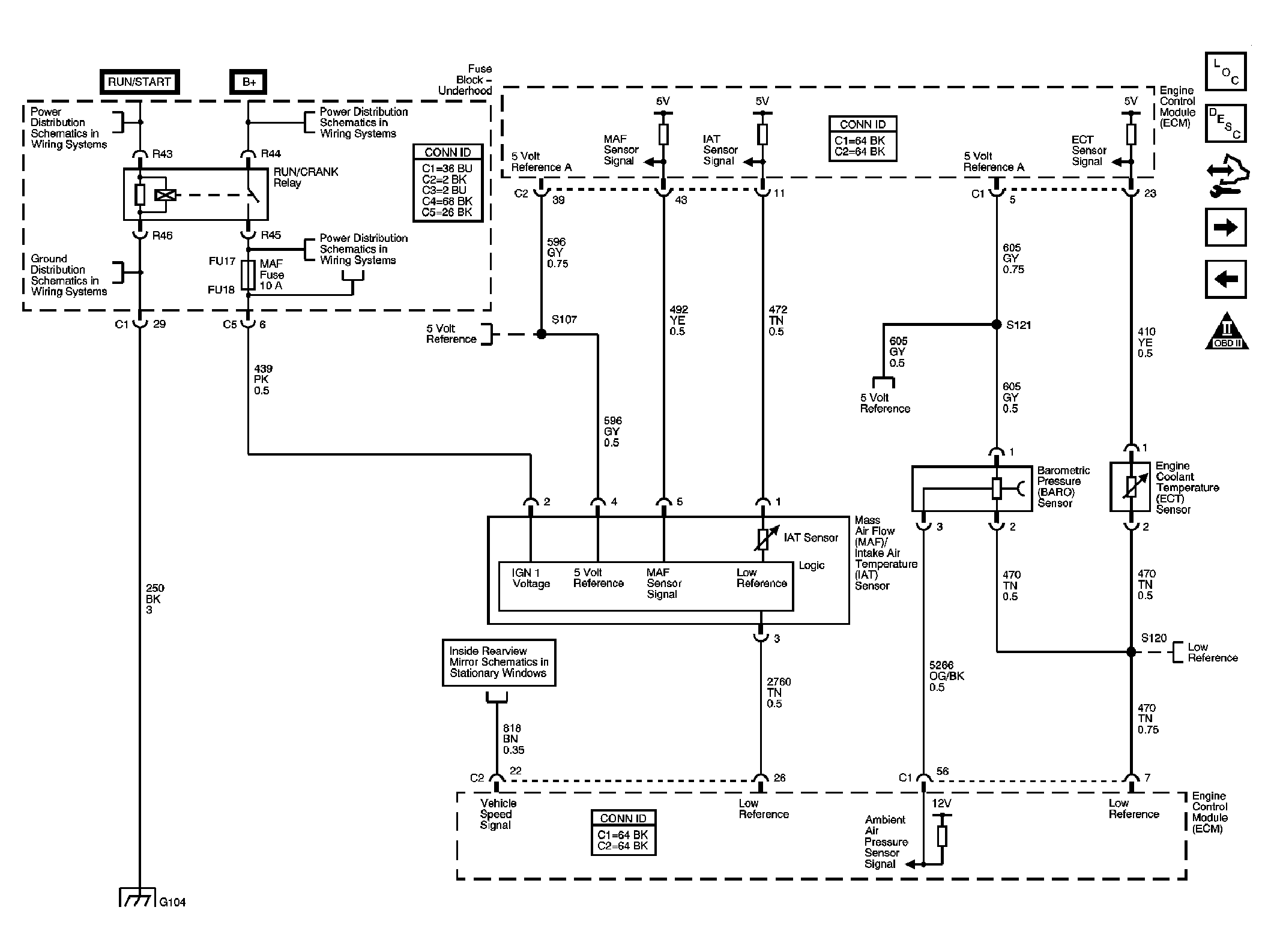

Fig 4: Engine Data Sensors - Pressure, Temperature, MAF, VSS

Courtesy of GENERAL MOTORS CORP.

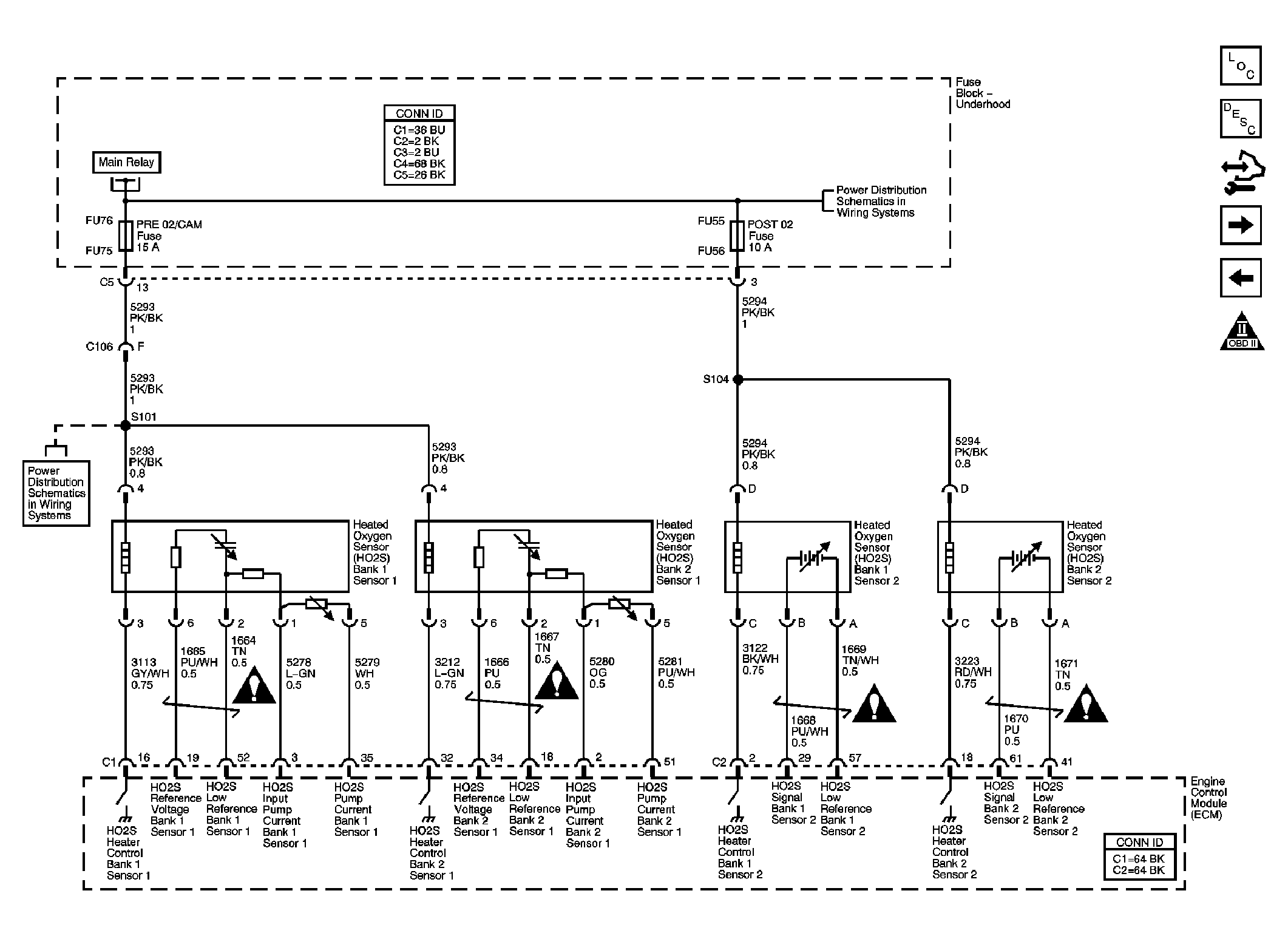

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

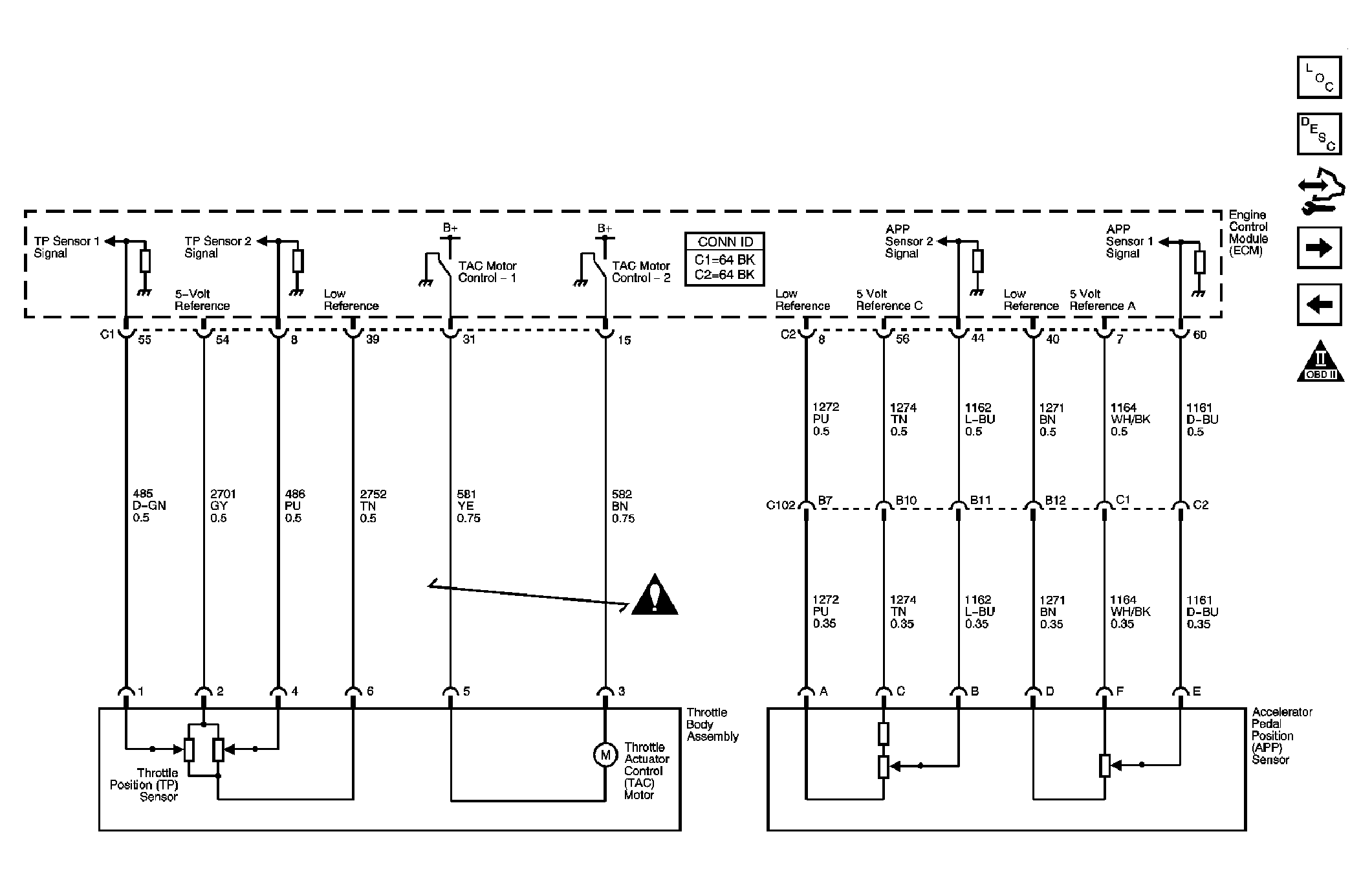

Fig 6: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

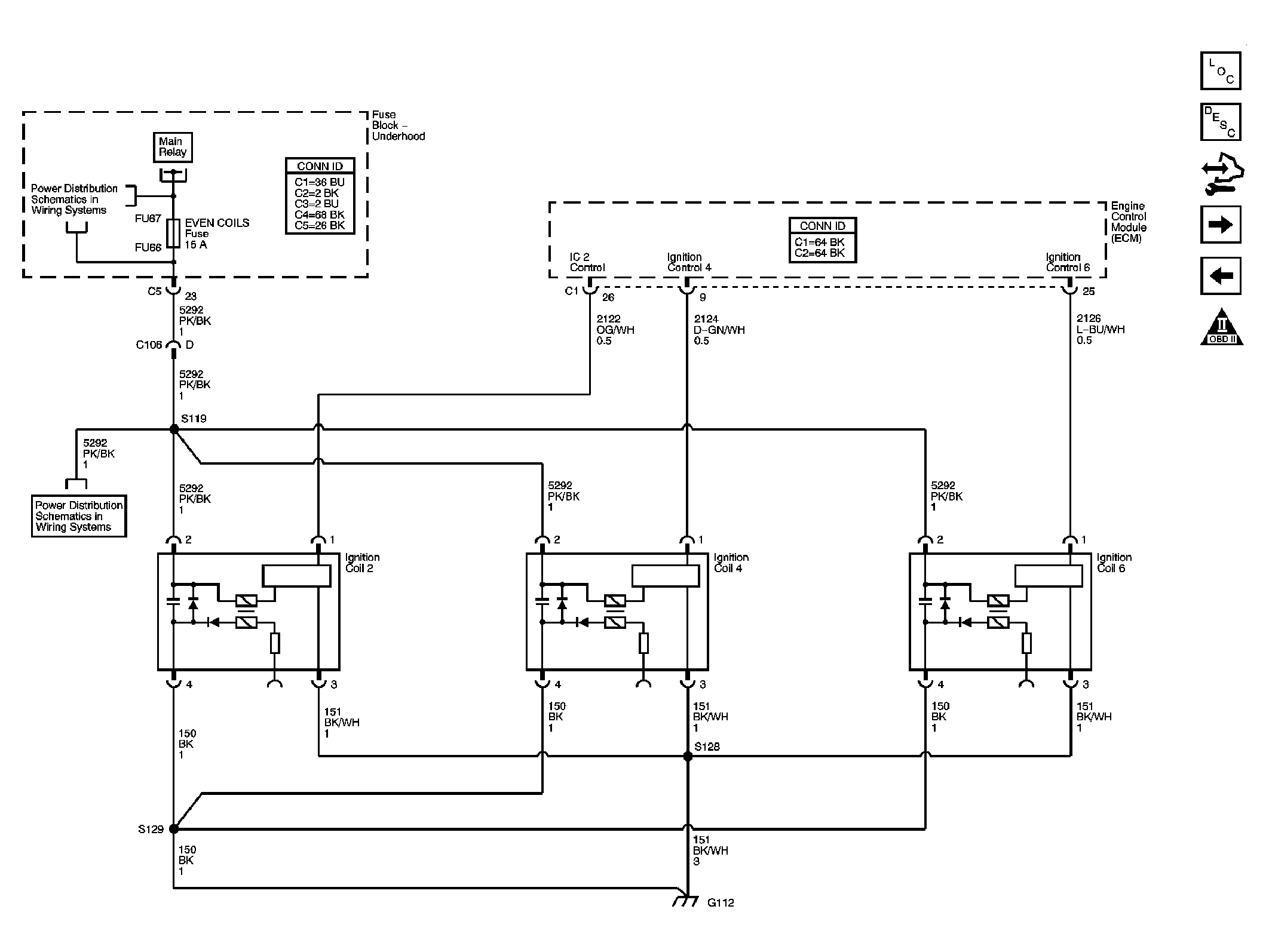

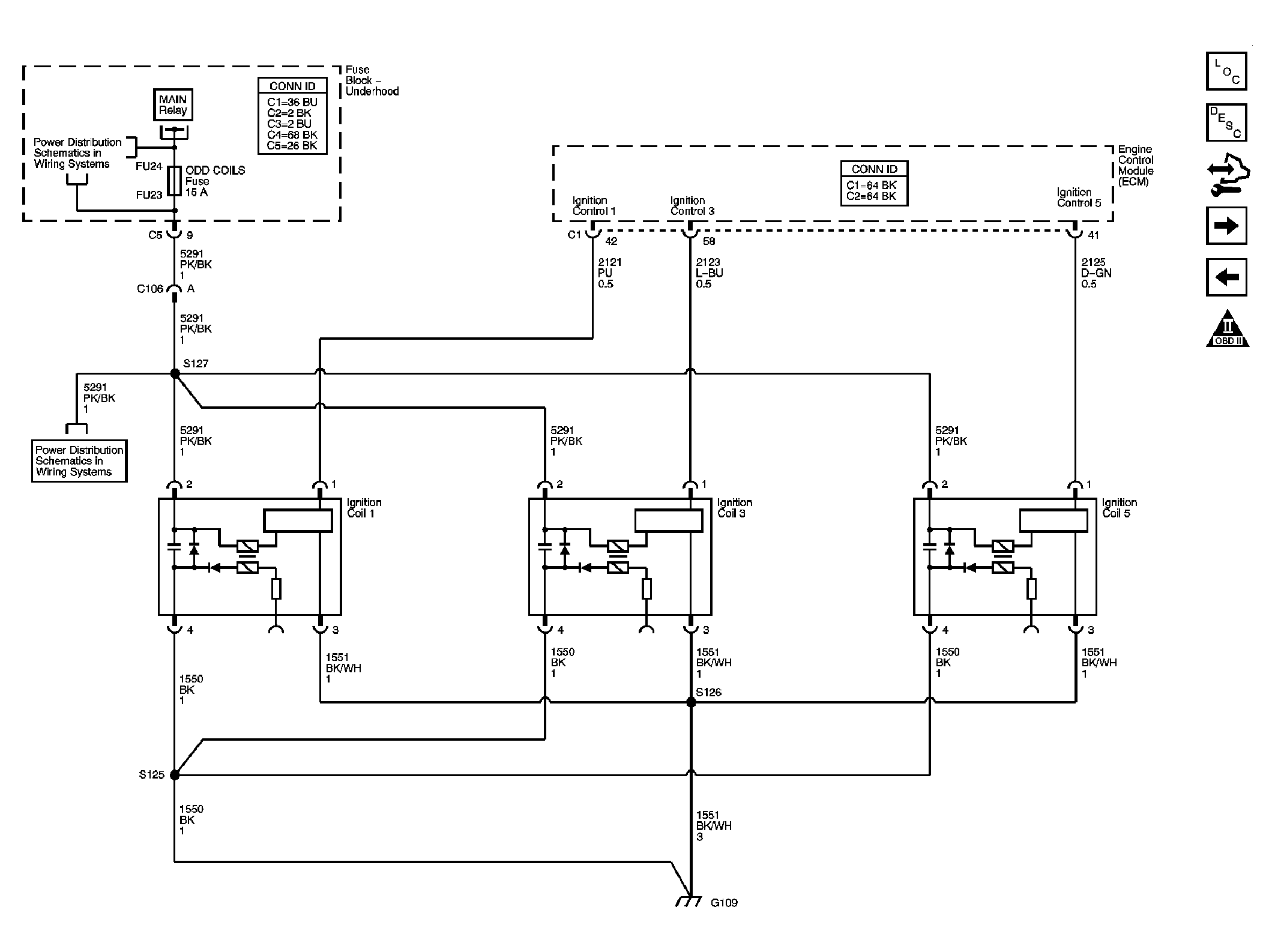

Fig 7: Ignition Controls - Bank 1 Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Bank 2 Ignition Coils

Courtesy of GENERAL MOTORS CORP.

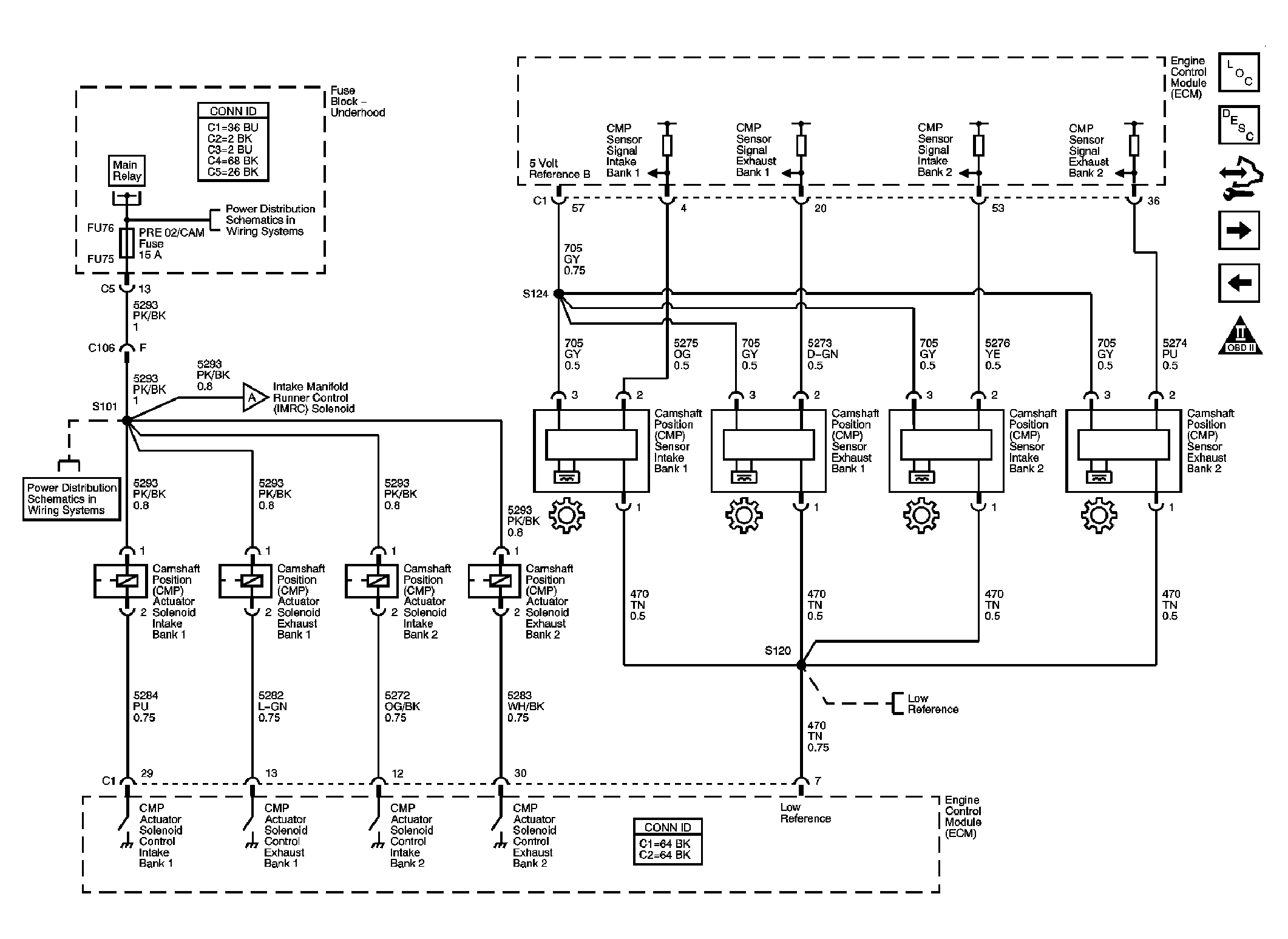

Fig 9: Ignition Controls - CMP Sensors and Solenoids

Courtesy of GENERAL MOTORS CORP.

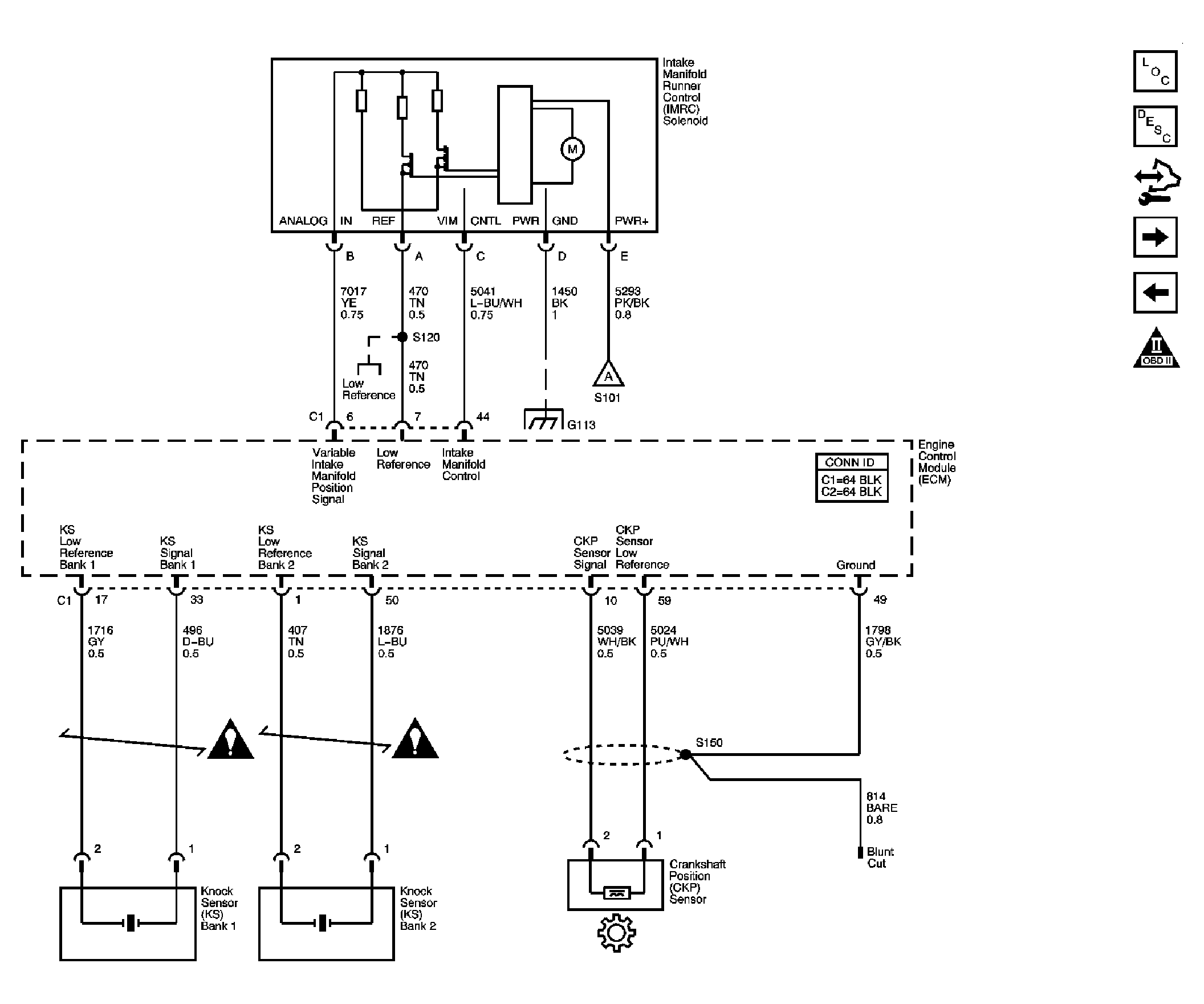

Fig 10: Ignition Controls - CKP, Knock Sensors and IMRC Solenoid

Courtesy of GENERAL MOTORS CORP.

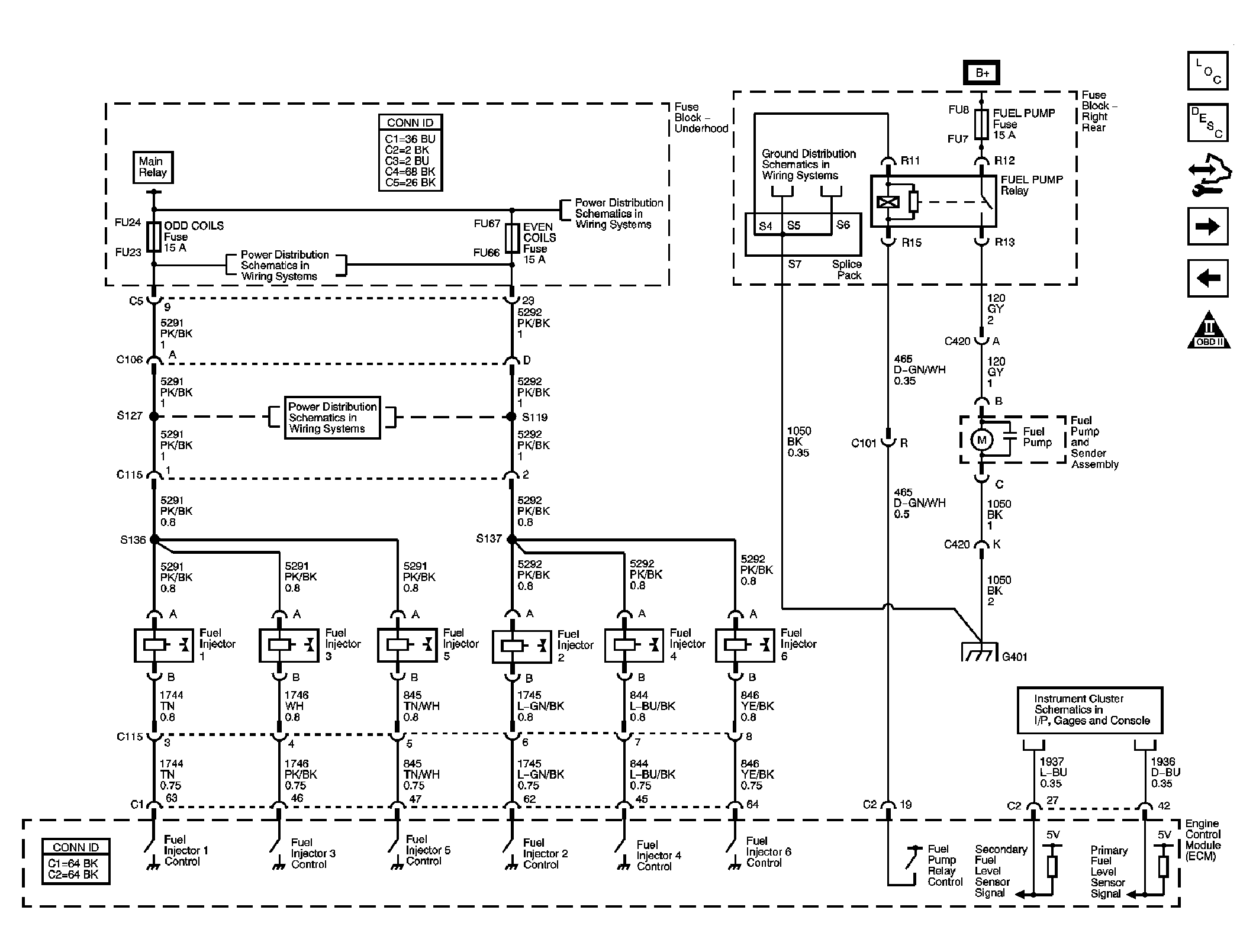

Fig 11: Fuel Controls - Fuel Pump and Injectors

Courtesy of GENERAL MOTORS CORP.

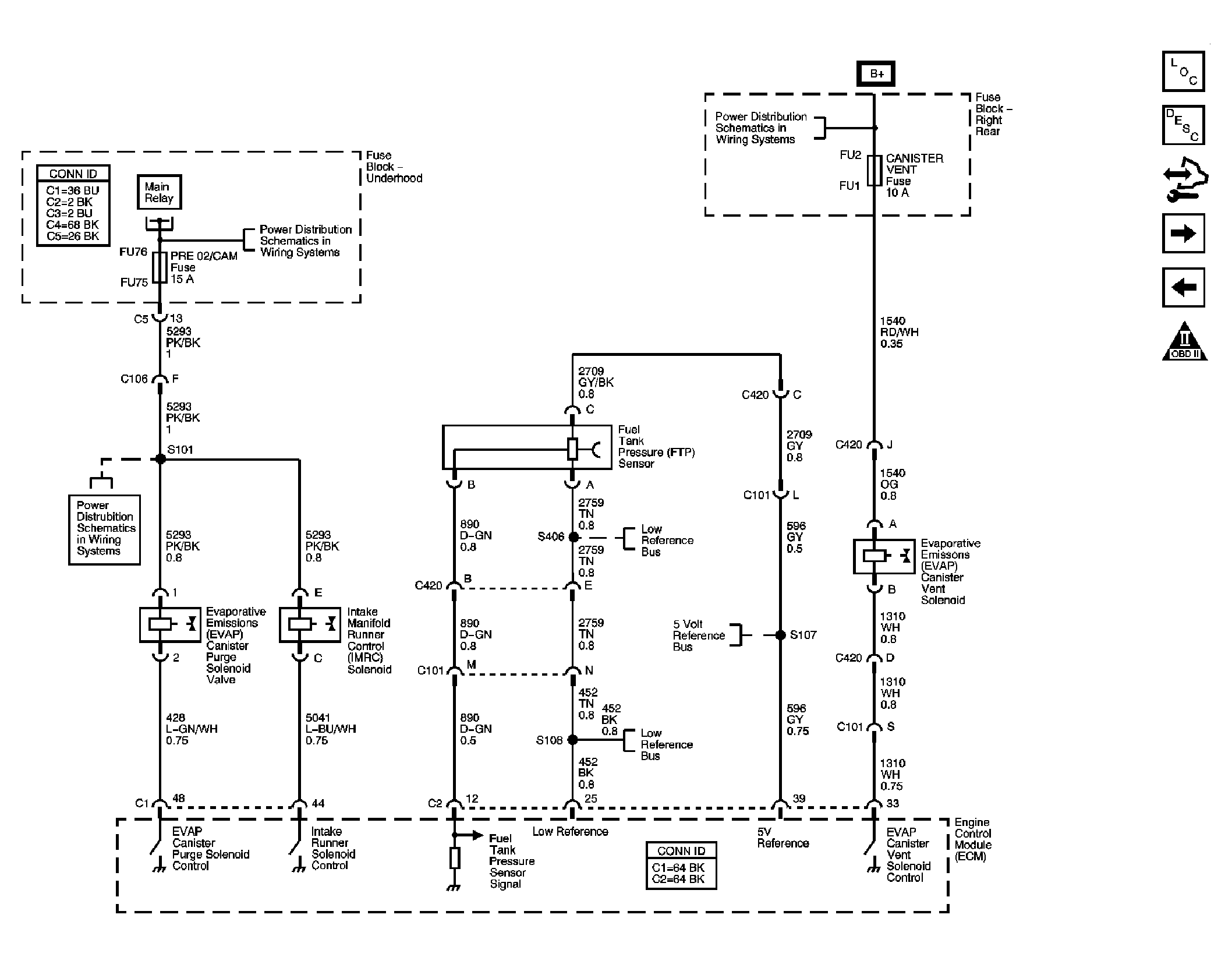

Fig 12: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
